  4. > [SHIMANO] Genuine Spare Parts for 25 Stile 101XG Product code: 048493 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 25 Stile 101XG Product code: 048493 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 25 Stile 101XG Product code: 048493 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

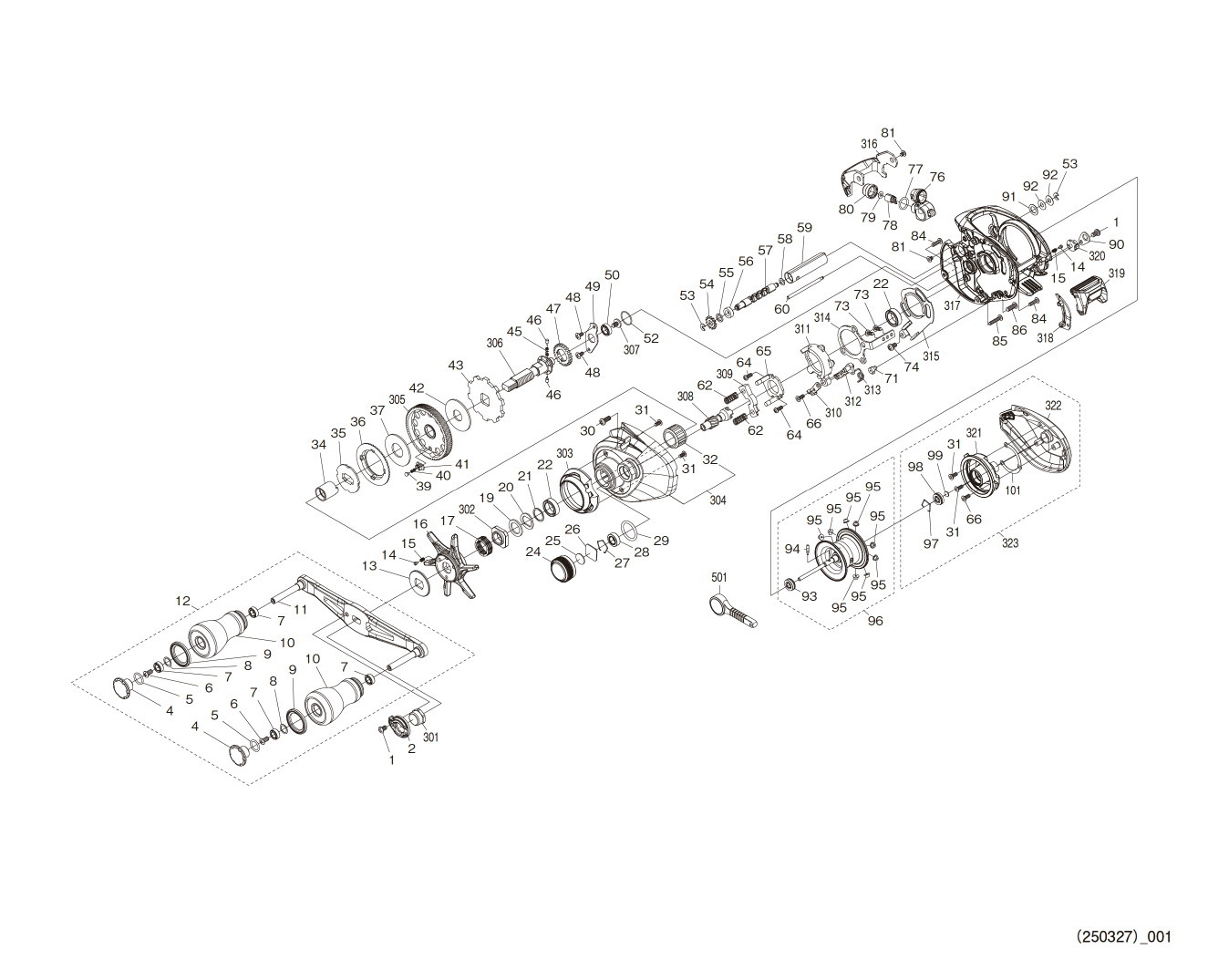

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* As for the "32 / ROLLER CLUTCH", "94 /SPOOL CLUTCH PIN" and "93 /BALL BEARING", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 10DN7 FIXING BOLT 1.65
2 1017T RETAINER 3.85
4 144SA HANDLE CAP 4.95
5 10LAA O-RING 1.10
6 103E9 FIXING BOLT 1.10
7 104VX BALL BEARING (4X7X2.5) 13.75
8 104FH WASHER 2.20
9 10S9X WASHER 1.65
10 13E8J HANDLE KNOB 11.55
11 14BJT HANDLE SHAFT ASSEMBLY 47.30
12 14BJU HANDLE ASSEMBLY 97.90
13 101JC STARDRAG CLICK PLATE 1.65
14 10B27 CLICK PIN 1.65
15 10988 CLICK SPRING 1.65
16 148MC STARDRAG 20.35
17 10A78 STARDRAG SPRING 2.75
19 10J1N STARDRAG SPACER 1.65
20 10D60 MAIN GEAR WASHER (C) 1.65
21 10EFM STAR DRAG BEARING WASHER 1.65
22 10EX8 BALL BEARING (8 X 12 X 3.5) 13.75
24 148M3 MECHANICAL BRAKE KNOB 20.35
25 10896 MECHANICAL BRAKE WASHER 1.10
26 1085F MECHANICAL BRAKE WASHER 1.10
27 1057X EXTRACTION STOPPER 1.65
28 105BR BALL BEARING (5 X 9 X 3) 13.75
29 10LA9 O-RING 1.65
30 10SMM FIXING BOLT 1.10
31 1055J FIXING BOLT 1.65
32 10TM8 ROLLER CLUTCH *Cannot be ordered 17.05
34 10RZH ROLLER CLUTCH INNER TUBE 9.90
35 10D55 STAR DRAG PLATE 6.05
36 10JB0 DRAG CLICK RATCHET 2.75
37 10CKS STAR DRAG WASHER 6.05
39 10C0T DRAG CLICK PIN 2.75
40 10J8A DRAG CLICK SPRING 1.65
41 10J87 DRAG SPRING HOLDER 1.65
42 10CJ4 STAR DRAG WASHER (A) 3.85
43 10R5Z STOPPER GEAR 2.75
45 10JDX WORM SHAFT GEAR SPRING 1.65
46 10HJF WORM SHAFT GEAR PIN 1.65
47 10EE3 WORM SHAFT GEAR 1.10
48 10MT2 FIXED BOLT 1.10
49 10RZG DRIVE GEAR SHAFT FIXING PLATE 1.65
50 104JZ BALL BEARING (5 X 8 X 2.5) 13.75
52 10SZ4 O-RING 1.65
53 105NC TYPE E STOPPER RING 2 1.10
54 10EEL WORM SHAFT GEAR 1.10
55 10J1J WASHER 1.10
56 10PXY HANDLE GRIPPED BUSH (B) 1.65
57 10EET WORM SHAFT 2.75
58 10GHF WASHER 1.10
59 10NFW LEVEL WINDING PIPE 1.65
60 10RZL LEVEL WINDING ROD 3.30
62 104BJ CLUTCH YOKE SPRING 1.10
64 10LVH CLUTCH CAM FIXING BOLT 1.10
65 10EE6 CLUTCH CAM PUSH PLATE 8.80
66 10559 FIXED BOLT 1.65
71 10EDY CLUTCH SPRING HOLDER 1.10
73 101LH FIXED BOLT 1.10
74 10DSZ FIXED BOLT 1.10
76 10NYH LEVEL WINDING ASSEMBLY 22.55
77 108WQ O RING 1.65
78 100BT WORM SHAFT PIN 2.75
79 10CFV WASHER 1.10
80 10FJB LEVEL WINDING RECEPTACLE 1.65
81 10S2Y FIXED BOLT 1.10
84 1055A FIXED BOLT 1.65
85 10TGT FIXED BOLT 1.10
86 103DF FIXED BOLT 1.10
90 10BGQ BODY B CAM LEVER PUSH PLATE 1.65
91 10J4L WASHER 1.10
92 144QV WASHER 1.10
93 104VP BALL BEARING (4X8X3) *Cannot be ordered 13.75
94 10MCZ SPOOL CLUTCH PIN *Cannot be ordered 2.75
95 13SFV BRAKE COLLAR (M) RED 1.10
96 14BJY SPOOL ASSEMBLY 107.80
97 10GEW BEARING EXTRACTION STOP 1.10
98 13RQS BALL BEARING (3X10X4) 13.75
99 1057Q SPOOL SHAFT CONTACT TALLY (B) 1.10
101 148KH WASHER 1.10
301 148MF HANDLE FIXING NUT 8.80
302 10EEG STAR DRAG FIXING NUT 4.40
303 10RZF BODY A NAMEPLATE 3.85
304 14BK4 BODY A ASSEMBLY 68.20
305 10RZQ DRIVE GEAR 29.70
306 148M9 DRIVE GEAR SHAFT 12.65
307 10PVU FIXING BOLT 1.65
308 10RZW PINION GEAR 23.10
309 10EE4 CLUTCH YOKE 1.10
310 10RWF CLUTCH CLAW (B) 1.65
311 10SKS CLUTCH CAM 2.75
312 10RWC CLUTCH CLAW (A) 1.65
313 101A6 CLUTCH CLAW SPRING 1.65
314 10RZN CLUTCH PLATE 2.20
315 10EEC BODY A SHEET 1.10
316 148LM LEVEL WINDING GUARD 16.50
317 14BK5 FRAME ASSEMBLY 174.90
318 10EE2 CLUTCH LEVER RECEIVER 1.10
319 14BK6 CLUTCH LEVER ASSEMBLY 11.00
320 10BAV BODY B CAM LEVER 2.75
321 14BK7 FRAME B RECEIVER ASSEMBLY 39.60
322 148KW BODY B 39.05
323 14BK8 BODY B ASSEMBLY 90.20
501 10NC0 REEL WRENCH 1.65
