[DAIWA] Genuine Spare Parts for 25 LEOBRITZ 400JL Product code: 00810053 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability

Part Number:

Quantity:

Return & Exchange Policy

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.

*Please make sure to read about the conditions before you order.

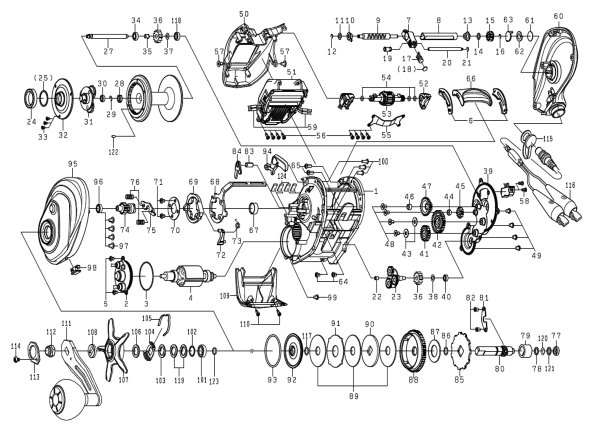

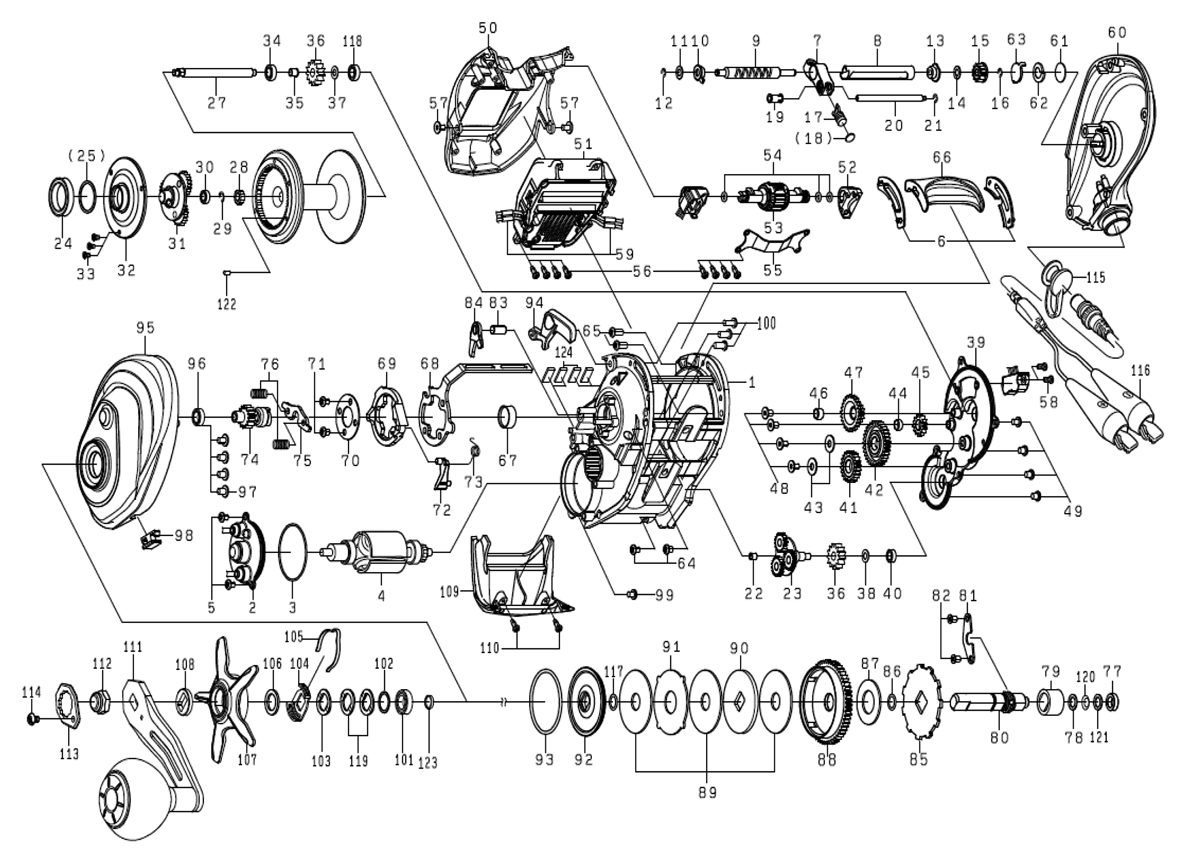

　Reel Part's Schematic Diagram

No.	Part Name	Part Code	Price (USD)
1	FRAME *Cannot be ordered	6M730501	132.00
2	MOTOR HOLDER *Cannot be ordered	6Z028086	86.90
3	MOTOR HOLDER O-RING	6H055901	1.10
4	MOTOR *Cannot be ordered	6Z027999	63.80
5	MOTOR HOLDER SC	6B557601	2.20
6	CLUTCH LEVER PLATE *Not available	6J997401	2.20
7	LEVEL WINDING	6M405601	18.70
8	WORM SHIELD	6M401601	7.70
9	WORM SHAFT	6M401701	15.40
10	WORM SHAFT COLLAR (A)	6G925601	2.20
11	WORM SHAFT W	6F889102	1.10
12	WORM SHAFT RETAINER	6B864101	2.20
13	WORM SHAFT COLLAR (B)	6J594601	2.20
14	WORM SHAFT GEAR W	6F889102	1.10
15	WORM SHAFT GEAR	6J998001	4.40
16	WORM SHAFT RETAINER	6B864101	2.20
17	POLE	6H168601	15.40
18	POLE W	6G099801	1.10
19	LEVEL WINDING POST COLLAR	6H168701	2.20
20	LEVEL WINDING POST	6M401801	2.20
21	LEVEL-WIND POST RETAINER	6B864101	2.20
22	MOTOR GEAR COLLAR	6J998201	2.20
23	MOTOR GEAR	6J998301	36.30
24	SPOOL PLATE BALL BEARING	6G055101	8.80
25	SPOOL PLATE BALL BEARING W	6G205501	1.10
26	SPOOL	6M705401	79.20
27	SPOOL SHAFT	6M402001	9.90
28	SPOOL SHAFT GEAR	6J999101	7.70
29	SPOOL SHAFT GEAR RETAINER	6F550501	2.20
30	SPOOL SHAFT BALL BEARING	6G281605	8.80
31	SPOOL GEAR	6J999201	55.00
32	SPOOL PLATE	6J999601	15.40
33	SPOOL PLATE SC	6H842802	2.20
34	SPOOL BALL BEARING (MAG SHIELD)	6B358605	8.80
35	SPOOL SHAFT COLLAR	6M386201	3.30
36	IDLE GEAR (A)	6J999701	6.60
37	SPOOL SHAFT BEARING W	63754101	1.10
38	IDLE GEAR W	63754103	1.10
39	SET PLATE	6M034001	53.90
40	IDLE GEAR BALL BEARING	6G281605	8.80
41	IDLE GEAR (B)	6J999901	18.70
42	IDLE GEAR (C)	6M000201	20.90
43	IDLE GEAR W	6F440201	1.10
44	IDLE GEAR (D) COLLAR	6H869601	3.30
45	IDLE GEAR (D)	6M000401	3.30
46	IDOL GEAR (E) COLORS	6H869602	3.30
47	IDOL GEAR (E)	6M000501	4.40
48	IDLE GEAR SC	6G940409	2.20
49	SET PLATE SC	6B557601	2.20
50	IC MODULE COVER *Cannot be ordered	6M402104	39.60
51	IC MODULE *Cannot be ordered	6M034106	278.30
52	JOG POWER LEVER HOLDER	6M000801	2.20
53	JOG POWER LEVER *Cannot be ordered	6M705502	20.90
54	JOG POWER LEVER O-RING	6J037601	1.10
55	JOG POWER LEVER PLATE	6M402301	2.20
56	COVER PLATE SC	6H717101	2.20
57	IC MODULE COVER SC	6G940409	2.20
58	SENSOR SC	6H158201	2.20
59	CORD COVER	6G079503	2.20
60	RS PLATE *Cannot be ordered	6M389101	86.90
61	MECHANICAL BRAKE KNOB W (A)	6F673802	1.10
62	MECHANICAL BRAKE KNOB W (B)	6J197401	2.20
63	MECHANICAL BRAKE KNOB W (C)	6J056901	1.10
64	RS PLATE SC (A)	6B557606	2.20
65	RS PLATE SC (B)	6B557617	2.20
66	CLUTCH LEVER (A)	6M402401	8.80
67	CLUTCH CAM BEARING	6M002201	2.20
68	CLUTCH CAM PLATE (A)	6M420501	4.40
69	CLUTCH CAM	6M034601	5.50
70	CLUTCH CAM PLATE (B)	6M002501	2.20
71	CLUTCH CAM PLATE SC	6B557601	2.20
72	KICK LEVER	6M034701	5.50
73	KICK LEVER SP	6J407801	2.20
74	PINION	6M034901	22.00
75	CLUTCH PLATE	6M035001	2.20
76	CLUTCH PLATE SP	6M164601	2.20
77	GEAR SHAFT COLLAR	6G006601	3.30
78	GEAR SHAFT W (A)	63753005	1.10
79	DRAG COLLAR	6M003101	3.30
80	GEAR SHAFT	6M381702	16.50
81	GEAR SHAFT PLATE	6M003301	2.20
82	GEAR SHAFT PLATE SC	6G786102	2.20
83	STOPPER PIN	6M003401	2.20
84	STOPPER	6M003501	6.60
85	RATCHET	6M003801	2.20
86	GEAR SHAFT O-RING	6F657801	1.10
87	DRIVE GEAR W	6G791403	4.40
88	DRIVE GEAR W	6M389301	27.50
89	DRAG W	6M011701	7.70
90	DRAG DISK W	6M004001	2.20
91	DRAG LIP W	6H471001	2.20
92	DRAG DISC COLLAR	6M004101	12.10
93	DRAG DISC COLLAR O-RING	6M004201	2.20
94	CLUTCH LEVER (B)	6M035201	11.00
95	LS PLATE	6M035309	90.20
96	PINION BALL BEARING	6G467102	8.80
97	PINION BALL BEARING SC	6H022701	2.20
98	LINE STOPPER	6E286001	2.20
99	LS PLATE SC (A)	6B557606	2.20
100	LS PLATE SC (B)	6B557617	2.20
101	HANDLE BALL BEARING	6G431004	8.80
102	HANDLE BEARING W	6B553801	1.10
103	DRAG SP・W （A)	61508901	2.20
104	DRAG HOLDER	6F862901	3.30
105	DRAG LEAF SP	6H933201	2.20
106	STAR DRAG W	6H929501	2.20
107	STAR DRAG	6M265504	28.60
108	HANDLE COLLAR	6F863202	3.30
109	FINGER COVER	6M402603	11.00
110	FINGER COVER SC	6H717101	2.20
111	HANDLE AS	6M705601	67.10
112	HANDLE NUT	6J090312	4.40
113	HANDLE LOCK PLATE	6M095904	4.40
114	HANDLE LOCK PLATE SC	6G835505	2.20
115	CONNECTOR CAP	6F661002	5.50
116	CORD	6G868701	51.70
117	GEAR SHAFT O-RING	6F657801	1.10
118	SPOOL SHAFT BALL BEARING	6E088005	8.80
119	DRAG SP・W(B)	6E253501	2.20
120	GEAR SHAFT W (B)	6H351001	1.10
121	GEAR SHAFT W (C)	63753005	1.10
122	SPOOL PIN	6G643501	2.20
123	DRAG COLLAR (B)	6J640603	2.20
124	BUFFER SHEET *Not available	6M268301	2.20
200	ITDOOSHIP PIN (A)	6X090801	3.30
202	STAND COVER	6H091801	6.60
203	FALL BRAKE DIAL SEAL	6X368501	2.20
204	MANUAL (BETSURI)	199C34	6.60
300	HANDLE KNOB W	63753005	1.10
301	HANDLE KNOB COLOR	6F648301	4.40
302	HANDLE KNOB	6M705701	29.70
303	HANDLE KNOB SC	6E454003	2.20
304	HANDLE KNOB CAP	6H693002	14.30
305	HANDLE KNOB CAP O-RING	6H100001	1.10
