[DAIWA] Genuine Spare Parts for 25 SALTIGA 35H Product code: 00631530 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability

Part Number:

Quantity:

Return & Exchange Policy

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.

*Please make sure to read about the conditions before you order.

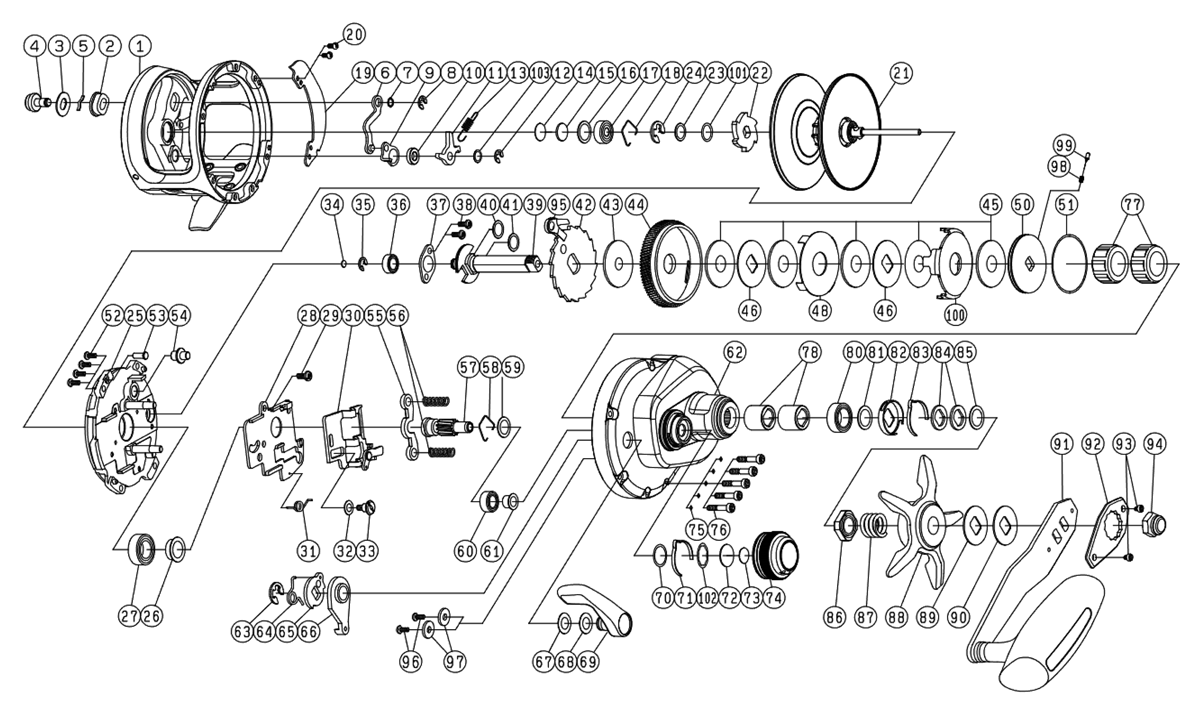

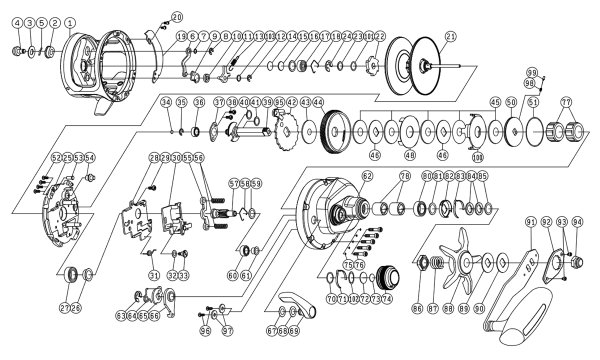

　Reel Part's Schematic Diagram

No.	Part Name	Part Code	Price (USD)
1	FRAME *Not available	6M512601	154.00
2	SPOOL LOCK PLATE COLLAR	6M223301	2.20
3	SPOOL LOCK PLATE W	6M223501	2.20
4	SPOOL LOCK LEVER	6M188901	12.10
5	SPOOL LOCK LEVER LEAF SP	6E656502	2.20
6	LOCK LEVER PLATE (A)	6E716301	12.10
7	LOCK LEVER PLATE W	6G850702	1.10
8	LOCK LEVER PLATE RETAINER	63201402	2.20
9	LOCK LEVER PLATE (B)	6E716501	2.20
10	LOCK PLATE COLLAR	6E716601	2.20
11	LOCK PLATE	6E716701	4.40
12	LOCK PLATE RETAINER *Not available	63207601	2.20
13	LOCK PLATE SP	6M513001	2.20
14	LS BEARING W (A)	63757404	1.10
15	LS BEARING W (B)	63757411	1.10
16	LS BEARING W (C)	6E703301	1.10
17	LS BALL BEARING	6G427701	15.40
18	LS BEARING RING	6F032201	2.20
19	RS COVER PLATE	6M513101	18.70
20	RS COVER PLATE SC	63510906	2.20
21	SPOOL (21-24, 101)	6Z027364	159.50
22	LOCKING PLATE RATCHET	6M615801	4.40
23	LOCKING PLATE RATCHET SP・W	6G878201	1.10
24	LOCKING PLATE RATCHET RETAINER *Not available	63207601	2.20
25	SET PLATE	6M513701	30.80
26	SET PLATE BEARING COLLAR	6J946501	7.70
27	SET PLATE BALL BEARING	6G156803	15.40
28	BEARING HOLD PLATE	6M513901	2.20
29	BEARING HOLD PLATE SC	6B557610	2.20
30	SLIDE PLATE	6M514001	15.40
31	SLIDE PLATE SP	6E705401	2.20
32	SLIDE PLATE SC AND W	6G850702	1.10
33	SLIDE PLATE SC	6M234801	3.30
34	GEAR SHAFT W	6G099806	1.10
35	GEAR SHAFT BEARING RETAINER	63208002	2.20
36	GEAR SHAFT BALL BEARING	6G538003	15.40
37	GEAR SHAFT PLATE	6H928901	3.30
38	GEAR SHAFT PLATE SC	6E134505	2.20
39	GEAR SHAFT	6M514301	30.80
40	GEAR SHAFT O-RING (A)	6H156901	1.10
41	GEAR SHAFT O-RING (B)	6F657801	1.10
42	RATCHET	6M514501	16.50
43	DRIVE GEAR W	6M514701	8.80
44	PINION + DRIVE GEAR	6Z027367	82.50
45	DRAG W	6H470801	9.90
46	DRAG DISC W	6H470905	3.30
48	DRAG LIP W (A)	6M639001	2.20
50	DRAG COLLAR	6M515302	12.10
51	DRAG COLLAR O-RING	6M515401	1.10
52	SET PLATE SC	63516404	2.20
53	SET PLATE PIN	6E706501	3.30
54	STOPPER PIN	6E718401	3.30
55	CLUTCH PLATE	6M204301	8.80
56	CLUTCH PLATE SP	6M514401	2.20
57	PINION + DRIVE GEAR SET	6Z027367	82.50
58	PINION BEARING RING	6E720102	2.20
59	PINION BEARING W	6E720002	1.10
60	PINION BALL BEARING *Cannot be ordered	6J030302	45.10
61	PINION BEARING COLLAR *Cannot be ordered	6M516101	7.70
62	RS PLATE	6M515601	181.50
63	CLUTCH CAM RETAINER *Not available	63207601	2.20
64	CLUTCH CAM SP	6E706402	2.20
65	CLUTCH CAM	6E707501	8.80
66	CLUTCH CAM PLATE	6M235501	2.20
67	CLUTCH LEVER W (A)	6E711101	1.10
68	CLUTCH LEVER W (B)	63705159	1.10
69	CLUTCH LEVER	6M516301	46.20
70	MECHANICAL BRAKE O-RING	6E720201	1.10
71	MECHANICAL BRAKE LEAF SP	6M564201	2.20
72	MECHANICAL BRAKE W (A)	6M516701	1.10
73	MECHANICAL BRAKE W (B)	6B175503	1.10
74	MECHANICAL BRAKE KNOB	6M516601	22.00
75	RS PLATE SC AND O-RING	6E688801	1.10
76	RS PLATE SC	6M516201	2.20
77	ONE WAY CLUTCH	6G819801	20.90
78	CLUTCH RING	6M755601	8.80
80	HANDLE BALL BEARING	6G431008	15.40
81	HANDLE BEARING W	6B553801	1.10
82	DRAG HOLDER	6E709201	3.30
83	DRAG HOLDER LEAF SP	6E715601	2.20
84	DRAG SP AND W	61508901	2.20
85	DRAG NUT W	6H929501	2.20
86	DRAG NUT	6J935103	7.70
87	DRAG SP	6J011901	2.20
88	STAR DRAG	6M599001	42.90
89	HANDLE W (A)	6J102801	1.10
90	HANDLE W (B)	6J101301	3.30
91	HANDLE	6M516801	165.00
92	HANDLE LOCK PLATE	6M096503	4.40
93	HANDLE LOCK PLATE SC	6J632309	2.20
94	HANDLE NUT	6M517603	4.40
95	STOPPER	6M564601	8.80
96	ANODE PLATE SC	6H257001	2.20
97	ANODE PLATE	6M809301	3.30
98	DRIVE COLLAR SP	6M025201	2.20
99	DRIVE COLLAR PIN	6J566201	2.20
100	DRAG GRIP W (B)	6M515201	2.20
101	LOCK PLATE RATCHET W	63755807	1.10
102	MECHANICAL BRAKE LEAF SP・W	6E720401	1.10
103	LOCK PLATE W	63755806	1.10
200	HANDLE KNOB W	63753005	1.10
201	HANDLE KNOB BALL BEARING	6G466201	15.40
202	HANDLE KNOB *Not available	6M517101	82.50
203	HANDLE KNOB SC	6E454003	2.20
204	HANDLE KNOB CAP *Not available	6M517501	9.90
205	HANDLE KNOB CAP SC	6G352301	2.20
