[DAIWA] Genuine Spare Parts for 23 LAXUS 3000H-LBD Product code: 00066413 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability

Part Number:

Quantity:

Return & Exchange Policy

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.

*Please make sure to read about the conditions before you order.

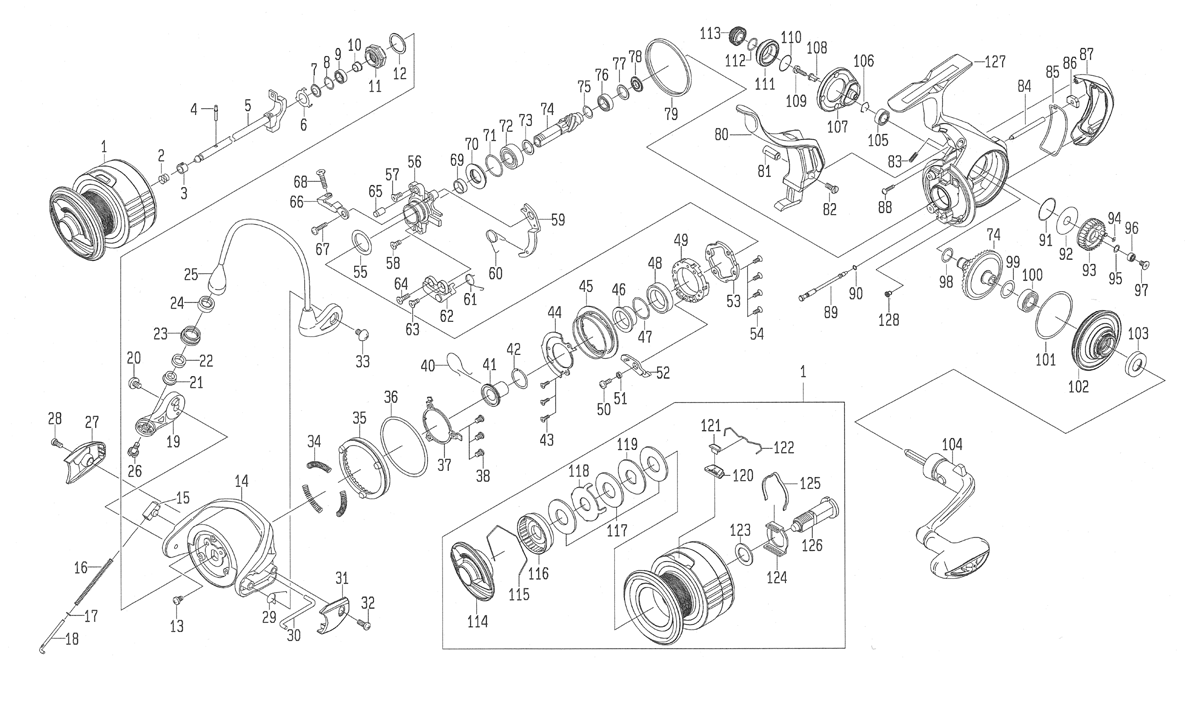

　Reel Part's Schematic Diagram

No.	Part Name	Part Code	Price (USD)
1	SPOOL	6Z027212	110.00
2	METAL SP	6G993001	2.20
3	SPOOL PIN COLLAR	6G992901	2.20
4	SPOOL PIN	6G992801	2.20
5	MAIN SHAFT *Cannot be ordered	6M416701	11.00
6	ROTOR NUT BEARING PLATE	6G471501	2.20
7	ROTOR NUT BEARING PACKING	6H461201	2.20
8	ROTOR NUT BEARING W	6G466103	1.10
9	ROTOR NUT BALL BEARING	6G466205	15.40
10	ROTOR NUT BEARING COLLAR	6M402701	4.40
11	ROTOR NUT	6H818201	4.40
12	ROTOR NUT W	6G613403	1.10
13	ROTOR NUT SC	6G627701	2.20
14	ROTOR	6H919527	39.60
15	ARM LEVER SP HOLDER	6H360501	4.40
16	ARM LEVER SP	6G471701	2.20
17	ARM LEVER SHAFT W	6G685401	1.10
18	ARM LEVER SHAFT	6G471803	3.30
19	ARM LEVER	6G612357	6.60
20	ARM LEVER SC	6G205001	2.20
21	ROLLER COLLAR (A)	6G195501	2.20
22	ROLLER COLLAR (B)	6G220701	2.20
23	LINE ROLLER	6F921601	11.00
24	ROLLER COLLAR (C)	6G047601	3.30
25	BAIL	6J483802	42.90
26	ROLLER SC	6G195601	2.20
27	ARM LEVER COVER	6H919602	4.40
28	ARM LEVER COVER SC	6G270801	2.20
29	BAIL LOCK SHAFT SP	6J761901	2.20
30	BAIL LOCK SHAFT	6G992601	3.30
31	BAIL HOLDER COVER	6H919702	4.40
32	BAIL HOLDER COVER SC	6G270801	2.20
33	BAIL SC	6G205001	2.20
34	RATCHET SP	6G992101	2.20
35	RATCHET	6G766005	20.90
36	RATCHET O-RING	6G158601	1.10
37	RATCHET HOLDER	6G766102	3.30
38	RATCHET HOLDER SC	6G992201	2.20
40	METAL STOPPER SP	6G297901	2.20
41	METAL BEARING COLLAR	6H817101	7.70
42	METAL BEARING COLLAR RING	6J089701	2.20
43	BEARING HOLDER PLATE SC	6G297401	2.20
44	BEARING HOLDER PLATE	6G991901	4.40
45	BRAKE DISC *Cannot be ordered	6J947001	15.40
46	METAL COLLAR (A)	6M405201	3.30
47	METAL COLLAR (A)W	6J932101	1.10
48	METAL COLLAR (B)	6J947201	3.30
49	BRAKE METAL	6G296802	7.70
50	ROTOR STOPPER SC	63522507	2.20
51	ROTOR STOPPER COLLAR	6G297701	2.20
52	ROTOR STOPPER	6G382401	4.40
53	METAL RATCHET	6G774901	6.60
54	METAL RATCHET SC	6G297001	2.20
55	SET PLATE COLLAR	6M405101	2.20
56	SET PLATE	6H370102	20.90
57	SET PLATE SC (A)	6H370201	2.20
58	SET PLATE SC (B)	6H178101	2.20
59	CRANK PLATE	6H178202	3.30
60	CRANK PLATE SP	6G296205	2.20
61	BRAKE STOPPER SP	6G864101	2.20
62	BRAKE STOPPER	6G764902	11.00
63	BRAKE STOPPER SC (A)	6H178101	2.20
64	BRAKE STOPPER SC (B)	6H370201	2.20
65	PUSH HEAD *Cannot be ordered	6J728501	4.40
66	BRAKE PLATE	6G991701	15.40
67	BRAKE PLATE SC (A)	6F935402	2.20
68	BRAKE PLATE SC (B)	6H370301	2.20
69	MAG SHIELD COLLAR	6H816501	4.40
70	MAG SHIELD PLATE *Cannot be ordered	6H815901	15.40
71	MAG SHIELD O-RING	6H816401	2.20
72	PINION BALL BEARING (A)	66375702	8.80
73	PINION BEARING (A)W	63758509	1.10
74	PINION + DRIVE GEAR SET *Cannot be ordered	6Z027210	55.00
75	PINION SP, W	6H931701	1.10
76	PINION BALL BEARING (B)	6G466202	8.80
77	PINION BEARING (B)W	6G466103	1.10
78	PINION COLLAR	6J387701	3.30
79	BRAKE RING	6H545901	3.30
80	BRAKE LEVER *Cannot be ordered	6M416201	88.00
81	BRAKE LEVER NUT	6G762702	3.30
82	BRAKE LEVER SC	6G762804	3.30
83	BRAKE LEVER SP	6G762601	2.20
84	OSCILLATING POST	6M417501	3.30
85	REAR CAP PACKING *Cannot be ordered	6M417601	4.40
86	OSCILLATING POST COLLAR	6M417401	2.20
87	REAR CAP	6M417701	9.90
89	REAR CAP SC (B)	6J609111	3.30
90	REAR CAP SC (B)O RING	6J718601	1.10
91	OSCILLATING GEAR O-RING (A)	6Q666001	2.20
92	OSCILLATING GEAR W	6J644701	1.10
93	OSCILLATING GEAR *Cannot be ordered	6M416501	7.70
94	OSCILLATING GEAR O-RING (B)	6G869601	1.10
95	OSCILLATING GEAR BEARING W	6H129201	1.10
96	OSCILLATING GEAR BALL BEARING	6G469005	8.80
97	OSCILLATING GEAR SC	6G997001	2.20
98	DRIVE BEARING O-RING	6G670501	1.10
99	DRIVE W	63758511	1.10
100	DRIVE BALL BEARING (A)	6G467302	8.80
101	DRIVE BEARING COVER O RING	6J553001	1.10
102	DRIVE BEARING COVER (L) *Cannot be ordered	6M417306	38.50
103	HANDLE PACKING	6J100201	3.30
104	HANDLE	6M418101	121.00
105	DRIVE BALL BEARING (B)	6G522706	8.80
106	DRIVE BEARING (B) RING	6G472401	2.20
107	OSCILLATING GEAR PLATE *Cannot be ordered	6M416401	7.70
108	HANDLE COLLAR	6F404801	2.20
109	HANDLE SC	63638511	2.20
110	DRIVE BEARING COVER O-RING	6H617001	1.10
111	DRIVE BEARING COVER (R) *Cannot be ordered	6M417203	25.30
112	HANDLE CAP O-RING	6G162401	2.20
113	HANDLE CAP	6J418102	4.40
114	DRAG KNOB	6J866502	23.10
115	DRAG RING	6F062601	2.20
116	DRAG RATCHET	6G367203	8.80
117	DRAG W SET (3 pieces)	6J398701	19.80
118	DRAG LIP W	6F635202	2.20
119	DRAG DISK W	6G367101	2.20
120	LINE STOPPER PLATE	6J558101	2.20
121	LINE STOPPER	6J558001	2.20
122	LINE STOPPER SP	6J314801	2.20
123	SPOOL W	63755703	1.10
124	CLICK HOLDER	6M256001	2.20
125	CLICK LEAF SP	6H416101	2.20
126	SPOOL METAL	6H954301	20.90
127	BODY *Cannot be ordered	6M416101	63.80
128	CRANK PLATE SP COLOR	6G296301	3.30
201	HANDLE KNOB W	6B411703	1.10
202	HANDLE KNOB COLOR	6G720001	2.20
203	HANDLE KNOB	6Q361701	17.60
204	HANDLE KNOB BALL BEARING	6G469007	15.40
205	HANDLE KNOB SC	6B679308	2.20
206	HANDLE KNOB CAP	6Q361901	2.20
300	ECONOMIZER	6H427601	3.30
