[DAIWA] Genuine Spare Parts for 23 CYGNUS 2500XH-LBD Product code: 00066416 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability

Part Number:

Quantity:

Return & Exchange Policy

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.

*Please make sure to read about the conditions before you order.

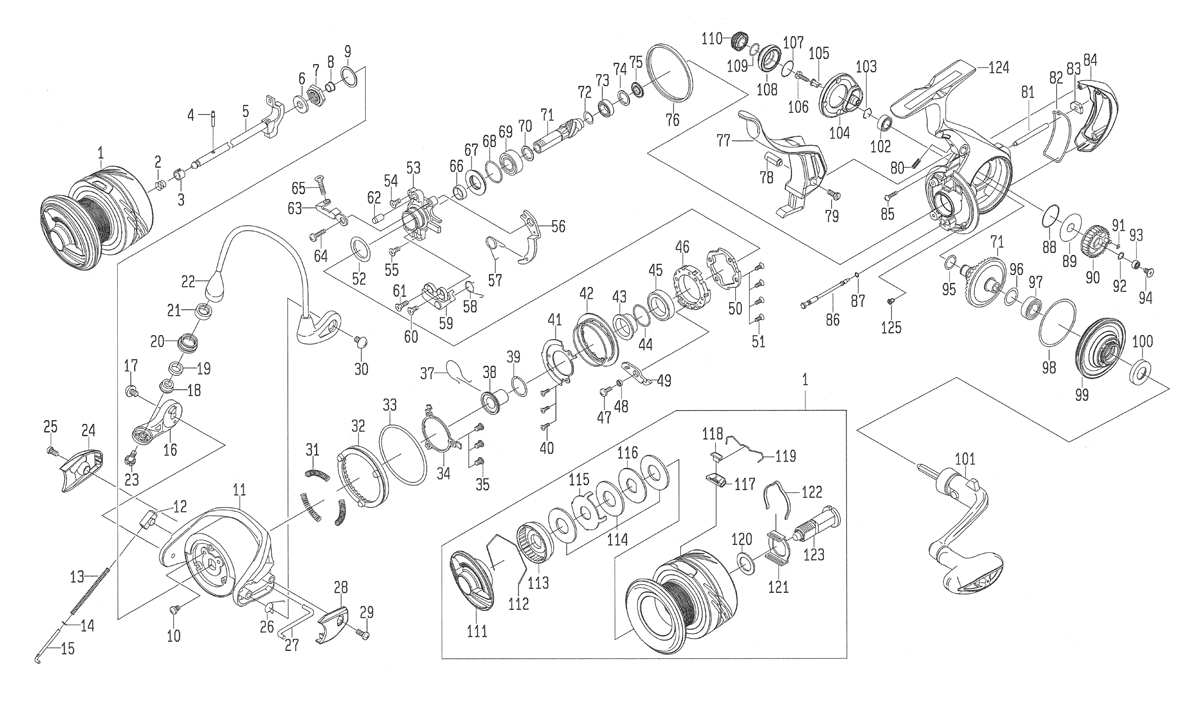

　Reel Part's Schematic Diagram

No.	Part Name	Part Code	Price (USD)
1	SPOOL	6Z027322	88.00
2	METAL SP	6G993001	2.20
3	SPOOL PIN COLLAR	6G992901	2.20
4	SPOOL PIN	6G992801	2.20
5	MAIN SHAFT *Cannot be ordered	6M416701	11.00
6	ROTOR NUT PACKING	6H986901	3.30
7	ROTOR NUT	6M483101	4.40
8	ROTOR NUT COLLAR	6M402701	4.40
9	ROTOR NUT W	6G613403	1.10
10	ROTOR NUT SC	6G627701	2.20
11	ROTOR	6H919528	29.70
12	ARM LEVER SP HOLDER	6H360501	4.40
13	ARM LEVER SP	6G471701	2.20
14	ARM LEVER SHAFT W	6G685401	1.10
15	ARM LEVER SHAFT	6G471803	3.30
16	ARM LEVER	6G612355	6.60
17	ARM LEVER SC	6G205001	2.20
18	ROLLER COLLAR (A)	6G195501	2.20
19	ROLLER COLLAR (B)	6G220701	2.20
20	LINE ROLLER	6F921602	11.00
21	ROLLER COLLAR (C)	6G047601	3.30
22	BAIL	6J483802	42.90
23	ROLLER SC	6G195601	2.20
24	ARM LEVER COVER	6H919606	3.30
25	ARM LEVER COVER SC	6G270801	2.20
26	BAIL LOCK SHAFT SP	6J761901	2.20
27	BAIL LOCK SHAFT	6G992601	3.30
28	BAIL HOLDER COVER	6H919706	3.30
29	BAIL HOLDER COVER SC	6G270801	2.20
30	BAIL SC	6G205001	2.20
31	RATCHET SP	6G992101	2.20
32	RATCHET	6G766005	20.90
33	RATCHET O-RING	6G158601	1.10
34	RATCHET HOLDER	6G766102	3.30
35	RATCHET HOLDER SC	6G992201	2.20
37	METAL STOPPER SP	6G297901	2.20
38	METAL BEARING COLLAR	6H817102	7.70
39	METAL BEARING COLLAR RING	6J089701	2.20
40	BEARING HOLDER PLATE SC	6G297401	2.20
41	BEARING HOLDER PLATE	6G991901	4.40
42	BRAKE DISC *Cannot be ordered	6J947001	15.40
43	METAL COLLAR (A)	6M405201	3.30
44	METAL COLLAR (A) W	6J932101	1.10
45	METAL COLLAR (B)	6J947201	3.30
46	BRAKE METAL	6G296802	7.70
47	ROTOR STOPPER SC	63522507	2.20
48	ROTOR STOPPER COLLAR	6G297701	2.20
49	ROTOR STOPPER	6G382401	4.40
50	METAL RATCHET	6G774901	6.60
51	METAL RATCHET SC	6G297001	2.20
52	SET PLATE COLLAR	6M405101	2.20
53	SET PLATE	6H370102	20.90
54	SET PLATE SC (A)	6H370201	2.20
55	SET PLATE SC (B)	6H178101	2.20
56	CRANK PLATE	6H178202	3.30
57	CRANK PLATE SP	6G296205	2.20
58	BRAKE STOPPER SP	6G864101	2.20
59	BRAKE STOPPER	6G764902	11.00
60	BRAKE STOPPER SC (A)	6H178101	2.20
61	BRAKE STOPPER SC (B)	6H370201	2.20
62	PUSH HEAD *Cannot be ordered	6J728501	4.40
63	BRAKE PLATE	6G991701	15.40
64	BRAKE PLATE SC (A)	6F935402	2.20
65	BRAKE PLATE SC (B)	6H370301	2.20
66	MAG SHIELD COLLAR	6H816501	4.40
67	MAG SHIELD PLATE *Cannot be ordered	6H815901	15.40
68	MAG SHIELD O-RING	6H816401	2.20
69	PINION BALL BEARING (A)	66375702	8.80
70	PINION BEARING (A) W	63758509	1.10
71	PINION + DRIVE GEAR SET *Cannot be ordered	6Z027047	55.00
72	PINION SP, W	6H931701	1.10
73	PINION BALL BEARING (B)	6G466202	8.80
74	PINION BEARING (B) W	6G466103	1.10
75	PINION COLLAR	6J387701	3.30
76	BRAKE RING	6H545901	3.30
77	BRAKE LEVER *Cannot be ordered	6M495901	88.00
78	BRAKE LEVER NUT	6G762702	3.30
79	BRAKE LEVER SC	6G762804	3.30
80	BRAKE LEVER SP	6G762601	2.20
81	OSCILLATING POST	6M417501	3.30
82	REAR CAP PACKING *Cannot be ordered	6M417601	4.40
83	OSCILLATING POST COLLAR	6M417401	2.20
84	REAR CAP	6M417702	9.90
86	REAR CAP SC (B)	6J609111	3.30
87	REAR CAP SC (B) O-RING	6J718601	1.10
88	OSCILLATING GEAR O-RING (A)	6Q666001	2.20
89	OSCILLATING GEAR W	6J644701	1.10
90	OSCILLATING GEAR *Cannot be ordered	6M416501	7.70
91	OSCILLATING GEAR O-RING (B)	6G869601	1.10
92	OSCILLATING GEAR BEARING W	6H129201	1.10
93	OSCILLATING GEAR BALL BEARING	6G469005	8.80
94	OSCILLATING GEAR SC	6G997001	2.20
95	DRIVE BEARING O-RING	6G670501	1.10
96	DRIVE W	63758511	1.10
97	DRIVE BALL BEARING (A)	6G467302	8.80
98	DRIVE BEARING COVER O-RING	6J553001	1.10
99	DRIVE BEARING COVER (L) *Cannot be ordered	6M417307	38.50
100	HANDLE PACKING	6J100201	3.30
101	HANDLE	6M483501	74.80
102	DRIVE BALL BEARING (B)	6G522706	8.80
103	DRIVE BEARING (B) RING	6G472401	2.20
104	SET PLATE *Cannot be ordered	6M416401	7.70
105	HANDLE COLLAR	6F404801	2.20
106	HANDLE SC	63638511	2.20
107	DRIVE BEARING COVER O-RING	6H617001	1.10
108	DRIVE BEARING COVER (R) *Cannot be ordered	6M417202	25.30
109	HANDLE CAP O-RING	6G162401	2.20
110	HANDLE CAP	6J418101	4.40
111	DRAG KNOB	6J915102	18.70
112	DRAG RING	6F062601	2.20
113	DRAG RATCHET	6G367203	8.80
114	DRAG W SET ((3 pieces)	6J398701	19.80
115	DRAG LIP W	6F635202	2.20
116	DRAG DISC W	6G367101	2.20
117	LINE STOPPER PLATE	6J558101	2.20
118	LINE STOPPER	6J558001	2.20
119	LINE STOPPER SP	6J314801	2.20
120	SPOOL W	63755703	1.10
121	CLICK HOLDER	6M256001	2.20
122	CLICK LEAF SP	6H416101	2.20
123	SPOOL METAL	6G491001	8.80
124	BODY *Cannot be ordered	6M483001	63.80
125	CRANK PLATE SP COLOR	6G296301	3.30
300	HANDLE KNOB W	6B411703	1.10
301	HANDLE KNOB COLOR	6G720001	2.20
302	HANDLE KNOB	6Q361701	17.60
303	HANDLE KNOB COLOR	6G720001	2.20
304	HANDLE KNOB SC	6B679308	2.20
305	HANDLE KNOB CAP	6Q361905	2.20
