[SHIMANO] Genuine Spare Parts for 25 STELLA SW 14000XG Product Code: 047595 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability

Part Number:

Quantity:

Return & Exchange Policy

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.

*Please make sure to read about the conditions before you order.

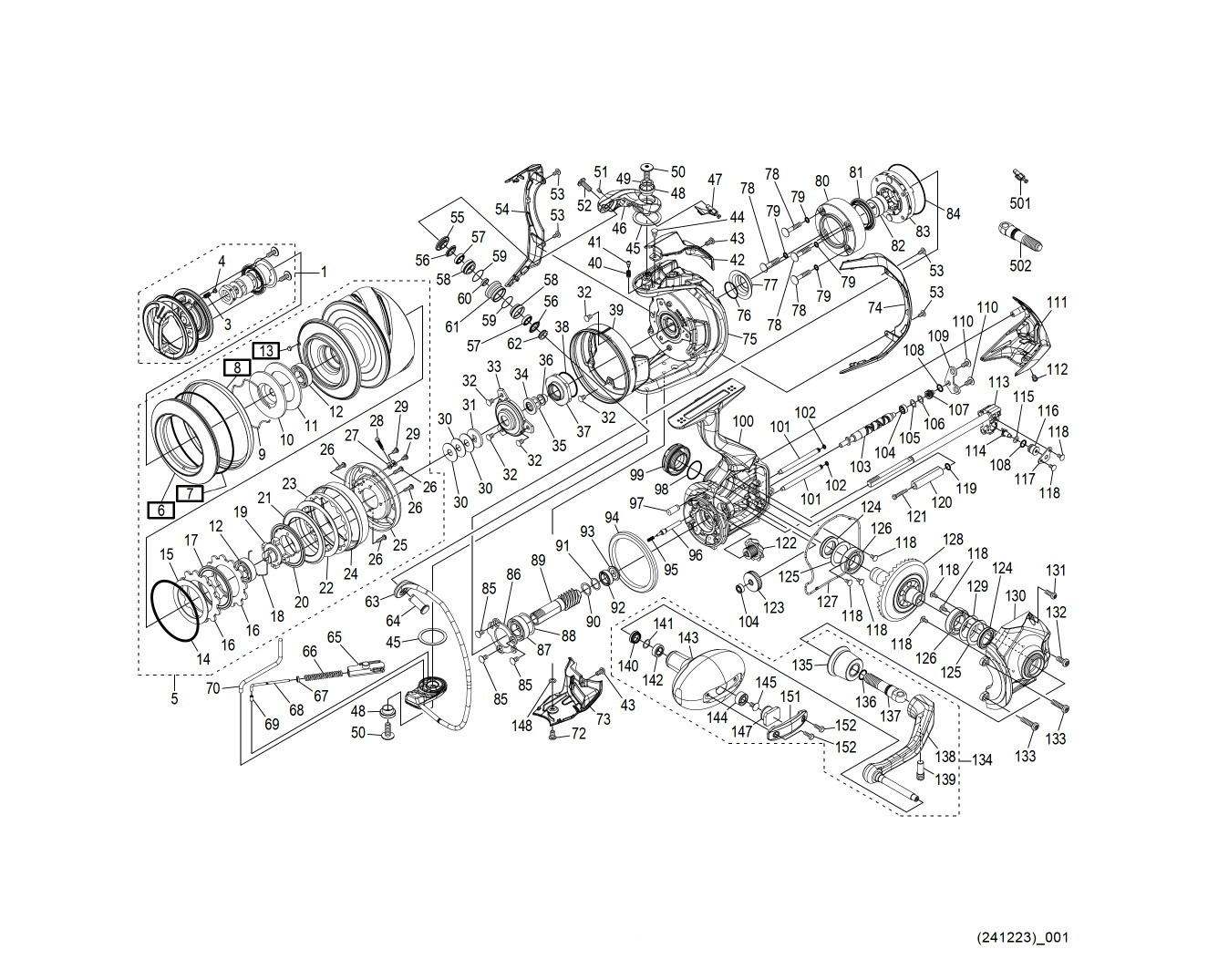

　Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* Parts with square numbers are for repair only.
These parts are supposedto be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
*F01	145MW	REEL BAG	33.00
1	14A3H	DRAG KNOB ASSEMBLY	110.00
3	1077S	BAIL TRIP LEVER CLICK SPRING	1.65
4	10361	CLICK PIN	1.10
5	14A69	SPOOL ASSEMBLY	308.00
6	146XH	SPOOL RING COLLAR *Cannot be ordered	46.20
7	1015W	O-RING *Cannot be ordered	1.65
8	146XG	SPOOL RING *Cannot be ordered	33.00
9	10B88	STOPPER SPRING	1.65
10	146VG	OVAL WASHER	17.60
11	146VH	DRAG WASHER (A)	33.00
12	10BGD	BALL BEARING (9X17X5)	13.75
13	10EAG	PIN *Cannot be ordered	1.10
14	108WD	O-RING AS568-31	1.10
15	1016A	DRAG WASHER C	9.35
16	10C19	DRAG WASHER	20.35
17	10BS8	DRAG PLATE	6.05
18	10LWM	BEARING STOP	1.10
19	146V3	MAIN SHAFT BEARING GUIDE	16.50
20	10T7T	DRAG PLATE (B)	6.05
21	10RC9	MAIN SHAFT BEARING SEAL	6.05
22	100WL	WASHER	1.65
23	109ZQ	DRAG CLICK RATCHET	2.75
24	100LX	DRAG COVER	11.00
25	1014B	HEAT SINK	11.55
26	147FC	FIXING BOLT	1.10
27	1017R	SPRING GUIDE	1.65
28	10E90	SPOOL PIN ASSEMBLY	11.55
29	1480N	FIXING BOLT	1.10
30	101DJ	SPOOL WASHER	2.20
31	103MW	SPOOL RECEIVER	1.65
32	103LB	FIXING BOLT	1.10
33	10K30	RETAINER	2.75
34	147VW	ROTOR BEARING SEAL	4.95
35	14B4X	ROTOR BEARING SEAL WASHER	1.10
36	10S4S	ROTOR BEARING COLLAR	1.10
37	146VV	ROTOR NUT	11.00
38	10163	O-RING	1.65
39	146VW	ROTOR FLANGE	13.20
40	1077Q	BAIL TRIP LEVER CLICK SPRING	1.65
41	10CH8	BAIL TRIP LEVER CLICK PIN	1.65
42	146VK	ARM CAM SPRING COVER	12.65
43	10CYU	FIXING BOLT	2.75
44	10DN7	FIXING BOLT	1.65
45	10HDP	ARM CAM WASHER	1.65
46	146VP	ARM CAM	66.00
47	14859	ARM CAM FIN ASSEMBLY	1.65
48	10K7M	FIXING BOLT COLLAR	3.85
49	14A71	ARM CAM WASHER	1.10
50	147FH	FIXING BOLT	2.20
51	10PN1	SET SCREW (M2 X 3)	1.65
52	10K46	FIXING BOLT	6.05
53	10MT2	FIXING BOLT	1.10
54	146VN	ROTOR GUARD (B)	2.20
55	146VU	LINE ROLLER RECEIVER	3.30
56	1016K	LINE ROLLER SEAL	1.65
57	104W1	BALL BEARING (5X8X2)	9.35
58	1015A	BUSH	1.65
59	1015S	O-RING	1.65
60	1014P	COLLAR	1.65
61	146VT	LINE ROLLER	27.50
62	1014N	COLLAR	3.85
63	14A3K	BAIL ASSEMBLY	88.00
64	10Q3F	ARM FIXING SHAFT	9.35
65	10153	ARM SPRING GUIDE (B)	1.65
66	1015E	ARM CAM SPRING	1.65
67	10DUU	ARM SPRING GUIDE (A) COLLAR	1.65
68	1016J	ARM SPRING GUIDE (A)	3.85
69	10R2F	ARM SPRING GUIDE (A) COLLAR BUSH	1.65
70	146WP	INNER GERI LEVER	3.85
72	10CYT	GUARD FIXING BOLT (A)	2.75
73	146VL	BAIL MOUNTING COVER	12.10
74	146VM	ROTOR GUARD (A)	2.20
75	146VJ	ROTOR	121.00
76	147FE	O-RING	1.10
77	146W2	ROTOR COLLAR	7.15
78	1015M	FIXING BOLT	1.65
79	10LAD	O-RING	1.10
80	10148	ROLLER CLUTCH SEAL COVER	1.65
81	147FS	ROLLER CLUTCH SEAL	8.25
82	1014F	ROLLER CLUTCH INNER	9.35
83	14A3L	ROLLER CLUTCH ASSEMBLY	27.50
84	1014X	O-RING	1.65
85	10ML2	FIXING BOLT	2.75
86	146W3	BEARING PUSH PLATE	4.40
87	10RJF	BALL BEARING (9X17X5)	7.15
88	14A3U	WASHER	1.10
89	146XJ	PINION GEAR	38.50
90	147FF	BENDING WASHER	1.10
91	147FT	SPACER	1.10
92	104PN	BALL BEARING (7X11X3)	13.75
93	146W5	BUSH	4.40
94	1014J	FRICTION RING	3.85
95	10R5T	INTERMEDIATE GEAR SPRING	1.10
96	146WA	INTERMEDIATE GEAR SHAFT	1.65
97	10AYR	BODY FLANGE SEAL	2.75
98	108WP	O-RING	1.65
99	146WG	HANDLE SCREW CAP	26.40
100	14A6A	BODY ASSEMBLY	196.90
101	10147	SLIDER GUIDE	2.75
102	10JAB	O-RING	1.65
103	146WB	WORM SHAFT	8.25
104	10PDA	BALL BEARING (3 X 6 X 2.5)	13.75
105	100XZ	WASHER	2.20
106	10TK0	WASHER	1.65
107	1015D	BUSH	3.85
108	10TNF	O-RING	1.65
109	147FU	WORM SHAFT COVER	1.10
110	103EB	FIXING BOLT	1.65
111	147F6	BODY GUARD	16.50
112	10L9D	GUARD FIXING BOLT (D)	1.65
113	14A3N	MAIN SHAFT ASSEMBLY	44.00
114	106V5	CROSS GEAR PIN	6.05
115	14813	WASHER *Cannot be ordered	UNSET
116	10164	WORM SHAFT PIN COLLAR	6.05
117	146WE	WORM SHAFT PIN PUSH PLATE	1.10
118	10MT4	FIXING BOLT	1.10
119	108W9	O-RING (3X5)	1.65
120	10AYL	BODY GUARD COLLAR	2.75
121	10LSC	FIXING BOLT	1.10
122	146XL	INTERMEDIATE GEAR (LARGE)	2.75
123	146WC	WORM SHAFT GEAR	9.90
124	146W0	BEARING SEAL	5.50
125	10BGG	WASHER	1.65
126	104PW	BALL BEARING (10 X 19 X 5)	13.75
127	146VZ	BODY SEAL	2.75
128	1486C	DRIVE GEAR ASSEMBLY	66.00
129	14814	WASHER *Cannot be ordered	UNSET
130	14A3P	COVER ASSEMBLY	82.50
131	10A6N	FIXING BOLT	1.65
132	10PVM	FIXING BOLT	2.75
133	10PVN	FIXING BOLT	2.75
134	14A6B	HANDLE ASSEMBLY	192.50
135	14A3R	HANDLE SHAFT FLANGE ASSEMBLY	34.10
136	10LAA	O-RING	1.10
137	146WL	HANDLE SHAFT	15.40
138	14A3S	HANDLE SHANK ASSEMBLY	99.00
139	10E85	FIXING BOLT	6.05
140	147FX	HANDLE KNOB SEAL	7.70
141	104FH	WASHER	2.20
142	105BN	BALL BEARING (5 X 9 X 3)	13.75
143	146XQ	HANDLE KNOB	17.60
144	10KX1	BALL BEARING (4X9X4)	13.75
145	103E9	FIXING BOLT	1.10
147	147F8	HANDLE CAP	1.65
148	14810	WASHER	1.10
151	146XN	HANDLE KNOB NAMEPLATE	4.95
152	103NM	FIXING BOLT	2.75
501	1485A	ARM CAM FIN (B) ASSEMBLY	1.65
502	1485B	HANDLE SHAFT (RIGHT) ASSEMBLY	16.50
MH01	145M0	NAMEPLATE ON BACK OF LEG	2.75
