  3. > [DAIWA] 25 TATULA TW 200 Genuine Parts List - Schematic Diagram & Parts Diagram
  4. > [DAIWA] Genuine Spare Parts for 25 TATULA TW 200XH Product code: 00630172 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 25 TATULA TW 200XH Product code: 00630172 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 25 TATULA TW 200XH Product code: 00630172 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

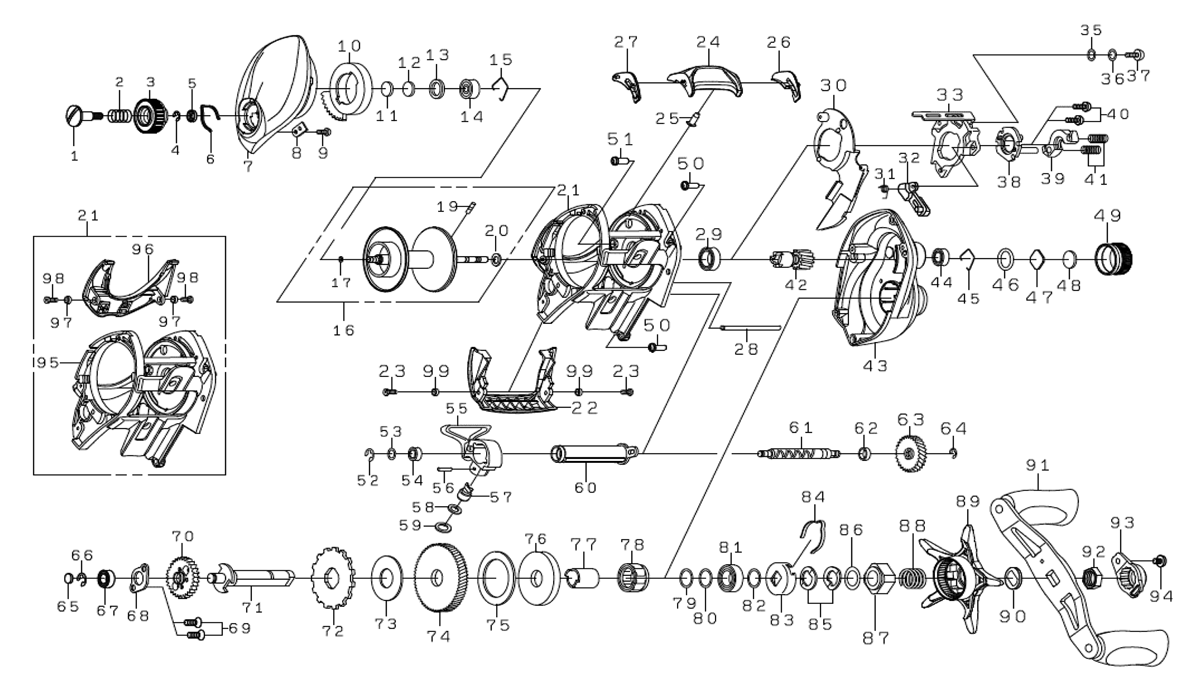

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 BRAKE DIAL SC 6J716301 3.30
2 BRAKE DIAL SP 6E167101 2.20
3 BRAKE DIAL 6M673701 8.80
4 BRAKE DIAL RETAINER (A) 6B339801 2.20
5 BRAKE DIAL COLLAR 6F637701 1.10
6 BRAKE DIAL LEAF SP 6J886201 2.20
7 LS PLATE 6M673501 28.60
8 BRAKE DIAL RETAINER (B) 6J843301 2.20
9 BRAKE DIAL RETAINER (B)SC 6G939301 2.20
10 MAG HOLDER 6M673801 8.80
11 LS BEARING W (A) 63757404 1.10
12 LS BEARING W (B) 63757411 1.10
13 LS BEARING W (C) 6G185101 1.10
14 LS BALL BEARING 6G511503 8.80
15 LS BEARING RING 6F032201 2.20
16 SPOOL (17-20) 6M669301 101.20
17 SPOOL SHAFT O-RING 6H770601 1.10
19 SPOOL PIN 6J339401 2.20
20 SPOOL O-RING 6M426701 1.10
22 FRONT COVER 6M673401 8.80
23 FRONT COVER SC 6H531508 2.20
24 CLUTCH LEVER 6M671501 3.30
25 CLUTCH LEVER SC 6H005701 2.20
26 CLUTCH LEVER PLATE (R) 6M671001 2.20
27 CLUTCH LEVER PLATE (L) 6M671101 2.20
28 OSCILLATING POST 6M674001 2.20
29 CLUTCH CAM BALL BEARING 6B861705 8.80
30 KICK LEVER PLATE (A) 6M387901 3.30
31 KICK LEVER SP 6M839801 2.20
32 KICK LEVER 6M387701 7.70
33 CLUTCH CAM PLATE 6M671201 3.30
35 CLUTCH CAM PLATE W (A) 6H159201 1.10
36 CLUTCH CAM PLATE W (B) 6F542701 1.10
37 CLUTCH CAM SC 6B360406 2.20
38 KICK LEVER PLATE ( B) 6M044101 3.30
39 CLUTCH PLATE 6M672401 3.30
40 KICK LEVER PLATE (B) SC 6B032904 2.20
41 CLUTCH SP 6M672601 2.20
42 PINION + DRIVE GEAR SET 6Z028134 52.80
43 RS PLATE 6M745601 30.80
44 PINION BALL BEARING 6G431102 8.80
45 PINION BEARING RING 6E219701 2.20
46 ZERO ADJUSTER O-RING 6B055201 1.10
47 ZERO ADJUSTER W (A) 6J213101 1.10
48 ZERO ADJUSTER W (B) 6B175503 1.10
49 ZERO ADJUSTER 6J692502 6.60
50 RS PLATE SC (A) 6B557622 2.20
51 RS PLATE SC (B) 6B557620 2.20
52 WORM SHAFT RETAINER 63205901 2.20
53 WORM SHAFT W 6B411702 1.10
54 WORM SHAFT COLLAR 6G720001 2.20
55 LEVEL WINDING 6M681001 58.30
56 POLE HOLDER PIN 6J740201 3.30
57 POLE 6M454101 3.30
58 POLE W 6M161301 1.10
59 POLE HOLDER O-RING 6G252202 1.10
60 WORM SHIELD 6M673001 3.30
61 WORM SHAFT 6M016701 8.80
62 WORM SHAFT COLLAR 6G720001 2.20
63 WORM SHAFT GEAR 6M672901 4.40
64 WORM SHAFT GEAR RETAINER 6B339801 2.20
65 GEAR SHAFT W 6G099801 1.10
66 GEAR SHAFT RETAINER 63208002 2.20
67 GEAR SHAFT BALL BEARING 6G466202 8.80
68 GEAR SHAFT PLATE 6M454001 3.30
69 GEAR SHAFT PLATE SC 6G297002 2.20
70 WORM GEAR 6J281001 7.70
71 GEAR SHAFT 6M671601 15.40
72 RATCHET 6M673101 3.30
73 DRIVE GEAR W 6J085101 1.10
74 PINION + DRIVE GEAR SET 6Z028134 52.80
75 DRAG W 6H452602 6.60
76 DRAG DISC W 6H913201 3.30
77 DRAG COLLAR 6J909901 8.80
78 ONE WAY CLUTCH 6G819801 20.90
79 HANDLE BEARING W ( A) 6B553803 1.10
80 HANDLE BEARING W (B) 6B553804 1.10
81 HANDLE BALL BEARING 6B861705 8.80
82 HANDLE BEARING W (C) 6B553804 1.10
83 DRAG HOLDER 6F028203 3.30
84 DRAG HOLDER LEAF SP 6F032401 2.20
85 DRAG SP・W 61508901 2.20
86 STAR DRAG W 6H929501 2.20
87 DRAG NUT 6H912001 4.40
88 DRAG NUT SP 6J011901 2.20
89 STAR DRAG 6H911901 11.00
90 HANDLE W 6F576601 1.10
91 HANDLE 6M671901 94.60
92 HANDLE NUT 6H723701 3.30
93 HANDLE CAP 6J213503 7.70
94 HANDLE CAP SC 6G040835 2.20
95 FRAME 6M670601 38.50
96 FRAME COVER 6M670701 8.80
97 FRAME COVER COLOR 6M047801 2.20
98 FRAME COVER SC 6H531509 2.20
99 FRONT COVER COLOR 6M047801 2.20
200 HANDLE KNOB W 6B411703 1.10
201 HANDLE KNOB BALL BEARING 6G469005 8.80
202 HANDLE KNOB COLOR 6G720001 2.20
203 HANDLE KNOB 6M604401 26.40
204 HANDLE KNOB SC 6B679308 2.20
205 HANDLE KNOB CAP 6M604603 6.60
