[DAIWA] Genuine Spare Parts for 25 SALTIGA 10000-H Product code: 00065083 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 25 SALTIGA 10000-H Product code: 00065083 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.13 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/8699

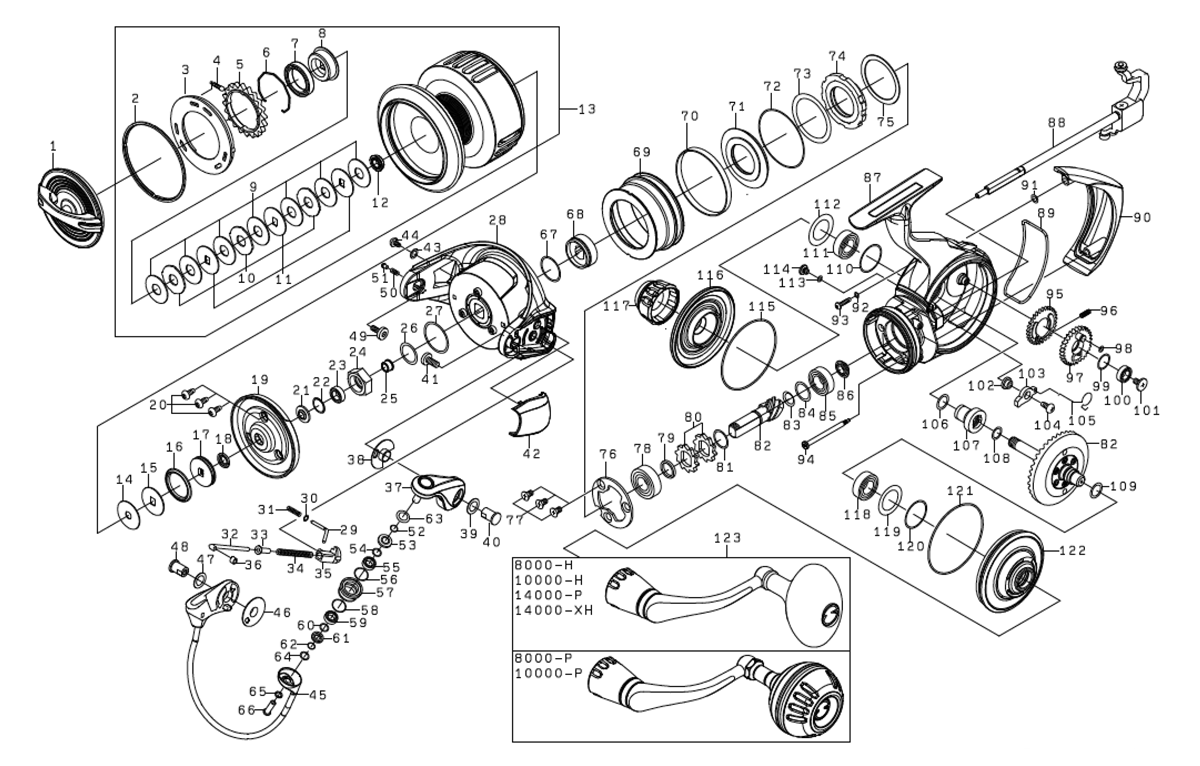

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOB 6M819201 192.50
2 CLICK GEAR PLATE SC 6M042301 12.10
3 CLICK GEAR PLATE 6M825801 5.50
4 CLICK GEAR PIN 6J916501 2.20
5 CLICK GEAR 6J900201 4.40
6 SPOOL BEARING RING 6J899901 2.20
7 SPOOL BALL BEARING (A) 6J899801 18.70
8 SPOOL BEARING (A) COLLAR 6J899701 6.60
9 DRAG W SET (7 piece) 6M146201 77.00
10 DRAG GRIP W 6J899601 2.20
11 DRAG DISC W 6J899501 2.20
12 SPOOL BALL BEARING (B) 6J899301 8.80
13 SPOOL (2-13) 6M715501 297.00
14 SPOOL W (A) 6J898601 1.10
15 SPOOL W (B) 6M656601 1.10
16 SPOOL PLATE PACKING (A) 6J898501 2.20
17 SPOOL PLATE 6J898301 4.40
18 SPOOL PLATE PACKING (B) 6J898401 2.20
19 ROTOR COVER 6J898201 8.80
20 ROTOR COVER SC 6H401201 2.20
21 ROTOR NUT PACKING 6J898101 2.20
22 ROTOR NUT BEARING W 6G522103 1.10
23 ROTOR NUT BALL BEARING 6G467102 8.80
24 ROTOR NUT 6H504801 3.30
25 ROTOR NUT COLLAR 6J898001 3.30
26 ROTOR NUT W 6J916401 1.10
27 ROTOR NUT O-RING 6H501001 1.10
28 ROTOR *Cannot be ordered 6M623701 126.50
29 BAIL SHAFT (A) 6M623801 3.30
30 BAIL SHAFT (A)W 6J919501 1.10
31 BAIL SHAFT (A)SP 6J896401 2.20
32 BAIL SHAFT (B) 6M623901 2.20
33 BAIL SHAFT (B)SP COLOR 6M624001 2.20
34 BAIL SHAFT (B)SP 6M624101 2.20
35 BAIL SHAFT (B)SP HOLDER 6M624201 2.20
36 BAIL SHAFT (B)COLOR 6M624301 2.20
37 ARM LEVER *Cannot be ordered 6M624401 39.60
38 ARM LEVER PLATE 6M624701 2.20
39 ARM LEVER NUT W 6M050901 1.10
40 ARM LEVER NUT 6M624801 3.30
41 ARM LEVER SC 6M624901 2.20
42 ARM LEVER COVER 6M625002 6.60
43 ARM LEVER COVER SC/W 6G256401 1.10
44 ARM LEVER COVER SC 6H741704 2.20
45 BAIL *Cannot be ordered 6M625201 121.00
46 BAIL HOLDER PLATE 6M625701 2.20
47 BAIL HOLDER NUT W 6M050901 1.10
48 BAIL HOLDER NUT 6M624801 3.30
49 BAIL HOLDER SC 6M624901 2.20
50 BAIL CLICK SP 6M626001 2.20
51 BAIL CLICK PIN 6M626101 2.20
52 ROLLER MAG COLLAR (A) O-RING 6J916201 1.10
53 ROLLER MAG COLLAR (A) *Cannot be ordered 6M654501 12.10
54 ROLLER W (B) 6E096501 1.10
55 ROLLER BALL BEARING (A) 6H738904 15.40
56 ROLLER O-RING (A) 6M625901 1.10
57 LINE ROLLER *Cannot be ordered 6M625801 16.50
58 ROLLER O-RING (B) 6M625901 1.10
59 ROLLER BALL BEARING (B) 6H738904 15.40
60 ROLLER W (C) 6E096501 1.10
61 ROLLER MAG COLLAR (B) *Cannot be ordered 6M654301 12.10
62 ROLLER MAG COLLAR (B) O-RING 6E096501 1.10
63 ROLLER W (A) 6E096501 1.10
64 ROLLER W (D) ) 6F774605 1.10
65 ROLLER SC AND W 6M664401 1.10
66 ROLLER SC 6M844801 3.30
67 CLUTCH RING O-RING 6H255001 1.10
68 CLUTCH RING *Cannot be ordered 6J896001 18.70
69 INFINITE COVER *Cannot be ordered 6J896101 36.30
70 INFINITE COVER O-RING 6H629701 1.10
71 MAG SHIELD PLATE *Cannot be ordered 6M664301 23.10
72 MAG SHIELD PLATE O-RING 6H502601 1.10
73 ONE WAY CLUTCH W (A) 6M819601 1.10
74 ONE WAY CLUTCH *Cannot be ordered 6F765401 36.30
75 ONE WAY CLUTCH W (B) 6G158101 2.20
76 PINION BEARING (A) PLATE 6J895801 3.30
77 PINION BEARING (A) PLATE SC 6F206902 2.20
78 PINION BALL BEARING (A) 66355001 8.80
79 PINION BEARING (A) COLLAR 6J895702 2.20
80 RATCHET 6E262701 2.20
81 RATCHET W 63727610 1.10
82 PINION + DRIVE GEAR SET *Cannot be ordered 6Z028036 187.00
83 PINION BEARING (B) SP/W 6G578501 1.10
84 PINION BEARING (B) W 6E154803 1.10
85 PINION BALL BEARING (B) 6G467302 8.80
86 PINION BEARING ( (B) COLLAR 6J895101 3.30
87 BODY *Cannot be ordered 6M621402 121.00
88 MAIN SHAFT *Cannot be ordered 6M622201 35.20
89 REAR CAP PACKING 6M622501 3.30
90 REAR CAP *Cannot be ordered 6M622601 36.30
91 REAR CAP SC, W (A) 6B536102 1.10
92 REAR CAP SC, W (B) 6E272501 1.10
93 REAR CAP SC (A) 6J894901 2.20
94 REAR CAP SC (B) 6J895003 4.40
95 OSCILLATING GEAR (A) *Cannot be ordered 6M621801 4.40
96 OSCILLATING GEAR (A) SP 6G157401 2.20
97 OSCILLATING GEAR (B) *Cannot be ordered 6M621701 9.90
98 OSCILLATING GEAR (B) O-RING 6J037601 1.10
99 OSCILLATING GEAR BEARING W 6G522101 1.10
100 OSCILLATING GEAR BALL BEARING 6G467102 8.80
101 OSCILLATING GEAR SC 6H272202 2.20
102 STOPPER COLLAR 6H243301 2.20
103 STOPPER 6M030301 3.30
104 STOPPER SC 63516401 2.20
105 STOPPER SP 6M656401 2.20
106 IDLE GEAR O-RING (A) 6G163201 1.10
107 IDLE GEAR 6M621901 19.80
108 IDLE GEAR O-RING (B) 6J185801 1.10
109 DRIVE GEAR O-RING 6G163201 1.10
110 DRIVE BEARING O-RING 6J042501 1.10
111 DRIVE BALL BEARING (A) *Cannot be ordered 6J042402 45.10
112 DRIVE BEARING (A) W 6J893901 1.10
113 COVER PLATE PIN O-RING *Not available 6B853101 1.10
114 COVER PLATE PIN 6J902801 2.20
115 COVER PLATE O-RING 6M622101 1.10
116 COVER PLATE *Cannot be ordered 6M622001 59.40
117 HANDLE CAP 6M658301 18.70
118 DRIVE BALL BEARING (B) *Cannot be ordered 6J042402 45.10
119 DRIVE BEARING (B)W 6G529501 1.10
120 DRIVE BEARING (B)O-RING 6J042501 1.10
121 ENGINE PLATE O-RING 6M622101 1.10
122 ENGINE PLATE *Cannot be ordered 6M623302 59.40
123 HANDLE 6M657701 253.00
200 LINE ROLLER/ MONOFILAMENT YO *Cannot be ordered 6M731001 16.50
201 HANDLE KNOB PACKING 6G223301 2.20
202 HANDLE KNOB W 63753005 1.10
203 HANDLE KNOB BALL BEARING 6G466205 15.40
204 HANDLE KNOB 6M116402 66.00
205 HANDLE KNOB SC 6E454003 2.20
206 HANDLE KNOB CAP (O-RING TSUKI) 6M658101 13.20
207 HANDLE KNOB CAP O-RING 6H100001 1.10
208 SCREWDRIVER (HANDLE KNOB CAP YO) 6M793501 4.40
209 SPOOL BAND 6X268103 15.40
