[DAIWA] Genuine Spare Parts for 24 LUVIAS SF2000SS-P Product code: 00061236 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 24 LUVIAS SF2000SS-P Product code: 00061236 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.7 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/8875

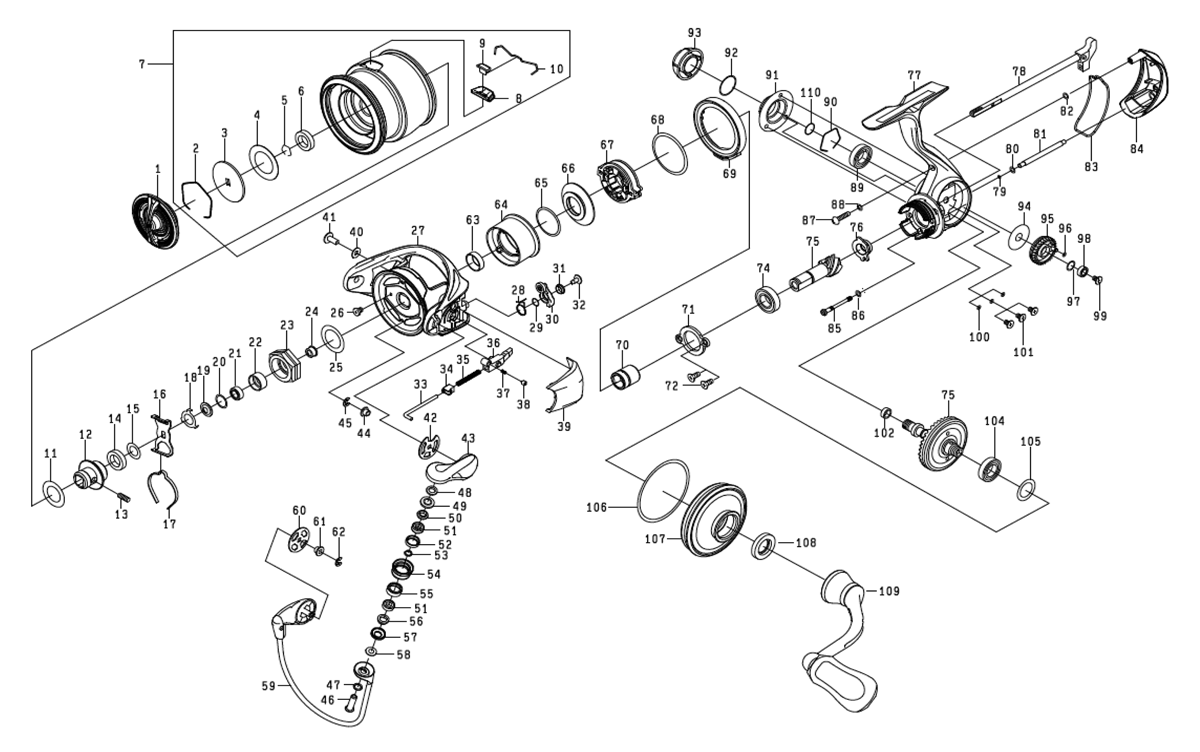

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOB 6M714501 16.50
2 DRAG RING 6J556701 2.20
3 DRAG DISC W 6M752201 2.20
4 DRAG W (1 piece) 6M358901 6.60
5 SPOOL COLOR RING 6B358703 2.20
6 SPOOL COLOR 6J546701 2.20
7 SPOOL (2-10) 6M756101 129.80
8 LINE STOPPER PLATE 6J563601 2.20
9 LINE STOPPER 6J558001 2.20
10 LINE STOPPER SP 6J314801 2.20
11 SPOOL W 6J546301 1.10
12 SPOOL METAL 6M305902 9.90
13 SPOOL METAL SC 6J558201 2.20
14 SPOOL METAL COLOR 6H624801 2.20
15 SPOOL METAL W 6M422001 1.10
16 CLICK HOLDER *Cannot be ordered 6M305801 2.20
17 CLICK LEAF SP 6H416101 2.20
18 ROTOR NUT PLATE 6G471501 2.20
19 ROTOR NUT PACKING 6M305701 2.20
20 ROTOR NUT BEARING W 63755202 1.10
21 ROTOR NUT BALL BEARING 6H959602 15.40
22 ROTOR NUT BEARING COLLAR 6M721701 4.40
23 ROTOR NUT 6M721601 8.80
24 ROTOR NUT COLLAR 6M607801 4.40
25 ROTOR NUT W 63712824 1.10
26 ROTOR NUT SC 6H022701 2.20
27 ROTOR *Cannot be ordered 6M640201 46.20
28 KICK LEVER SP 6M217902 2.20
29 KICK LEVER W 6M194601 1.10
30 KICK LEVER 6M218001 8.80
31 KICK LEVER COLOR 6M196401 2.20
32 KICK LEVER SC 6H022702 2.20
33 ARM LEVER SHAFT 6M194901 2.20
34 ARM LEVER SHAFT COLOR 6M397001 3.30
35 ARM LEVER SP 6J304801 2.20
36 ARM LEVER SHAFT HOLDER 6M218201 2.20
37 ARM LEVER SHAFT HOLDER SP 6M195301 2.20
38 ARM LEVER SHAFT HOLDER PIN 6M397201 2.20
39 ARM LEVER COVER 6M218401 7.70
40 ARM LEVER COVER SC・W 6G256401 1.10
41 ARM LEVER COVER SC 6M355601 2.20
42 ARM LEVER PLATE 6M195902 2.20
43 ARM LEVER 6M218304 15.40
44 ARM LEVER COLLAR 6M195801 2.20
45 ARM LEVER RETAINER 6B339801 2.20
46 ARM LEVER SC 6M196803 3.30
47 ARM LEVER SC・W 6M291901 1.10
48 ROLLER W (A) 6F897101 1.10
49 ROLLER PACKING 6J736201 1.10
50 ROLLER COLLAR (A) 6J530401 2.20
51 ROLLER BALL BEARING 6J256702 15.40
52 ROLLER COLLAR (B) 6J530501 3.30
53 ROLLER COLLAR (C) 6J256301 2.20
54 LINE ROLLER *Cannot be ordered 6M196701 8.80
55 ROLLER COLLAR (D) 6M305301 5.50
56 ROLLER COLLAR (E) 6J530401 2.20
57 ROLLER PACKING 6J736201 1.10
58 ROLLER W (B) 63754101 1.10
59 BAIL *Cannot be ordered 6M218501 72.60
60 BAIL HOLDER PLATE 6M196502 2.20
61 BAIL HOLDER COLLAR 6M195801 2.20
62 BAIL HOLDER RETAINER 6B339801 2.20
63 ROTOR GUARD COLLAR 6M372802 2.20
64 SHIELD CAP *Cannot be ordered 6M607701 8.80
65 SHIELD CAP O-RING 6M379902 1.10
66 MAG SHIELD PLATE *Cannot be ordered 6M238201 23.10
67 ONE-WAY CLUTCH *Cannot be ordered 6M086301 18.70
68 ROTOR BRAKE COLLAR O-RING 6M607601 1.10
69 ROTOR BRAKE COLLAR 6M607501 3.30
70 CLUTCH RING *Cannot be ordered 6M093001 7.70
71 PINION BEARING PLATE 6M606701 2.20
72 PINION BEARING PLATE SC 6G997301 2.20
74 PINION BALL BEARING 6G467302 8.80
75 PINION + DRIVE GEAR SET *Cannot be ordered 6Z028031 77.00
76 PINION COLLAR 6M606601 4.40
77 BODY *Cannot be ordered 6M605801 49.50
79 OSCILLATING POST O RING 6G683302 1.10
80 OSCILLATING POST W 6G712402 1.10
81 OSCILLATING POST 6M304603 2.20
82 REAR CAP W 6G315301 1.10
83 REAR CAP PACKING 6M607301 2.20
84 REAR CAP *Cannot be ordered 6M607401 8.80
85 REAR CAP SC (A) 6M305103 3.30
86 REAR CAP SC (A), W 6J718501 1.10
87 REAR CAP SC (B) 6J553608 2.20
88 REAR CAP SC (B), W 6G315301 1.10
89 DRIVE BALL BEARING (A) 6G522706 8.80
90 DRIVE BALL BEARING (A) RING 6J149502 2.20
91 DRIVE BEARING (A) COVER *Cannot be ordered 6M606001 38.50
92 HANDLE CAP O-RING 6G162401 2.20
93 HANDLE CAP 6M672101 6.60
94 OSCILLATING GEAR W 6M606201 1.10
95 OSCILLATING GEAR *Cannot be ordered 6M606301 9.90
96 OSCILLATING GEAR O-RING 6G898301 1.10
97 OSCILLATING GEAR BEARING W 6H129201 1.10
98 OSCILLATING GEAR BALL BEARING 6G686904 15.40
99 OSCILLATING GEAR SC 6G997002 2.20
100 DRIVE BEARING (A) COVER O-RING 6M606101 1.10
101 DRIVE BEARING (A) COVER SC 6H294103 2.20
102 DRIVE GEARING 6M348102 2.20
104 DRIVE BALL BEARING (B) 6G522706 8.80
105 DRIVE BALL BEARING (B) W 6G317506 1.10
106 ENGINE PLATE O-RING 6M379701 1.10
107 ENGINE PLATE *Cannot be ordered 6M607106 38.50
108 HANDLE PACKING 6J130201 2.20
109 HANDLE 6M842101 83.60
110 DRIVE BALL BEARING (A) 0-RING 6J556301 1.10
200 HANDLE KNOB SP, W 6H744801 1.10
201 HANDLE KNOB W 6B411703 1.10
202 HANDLE KNOB COLOR 6G720001 2.20
203 HANDLE KNOB 6J850001 15.40
204 HANDLE KNOB BALL BEARING 6G469008 8.80
205 HANDLE KNOB SC 6G752603 3.30
