[SHIMANO] Genuine Spare Parts for 25 SURF LEADER SD35 Standard Specification Product Code: 048301 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability

Part Number:

Quantity:

Return & Exchange Policy

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.

*Please make sure to read about the conditions before you order.

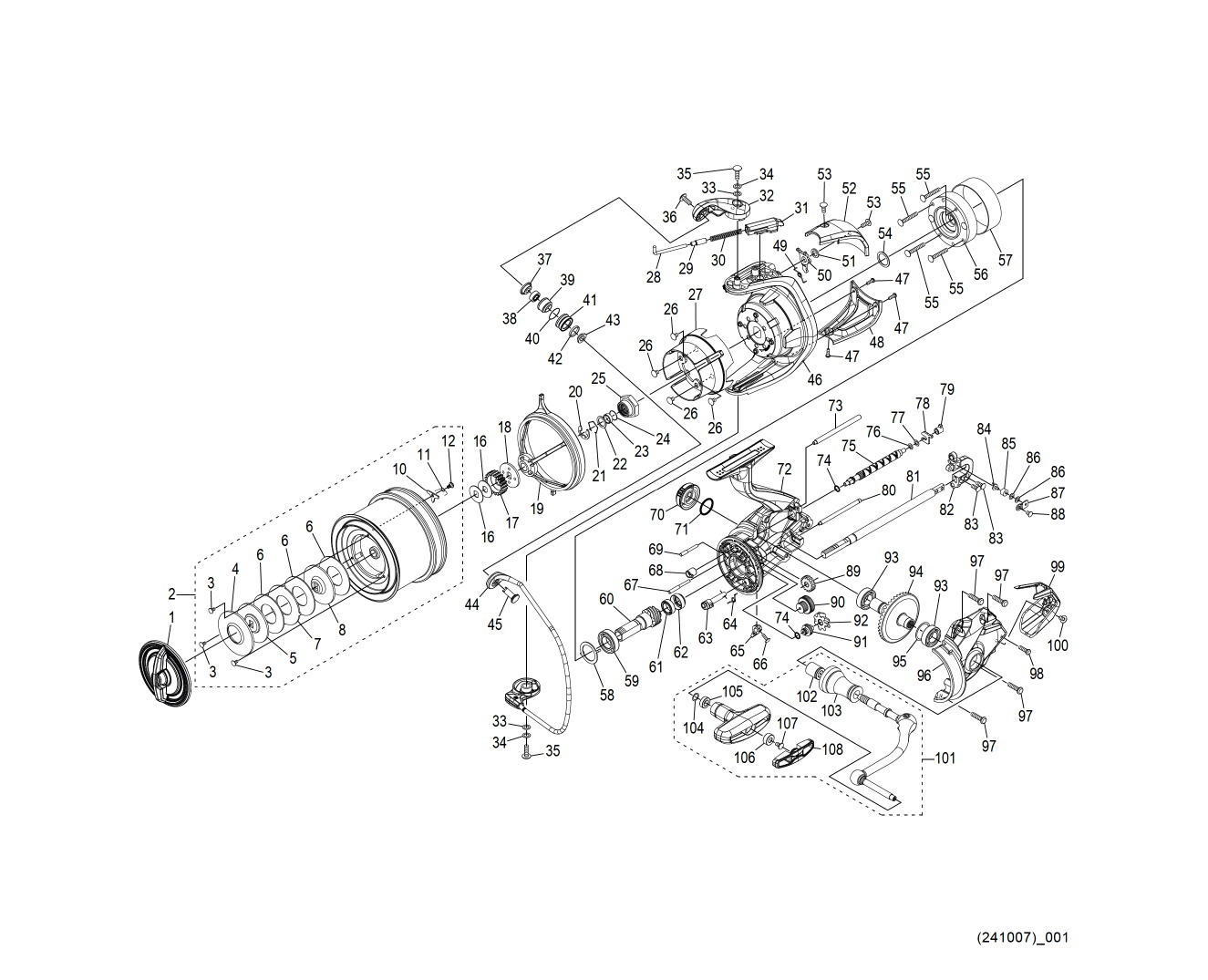

　Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	148ND	DRAG KNOB ASSEMBLY	12.10
2	148PD	SPOOL ASSEMBLY	88.00
3	10MPR	BODY A SHEET B FIXING BOLT	1.10
4	10LR0	WATERPROOF SEAL	6.05
5	10PLQ	OVAL WASHER	2.75
6	1459T	DRAG WASHER	8.25
7	10N55	EAR WASHERS	2.75
8	10BCF	OVAL WASHER	3.85
10	10DNM	SPOOL PINS	1.10
11	100QY	OTOIDE SHIBANE	1.10
12	10A6G	FIXING BOLT	1.65
16	106VN	SPOOL WASHER SET	1.10
17	101Y5	SPOOL HOLDER (A)	1.65
18	10GH5	SPOOL HOLDER (B)	1.65
19	10STY	THREAD FALL PREVENTION COLLAR SET	9.35
20	105RZ	E-TYPE RETAINING RING 6	1.10
21	1054D	BEARING RETAINING CLIP	1.10
22	10GR8	WASHER	1.10
23	10RQW	SPACER	1.10
24	1009E	O-RING	1.65
25	145A2	ROTOR NUT	5.50
26	103L7	FIXING BOLT	1.10
27	10SHM	ROTOR FLANGE	9.90
28	105YW	ARM SPRING GUIDE (A)	1.65
29	10HDL	SPRING GUIDE (A) COLLAR	1.65
30	105LK	ARM CAM SPRING	1.65
31	107A8	ARM SPRING GUIDE (B)	1.65
32	148NY	ARM CAM	7.15
33	10K96	WASHER	1.65
34	10KFA	ADJUSTMENT WASHER	1.10
35	10LLK	FIXING BOLT	1.65
36	10K92	FIXING BOLT	1.10
37	145AT	BEARING COLLAR	2.75
38	104VQ	BALL BEARING (4 X 8 X 3)	13.75
39	10RAQ	BUSH	6.05
40	1015S	O-RING	1.65
41	145D4	LINE ROLLER	4.95
42	10RAS	SPACER	2.20
43	10QUP	LINE ROLLER COLLAR	3.85
44	149QQ	BAIL ASSEMBLY	55.00
45	13KLJ	ARM FIXING SHAFT	3.85
46	149QR	ROTOR ASSEMBLY	33.00
47	10L1T	FIXING BOLT	1.10
48	10QVG	MOUNTING CAM COVER	6.05
49	106PM	INTERNAL GERI LEVER SPRING	1.10
50	1085E	INTERNAL GERI LEVER	2.75
51	10764	INTERNAL GERI LEVER WASHER	1.10
52	10QV4	ARM CAM SPRING COVER	6.05
53	10LFF	FIXING BOLT	1.10
54	10G4M	WASHER	1.10
55	10LJ3	FIXING BOLT	1.10
56	10QL4	ROLLER CLUTCH ASSEMBLY	17.05
57	106HS	ROLLER CLUTCH RING	2.75
58	106MU	FRONT FLANGE BEARING WASHER	1.65
59	104PW	BALL BEARING (10 X 19 X 5)	13.75
60	148N4	PINION GEAR	23.10
61	10EX6	BALL BEARING (8 X 12 X 3.5)	7.15
62	10RQX	BUSH	1.10
63	1053M	STOPPER CAM	1.65
64	10DCS	CLICK SPRING	1.10
65	10G2T	STOPPER LEVER	2.75
66	10LCY	FIXING BOLT	1.10
67	10SHU	INTERMEDIATE GEAR SHAFT (B)	2.75
68	106M2	WORM SHAFT BUSH (FRONT)	1.65
69	10SUG	INTERMEDIATE GEAR SHAFT (C)	2.20
70	10SUA	HANDLE SCREW CAP	3.30
71	10R22	O-RING	1.65
72	149QS	BODY ASSEMBLY	49.50
73	10SHK	SLIDER GUIDE (B)	2.20
74	10TM7	O-RING	1.65
75	10SHJ	WORM SHAFT	8.80
76	10ECK	WASHER	1.10
77	10K9C	WASHER	1.10
78	10SU8	WORM SHAFT COVER	1.10
79	10SHS	BUSH	1.65
80	10SUC	SLIDER GUIDE (A)	2.20
81	10SU9	MAIN SHAFT	13.75
82	10SHP	SLIDER	3.30
83	10ML9	FIXING BOLT	1.10
84	106V1	CROSS GEAR PIN	2.75
85	10JUY	CROSS GEAR PIN COLLAR	1.65
86	10K98	WASHER	1.10
87	10HAD	WORM SHAFT PIN PUSH PLATE	1.10
88	103LG	FIXING BOLT	1.10
89	10HBG	WORM SHAFT GEAR	6.05
90	148N2	INTERMEDIATE GEAR (C)	1.65
91	10SU1	INTERMEDIATE GEAR (SMALL)	1.65
92	148N1	INTERMEDIATE GEAR (B)	5.50
93	10BGD	BALL BEARING (9X17X5)	13.75
94	13LD6	DRIVE GEAR	17.05
95	10DHR	WASHER	2.75
96	148N7	LID	27.50
97	10SJ4	FIXING BOLT	1.65
98	10L26	FIXING BOLT	1.10
99	10SHT	BODY GUARD	6.60
100	10PMK	FIXING BOLT	1.10
101	148MZ	HANDLE ASSEMBLY	66.00
102	13MGW	HANDLE SHAFT FLANGE (B)	3.85
103	149QT	HANDLE SHAFT FLANGE	12.65
104	104FH	WASHER	2.20
105	104UJ	HANDLE GRIPPED BUSH (B)	1.65
106	10EU0	HANDLE GRIPPED BUSH (A)	1.65
107	10LFA	FIXING BOLT	1.10
108	10SHY	HANDLE CAP	3.30
MH01	148NG	NAMEPLATE ON BACK OF LEG	1.65
