[SHIMANO] Genuine Spare Parts for 24 Beast Master MD 12000 Product code: 044396 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability

Part Number:

Quantity:

Return & Exchange Policy

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.

*Please make sure to read about the conditions before you order.

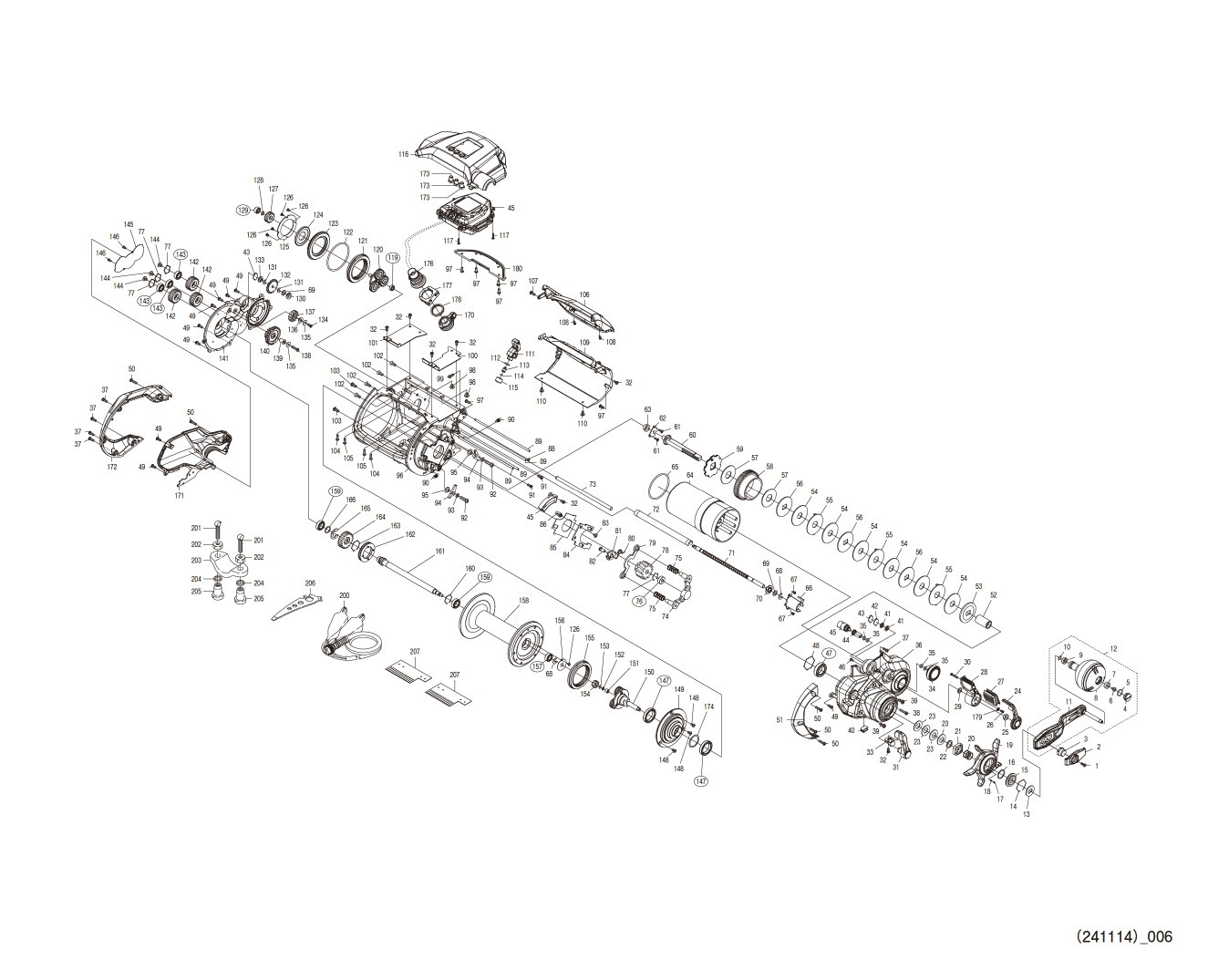

　Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No	S Part No.	Description	Price (USD)
1	101AA	FIXING BOLT	1.65
2	13VAF	RETAINER	9.35
3	101AS	HANDLE FIXING NUT	6.05
4	10B2B	HANDLE CAP	6.05
5	10LAB	O-RING	1.10
6	103E9	FIXING BOLT	1.10
7	10EU0	HANDLE GRIPPED BUSH (A)	1.65
8	13E8W	HANDLE KNOB ASSEMBLY	67.65
9	104UJ	HANDLE GRIPPED BUSH (B)	1.65
10	104FH	WASHER	2.20
11	13HW9	HANDLE SHAFT ASSEMBLY	56.10
12	13J85	HANDLE ASSEMBLY	112.20
13	107QM	HANDLE HOLDER WASHER	1.10
14	10KXX	STAR DRAG CLICK PLATE RETAINER	1.65
15	10J27	STAR DRAG CLICK PLATE	1.65
16	10G6M	WASHER	1.10
17	10B27	CLICK PIN	1.65
18	10988	CLICK SPRING	1.65
19	13V4F	STAR DRAG	45.10
20	10HZ2	STAR DRAG SPRING	1.65
21	10QY2	STAR DRAG FIXING NUT	4.95
22	10BR2	BEARING PUSH FLY	1.65
23	1052E	SALA SPRING (DB8H)	1.65
24	13VN1	LEVER SWITCH NAMEPLATE	3.85
25	10NAS	FIXING NUT	2.75
26	103N4	FIXING BOLT	1.10
27	13VMZ	LEVER SWITCH (B)	1.65
28	13VN0	LEVER SWITCH	8.80
29	10NAQ	OVAL WASHER	1.65
30	13JPC	FIXING BOLT	1.65
31	10T78	CLUTCH LEVER ASSEMBLY	17.05
32	10LSQ	FIXING BOLT	1.10
33	101AQ	CLUTCH LEVER PROTECTOR	1.65
34	13U35	MECHANICAL BRAKE KNOB	10.45
35	10TNF	O-RING	1.65
36	13XZR	BODY A ASSEMBLY	132.00
37	10A6Q	FIXING BOLT	1.65
38	13MBU	FIXING BOLT	1.10
39	13JXJ	FIXING BOLT	1.10
40	106NV	THREAD CLAMP	2.75
41	105SC	CS TYPE RETAINING RING 3	1.10
42	1085L	SPOOLED LUG WASHER (A)	1.10
43	13UEX	MECHANICAL BRAKE WASHER (B)	3.30
44	13VN2	LEVER INSERT SHAFT	5.50
45	13XZZ	COUNTER UNIT ASSEMBLY	440.00
46	10MT3	FIXING BOLT	1.10
47	10KXA	BALL BEARING (12 X 21 X 5)	17.05
48	13RH1	BEARING EXTRACTION STOPPER	1.65
49	10LZB	FIXING BOLT	1.10
50	13MBV	FIXING BOLT	1.10
51	13UEK	BODY A2	15.40
52	13XFW	DRIVE GEAR SHAFT SLEEVE	4.95
53	10D4H	STAR DRAG PLATE	1.65
54	10L86	STAR DRAG WASHER	9.35
55	10LBB	STAR DRAG WASHER	1.65
56	10KZW	STAR DRAG WASHER	1.65
57	10CKR	STAR DRAG WASHER	9.35
58	13UST	DRIVE GEAR	34.10
59	13HWA	STOPPER GEAR ASSEMBLY	37.95
60	13ULY	DRIVE GEAR SHAFT	35.75
61	10MPU	FIXING BOLT	1.10
62	109VJ	DRIVE GEAR SHAFT FIXING PLATE	1.65
63	10BQ3	MAIN GEAR SHAFT BUSHING	1.65
64	13XFS	MOTOR ASSEMBLY	330.00
65	13K3J	O-RING	4.40
66	13SJ6	WORM SHAFT RETAINER	1.65
67	100BD	FIXING BOLT	1.65
68	105NJ	E TYPE STOP RING 4	1.10
69	109RN	CROSS GEAR WASHER (B1) 0.6	1.10
70	104T6	WORM SHAFT RETAINER	1.10
71	13XFX	WORM SHAFT	12.65
72	13XFY	LEVEL-WIND PIPE	1.65
73	13XFZ	LEVEL WINDING ROD (B)	2.75
74	13T7W	CLUTCH YOKE PROP	18.15
75	13T21	CLUTCH YOKE SPRING	1.10
76	10KAF	BALL BEARING (4X11X4)	13.75
77	13RBQ	BEARING STOPPER	1.10
78	13GV4	PINION GEAR ASSEMBLY	11.55
79	13T20	CLUTCH YOKE	3.30
80	10JYX	CLUTCH LEVER SPRING	1.65
81	1084C	CLUTCH CAM	3.85
82	10F8M	CLUTCH SWITCHING LEVER FIXING BOLT	2.75
83	10MT5	FIXING BOLT	1.10
84	13TDP	CLUTCH PLATE	2.20
85	13TDQ	CLUTCH PLATE WASHER	1.10
86	13JRP	MAGNET HOLDER ASSEMBLY	55.00
88	10MP8	FIXING BOLT	1.10
89	13XG0	LEVEL WINDING ROD	2.75
90	10CBS	STOPPER CLAW SPRING	1.10
91	103DE	FIXING BOLT	1.10
92	10MG8	FIXING BOLT	1.65
93	10GCY	WASHER	1.10
94	10PFV	STOPPER CLAW	3.85
95	10PKN	STOPPER COVER	2.75
96	13XZP	FRAME ASSEMBLY	137.50
97	10LST	FIXING BOLT	1.10
98	13JXH	FIXING BOLT	1.10
99	10LZF	FIXING BOLT	1.10
100	13XG1	COUNTER SIDE PLATE (A)	2.20
101	13XG2	COUNTER SIDE PLATE (B)	2.20
102	10MLK	FIXING BOLT	1.10
103	13JXM	FIXING BOLT	1.10
104	101GQ	FIXING BOLT	1.65
105	103KP	FIXING BOLT	1.10
106	13XG3	LEVEL WIND GUARD	19.80
107	1080B	FIXING BOLT	1.10
108	103N9	FIXING BOLT	1.10
109	13XG4	LEVEL WIND GUARD NAMEPLATE	20.35
110	103EB	FIXING BOLT	1.65
111	13GH9	LEVEL WIND GUARD ASSEMBLY	55.00
112	10LAA	O-RING	1.10
113	10FFX	CROSS GEAR PIN	2.75
114	10RR9	WASHER	2.75
115	10FJW	LEVEL WINDING RECEIVER	1.65
116	13XFT	COUNTER COVER ASSEMBLY	88.55
117	10LPQ	FIXING BOLT	1.10
119	104VQ	BALL BEARING (4X8X3)	13.75
120	13H0V	REDUCTION GEAR PLATE (A) ASSEMBLY	40.15
121	13SW0	INNER GEAR	17.60
122	13K3K	O-RING	4.40
123	13T1V	MOTOR SEAL HOLDER	19.25
124	10MDF	ROLLER CLUTCH SEAL	2.75
125	13T1W	MOTOR SEAL PUSH PLATE	1.10
126	1055G	FIXING BOLT	1.65
127	13RNW	TRANSMISSION GEAR	9.35
128	10G6B	WASHER	1.10
129	10KX2	BALL BEARING (4 X 9 X 4)	13.75
130	104SX	CROSS GEAR UKE B	1.10
131	105NE	E TYPE STOP RING 3	1.10
132	13S6K	WORM SHAFT GEAR	1.65
133	13U7Y	MECHANICAL BRAKE KNOB INTERSEAT	3.85
134	103GP	FIXING BOLT	1.10
135	105EN	CROSS GEAR TRANSMISSION GEAR A MOUNTING BRACKET	1.65
136	10PYU	WORM SHAFT TRANSMISSION GEAR COLLAR A	1.65
137	13T1Y	WORM SHAFT GEAR TRANSMISSION GEAR (C)	1.10
138	103LZ	FIXING BOLT	1.65
139	10PYX	WORM SHAFT TRANSMISSION GEAR COLLAR B	2.75
140	13T1X	WORM SHAFT GEAR TRANSMISSION GEAR (B)	1.65
141	13RNX	TRANSMISSION GEAR FIXING PLATE	62.70
142	13RNZ	TRANSMISSION GEAR	11.00
143	108PE	BALL BEARING (6 X 12 X 4)	13.75
144	103H4	FIXING BOLT	1.10
145	13RNY	TRANSMISSION GEAR FIXING PLATE COVER	2.20
146	10LVA	FIXING BOLT	1.10
147	14821	BALL BEARING (16X22X4)	22.55
148	10ML5	FIXING BOLT	1.10
149	13SW4	SPOOL SIDE PLATE	30.80
150	13H6S	PLATE FOR REDUCTION GEAR (B) ASSEMBLY	20.90
151	13SW3	PLATE FOR REDUCTION GEAR (B) SHAFT BUSH	2.20
152	10GFJ	WASHER	1.10
153	105NC	E TYPE STOP RING 2	1.10
154	13T1Z	SUN GEAR	7.70
155	13SW1	SPOOL INSERT	18.15
156	13SVG	SPOOL BULKHEAD	1.65
157	108PD	BALL BEARING (6 X 12 X 4)	13.75
158	13XFU	SPOOL ASSEMBLY	165.00
159	104PS	BALL BEARING (8X14X4)	13.75
160	10GGN	EXTRACTION STOPPER	1.10
161	13XG5	SPOOL SHAFT	13.75
162	13SW2	WORM SHAFT GEAR TRANSMISSION GEAR (A)	1.65
163	13RBP	BEARING RETAINING CLIP	1.65
164	13RP0	TRANSMISSION GEAR	12.65
165	13K3L	E-SHAPED RETAINING RING 7	1.10
166	13LNG	SOCKET CAP	1.10
170	10T2G	SOCKET CAP	3.85
171	13RGW	BODY B	26.95
172	13RNP	BODY B2	25.85
173	13X9F	SWITCH BUTTON	1.10
174	13PLD	WASHER	1.10
176	100XP	CONNECTOR	22.55
177	13S01	SOCKET BRACKET	2.75
178	10BGS	SOCKET NUT SET	6.05
179	145VL	WASHER	1.10
180	140LU	COUNTER CASE SIDE COVER	15.40
200	10004	CABLE	45.10
201	10A79	LEG MOUNTING BOLTS	2.75
202	105N9	LEG MOUNTING HEX NUTS	1.65
203	10AR5	LEG MOUNTING BASE	4.95
204	10GA8	LEG MOUNTING NUT WASHERS	1.65
205	1046P	LEG MOUNTING NUTS	2.75
206	10MJ6	REEL WRENCH	3.85
207	13XG6	THERMAL PROTECTION COVER	3.30
LINE	10CW0	LINE THREADING	1.65
