[SHIMANO] Genuine Spare Parts for 25 ACTIVE CAST SD1080 Product Code: 048271 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability

Part Number:

Quantity:

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.

*Please make sure to read about the conditions before you order.

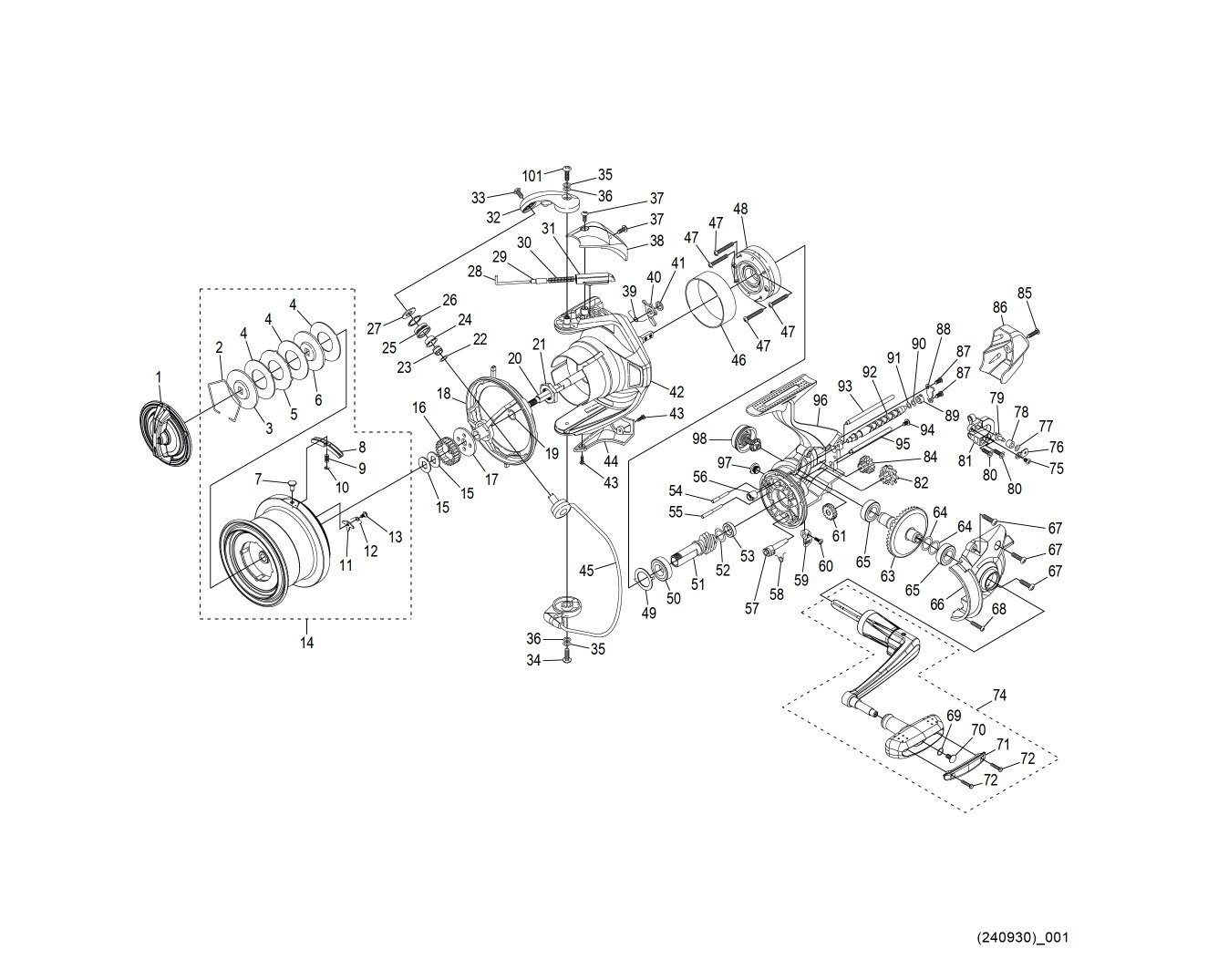

　Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	148S3	DRAG KNOB ASSEMBLY	21.45
2	10MZP	RETAINERS	1.65
3	10PLN	OVAL WASHER	2.75
4	1031E	DRAG WASHER	1.65
5	10N2H	EAR WASHER	3.85
6	10BCF	OVAL WASHER	3.85
7	10ATX	LINE CLIP	2.20
8	10JQU	LINE CLIP HOLDER	1.65
9	10B03	THREAD CLAMP SPRING	1.10
10	105NC	E TYPE RETAINING RING 2	1.10
11	1038F	SPOOL PIN	1.10
12	102A2	SPOOL PIN SPRING	1.10
13	10A6G	FIXING BOLT	1.65
14	1489K	SPOOL ASSEMBLY	49.50
15	106VN	SPOOL WASHER SET	1.10
16	101Y5	SPOOL HOLDER (A)	1.65
17	10J00	SPOOL HOLDER (B)	1.65
18	149XK	THREAD FALL PREVENTION COLLAR SET	8.25
19	105RZ	E-TYPE RETAINING RING 6	1.10
20	103MD	MAIN SHAFT	11.55
21	107VW	ROTATING FRAME NUT	1.65
22	10KF7	WASHER	1.65
23	10HAR	ARM ROLLER COLLAR	1.10
24	10PFK	ARM ROLLER BUSHING	1.10
25	10JLZ	LINE ROLLER	3.30
26	10KFF	ARM ROLLER SPACER	1.65
27	107WS	ARM ROLLER WASHER	1.10
28	105YW	ARM SPRING GUIDE (A)	1.65
29	10HDL	SPRING GUIDE (A) COLLAR	1.65
30	105LK	ARM CAM SPRING	1.65
31	107A8	ARM SPRING GUIDE (B)	1.65
32	10QV9	ARM CAM	4.95
33	10K92	FIXING BOLT	1.10
34	103J1	FIXING BOLT	1.10
35	10K96	ADJUSTMENT WASHER	1.65
36	10KFA	ADJUSTMENT WASHER	1.10
37	10LFF	FIXING BOLT	1.10
38	1087Q	ARM CAM SPRING COVER	6.05
39	106PM	INTERNAL GERI LEVER SPRING	1.10
40	1085E	INTERNAL GERI LEVER	2.75
41	10764	INTERNAL GERI LEVER WASHER	1.10
42	149E7	ROTOR ASSEMBLY	31.35
43	10L1T	FIXING BOLT	1.10
44	10MK3	MOUNTING CAM COVER	6.05
45	149E5	BAIL ASSEMBLY	14.85
46	106HS	ROLLER CLUTCH RING	2.75
47	10LJ3	FIXING BOLT	1.10
48	10QL4	ROLLER CLUTCH ASSEMBLY	17.05
49	106MU	FRONT FLANGE BEARING WASHER	1.65
50	104PX	BALL BEARING (10 X 19 X 5)	8.25
51	13L92	PINION GEAR	11.55
52	10HHX	WASHER	1.65
53	142YY	BUSH	1.10
54	10H4E	INTERMEDIATE GEAR (C) SHAFT	1.65
55	10CKK	INTERMEDIATE GEAR (B) SHAFT	1.65
56	106M2	WORM SHAFT BUSH (FRONT)	1.65
57	1053M	STOPPER CAM	1.65
58	10DCS	CLICK SPRING	1.10
59	10G2T	STOPPER LEVER	2.75
60	10LCY	FIXING BOLT	1.10
61	10HBG	WORM SHAFT GEAR	6.05
63	13LDC	DRIVE GEAR	11.55
64	10DHR	WASHER	2.75
65	107FL	BALL BEARING (9X17X5)	8.25
66	1489F	LID	16.50
67	10DN6	FIXING BOLT	1.10
68	10L6Q	FIXING BOLT	1.10
69	104FH	WASHER (9X17X5)	2.20
70	10LJ7	FIXING BOLT	1.10
71	10HF1	HANDLE KNOB NAMEPLATE	2.75
72	10LS9	FIXING BOLT	1.10
74	148AR	HANDLE ASSEMBLY	33.00
75	10S6U	FIXING BOLT	1.10
76	10HAD	WORM SHAFT PIN PUSH PLATE	1.10
77	10K98	WASHER	1.10
78	10JUY	CROSS GEAR PIN COLLAR	1.65
79	10DMP	WORM SHAFT PIN	2.75
80	10ML9	FIXING BOLT	1.10
81	10G62	SLIDER	2.75
82	13MMT	INTERMEDIATE GEAR (B)	3.85
84	10H4B	INTERMEDIATE GEAR (C)	1.65
85	10LHY	FIXING BOLT	1.65
86	14445	BODY GUARD	7.70
87	10L22	FIXING BOLT	1.65
88	10AT4	WORM SHAFT COVER	1.65
89	106M3	WORM SHAFT BUSH (REAR)	1.65
90	10ECK	WASHER	1.10
91	10K9C	WASHER	1.10
92	10STT	WORM SHAFT	9.35
93	104M7	SLIDER GUIDE (B)	2.75
94	10LHN	FIXING BOLT	1.10
95	10357	SLIDER GUIDE (A)	2.75
96	149MN	BODY ASSEMBLY	27.50
97	10S0B	OIL CAP	1.10
98	148D3	HANDLE SCREW CAP ASSEMBLY	5.50
101	10LLK	FIXING BOLT	1.65
MH01	1484T	NAMEPLATE ON BACK OF LEG	1.65
