[Avail] SHIMANO 01 CALCUTTA CONQUEST 50/51 Narrowcast Spool Kit [01CNQ50/51-NS-KIT]

SHIMANO 01 CALCUTTA CONQUEST 50/51 Narrowcast Spool Kit [01CNQ50/51-NS-KIT]


| Type



01CNQ50/51-NS-KIT 01cnq50_ns_kit


| Product Description



Left: Narrowcast Spool 01CNQ5020RN (Groove Width: 10.6mm)  Right: Genuine Spool (Groove Width: 20.4mm)


The Narrowcast Spool Kit enhances line release by shallowing the angle between the level winder and the spool of the 01 CALCUTTA CONQUEST 50/51, reducing friction during casting.


| Notes

Narrowcast Spool 01CNQ5020RN and Aluminum Worm Shaft for 01CNQ5020RN must be used together as a set.
*Please make sure to watch the installation video at the bottom of the page before attempting disassembly or installation, and proceed at your own risk.*
*The genuine SVS brake unit cannot be transplanted.*
*To reduce weight, the Microcast Spool is machined to the minimum necessary wall thickness. The sound of the reel mechanism and bearings may be amplified due to internal resonance, but this does not affect actual fishing performance. Please avoid applying excessive tension when winding line onto the spool to prevent damage.*
*For quality control during shipping, anti-corrosion grease is applied to the bearings. If spool rotation feels heavy, please degrease and lubricate the bearings with your preferred oil before use.*
*4P Brake CNQ50-38 is not compatible with B-BLOCK (3.5mm) (sold separately).*

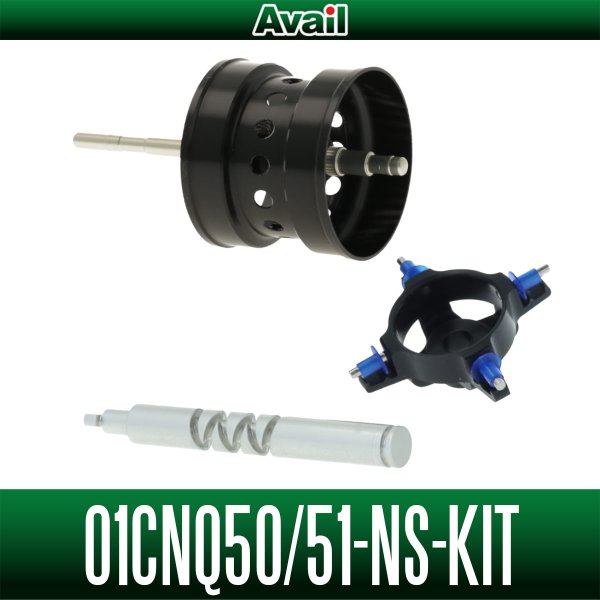

| Set Contents

| Specifications

- Material

- Spool Bearing Size

Outer Diameter 11mm × Inner Diameter 5mm × Thickness 4mm


- Weight

- Compatible Models

01 CALCUTTA CONQUEST 50/51
*Not compatible with 50S/51S


- Compatible Brake

Microcast Brake SHSC-05A for Older SHIMANO Models


| Installation Method



| Gallery
