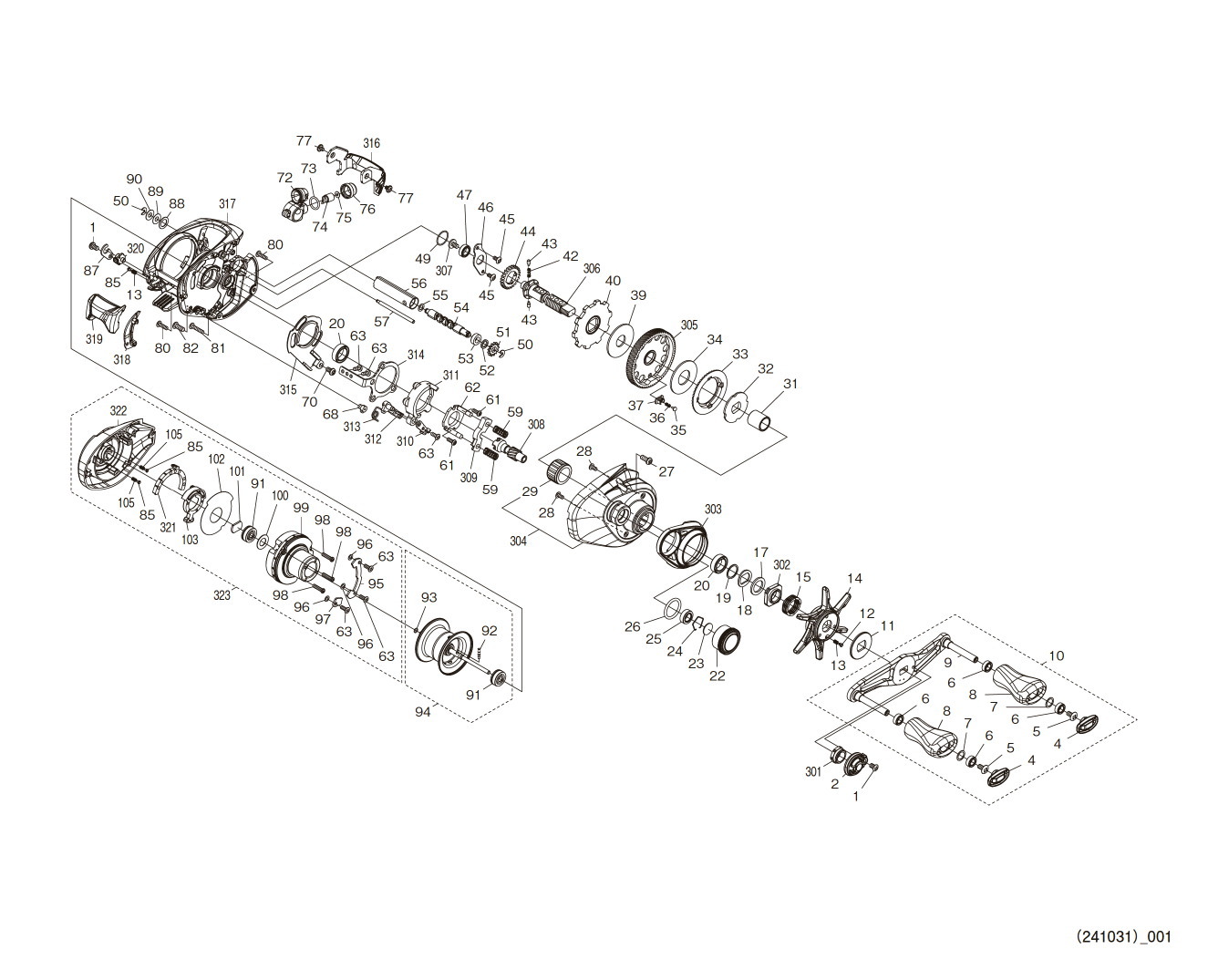

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* As for the "29 / ROLLER CLUTCH", "91 / BALL BEARING" and "92 / SPOOL CLUTCH PIN", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 10DN7 FIXING BOLT 1.65
2 10RZU RETAINER 1.10
4 10SML HANDLE CAP 4.95
5 10DQN FIXING BOLT 1.65
6 104VX BALL BEARING (4X7X2.5) 13.75
7 104FH WASHER 2.20
8 1004X HANDLE KNOB 11.55
9 14A6J HANDLE SHAFT ASSEMBLY 34.10
10 14A6K HANDLE ASSEMBLY 88.00
11 101JC STAR DRAG CLICK PLATE 1.65
12 10B27 CLICK PIN 1.65
13 10988 CLICK SPRING 1.65
14 10RZT STAR DRAG 11.55
15 10A78 STAR DRAG SPRING 2.75
17 10J1N STAR DRAG SPACER 1.65
18 10D60 MAIN GEAR WASHER (C) 1.65
19 105PW STAR DRAG BEARING WASHER 1.10
20 10EX8 BALL BEARING (8X12X3.5) 13.75
22 1481W MECHANICAL BRAKE KNOB 9.35
23 1057Q SPOOL SHAFT TATARI (B) 1.10
24 1057X EXTRACTION STOPPER 1.65
25 105BP BALL BEARING (5X9X3) 13.75
26 10LA9 O-RING 1.65
27 10SMM FIXING BOLT 1.10
28 1055J FIXING BOLT 1.65
29 10TM8 ROLLER CLUTCH *Cannot be ordered 17.05
31 14016 ROLLER CLUTCH INNER TUBE 13.75
32 14A2D STAR DRAG PLATE 6.60
33 10JB0 DRAG CLICK SYRATCHET 2.75
34 10CKS STAR DRAG WASHER 6.05
35 10C0T DRAG CLICK PIN 2.75
36 10J8A DRAG CLICK SPRING 1.65
37 10J87 DRAG SPRING HOLDERS 1.65
39 10CJ4 STAR DRAG WASHERS (A) 3.85
40 1497Q STOPPER GEARS 9.35
42 10JDX WORM SHAFT GEAR SPRINGS 1.65
43 10HJF WORM SHAFT GEAR PINS 1.65
44 10EE3 WORM SHAFT GEARS 1.10
45 10MT2 FIXING BOLTS 1.10
46 10RZG DRIVE GEAR SHAFT FIXING PLATE 1.65
47 104JZ BALL BEARINGS (5 X 8 X 2.5) 13.75
49 10SZ4 O-RINGS 1.65
50 105NC TYPE E STOPPER RINGS2 1.10
51 10EEL WORM SHAFT GEARS 1.10
52 10J1J WASHER 1.10
53 10PXY HANDLE GRIPPED BUSH (B) 1.65
54 10EET WORM SHAFT 2.75
55 10GHF WASHER 1.10
56 10NFW LEVEL WINDING PIPE 1.65
57 10RZL LEVEL WINDING ROD 3.30
59 148GL CLUTCH YOKE SPRING 1.10
61 10LVH CLUTCH CAM FIXING BOLT 1.10
62 10EE6 CLUTCH CAM PUSH PLATE 8.80
63 10559 FIXED BOLT 1.65
68 10EDY CLUTCH SPRING HOLDER 1.10
70 10DSZ FIXED BOLT 1.10
72 10NYH LEVEL WINDING ASSEMBLY 22.55
73 108WQ O-RING 1.65
74 100BT WORM SHAFT PIN 2.75
75 10CFW ADJUSTMENT WASHER SET 1.10
76 10FJB LEVEL WINDING RECEIVER 1.65
77 10S2Y FIXING BOLT 1.10
80 1055A FIXING BOLT 1.65
81 10TGT FIXING BOLT 1.10
82 103DF FIXING BOLT 1.10
85 144NT CLICK PIN 1.10
87 1481Z BODY B CAM LEVER PRESSING PLATE 2.75
88 10J4L WASHER 1.10
89 10E7G WASHER 1.10
90 13PK5 WASHER 1.10
91 10S37 BALL BEARING (3X10X4) *Cannot be ordered 13.75
92 10MCZ SPOOL CLUTCH PIN *Cannot be ordered 2.75
93 10E7H O-RING 1.10
94 14A6N SPOOL ASSEMBLY 137.50
95 1481L CAM PLATE (A) 4.40
96 14889 WASHER 1.10
97 1481M CAM PLATE (B) 4.40
98 141R6 FIXING BOLT 1.10
99 1481N DC ASSEMBLY 132.00
100 10B94 BEARING SEAL 1.65
101 144NQ SPOOL SHAFT CONTACT B 1.10
102 1485C BODY B NAMEPLATE 1.10
103 14A6P DC DIAL ASSEMBLY 11.00
105 10T6Z CLICK SPRING 1.10
301 10EE5 HANDLE FIXING NUT 4.40
302 10EDV STAR DRAG FIXING NUT 4.40
303 1481V BODY A NAMEPLATE 9.35
304 14A6T BODY A ASSEMBLY 69.30
305 10EDX DRIVE GEAR 24.75
306 1480K DRIVE GEAR SHAFT 18.70
307 10PVT FIXING BOLT 1.65
308 10EE1 PINION GEAR 17.05
309 1004W CLUTCH YOKE 1.10
310 10RWM CLUTCH TAB (B) 1.65
311 10SX6 CLUTCH CAM 2.75
312 10RVS CLUTCH TAB (A) 1.65
313 10RRB CLUTCH TAB SPRING 1.65
314 10EE7 CLUTCH PLATE 2.20
315 10RZB BODY A SEAT 1.10
316 14823 LEVEL WIND GUARD 11.00
317 14A6U FRAME ASSEMBLY 143.00
318 10EDW CLUTCH LEVER RECEIVING 1.10
319 10RZD CLUTCH LEVER 5.50
320 1481Y BODY B CAM LEVER 1.10
321 14A6V BRAKE DIAL ASSEMBLY 9.90
322 1481E BODY B 36.30
323 14A6W BODY B ASSEMBLY 198.00
