  3. > [SHIMANO] 25 ULTEGRA Genuine Parts List - Schematic Diagram & Parts Diagram
  4. > [SHIMANO] Genuine Spare Parts for 25 ULTEGRA C5000XG Product Code: 048042 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 25 ULTEGRA C5000XG Product Code: 048042 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 25 ULTEGRA C5000XG Product Code: 048042 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

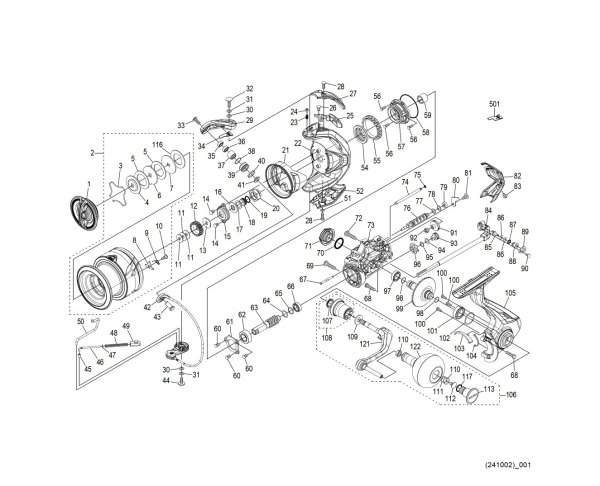

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 13YX6 DRAG KNOB ASSEMBLY 15.95
2 147VG SPOOL ASSEMBLY 66.00
3 10B8N STOPPER SPRING 1.65
4 10QBT OVAL WASHER 1.65
5 10E66 DRAG WASHER (A) 6.05
6 147ZU EAR WASHERS 1.65
7 10BCE OVAL WASHER 1.65
8 101VN SPOOL PIN 1.10
9 148K0 SPOOL PIN SPRING 1.10
10 10TRB FIXING BOLT 1.65
11 10BXN SPOOL WASHER SET 1.10
12 103MU SPOOL HOLDER (A) 1.65
13 10J04 SPOOL HOLDER (B) 1.65
14 103GW FIXING BOLT 1.65
15 1076N RETAINER 2.75
16 10DY6 ROTOR BEARING SEAL 1.65
17 100RU WASHER 1.65
18 13YXF MAIN SHAFT COLLAR 4.95
19 10DXE O-RING 1.65
20 13YXE ROTOR NUT 6.05
21 148K1 ROTOR FLANGE 7.70
22 147Y8 ROTOR 14.85
23 10HE7 CLICK SPRING 1.65
24 106ZC CLICK PIN 1.65
25 14295 BALANCE WEIGHT 3.85
26 103KS FIXING BOLT 1.10
27 14296 ARM CAM SPRING COVER 8.25
28 10PS7 FIXING BOLT 1.10
29 147YD ARM CAM 3.30
30 10K96 ADJUSTMENT WASHER 1.65
31 10KFA ADJUSTMENT WASHER 1.10
32 10DN9 FIXING BOLT 1.65
33 10PMH FIXING BOLT 1.65
34 13YXC ARM CAM FIN 1.10
35 10E44 LINE ROLLER COLLAR 2.75
36 104VX BALL BEARING (4X7X2.5) 13.75
37 1009K LINE ROLLER BUSH 1.65
38 1009E O-RING 1.65
39 1009A LINE ROLLER 6.05
40 10RFZ LINE ROLLER SPACER 1.65
41 10TJM LINE ROLLER BEARING COLLAR 2.75
42 149NJ BAIL ASSEMBLY 33.00
43 10TPC ARM FIXING SHAFT 6.05
44 10PS5 FIXING BOLT 1.65
45 1009B ARM SPRING GUIDE (A) COLLAR BUSH 1.65
46 10DJN ARM SPRING GUIDE (A) 3.85
47 101D9 ARM SPRING GUIDE (A) COLLAR 1.65
48 10RC7 ARM CAM SPRING 1.65
49 107AB ARM CAM SPRING SEAT 2.75
50 13YXD INTERNAL GERI LEVER 2.75
51 105AA WASHER 1.10
52 14298 BAIL MOUNTING COVER 8.25
54 101D5 ROTOR COLLAR 9.35
55 10QXQ FRICTION RING 2.75
56 100WT FIXING BOLT 1.65
57 10S2L ROLLER CLUTCH ASSEMBLY 12.65
58 1009Z O-RING 1.65
59 1009Y ROLLER CLUTCH INNER 3.85
60 100WY FIXING BOLT 1.65
61 10DWD BEARING PUSH PLATE 1.65
62 10E7A BALL BEARING (7X14X5) 7.15
63 1429G PINION GEAR 19.80
64 10E37 WASHER 1.65
65 10GD9 WASHER 1.65
66 104JT BALL BEARING (6X10X3) 13.75
67 13YXL INTERMEDIATE GEAR SHAFT 3.85
68 10LZ4 FIXING BOLT 1.10
69 10DWX FIXING BOLT 1.65
70 108WH O-RING 1.65
71 1427T HANDLE SCREW CAP 5.50
72 13JWW FIXING BOLT 1.65
73 147YK BODY 23.10
74 13YXQ SLIDER GUIDE 1.65
75 100BH O-RING 1.10
76 13YXM WORM SHAFT 6.05
77 10ECK WASHER 1.10
78 10K9C WASHER 1.10
79 1009C WORM SHAFT BUSHING 1.65
80 13YXP WORM SHAFT COVER 1.65
81 10QG5 FIXING BOLT 1.10
82 146BA BODY GUARD 11.55
83 10PRZ FIXING BOLT 1.65
84 149NK MAIN SHAFT ASSEMBLY 12.65
85 106VJ WORM SHAFT PIN 3.85
86 1070D WASHER 1.10
87 100WX O-RING 1.65
88 1010C WORM SHAFT PIN COLLAR 1.65
89 1010D WORM SHAFT PIN PUSH PLATE 1.65
90 10LCT FIXING BOLT 1.65
91 10074 WORM SHAFT GEAR 9.35
92 13YXN BUSH 1.10
93 13YXK INTERMEDIATE GEAR (SMALL) 8.25
94 10G6D WASHER 1.65
95 10TBA WORM SHAFT GEAR (L) 1.65
96 1006V INTERMEDIATE GEAR (L) 9.35
97 107FA BALL BEARING (7X11X3) 7.15
98 1009S O-RING 1.65
99 1429H DRIVE GEAR 20.35
100 100UL FIXING BOLT 1.65
101 107FB BALL BEARING (8X14X4) 7.15
102 100W9 WASHER 2.75
103 14282 INTERNAL GERI CONTACT 1.65
104 1009W FOOT FLANGE SEAL 2.75
105 149NP COVER ASSEMBLY 36.85
106 147YP HANDLE ASSEMBLY 66.00
107 10PXV HANDLE SHAFT SEAL 2.75
108 149NM HANDLE SHAFT FLANGE 11.00
109 10E5X HANDLE WASHER 1.65
110 10PXZ HANDLE KNOB BUSHING 1.65
111 104FH HANDLE WASHER 2.20
112 10LFA FIXING BOLT 1.10
113 147BP HANDLE CAP 9.35
116 10E6E DRAG WASHER (B) 6.05
117 10LAA O-RING 1.10
121 149YR HANDLE SHANK 34.65
122 149Z2 HANDLE KNOB ASSEMBLY 25.30
501 13YXU ARM CAM FIN 1.10
MH01 1478E NAMEPLATE ON BACK OF LEG 2.20
