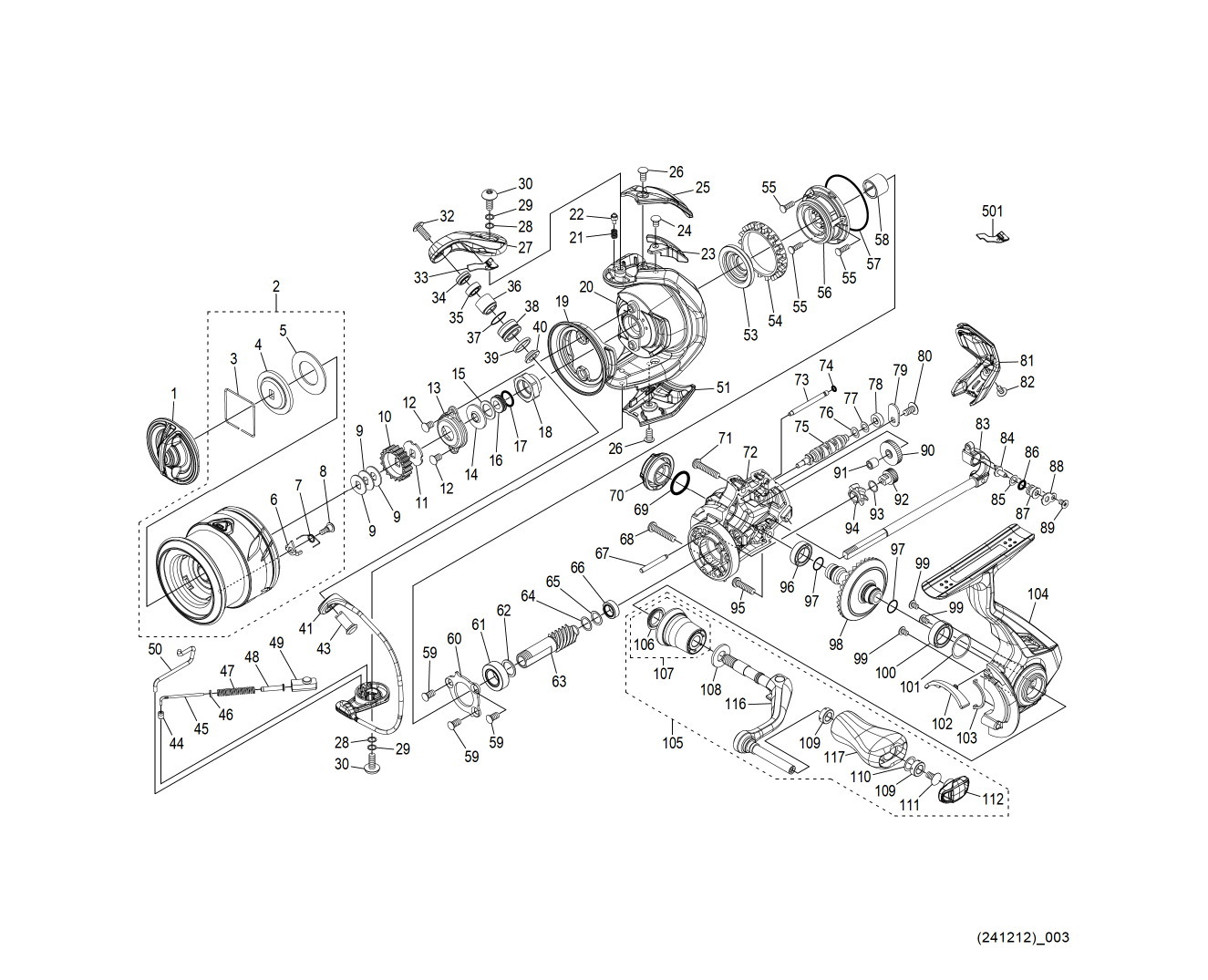

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 149ZZ DRAG KNOB ASSEMBLY 15.95
2 14A06 SPOOL ASSEMBLY 55.00
3 10B87 STOPPER SPRING 1.65
4 13K0V OVAL WASHER 1.65
5 10E7L DRAG WASHER 1.65
6 10DS4 SPOOL PIN 1.65
7 10DS5 SPOOL PIN SPRING 1.10
8 10TRB FIXING BOLT 1.65
9 10BXN SPOOL WASHER SET 1.10
10 103MU SPOOL HOLDER (A) 1.65
11 10J04 SPOOL HOLDER (B) 1.65
12 10DNE FIXING BOLT 1.10
13 1076N RETAINER 2.75
14 1017W ROTOR BEARING SEAL 1.65
15 100RU WASHER 1.65
16 10RDL MAIN SHAFT COLLAR 3.85
17 10DXE O-RING 1.65
18 1427D ROTOR NUT 6.05
19 144R9 ROTOR FLANGE 8.80
20 1493X ROTOR 11.55
21 13ZAA CLICK SPRING 1.65
22 106ZC CLICK PIN 1.65
23 144RB BALANCE WEIGHT 3.85
24 10PMC FIXING BOLT 2.75
25 144RC ARM CAM SPRING COVER 8.25
26 10PS2 FIXING BOLT 1.65
27 1493Y ARM CAM 3.30
28 10K96 WASHER 1.65
29 10KF9 WASHER 1.10
30 10PS5 FIXING BOLT 1.65
32 10PMH FIXING BOLT 1.65
33 13ZA9 ARM CAM FIN 1.10
34 10E44 LINE ROLLER COLLAR 2.75
35 104VX BALL BEARING (4X7X2.5) 13.75
36 1009K LINE ROLLER BUSH 1.65
37 1009E O-RING 1.65
38 1009A LINE ROLLER 6.05
39 10RFZ LINE ROLLER SPACER 1.65
40 10TJM LINE ROLLER BEARING COLLAR 2.75
41 14A02 BAIL ASSEMBLY 33.00
43 10TPC ARM FIXING SHAFT 6.05
44 142QB ARM SPRING GUIDE (A) BUSH 1.65
45 142Q8 ARM SPRING GUIDE (A) 1.10
46 142Q7 ARM SPRING GUIDE (A) COLLAR 1.65
47 142Q9 ARM CAM SPRING 1.65
48 142PV ARM SPRING GUIDE (C) 1.65
49 144RE ARM SPRING GUIDE (B) 1.65
50 144RF INNER GERI LEVER 2.75
51 144RG BAIL MOUNTING COVER 8.25
53 101D5 ROTOR COLLAR 9.35
54 10QXQ FRICTION RING 2.75
55 100WT FIXING BOLT 1.65
56 10S2L ROLLER CLUTCH ASSEMBLY 12.65
57 1009Z O-RING 1.65
58 1009Y ROLLER CLUTCH INNER 3.85
59 100WY FIXING BOLT 1.65
60 10DWD BEARING PUSH PLATE 1.65
61 10DZB BALL BEARING (7X13X4) 7.15
62 143G5 WASHER 1.10
63 144RH PINION GEAR 19.80
64 10HE5 WASHER 1.65
65 10SYU WASHER 1.65
66 104JZ BALL BEARING (5X8X2.5) 13.75
67 144RJ INTERMEDIATE GEAR SHAFT 3.85
68 10TND FIXING BOLT 1.65
69 10E3K O-RING 1.65
70 144RK HANDLE SCREW CAP 5.50
71 146AR FIXING BOLT 1.65
72 1493M BODY 20.90
73 144RM SLIDER GUIDE 1.65
74 100BH O-RING 1.10
75 144RN WORM SHAFT 6.05
76 10ECK WASHER 1.10
77 10K98 WASHER 1.10
78 1009C WORM SHAFT BUSHING 1.65
79 10S7C WORM SHAFT COVER 1.65
80 10QG5 FIXING BOLT 1.10
81 1451F BODY GUARD 11.55
82 10PRZ FIXING BOLT 1.65
83 14A03 MAIN SHAFT ASSEMBLY 11.55
84 1018D WORM SHAFT PIN 6.05
85 10K9C WASHER 1.10
86 100WX O-RING 1.65
87 1009L WORM SHAFT PIN COLLAR 1.65
88 144RR WORM SHAFT PIN PUSH PLATE 1.65
89 1055H FIXING BOLT 1.65
90 10DK0 WORM SHAFT GEAR 9.35
91 144RP BUSH 1.10
92 10DK2 INTERMEDIATE GEAR (S) 8.25
93 10TBA WASHER 1.65
94 144RQ INTERMEDIATE GEAR (LARGE) 9.35
95 10M2L FIXING BOLT 1.10
96 107FA BALL BEARING (7 X 11 X 3) 7.15
97 1009S O-RING 1.65
98 142LX DRIVE GEAR 20.35
99 10SH0 FIXING BOLT 1.65
100 10EX6 BALL BEARING (8X12X3.5) 7.15
101 1022D WASHER 2.75
102 1017Y INNER GERI HITARI 1.65
103 1009W FOOT FLANGE SEAL 2.75
104 14A07 COVER ASSEMBLY 31.35
105 14A01 HANDLE ASSEMBLY 44.00
106 10PXV HANDLE SHAFT SEAL 2.75
107 10TSE HANDLE SHAFT FLANGE ASSEMBLY 8.80
108 10E5X HANDLE WASHER 1.65
109 10PXZ HANDLE KNOB BUSH 1.65
110 104FH HANDLE WASHER 2.20
111 10LFA FIXING BOLT 1.10
112 10TNJ HANDLE CAP 3.85
116 14A05 HANDLE SHANK 34.65
117 10328 HANDLE KNOB 11.55
501 13ZAB ARM CAM FIN 1.10
MH01 14782 NAMEPLATE ON BACK OF LEG 2.20
