[SHIMANO] Genuine Spare Parts for 25 OCEA CONQUEST CT 201MG LEFT Product code: 047694 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.101 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/8812

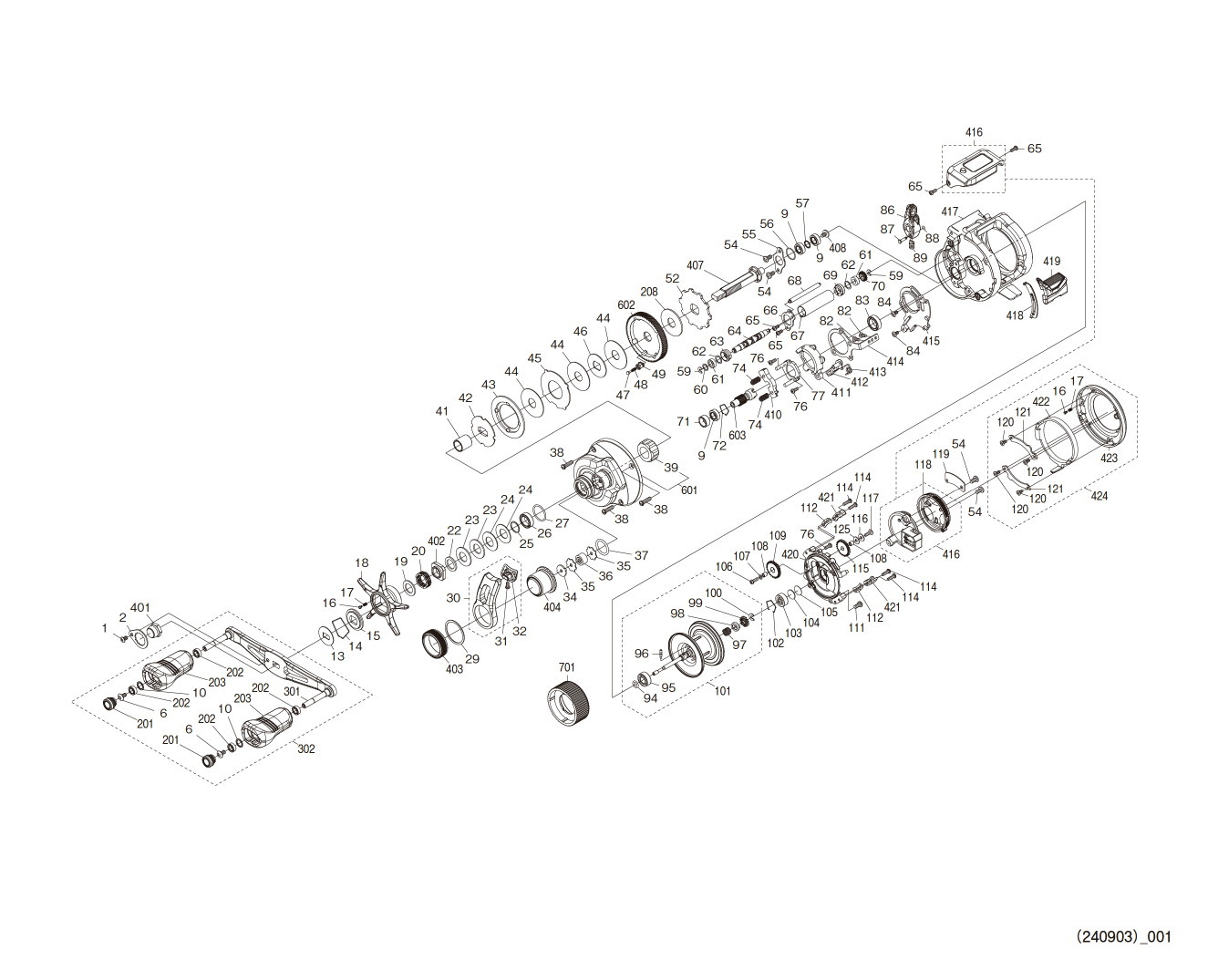

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "39 / ROLLER CLUTCH", "95 / BALL BEARING" and "96 / SPOOL CLUTCH PIN", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	103GY	FIXING BOLT	2.75
2	1486S	RETAINER	2.75
6	103E9	FIXING BOLT	1.10
9	105BP	BALL BEARING (5 X 9 X 3)	13.75
10	104FH	WASHER	2.20
13	13V36	HANDLE HOLDER WASHER	1.65
14	10KXV	STAR DRAG CLICK PLATE RETAINER	1.65
15	10J1Y	STAR DRAG CLICK PLATE	1.65
16	10B27	CLICK PIN	1.65
17	10988	CLICK SPRING	1.65
18	13Z8A	STAR DRAG	28.60
19	10QXM	WASHER	1.10
20	10A71	STAR DRAG SPRING	2.75
22	10J1N	STAR DRAG SPACER	1.65
23	1052E	SARABUNE (DB8H)	1.65
24	10EW3	DISK SPRING (DB8L)	1.65
25	10GHN	WASHER	1.65
26	105BS	BALL BEARING (8X12X3.5)	13.75
27	1027V	O-RING	1.65
29	13PK8	WASHER (8X12X3.5)	1.65
30	149KQ	FALL LEVER ASSEMBLY	44.00
31	10LVD	FIXING BOLT	1.10
32	13UEU	LEVER PROTECTOR	1.65
34	13UES	MECHANICAL BRAKE WASHER	1.10
35	13UET	MECHANICAL BRAKE WASHER	3.85
36	13SVY	ROLLER CLUTCH	16.50
37	109EB	O-RING S11.2	1.65
38	14015	FIXING BOLT	6.05
39	10F33	ROLLER CLUTCH *Cannot be ordered	22.55
41	14016	ROLLER CLUTCH INNER TUBE	13.75
42	13UTZ	STAR DRAG PLATE	3.85
43	13VC1	DRAG CLICK SYLLATIC RATCHET	1.65
44	10CHW	STAR DRAG WASHER	6.05
45	10KQL	STAR DRAG WASHER	1.65
46	13V7Q	STAR DRAG WASHER	1.65
47	10C0S	DRAG CLICK PINE	2.75
48	10J89	DRAG CLICK SPRING	1.65
49	13VG9	DRAG SPRING HOLDER	1.65
52	10D6Y	STOPPER GEAR	6.05
54	1055F	FIXING BOLT	1.65
55	13VAE	DRIVE GEAR SHAFT FIXING PLATE	1.65
56	10SZ4	O-RING	1.65
57	13Y0Z	WASHER	1.10
59	105NC	E TYPE RETAINING RING 2	1.10
60	10J16	WASHER	1.10
61	10PXY	HANDLE GRIPPED BUSH (B)	1.65
62	10G8J	WORM SHAFT WASHER (A)	1.10
63	10N9Q	WORM SHAFT RECEIVER (A)	1.65
64	14019	WORM SHAFT	9.35
65	10LVF	FIXING BOLT	1.10
66	10T7S	WORM SHAFT STOPPER	1.10
67	1485Q	LEVEL WINDING PIPE	7.15
68	1485R	LEVEL WINDING GUIDE	3.30
69	104SP	WORM SHAFT RECEIVING BRACKET (B)	1.65
70	1401A	WORM SHAFT GEAR (C)	2.75
71	1485V	BEARING SPACER	1.10
72	1057X	CLUTCH YOKE SPRING	1.65
74	1401C	CLUTCH YOKE SPRING	1.10
76	101CN	FIXING BOLT	1.65
77	13UEP	CLUTCH CAM PUSH PLATE	3.85
82	10559	FIXING BOLT	1.65
83	10EX8	BALL BEARING (8X12X3.5)	13.75
84	100BD	FIXING BOLT	1.65
86	149KS	LEVEL WINDING ASSEMBLY	51.70
87	100GC	WORM SHAFT PIN STOPPER	1.10
88	10908	O-RING	1.65
89	100GJ	WORM SHAFT PIN	4.40
94	10TNF	O-RING	1.65
95	105CA	BALL BEARING (5X11X4) *Cannot be ordered	13.75
96	10MD0	SPOOL CLUTCH PIN *Cannot be ordered	1.65
97	10E20	SPOOL SHAFT SPRING	1.65
98	10MCY	SPOOL SHAFT CAM	1.65
99	1401F	WORM SHAFT GEAR (A)	2.75
100	105NK	E-TYPE STOPPER RING 2.5	1.10
101	149KV	SPOOL ASSEMBLY	79.20
102	10GEW	BEARING PULL-OUT STOPPER	1.10
103	105C1	BALL BEARING (3X10X4)	13.75
104	1057Q	SPOOL SHAFT CONTACT (B)	1.10
105	141QP	WASHER	1.10
106	10LVM	FIXING BOLT	1.10
107	10HVD	WASHER	1.10
108	1401G	WORM SHAFT GEAR HOLDER (A)	2.75
109	1401H	WORM SHAFT GEAR (B)	2.75
111	10LSL	FIXING BOLT	1.10
112	13Z7M	WORM SHAFT GEAR WASHER	1.10
114	142MD	FIXING BOLT	1.10
115	1401K	WORM SHAFT GEAR (D)	2.75
116	10HYM	WORM SHAFT GEAR (D)	1.10
117	10MPU	FIXING BOLT	1.10
118	13Z8F	BATTERY COVER	4.40
119	13Z7L	FRAME B RECEIVER NAMEPLATE	1.65
120	10S65	FIXING BOLT	1.10
121	13Z7D	BODY B CAM LEVER PUSH PLATE	1.10
125	13PKE	WORM GEAR ADJUSTMENT WASHER	1.10
201	14861	HANDLE CAP	6.60
202	104VX	BALL BEARING (4X7X2.5)	13.75
203	10326	HANDLE KNOB	11.55
208	1401V	STAR DRAG WASHER	6.05
301	149KZ	HANDLE SHAFT ASSEMBLY	58.30
302	149L0	HANDLE ASSEMBLY	104.50
401	14864	HANDLE FIXING NUT	6.60
402	10A0C	STAR DRAG FIXING NUT	2.75
403	13Z87	LOCK RING	13.75
404	1485X	MECHANICAL BRAKE KNOB	17.05
407	1485T	DRIVE GEAR SHAFT	14.30
408	10PVU	FIXING BOLT	1.65
410	13T1U	CLUTCH YOKE	1.65
411	10SKS	CLUTCH CAM	2.75
412	105ZV	CLUTCH CLAW	3.85
413	14026	CLUTCH CLAW SPRING	1.65
414	101ES	CLUTCH PLATE	2.20
415	101QF	BODY A SEAT	1.10
416	149L3	COUNTER UNIT ASSEMBLY	192.50
417	149L4	FRAME ASSEMBLY	220.00
418	101ER	CLUTCH LEVER HOLDER	1.10
419	10282	CLUTCH LEVER ASSEMBLY	7.70
420	1485K	FRAME B RECEIVER	27.50
421	1461X	FRAME B CLUTCH CAM	1.65
422	1485H	BODY B CAM LEVER	1.10
423	1485F	BODY B	52.80
424	149L5	BODY B ASSEMBLY	60.50
601	149L7	BODY A ASSEMBLY	138.05
602	13Z89	DRIVE GEAR	28.05
603	13Z7W	PINION GEAR	22.55
701	145AV	BATTERY CAP WRENCH	5.50
