[SHIMANO] Genuine Spare Parts for 25SLX BFS XG RIGHT Product code: 048189 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 25SLX BFS XG RIGHT Product code: 048189 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

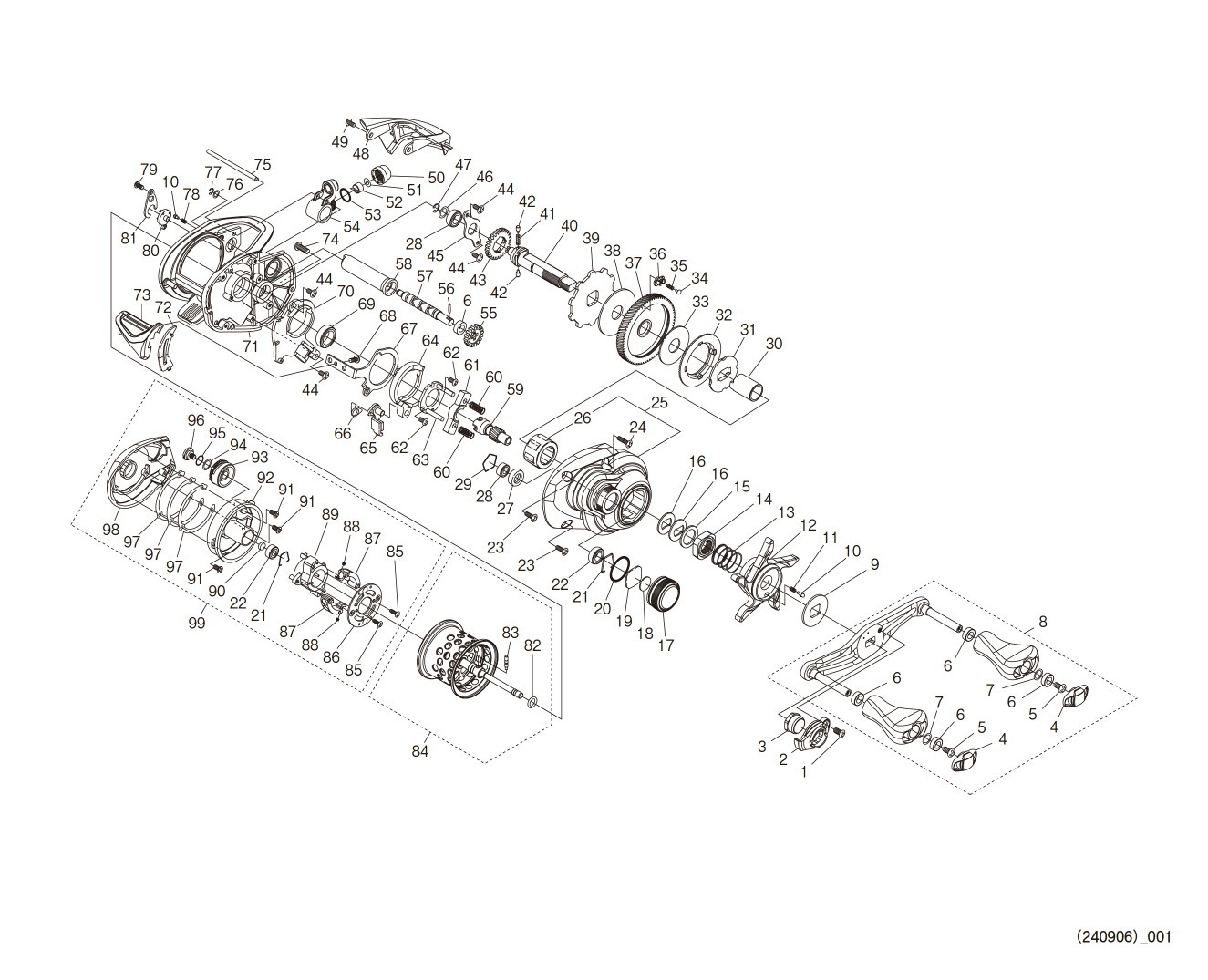

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* As for the "26 / ROLLER CLUTCH" and "83 /SPOOL CLUTCH PIN, they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 10DV5 FIXING BOLT 1.10
2 10Q5T RETAINER 3.85
3 1013J HANDLE FIXING NUT 6.05
4 10FMJ HANDLE CAP 2.75
5 103E9 FIXING BOLT 1.10
6 10PXZ HANDLE KNOB BUSH 1.65
7 104FH WASHER 2.20
8 148JA HANDLE ASSEMBLY 50.60
9 10J22 STAR DRAG CLICK PLATE RETAINER 1.65
10 10MFC CLICK PIN 1.65
11 10BT2 CLICK SPRING 1.65
12 100HF STAR DRAG 11.55
13 10A70 STAR DRAG SPRING 2.75
14 10A3T STAR DRAG FIXING NUT 3.85
15 10J1P STAR DRAG SPACER 2.75
16 109F5 DRIVE GEAR WASHER 1.65
17 148JE MECHANICAL BRAKE KNOB 11.00
18 10896 MECHANICAL BRAKE WASHER 1.10
19 1085F MECHANICAL BRAKE WASHER 1.10
20 10R22 O-RING 1.65
21 101V5 BEARING RETAINING CLAMP 1.65
22 10KDE BALL BEARING (3X7X3) 13.75
23 10MPV FIXING BOLT 1.10
24 10LCW THUMB REST FIXING BOLT 1.10
25 149MF BODY A SET 33.00
26 10F5D ROLLER CLUTCH BEARING A-RB *Cannot be ordered 17.05
27 101V3 BEARING SPACER SEAT 2.75
28 105BP BALL BEARING (5X9X3) 13.75
29 101V6 BEARING STOPPER 1.65
30 10E4S ROLLER CLUTCH INNER TUBE 5.50
31 10DQL STAR DRAG PLATE 3.85
32 10JB0 DRAG CLICK SILRATCHET 2.75
33 10DQJ STAR DRAG WASHER 6.05
34 10C0T DRAG CLICK PIN 2.75
35 10J8A DRAG CLICK SPRING 1.65
36 10J87 DRAG SPRING HOLDER 1.65
37 101KM DRIVE GEAR 22.55
38 10DQK STAR DRAG WASHER 6.05
39 10D73 STOPPER GEAR 6.05
40 13ULQ DRIVE GEAR SHAFT 7.70
41 10JDY WORM SHAFT GEAR SPRING 1.65
42 10HJG WORM SHAFT GEAR PINS 1.65
43 10J47 WORM SHAFT GEAR 2.75
44 10S57 FIXING BOLT 1.65
45 109T1 DRIVE GEAR SHAFT FIXING PLATE 2.75
46 10G6D WASHER 1.65
47 105NK E TYPE STOP RING 2.5 1.10
48 148JY LEVEL WINDING GUARD 4.40
49 10MPD FIXING BOLT 1.10
50 10FJB LEVEL WINDING RECEIVER 1.65
51 104TX WASHER 1.10
52 10BHQ WORM SHAFT PIN 2.75
53 108WQ O-RING 1.65
54 10NVR LEVEL WINDING ASSEMBLY 9.35
55 10FNV WORM SHAFT GEAR 2.75
56 10AEZ WORM SHAFT PIN 1.10
57 10TPP WORM SHAFT 6.05
58 10R10 LEVEL WINDING PIPE 1.65
59 1026T PINION GEAR 11.55
60 10487 CLUTCH YOKE SPRING 1.10
61 10TMB CLUTCH YOKE 1.65
62 10LVE FIXING BOLT 1.10
63 10F3X CLUTCH CAM PUSH PLATE 3.85
64 10K0N CLUTCH CAM 2.75
65 10MME CLUTCH CLAW 3.85
66 10R1H CLUTCH CLAW SPRING 1.65
67 10QZV CLUTCH PLATE 4.95
68 103C0 FIXING BOLT 1.10
69 10EX6 BALL BEARING (8 X 12 X 3.5) 7.15
70 10R09 BODY A SEAT 3.85
71 149MG FRAME ASSEMBLY 46.20
72 10QZW CLUTCH LEVER RECEIVER (B) 1.65
73 10R1J CLUTCH LEVER 6.05
74 10LFL FIXING BOLT 1.65
75 10QSH LEVEL-WIND GUIDE 1.65
76 10FJZ WASHER 1.10
77 105NC E TYPE STOP RING 2 1.10
78 10GQZ CLICK SPRING 1.10
79 1055H FIXING BOLT 1.65
80 1019B BODY B CAM LEVER 2.75
81 10RYX BODY B CAM LEVER PUSH PLATE 1.65
82 10TM7 O RING 1.65
83 10MD0 SPOOL CLUTCH PIN *Cannot be ordered 1.65
84 148JL SPOOL ASSEMBLY 124.30
85 10TNZ FIXING BOLT 1.65
86 148JQ BRAKE FIXING PLATE 2.75
87 10DPG MAGNET HOLDER ASSEMBLY 11.55
88 10TM9 BRAKE COIL SPRING 1.65
89 101CJ BRAKE MOUNTING STAND 2.75
90 1085H MECHANICAL BRAKE WASHER 1.10
91 1055J FIXING BOLT 1.65
92 101V4 FRAME B HOLDER 17.05
93 10199 BR KNOB 2.75
94 10DGC ADJUSTMENT WASHER SET 1.65
95 108WS O-RING 4X6 1.10
96 10A6K FIXING BOLT 6.05
97 10R0U ADJUSTMENT WASHER FOR FRAME B 1.65
98 148JV BODY B 7.70
99 149MH BODY B SET 64.35
