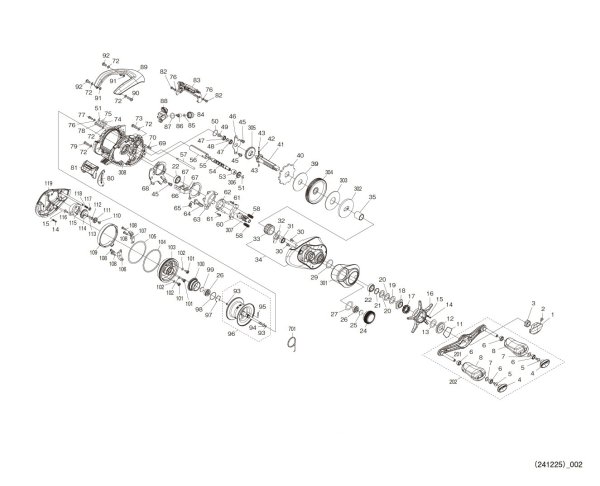

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* As for the "33 / ROLLER CLUTCH", "95 /SPOOL CLUTCH PIN", "BRKS /BRAKE SHOE S" and "BST1 /BRAKE SHAFT", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 14744 RETAINER 7.70
2 10RNG FIXING BOLT 1.65
3 10RMH HANDLE FIXING NUT 6.05
4 1472W HANDLE CAP 4.40
5 103E9 FIXING BOLT 1.10
6 104VX BALL BEARING (4X7X2.5) 13.75
7 104FH WASHER 2.20
8 1472U HANDLE KNOB 11.55
9 14A0F HANDLE SHAFT ASSEMBLY 55.00
10 14A0G HANDLE ASSEMBLY 110.00
11 10KXV STAR DRAG CLICK PLATE RETAINER 1.65
12 10J1Y STAR DRAG CLICK PLATE 1.65
13 148TE WASHER 1.10
14 10B27 CLICK PIN 1.65
15 10988 CLICK SPRING 1.65
16 146LH STAR DRAG 30.80
17 10A71 STAR DRAG SPRING 2.75
18 10A0B STAR DRAG FIXING NUT 2.75
19 10J1N STAR DRAG SPACER 1.65
20 10D60 MAIN GEAR WASHER (C) 1.65
21 105PW STAR DRAG BEARING WASHER 1.10
22 10EX8 BALL BEARING (8X12X3.5) 13.75
23 13ZXU STAR DRAG BEARING WASHER 1.10
24 146LD MECHANICAL BRAKE KNOB 33.00
25 1057Q SPOOL SHAFT CONTACT TALLY (B) 1.10
26 10S37 BALL BEARING (3X10X4) 13.75
27 10LA9 O-RING 1.65
28 146LE BODY A NAMEPLATE 16.50
29 1027V O-RING 1.65
30 1055J FIXING BOLT 1.65
31 105BP BALL BEARING (5X9X3) 13.75
32 144NV STOPPER 1.10
33 1005E ROLLER CLUTCH *Cannot be ordered 17.05
34 14A0H BODY A ASSEMBLY 137.50
35 14016 ROLLER CLUTCH INNER TUBE 13.75
36 146LG STAR DRAG PLATE 3.30
37 1071T STAR DRAG WASHER 4.95
38 13ZTQ DRIVE GEAR 28.05
39 10CJ1 STAR DRAG WASHER 3.85
40 109BB STOPPER GEAR 6.05
41 10T7U DRIVE GEAR SHAFT 13.20
42 10JDX SPRING FOR WORM SHAFT GEAR 1.65
43 10HJF PIN FOR WORM SHAFT GEAR 1.65
44 146L8 WORM SHAFT GEAR (A) 2.75
45 10DSZ FIXING BOLT 1.10
46 146LK FIXING PLATE FOR DRIVE GEAR SHAFT 2.75
47 10SAM BALL BEARING (4X7X2) 13.75
48 13PKS WASHER 1.10
49 10DR4 FIXING BOLT 1.10
50 10SZ4 O-RING 1.65
51 105NC E TYPE STOP RING 2 1.10
52 146L2 WORM SHAFT GEAR (C) 2.75
53 13ZTS WORM SHAFT BUSH 1.65
54 13ZTK WORM SHAFT 2.75
55 10GHF WASHER 1.10
56 10NFW LEVEL-WIND PIPE 1.65
57 1480G LEVEL-WIND GUIDE 3.85
58 13T1T CLUTCH YOKE SPRING 1.10
59 146L6 PINION GEAR 23.10
60 13T1S CLUTCH YOKE 1.65
61 101CN FIXING BOLT 1.65
62 144P7 CLUTCH CAM PUSH PLATE 9.90
63 10SX6 CLUTCH CAM 2.75
64 105ZU CLUTCH CLAW 3.85
65 10N1Z CLUTCH CLAW SPRING 1.10
66 13TD4 CLUTCH PLATE 2.20
67 1055A FIXING BOLT 1.65
68 146LF BODY A SEAT 3.85
69 105NB E TYPE STOP RING 1.5 1.10
70 10GA7 WASHER 1.10
71 14A0J FRAME ASSEMBLY 143.00
72 13PKW SEAT HOLDER 1.10
73 10SJV FIXING BOLT 1.65
74 10E7G WASHER 1.10
75 13PK5 WASHER 1.10
76 13PKU SEAT METAL 1.10
77 10LVL FIXING BOLT 1.10
78 10RL4 FIXING BOLT 1.65
79 101GQ FIXING BOLT 1.65
80 146LB CLUTCH LEVER ASSEMBLY 1.65
81 14A0K CLUTCH LEVER ASSEMBLY 15.40
82 10U0S FIXING BOLT 1.10
83 146L3 LEVEL WINDING GUARD 7.70
84 10FJB LEVEL WINDING RECEPTACLE 1.65
85 10CFV WASHER 1.10
86 10211 WORM SHAFT PIN 2.75
87 108WQ O-RING 1.65
88 14A0L LEVEL WINDING ASSEMBLY 41.25
89 146KU THUMB REST 69.30
90 13JXC FIXING BOLT 1.10
91 1484Y WASHER 1.10
92 13JRF FIXING BOLT 1.10
93 10E7H O-RING 1.10
94 147G0 O-RING 1.65
95 10MD0 SPOOL CLUTCH PIN *Cannot be ordered 1.65
96 14A0M SPOOL ASSEMBLY 121.00
97 10GEW BEARING RETAINING CLAMP 1.10
98 10LA8 O-RING 1.65
99 1057S SPOOL SHAFT CONTACT (B) 1.10
100 100N4 BRAKE PIPE GEAR ASSEMBLY 13.75
101 10RMF FIXING BOLT 3.85
102 10E2J O-RING 1.65
103 14A0N FRAME B RECEIVER ASSEMBLY 26.95
104 144NL O-RING 1.10
105 147W2 WASHER 1.10
106 146KX FRAME B BEARING CAM 2.75
107 146KY FRAME B CAM (B) 2.75
108 10E69 FIXING BOLT 1.10
109 146KS BODY B CAM LEVER 2.20
110 10PRT FIXING BOLT 1.10
111 14857 BRAKE DIAL GEAR 1.10
112 10SEJ WASHER 1.10
113 10FMT O-RING 1.10
114 14A0P BRAKE DIAL ASSEMBLY 23.10
115 146KT BRAKE DIAL NAMEPLATE 4.40
116 10MPS FIXING BOLT 1.65
117 10RLZ BODY B SHAFT GUIDE 1.65
118 148AW DAMPER SPRING 1.65
119 14A0Q BODY B ASSEMBLY 104.50
701 14A1A TOOL (FOR DISASSEMBLING HANDLE CAP) 1.65
BRKS 10RC4 BRAKE SHOE S *Cannot be ordered 1.10
BST1 14A60 BRAKE SHAFT *Cannot be ordered 1.10
