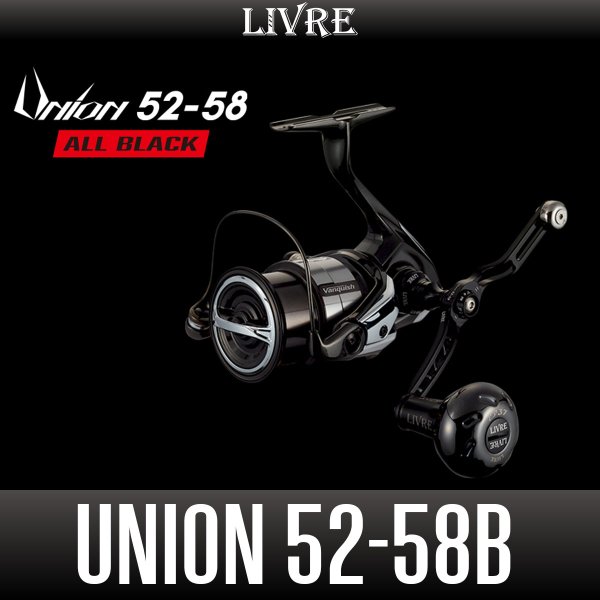

[LIVRE] UNION 52-58B "ALL BLACK" Single Handle

B-PROJECT (BLACK DURACON PROJECT)

B-PROJECT combines small, round, thin-walled hollow titanium knobs in PT 35 / EP 37 / EP 41 sizes with a black DURACON®* knob collar that is thicker on the knob side and thinner on the reel side.
This shape gives a comfortable grip: your index finger and thumb pinch the shaft while your middle to little fingers wrap naturally around the knob.
The knob surface has an IP black coating for a refined black finish.
LIVRE selected the handles these knobs fit and sells them as ALL BLACK models.

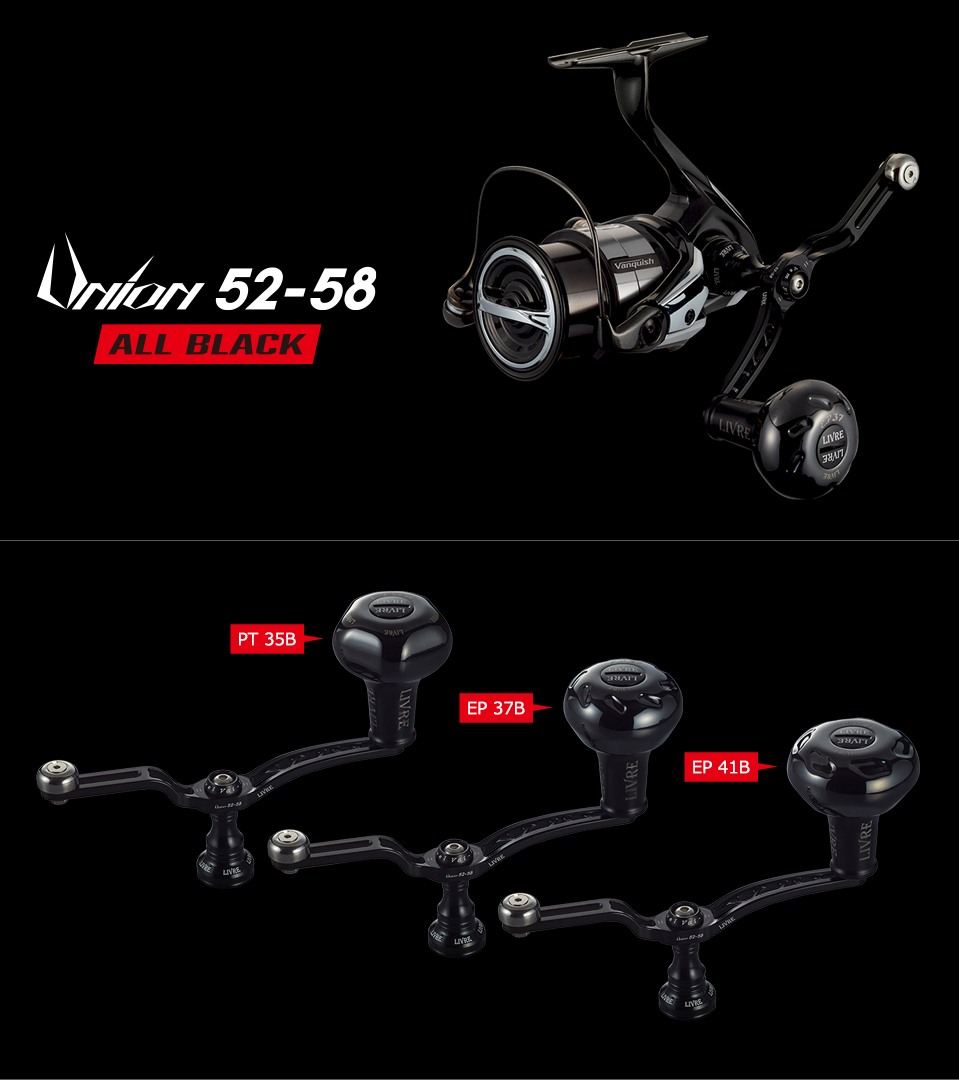

Choose from three knob types (PT 35B / EP 37B / EP 41B) in the cart.

UNION 52-58

Two LIVRE Adjustable Systems, Combined

Equipped with the “Variable Pitch System” of the F.V series, the adjustable pitch range has been increased from 5mm to 6mm.
The “Quick Slide Balancer System” of the V.A.E series has also been added, so you can adjust the reeling balance without tools.
By combining these two LIVRE adjustable systems, even greater strength and lighter weight have been achieved.
A truly original handle, unlike anything before, that helps you build a sure strategy to close in on your target.

Variable Pitch System

UNION 52-58 is 52mm on the inner setting and 58mm on the outer setting, so you can set your preferred length within a 6mm range.
One handle covers a wide range of situations and target fish.

Quick Slide Balancer System

The position of the tungsten weight can be adjusted without tools.
Set the weight to the outside for stability comparable to a double handle, or to the inside for a reeling feel suited to quick actions, beyond what a single handle offers.

A7075 Extra Super Duralumin, H-Section 3D Machining

Extra super duralumin is a type of aluminum alloy designated “A7075” under the Japanese Industrial Standards (JIS). It has excellent stress resistance and is used for thick plates and forged parts.
The plate is 3D-machined with an H-shaped cross section using high-precision machining.
Only machining from solid material makes it possible to remove the maximum amount of material while keeping high rigidity as the top priority.

Skirt Design That Matches Any Reel

The skirt features a simple, timeless design that matches both SHIMANO and DAIWA reels, so you can dress up your reel without losing the sense of unity between the custom handle and the reel.
In addition, simply replacing the skirt (including the bolt) lets you switch from SHIMANO to DAIWA, or from DAIWA to SHIMANO.

Thin-Walled Hollow Titanium Knob EP 37

Designed with the focus on reeling and quick action, pursuing a shape that is easy to hook your fingers on and hard to slip off.
After field-testing many prototypes differing by a single millimeter, LIVRE arrived at 37mm.
The titanium wall thickness is set at 0.6mm.
It is a light, highly sensitive thin-walled hollow titanium knob with the ideal shape and feel for two fingers.

Thin-Walled Hollow Titanium Knob EP 41

Developed alongside the long-pitch plate, the new thin-walled hollow titanium knob EP 41 is based on a round-type knob, with angled sides so your fingers hook on more securely.
The titanium wall thickness is 0.6mm.
Along with a light operating feel, it gives a stronger sense of power.
