[DAIWA] Genuine Spare Parts for 24 SEABORG 100JL Product code: 00810046 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability

Part Number:

Quantity:

Return & Exchange Policy

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.

*Please make sure to read about the conditions before you order.

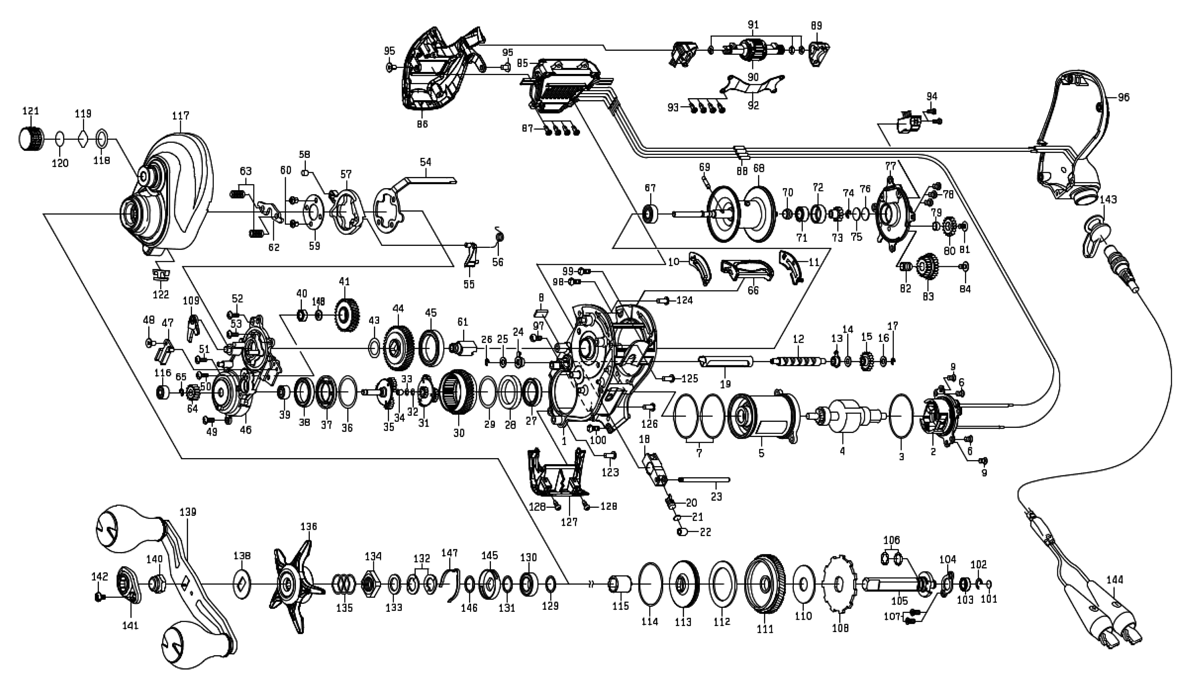

　Reel Part's Schematic Diagram

No.	Part Name	Part Code	Price (USD)
1	FRAME *Not available	6M583201	60.50
2	MOTOR HOLDER *Not available	6Z027630	86.90
3	MOTOR HOLDER O-RING	6M554301	1.10
4	MOTOR *Not available	6Z027631	72.60
5	MOTOR CASE *Not available	6M590401	74.80
6	MOTOR HOLDER SC (A)	6B557601	2.20
7	MOTOR CASE O-RING	6M379701	1.10
8	CUSHION SHEET	6M730901	2.20
9	MOTOR HOLDER SC (B)	6B557601	2.20
10	CLUTCH PLATE (L)	6M554501	2.20
11	CLUTCH PLATE (R)	6M535501	2.20
12	WORM SHAFT	6M535801	15.40
13	WORM SHAFT COLLAR (A)	6G925601	2.20
14	WORM SHAFT W (A)	6F889103	1.10
15	WORM SHAFT GEAR (A)	6M260901	4.40
16	WORM SHAFT W (B)	6F889103	1.10
17	WORM SHAFT RETAINER (A)	6B864101	2.20
18	LEVEL WINDING	6H515102	11.00
19	WORM SHIELD	6M535701	5.50
20	POLE	6F859401	4.40
21	POLE W	6G099801	1.10
22	LEVEL WIND POST COLOR	6H724201	2.20
23	LEVEL WIND POST	6M535901	2.20
24	WORM SHAFT COLLAR (B)	6G925601	2.20
25	WORM SHAFT W (C)	6F889103	1.10
26	WORM SHAFT RETAINER (B)	6B864101	2.20
27	MOTOR HOUSE BALL BEARING (A)	6G370701	15.40
28	MOTOR HOUSE COLLAR (A)	6M536301	2.20
29	MOTOR HOUSE BEARING W (A)	6M536201	1.10
30	MOTOR HOUSE GEAR (A)	6M590801	52.80
31	MOTOR GEAR (A)	6M536401	29.70
32	MOTOR GEAR (A) W/0.3	6H352803	1.10
33	MOTOR GEAR (A) W/0.1	6H352801	1.10
34	MOTOR GEAR (B) COLLAR	6M536901	2.20
35	MOTOR GEAR (B)	6M537001	34.10
36	MOTOR HOUSE BEARING W (B)	6M536201	1.10
37	MOTOR HOUSE COLLAR (B)	6M537201	2.20
38	MOTOR HOUSE BALL BEARING (B)	6G431008	15.40
39	MOTOR GEAR (B) BALL BEARING	6G281606	15.40
40	LS SET PLATE BALL BEARING	6G469002	8.80
41	SET PLATE GEAR (A)	6M591001	24.20
43	SET PLATE GEAR (B) W	6F366803	1.10
44	SET PLATE GEAR (B)	6M591201	22.00
45	SET PLATE GEAR (B) BALL BEARING	6G055101	8.80
46	RS SET PLATE	6M590901	52.80
47	KICK LEVER PLATE	6M583601	2.20
48	KICK LEVER PLATE SC	6H294101	2.20
49	LS SET PLATE SC	6B557606	2.20
50	LS SET PLATE SC	6B557606	2.20
51	LS SET PLATE SC	6B557606	2.20
52	LS SET PLATE SC	6B557606	2.20
53	LS SET PLATE SC	6B557606	2.20
54	CLUTCH CAM PLATE (A)	6M583401	7.70
55	KICK LEVER	6M583701	7.70
56	KICK LEVER SP	6J407801	2.20
57	CLUTCH CAM	6M583501	6.60
58	CLUTCH CAM MAGNET	6F270901	2.20
59	CLUTCH CAM PLATE (B)	6M538201	2.20
60	CLUTCH CAM PLATE SC	6B557601	2.20
61	SET PLATE GEAR (B) SHAFT	6M591301	12.10
62	CLUTCH PLATE	6M583801	2.20
63	CLUTCH PLATE SP	6M409101	2.20
64	PINION	6M591801	11.00
65	PINION RETAINER	6B339801	2.20
66	CLUTCH LEVER	6M538501	7.70
67	SPOOL BALL BEARING	6G498511	15.40
68	SPOOL	6M538701	52.80
69	SPOOL PIN	6H844704	2.20
70	SPOOL GEAR BELLING COLLAR	6M579301	2.20
71	SPOOL GEAR BALL BEARING *Not available	6J019303	45.10
72	SPOOL GEAR COLLARS	6J169001	3.30
73	SPOOL GEAR	6M539201	3.30
74	SPOOL GEAR RETAINER	6B339801	2.20
75	SPOOL W(A)/0.5	63757413	1.10
76	SPOOL W (B)/0.2	63757412	1.10
77	RS SET PLATE	6M583901	27.50
78	RS SET PLATE SC	6B557601	2.20
79	SET PLATE GEAR (C) COLLAR	6H869601	3.30
80	SET PLATE GEAR (C)	6M263001	3.30
81	SET PLATE GEAR (C) SC	6F505702	2.20
82	SET PLATE GEAR (D) COLLAR	6H869501	4.40
83	SET PLATE GEAR (D)	6M539401	3.30
84	SET PLATE GEAR (D) SC	6F505702	2.20
85	IC MODULE *Not available	6M451701	335.50
86	IC MODULE COVER *Not available	6M539102	42.90
87	IC MODULE SC	6H717101	2.20
88	CORD COVER	6G079503	2.20
89	JOG POWER LEVER HOLDER	6M000801	2.20
90	JOG POWER LEVER *Not available	6M554602	60.50
91	JOG POWER LEVER O-RING	6J037601	1.10
92	JOG POWER LEVER PLATE	6M546601	2.20
93	COVER PLATE SC	6H717101	2.20
94	SENSOR SC	6G299003	2.20
95	IC MODULE COVER SC	6G940409	2.20
96	RS PLATE *Not available	6M591501	72.60
97	RS PLATE SC (A)	6B557610	2.20
98	RS PLATE SC (B)	6B557609	2.20
99	RS PLATE SC (C)	6B557609	2.20
100	RS PLATE SC (D)	6J255202	2.20
101	GEAR SHAFT W	6G099801	1.10
102	GEAR SHAFT BEARING RETAINER	63208002	2.20
103	GEAR SHAFT BALL BEARING	6G466201	15.40
104	GEAR SHAFT PLATE	6J281101	3.30
105	GEAR SHAFTS	6M730802	17.60
106	GEAR SHAFT O-RINGS	6F657801	1.10
107	GEAR SHAFT PLATE SC	6E134514	2.20
108	RATCHET	6M546901	2.20
109	STOPPER	6M003501	6.60
110	DRIVE GEAR W	6E708901	2.20
111	DRIVE GEAR W	6M591601	27.50
112	DRAG W	6H359001	8.80
113	DRAG DISC COLLAR	6M547301	12.10
114	DRAG DISC COLLAR O-RING	6J458101	1.10
115	DRAG COLLAR	6J327701	8.80
116	PINION BALL BEARING	6G281606	15.40
117	LS PLATE	6M584104	72.60
118	MECHANICAL BRAKE O-RING	6J279701	1.10
119	MECHANICAL BRAKE KNOB W (A)	6B175401	1.10
120	MECHANICAL BRAKE KNOB W (B)	6B175503	1.10
121	MECHANICAL BRAKE KNOB	6M547701	8.80
122	LINE STOPPER	6M265401	2.20
123	LS PLATE SC (A)	6B557610	2.20
124	LS PLATE SC (B)	6B557609	2.20
125	LS PLATE SC (C)	6B557609	2.20
126	LS PLATE SC (D)	6B557609	2.20
127	FINGER COVER	6M547801	9.90
128	FINGER COVER SC	6H717101	2.20
129	HANDLE BALL BEARING W	6B553803	1.10
130	HANDLE BALL BEARING	6G431008	15.40
131	DRAG COLLAR W	6B553804	1.10
132	DRAG SP・W	61508901	2.20
133	STAR DRAG W	6H929501	2.20
134	DRAG NUT	6J141002	7.70
135	DRAG NUT SP	6J011901	2.20
136	STAR DRAG	6J140015	18.70
138	HANDLE W	6F576601	1.10
139	HANDLE W	6M554701	111.10
140	HANDLE NUT	6G793319	4.40
141	HANDLE LOCK PLATE	6J625401	4.40
142	HANDLE LOCK PLATE SC	6G835504	2.20
143	CONNECTOR CAP	6F661002	5.50
144	CORD	6M367401	42.90
145	DRAG HOLDER	6F028203	3.30
146	DRAG HOLDER W	6B553803	1.10
147	DRAG HOLDER LEAF SP	6F032401	2.20
148	SET PLATE GEAR (A) W	6B411705	1.10
150	HANDLE KNOB W	6B411703	1.10
151	HANDLE KNOB COLLAR	6G720001	2.20
152	HANDLE KNOB	6M300101	24.20
153	HANDLE KNOB COLLAR	6G720001	2.20
154	HANDLE KNOB SC	6B679308	2.20
155	HANDLE KNOB CAP (WITH O-RING)	6Z027512	17.60
156	HANDLE KNOB CAP O-RING	6H100001	1.10
200	SCREWDRIVER	6H699701	4.40
201	ITO-DOOSHI PIN	6X090801	3.30
202	REEL BUCRO	6X097102	9.90
203	STAND COVER	6H091801	6.60
204	SHIMASAKI GAUGE	6X398501	2.20
205	MANUAL *Not available	199C29	6.60
