[DAIWA] Genuine Spare Parts for 19 MILLIONAIRE CT SV 70H Product code: 00630060 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 19 MILLIONAIRE CT SV 70H Product code: 00630060 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

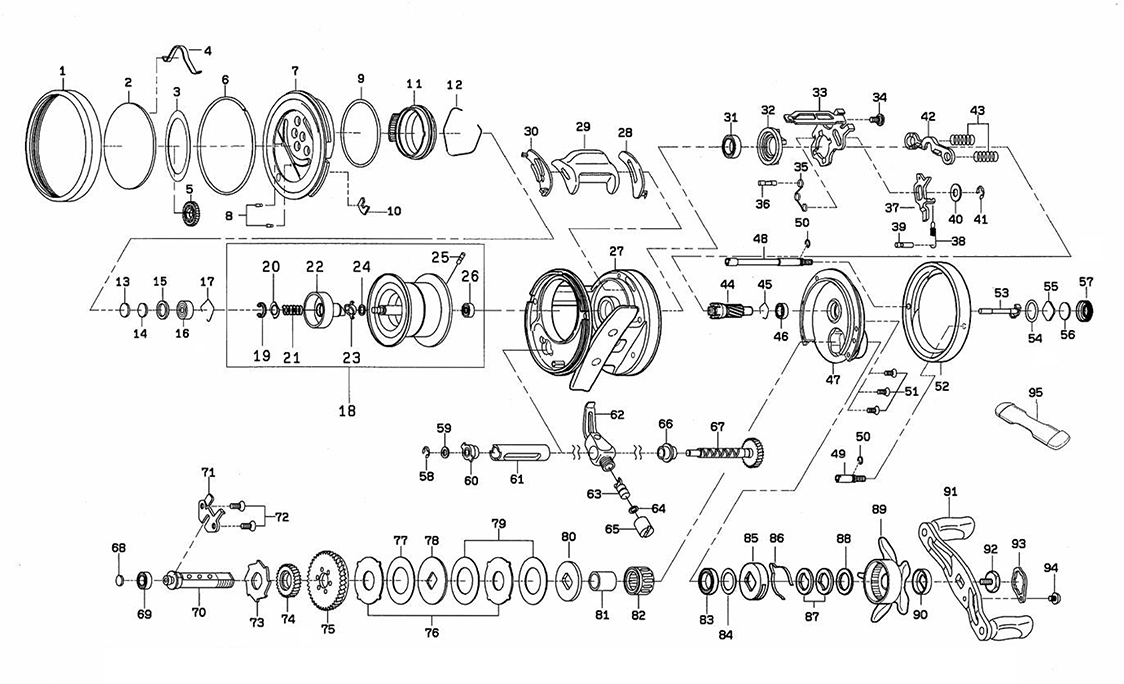

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 LS RING 6J870401 24.20
2 MAGDIAL 6G288015 46.20
3 MAGDIAL W 6G287801 1.10
4 MAG DIAL LEAF SP 6G288101 2.20
5 MAGDIAL GEAR 6G288201 6.60
6 LS PLATE RING 6G001301 2.20
7 LS PLATE 6J870101 72.60
8 LS PIN 6G500901 2.20
9 SIDE PLATE O-RING 6G002301 1.10
10 MAG DIAL RETAINER 6G288301 2.20
11 MAG HOLDER 6G288401 9.90
12 MAG HOLDER RING 6G004601 2.20
13 BEARING W (A) 63757404 1.10
14 BEARING W (B) 63757411 1.10
15 BEARING W (C) 6F574303 1.10
16 LS BALL BEARING 6G431104 15.40
17 LS BEARING RING 6E219701 2.20
18 SPOOL 6Z024971 133.10
19 SPOOL HOLDER RETAINER 63208002 2.20
20 SPOOL HOLDER W 6J497001 1.10
21 SPOOL HOLDER SP 6H862301 2.20
22 SPOOL HOLDER 6J914001 19.80
23 SPOOL HOLDER COLLAR 6J190301 2.20
24 SPOOL W 6E096501 1.10
25 SPOOL PIN 6J252301 2.20
26 SPOOL BALL BEARING 6G511506 15.40
27 FRAME 6J868301 105.60
28 CLUTCH LEVER PLATE (R) 6G000203 2.20
29 CLUTCH LEVER 6G000405 7.70
30 CLUTCH LEVER PLATE (L) 6G000303 2.20
31 CLUTCH CAM BALL BEARING 6G431008 15.40
32 CLUTCH CAM 6F793501 7.70
33 CLUTCH CAM PLATE 6G000503 4.40
34 CLUTCH PLATE SC 6F793801 4.40
35 CLUTCH CAM SP 6G034601 2.20
36 CLUTCH CAM SP PIN 6F794401 2.20
37 KICK LEVER 6G000601 4.40
38 KICK LEVER SP 6F794701 2.20
39 KICK LEVER SP PIN 6F794601 2.20
40 KICK LEVER W 63716905 1.10
41 KICK LEVER RETAINER 63201402 2.20
42 CLUTCH PLATE 6J869201 2.20
43 CLUTCH SP 6J952701 2.20
44 PINION + DRIVE GEAR SET 6Z024969 70.40
45 RS BEARING RING 6E219701 2.20
46 RS BALL BEARING 6G466201 15.40
47 RS PLATE 6J873201 55.00
48 RS RING SC (A) 6F794201 6.60
49 RS RING SC (B) 6F794301 4.40
50 RS RING SC RETAINER 6F550501 2.20
51 RS PLATE SC 6E134505 2.20
52 RS RING 6J869801 36.30
53 PINION SHAFT 6H521101 2.20
54 MECHANICAL BRAKE KNOB O-RING 61715201 1.10
55 MECHANICAL BRAKE KNOB W (A) 6B175401 1.10
56 MECHANICAL BRAKE KNOB W (B) 6B175503 1.10
57 MECHANICAL BRAKE KNOB 6H689210 7.70
58 WORM SHAFT RETAINER 63205901 2.20
59 WORM SHAFT W 63731303 1.10
60 WORM SHAFT HOLDER (A) 6F795801 2.20
61 WORM SHIELD 6F795101 7.70
62 LEVEL WINDING 6G001001 26.40
63 POLE 61214212 3.30
64 POLE W 63754101 1.10
65 POLE HOLDER NUT 63415904 2.20
66 WORM SHAFT HOLDER (B) 6F795501 2.20
67 WORM SHAFT 6J869401 12.10
68 GEAR SHAFT W 6F575603 1.10
69 GEAR SHAFT BALL BEARING 6G538003 15.40
70 GEAR SHAFT 6J869101 22.00
71 GEAR SHAFT RETAINER 6G000801 3.30
72 GEAR SHAFT RETAINER SC 6E134509 2.20
73 RATCHET 6F761701 2.20
74 DRIVE HOLDER GEAR 6G001501 6.60
75 PINION + DRIVE GEAR SETS 6Z024969 70.40
76 DRAG GRIP W 6F796101 2.20
77 DRAG W (A) 6G428501 3.30
78 DRAG DISK W (A) 6F796301 2.20
79 DRAG W (B) 6H033002 7.70
80 DRAG DISK W (B) 6B360308 2.20
81 CLUTCH RING 6G001701 8.80
82 ONE-WAY CLUTCH 6G819801 20.90
83 HANDLE BALL BEARING 6G523403 15.40
84 HANDLE BEARING W 63737810 1.10
85 DRAG HOLDER 6F028203 3.30
86 DRAG HOLDER LEAF SP 6F032401 2.20
87 DRAG SP・W 61508901 2.20
88 STAR DRAG W 63737816 1.10
89 STAR DRAG 6G775111 27.50
90 HANDLE COLOR 6F850402 3.30
91 HANDLE 6J869901 96.80
92 HANDLE NUT 6J295503 9.90
93 HANDLE LOCK PLATE 6J319203 3.30
94 HANDLE LOCK PLATE SC 6H430902 3.30
95 STAND COVER 6H091801 6.60
200 HANDLE KNOB W 6B411703 1.10
201 HANDLE KNOB 6J315504 24.20
202 HANDLE KNOB BALL BEARING 6G469009 15.40
203 HANDLE KNOB SC 6B679308 2.20
204 HANDLE KNOB CAP 6J315802 6.60
