[DAIWA] Genuine Spare Parts for 00 TD-Z HL 103HL Product code: 00613955 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 00 TD-Z HL 103HL Product code: 00613955 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

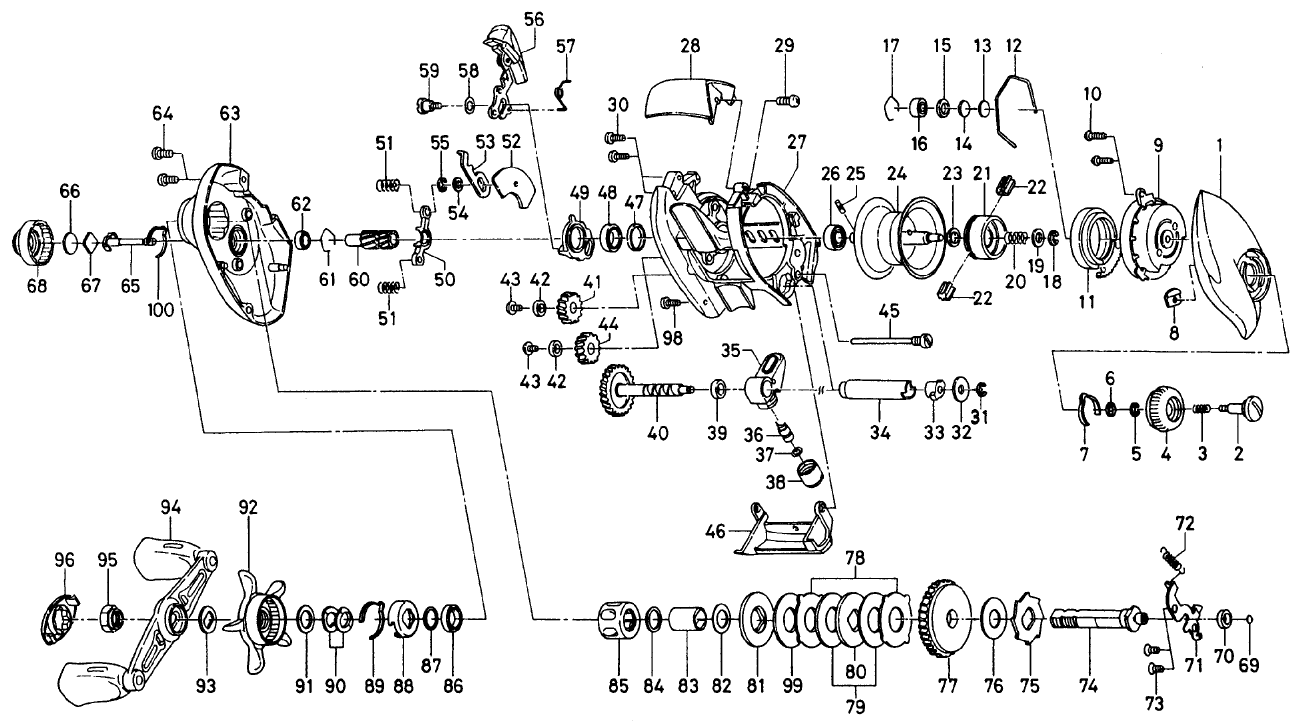

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 RS PLATE *Discontinued 6F837901 27.50
2 BRAKE DIAL SC *Discontinued 6F631301 3.30
3 BRAKE DIAL SP 6E167101 2.20
4 BRAKE DIAL *Discontinued 6F613302 6.60
5 BRAKE DIAL RETAINER (A) 6B339801 2.20
6 BRAKE DIAL COLLAR 6F637701 1.10
7 BRAKE DIAL LEAF SP 6F051701 2.20
8 BRAKE DIAL RETAINER (B) 6F613401 2.20
9 SET PLATE *Discontinued 6F838001 17.60
10 MAG HOLDER SC 6F939701 2.20
11 MAG HOLDER 6F717702 17.60
12 MAG HOLDER RING 6B543201 2.20
13 RS BEARING W (A) 63757404 1.10
14 RS BEARING W (B) 63757411 1.10
15 RS BEARING W (C) 6F574303 1.10
16 RS BEARING *Discontinued 6F577703 8.80
17 RS BEARING RING 6E219701 2.20
18 RS BEARING RETAINER *Not available 63208202 2.20
19 SPOOL HOLDER W 6G150301 1.10
20 SPOOL HOLDER SP *Discontinued 6F737501 2.20
21 SPOOL HOLDER *Discontinued 6F738102 7.70
22 SPOOL HOLDER BALANCER *Discontinued 6F737601 2.20
23 SPOOL W 6F574303 1.10
24 SPOOL (18-26) *Discontinued 6Z017346 89.10
25 SPOOL PIN 6G034101 2.20
26 SPOOL BEARING *Discontinued 6F798403 8.80
27 FRAME *Discontinued 6G223401 70.40
28 GRIP COVER *Discontinued 6F837501 11.00
29 GRIP COVER SC (A) 63511006 2.20
30 GRIP COVER SC (B) 6G040801 2.20
31 WORM SHAFT TRITENER 63205901 2.20
32 WORM SHAFT W 6F655501 1.10
33 WORM SHAFT HOLDER 6B715601 2.20
34 LEVEL WINDING GUARD *Discontinued 6F836501 2.20
35 LEVEL WIND *Discontinued 6F836201 20.90
36 POLE 61214212 3.30
37 POLE W 6F950201 1.10
38 POLE HOLDER NUT 63424801 2.20
39 WORM SHAFT BEARING 6F055601 8.80
40 WORM SHAFT *Discontinued 6F836601 15.40
41 TRAIN GEAR (A) *Discontinued 6F958401 7.70
42 TRAIN GEAR BEARING 6F283101 8.80
43 TRAIN GEAR SC *Discontinued 6F505701 2.20
44 TRAIN GEAR (B) *Discontinued 6F958501 7.70
45 FRONT GUARD SC (A) *Discontinued 6F836401 7.70
46 FRONT GUARD *Discontinued 6F837601 12.10
47 CRUTICUM COLLAR *Discontinued 6F834701 2.20
48 CRUTICUM BEARING 6B861702 8.80
49 CRUTCH CAM *Discontinued 6F835001 4.40
50 CRUTCH PLATE *Discontinued 6F835801 2.20
51 CRUTCH PLATE SP *Discontinued 6F588001 2.20
52 CLUTCH LEVER PLATE *Discontinued 6F834901 4.40
53 KITSU CLEVER *Discontinued 6F834801 4.40
54 CLUTCH LEVER W 6F774603 1.10
55 CLUTCH PLATE RETAINER 63205901 2.20
56 CLUTCH LEVER *Discontinued 6F865301 8.80
57 CLUTCH LEVER SP *Discontinued 6F945001 2.20
58 CLUTCH LEVER W *Discontinued 6F835401 2.20
59 CLUTCH LEVER SC *Discontinued 6F835301 4.40
60 PINION *Discontinued 6F845401 7.70
61 PINION RING 6E219701 2.20
62 PINION BEARING 6F055601 8.80
63 LS PLATE *Discontinued 6F833402 115.50
64 LS PLATE SC (SHORT) *Discontinued 63511107 2.20
65 PINION SHEAR SHAFT 6F800501 3.30
66 MECHANICAL BRAKE W (A) 6B175503 1.10
67 MECHANICAL BRAKE W (B) 6B175401 1.10
68 MECHANICAL BRAKE KNOB *Discontinued 6F833901 8.80
69 GEAR SHAFT W 6F647201 1.10
70 GEAR SHAFT BEARING 6F055601 8.80
71 GEAR SHAFT RETAINER *Discontinued 6F835701 2.20
72 GEAR SHAFT RETAINER SP *Discontinued 6F689501 2.20
73 GEAR SHAFT RETAINER SC *Discontinued 6F211101 2.20
74 GEAR SHAFT RETAINER SC *Discontinued 6F835601 23.10
75 LATCHET W *Discontinued 6F836901 2.20
76 LATIET W *Discontinued 6E425301 1.10
77 DRIVE GEAR *Discontinued 6F837001 9.90
78 DRAG GRIP W 6F796102 3.30
79 DRAG W 6F796201 3.30
80 DRAG DESK W (A) 6F796303 3.30
81 DRAG DESK W (B) *Not available 6F796401 3.30
82 ONE-WAY CLUTCH W (A) *Discontinued 6E425401 1.10
83 CLUTCH RING *Discontinued 6F602901 8.80
84 ONE WAY CLUTCH W (B) 6B553802 1.10
85 ONE-WAY CLUTCH *Discontinued 6F986401 24.20
86 DRAG BEARING 6F582501 8.80
87 DRAG BEARING W 6B553801 1.10
88 DRAG HOLDER 6F028201 2.20
89 DRAG HOLDER LEAF SP 6F032401 2.20
90 DRAG SP.W 61508901 2.20
91 STAR DRAG W 63737810 1.10
92 STAR DRAG *Discontinued 6F576503 22.00
93 HANDLE W 6F576601 1.10
94 HANDLE W *Discontinued 6F837201 63.80
95 HANDLE NUT 6B433602 2.20
96 HANDLE CAP *Discontinued 6F577202 4.40
98 LS PLATE SC (LONG) 6G040802 2.20
99 DRAG W (B) *Discontinued 6F967801 3.30
100 LEAF SP 6F262701 2.20
101 HANDLE KNOB *Discontinued 6F847801 11.00
102 HANDLE KNOB CAP 6F578802 2.20
103 HANDLE KNOB W 6B411703 1.10
104 HANDLE KNOB BALL BEARING 6F283101 8.80
105 HANDLE KNOB SC 6B679308 2.20
