[DAIWA] Genuine Spare Parts for 00 TD-Z 103ML Type R Plus Product code: 00613986 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 00 TD-Z 103ML Type R Plus Product code: 00613986 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

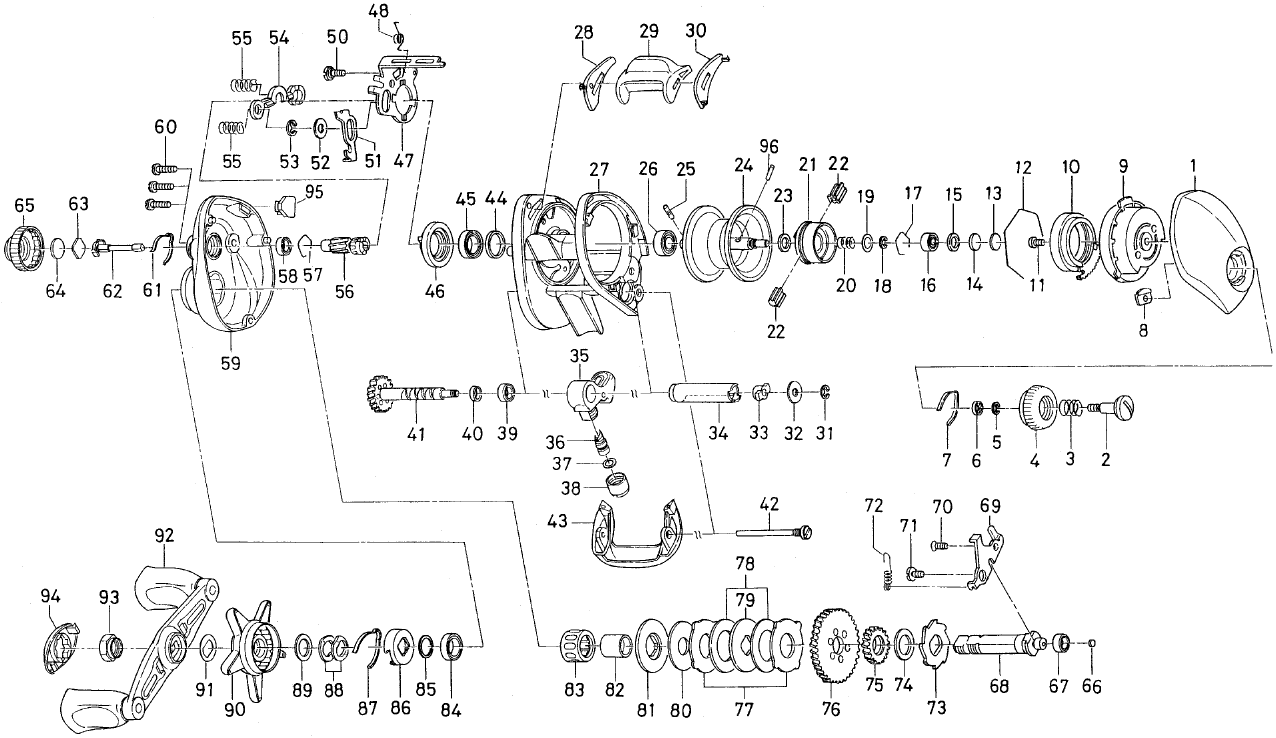

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 RS PLATE *Discontinued 6G261604 27.50
2 BRAKE DIAL SC 6F577901 3.30
3 BRAKE DIAL SP 6E167101 2.20
4 BRAKE DIAL *Discontinued 6F577802 6.60
5 BRAKE DIAL RETAINER (A) 6B339801 2.20
6 BRACEDIAL COLOR 6F637701 1.10
7 BRACEDIAL RETAINER (B) 6F051701 2.20
8 BRACED DIAL RETAINER (B) 6F613401 2.20
9 SET PLATE *Discontinued 6G261801 17.60
10 MAG HOLDER 6F717702 17.60
11 MAG HOLDER SC 63510906 2.20
12 MAG HOLDER RING 6B543201 2.20
13 RS BEARING W (A) 63757404 1.10
14 RS BEARING W (B) 63757411 1.10
15 RS BEARING W (C) 6F574303 1.10
16 RS BALL BEARING *Discontinued 6F577703 8.80
17 RS BEARING RING 6E219701 2.20
18 RS BEARING RETAINER 63208202 2.20
19 SPOOL HOLDER W 6G150301 1.10
20 SPOOL HOLDER SP *Discontinued 6F737501 2.20
21 SPOOL HOLDERS *Discontinued 6G576101 22.00
22 SPOOL HOLDER BALANCER *Discontinued 6F737601 2.20
23 SPOOL W 6F574303 1.10
24 SPOOL AS (18-26) *Discontinued 6Z013568 113.30
25 SPOOL PIN 6G034101 2.20
26 SPOOL BALL BEARING *Discontinued 6F798403 8.80
27 FRAME *Discontinued 6G260504 70.40
28 CLUTCH LEVER PLATE (R) *Discontinued 6G260702 2.20
29 CLUTCH LEVER *Not available 6G260901 7.70
30 CLUTCH LEVER PLATE (L) *Discontinued 6G260802 2.20
31 WORMSHAFT RETAINER 63205901 2.20
32 WORMSHAFT W 6F655501 1.10
33 WORM SHAFT BUSHING 6B715601 2.20
34 WORM SHIELD 6F836502 3.30
35 LEVEL WINDING 6G410301 22.00
36 POLE 61214212 3.30
37 POLE W *Discontinued 63731302 1.10
38 POLE HOLDER NUT 63424803 3.30
39 WORM SHAFT BALL BEARING 6F055601 8.80
40 WORM SHAFT COLLAR 6G010701 3.30
41 WORM SHAFT *Discontinued 6G010801 15.40
42 FRONT COVER SC 6G011702 7.70
43 FRONT COVER 6G261505 7.70
44 CLUTCH CAM COLLAR *Discontinued 6F834701 2.20
45 CLUTCH CAM BALL BEARING 6B861702 8.80
46 CLUTCH CAM (A) 6F997401 3.30
47 CLUTCH CAM (B) *Discontinued 6G261001 6.60
48 CLUTCH CAM SP *Discontinued 6G262001 2.20
50 CLUTCH CAM SC *Discontinued 6G009701 4.40
51 CLUTCH LEVER *Discontinued 6G261101 2.20
52 KITZ CLUTCH CAM W 63716907 2.20
53 KITZ CLUTCH CLEVER - RETINER 63201402 2.20
54 CLUTCH PLATE 6F998201 2.20
55 CLUTCH PLATE SP *Discontinued 6G047201 2.20
56 PINION *Discontinued 6G584301 12.10
57 PINION RING 6E219701 2.20
58 PINION BEARING 6F055601 8.80
59 LS PLATE *Discontinued 6G260302 114.40
60 LS PLATE SC 6G040801 2.20
61 MECHANICAL BRAKE LEAF SP 6F262701 2.20
62 PINION SHAFT 6G015501 3.30
63 MECHANICAL BRAKE W (A) 6B175401 1.10
64 MECHANICAL BRAKE W (B) 6B175503 1.10
65 MECHANICAL BRAKE KNOB *Discontinued 6F833902 17.60
66 GEAR SHAFT W 6F647201 1.10
67 GEAR SHAFT BALL BEARING 6F055601 8.80
68 GEAR SHAFT W *Discontinued 6G009902 23.10
69 GEAR SHAFT RETAINER *Discontinued 6G261201 2.20
70 GEAR - SHAFT RETAINER - SC (A) 6E134503 2.20
71 GEAR - SHAFT RETAINER - SC (B) 6G021201 3.30
72 GEAR - SHAFT RETAINER - SP 6G010201 2.20
73 LATIETTO W *Discontinued 6F836901 2.20
74 LATIETTO W 6E489503 1.10
75 WORMSHAFT GEAR 6G011201 6.60
76 DRIVE GEAR *Discontinued 6G584401 24.20
77 DRAG GRIP W 6F796102 3.30
78 DRAG W (A) 6F796201 3.30
79 DRAG DISK W (A) 6F796303 3.30
80 DRAG W (B) *Discontinued 6F967801 3.30
81 DRAG DISK W (B) 6B360303 2.20
82 DRAG COLLAR 6G011401 8.80
83 ONE-WAY CLUTCH *Discontinued 6F999803 17.60
84 HANDLE BEARING 6F582501 8.80
85 HANDLE BEARING W 6B553801 1.10
86 DRAG HOLDER 6F028201 2.20
87 DRAG HOLDER LEAF SP 6F032401 2.20
88 DRAG SP.W 61508901 2.20
89 HANDLE COLOR 63737810 1.10
90 STAR DRAG *Discontinued 6G011507 26.40
91 HANDLE W 6F576601 1.10
92 HANDLE *Discontinued 6G406902 67.10
93 HANDLE NUT 6B433602 2.20
94 HANDLE CAP *Discontinued 151134 11.00
95 CLUTCH CAM SP COVER PLATE 6G262301 2.20
100 HANDLE KNOB W 6B411703 1.10
101 HANDLE KNOB BALL BEARING 6F283101 8.80
102 HANDLE KNOB SC 6B679308 2.20
103 HANDLE KNOB 6F976401 11.00
