[DAIWA] Genuine Spare Parts for 17 morethan 2510PE-H Product code: 00059830 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 17 morethan 2510PE-H Product code: 00059830 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

Part Number:
Quantity:

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

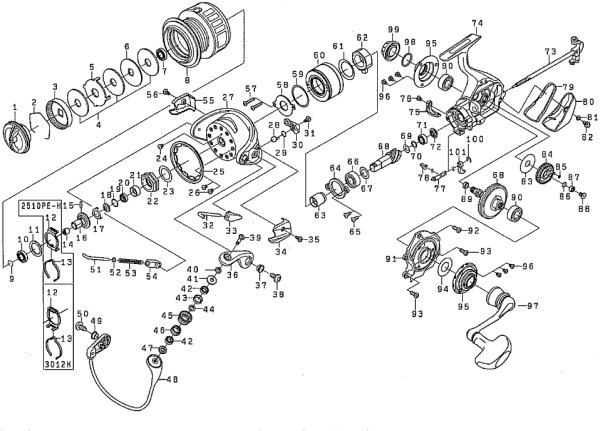

 Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOBS 139736 27.50
2 DRAG RINGS 185059 2.20
3 DRAG RATCHET 180244 7.70
4 DRAG W (3 piece) 144191 19.80
5 DRAG LIP W 190487 1.10
6 DRAG DISC W 142074 2.20
7 SPOOL BALL BEARING 10E326 15.40
8 SPOOL (2-8) 128B17 236.50
9 SPOOL METAL RING 185116 2.20
10 SPOOL METAL BALL BEARING 10E326 15.40
11 SPOOL W (0.8) 190997 1.10
12 CLICK HOLDER 116512 2.20
13 CLICK LEAF SP 133857 2.20
14 SPOOL METAL NUT 140312 3.30
15 SPOOL METAL PIN 156139 2.20
16 SPOOL METAL 132088 6.60
17 ROTOR NUT PLATE 160455 2.20
18 ROTOR NUT PACKING 185157 2.20
19 ROTOR NUT BEARING W 134008 2.20
20 ROTOR NUT BALL BEARING 10E364 17.60
21 ROTOR NUT COLLAR 110059 3.30
22 ROTOR NUT 140328 8.80
23 ROTOR NUT W 190411 1.10
24 ROTOR NUT SC 10A748 2.20
25 ROTOR COVER 108130 3.30
26 ROTOR COVER SC 10A748 2.20
27 ROTOR *Cannot be ordered 188A08 47.30
28 KICK LEVER SP 133966 2.20
29 KICK LEVER W 190057 1.10
30 KICK LEVER 111161 8.80
31 KICK LEVER SC 10A870 2.20
32 ARM LEVER SHAFT 122166 3.30
33 ARM LEVER SHAFT HOLDER 110118 2.20
34 ARM LEVER COVER 108128 6.60
35 COVER SC 10A082 2.20
36 ARM LEVER 101409 15.40
37 ARM LEVER SC COLLAR 110123 2.20
38 ARM LEVER SC 10A081 2.20
39 ROLLER SC 187088 3.30
40 ROLLER W 190562 1.10
41 ROLLER MAG COLLAR (A) *Cannot be ordered 191066 12.10
42 ROLLER BALL BEARING 10E360 15.40
43 ROLLER COLLAR (A) 191069 3.30
44 ROLLER COLLAR (B) 110119 2.20
45 LINE ROLLER *Cannot be ordered 179151 8.80
46 ROLLER COLLAR (C) 191068 4.40
47 ROLLER MAG COLLAR (B) *Cannot be ordered 191067 11.00
48 BAIL *Cannot be ordered 164867 57.20
49 BAIL HOLDER SC COLLAR 110123 2.20
50 BAIL HOLDER SC 10A081 2.20
51 BAIL SHAFT 122127 3.30
52 BAIL SHAFT W 190773 1.10
53 BAIL SHAFT SP 133962 2.20
54 BAIL SHAFT SP HOLDER 110628 2.20
55 BAIL HOLDER COVER 108129 6.60
56 BALE HOLDER COVER SC 10A082 2.20
57 MAG SHIELD PLATE SC 10A873 2.20
58 MAG SHIELD PLATE *Cannot be ordered 114112 23.10
59 MAGSHIELD PLATE O-RING 10J143 1.10
60 MAG SHIELD CAP *Cannot be ordered 108A04 11.00
61 ONE-WAY CLUTCH W 190A28 1.10
62 ONE-WAY CLUTCH *Cannot be ordered 114124 26.40
63 CLUTCH RING *Cannot be ordered 110872 9.90
64 PINION BEARING PLATE 182251 2.20
65 PINION BEARING PLATE SC 10A411 2.20
66 PINION BALL BEARING (A) 10E339 15.40
67 PINION BEARING (A) W 190917 1.10
68 PINION + DRIVE GEAR SET *Cannot be ordered 138914 110.00
69 PINION BEARING (B) SP・W 190918 1.10
70 PINION BEARING (B) W 193014 1.10
71 PINION BALL BEARING (B) 10E356 15.40
72 PINION COLLAR 110873 3.30
73 MAIN SHAFT *Cannot be ordered 171501 30.80
74 BODY *Cannot be ordered 166197 44.00
75 BAIL KICK COLLAR 110876 2.20
76 BAIL KICK COLLAR SC 10A113 2.20
77 STOPPER CAM 194174 9.90
78 STOPPER CAM LEAF SP 133860 2.20
79 REAR CAP PACKING 185160 3.30
80 LOADER CAP 116597 8.80
81 LOOP CAP W 190009 1.10
82 REAR CAP SC 10A875 2.20
83 OSCILLATING GEAR W 190948 1.10
84 OSCILLATING GEAR O-RING *Cannot be ordered 106100 9.90
85 OSCILLATING GEAR O-RING 10J068 1.10
86 OSCILLATING GEAR BEARING W 190854 1.10
87 OSCILLATING GEAR BALL BEARING 10E224 8.80
88 OSCILLATING GEAR SC 10A876 2.20
89 DRIVE GEAR BEARING 185161 2.20
90 DRIVE BALL BEARING *Cannot be ordered 10E383 45.10
91 BODY COVER *Cannot be ordered 168253 23.10
92 BODY COVER SC (A) 10A044 3.30
93 BODY COVER SC (B) 158095 2.20
94 DRIVE W 190911 1.10
95 DRIVE BEARING COVER *Cannot be ordered 168A12 45.10
96 DRIVE BEARING COVER SC 10A043 3.30
97 HANDLE 1H2A25 103.40
98 HANDLE CAP O-RING 10J076 1.10
99 HANDLE CAP 151164 4.40
100 STOPPER RETAINER 10F014 2.20
101 STOPPER LEVER 196401 6.60
200 HANDLE KNOB W 190196 1.10
201 HANDLE KNOB COLLAR 110879 2.20
202 HANDLE KNOB *Discontinued 1H1664 22.00
203 HANDLE KNOB SC 10A333 2.20
204 HANDLE KNOB CAP 116516 4.40
