[DAIWA] Genuine Spare Parts for 20 REVROS LT1000S Product code: 00060060 **Back-order (Shipping in 3-4 weeks after receiving order)
![Photo1: [DAIWA] Genuine Spare Parts for 20 REVROS LT1000S Product code: 00060060 **Back-order (Shipping in 3-4 weeks after receiving order) (1)](https://www.hedgehog-studio.co.jp/phone/data/hedgehog-studio/product/20240229_37e93d.png)
Our Selling Price: US$0.77 [Regular Price: US$1.10]
Prices vary according to options.
Item Description
ATTENTION:
- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.
- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.
- We don’t accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn’t accept our cancellations.
*Please make sure to read about the conditions before you order.
- Genuine Spool Purchase
* If you just want the genuine spool (No.6 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/4747

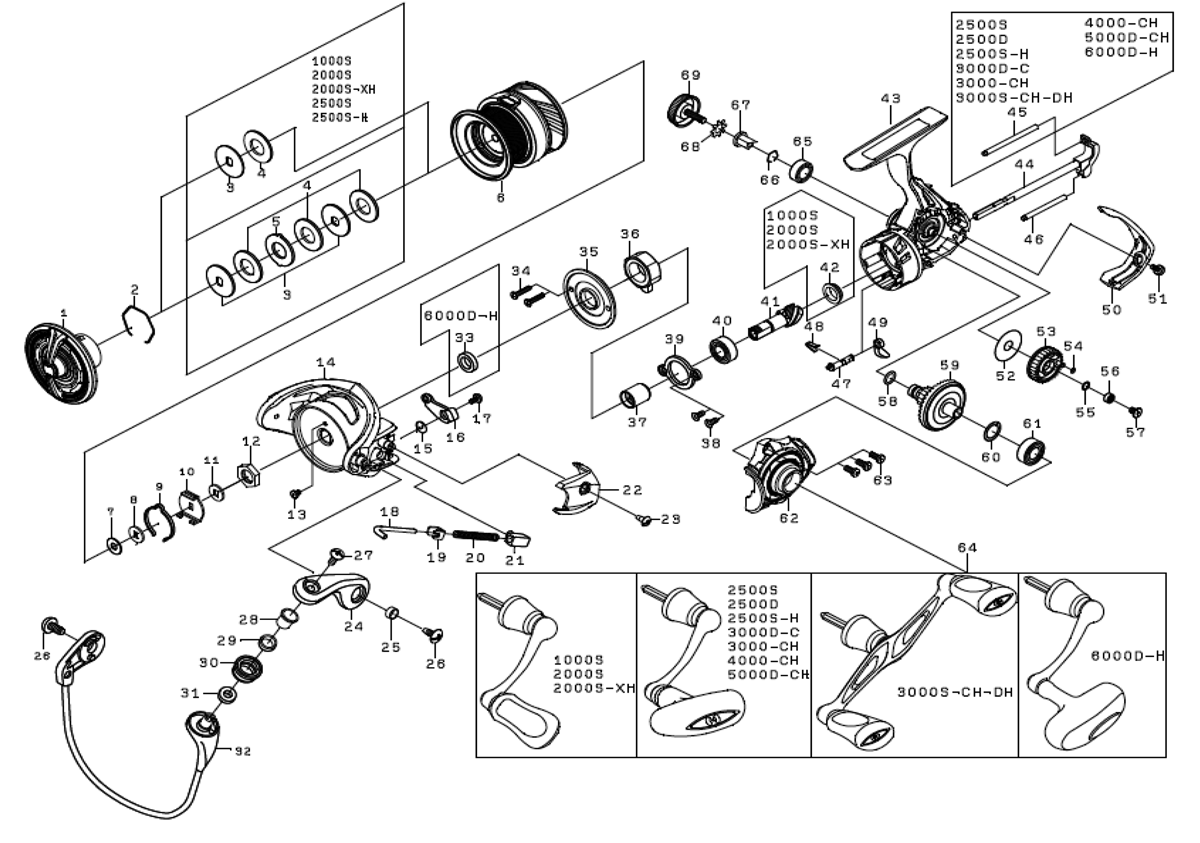

| Reel Part's Schematic Diagram |
| No. | Part Name | Part Code | Price (USD) |
| 1 | DRAG KNOB | 6Q376801 | 12.10 |
| 2 | DRAG RING | 6Q346101 | 2.20 |
| 3 | DRAG DISC W | 6J547001 | 2.20 |
| 4 | DRAG W (1 PC) | 6J678901 | 6.60 |
| 6 | SPOOL (2-6) | 6Q493401 | 34.10 |
| 7 | SPOOL W (A) | 6Q348502 | 1.10 |
| 8 | SPOOL W (B) | 6E398003 | 1.10 |
| 9 | CLICK LEAF SP | 6Z026045 | 2.20 |
| 10 | CLICK HOLDER | 6M021401 | 2.20 |
| 11 | CLICK HOLDER W | 6Q344001 | 1.10 |
| 12 | ROTOR NUT | 6Q122401 | 2.20 |
| 13 | ROTOR NUT SC | 6H022701 | 2.20 |
| 14 | ROTOR | 6Q139520 | 12.10 |
| 15 | KICK LEVER SP | 6H443301 | 2.20 |
| 16 | KICK LEVER | 6Q139601 | 3.30 |
| 17 | KICK LEVER SC | 6H417701 | 2.20 |
| 18 | ARM LEVER SHAFT | 6Q139801 | 2.20 |
| 19 | ARM LEVER SHAFT PLATE | 6H576101 | 3.30 |
| 20 | ARM LEVER SP | 6H442401 | 2.20 |
| 21 | ARM LEVER SP HOLDER | 6Q121501 | 2.20 |
| 22 | ARM LEVER SP COVER | 6Q146501 | 3.30 |
| 23 | ARM LEVER SP COVER SC | 6G270801 | 2.20 |
| 24 | ARM LEVER | 6Q121617 | 3.30 |
| 25 | ARM LEVER SC COLLAR | 6Q121701 | 2.20 |
| 26 | BAIL SC | 6G205001 | 2.20 |
| 27 | ROLLER SC | 6G195602 | 2.20 |
| 28 | ROLLER COLLAR (A) | 6G195501 | 2.20 |
| 29 | ROLLER COLLAR (B) | 6G220701 | 2.20 |
| 30 | LINE ROLLER | 6J089902 | 7.70 |
| 31 | ROLLER COLLAR (C) | 6Q203401 | 2.20 |
| 32 | BAIL | 6Q139901 | 23.10 |
| 34 | SHIELD CAP SC | 6G837101 | 2.20 |
| 35 | SHIELD CAP | 6Q139401 | 3.30 |
| 36 | ONE-WAY CLUTCH | 6Q308301 | 23.10 |
| 37 | CLUTCH RING | 6J001401 | 5.50 |
| 38 | PINION BEARING PLATE SC | 6Q126201 | 2.20 |
| 39 | PINION BEARING PLATE | 6Q195601 | 2.20 |
| 40 | PINION BALL BEARING | 6G467302 | 8.80 |
| 41 | PINION | 6Q419301 | 6.60 |
| 42 | PINION COLLAR | 6Q419201 | 2.20 |
| 43 | BODY | 6Q478101 | 8.80 |
| 44 | MAIN SHAFT *Repair only (cannot be ordered) | 6Q375301 | 8.80 |
| 46 | OSCILLATING POST | 6Q119104 | 2.20 |
| 47 | STOPPER CAM | 6Q118101 | 2.20 |
| 48 | STOPPER CAM SP | 6H697801 | 2.20 |
| 49 | STOPPER LEVER | 6Q118001 | 2.20 |
| 50 | REAR CAP | 6Q419901 | 3.30 |
| 51 | REAR CAP SC | 6G270801 | 2.20 |
| 52 | OSCILLATING GEAR W | 6H607902 | 1.10 |
| 53 | OSCILLATING GEAR *Repair only (cannot be ordered) | 6Q375201 | 6.60 |
| 54 | OSCILLATING GEAR O-RING | 6H770601 | 1.10 |
| 55 | OSCILLATING GEAR BEARING W | 6H129201 | 1.10 |
| 56 | OSCILLATING GEAR BALL BEARING | 6G469005 | 8.80 |
| 57 | OSCILLATING GEAR SC | 6Q126101 | 2.20 |
| 58 | DRIVE GEAR O-RING | 6G670501 | 1.10 |
| 59 | DRIVE GEAR | 6Q375901 | 8.80 |
| 60 | DRIVE W | 63758504 | 1.10 |
| 61 | DRIVE BALL BEARING (A) | 6G467302 | 8.80 |
| 62 | BODY COVER | 6Q478201 | 9.90 |
| 63 | BODY COVER SC | 6G115001 | 2.20 |
| 64 | HANDLE | 6Q478601 | 22.00 |
| 65 | DRIVE BALL BEARING (B) | 6G522706 | 8.80 |
| 66 | DRIVE BALL BEARING (B) RING | 6G472401 | 2.20 |
| 67 | HANDLE COLLAR | 6F721001 | 2.20 |
| 68 | HANDLE W | 61608401 | 2.20 |
| 69 | HANDLE SC | 6Q132401 | 3.30 |
| 300 | HANDLE KNOB CAP | 6Q345001 | 2.20 |
| 301 | LINE STOPPER | 6Q345501 | 2.20 |
| 302 | LINE STOPPER PLATE | 6Q376701 | 2.20 |
| 303 | LINE STOPPER SPRING | 6Q345701 | 2.20 |
