[DAIWA] Genuine Spare Parts for 17 THEORY 2506 Product code: 00055997 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 17 THEORY 2506 Product code: 00055997 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

Part Number:
Quantity:

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.



- Genuine Spool Purchase

* If you just want the genuine spool (No.9 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/4121

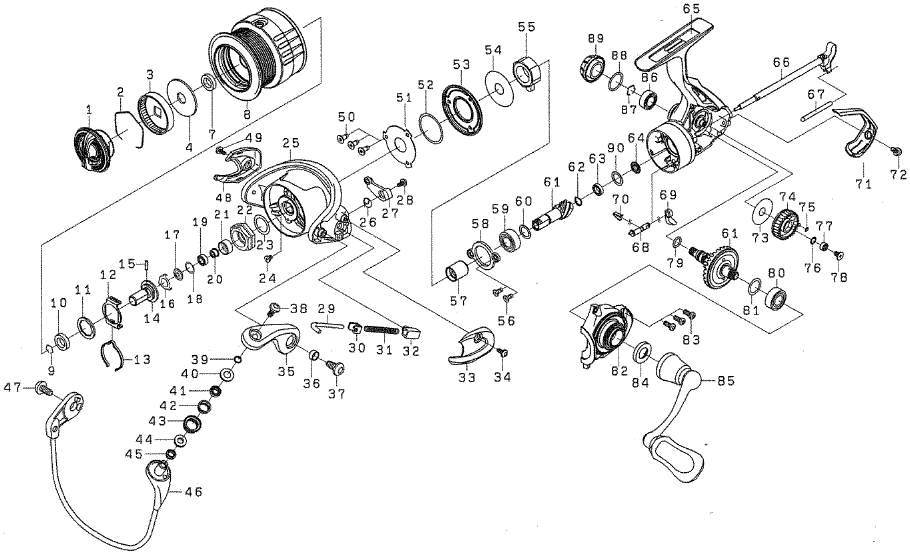

 Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOBS 139740 15.40
2 DRAG RINGS 185059 2.20
3 DRAG RATCHET 180158 7.70
4 DRAG W (1 piece) 144190 6.60
7 DRAG COLLAR 110925 2.20
8 SPOOL (2-8) 128A79 127.60
9 SPOOL METAL RING 185116 2.20
10 SPOOL METAL COLLAR 110925 2.20
11 SPOOL W 190976 1.10
12 CLICK HOLDER 116512 2.20
13 CLICK LEAF SP 133857 2.20
14 SPOOL METAL 132129 7.70
15 SPOOL METAL PIN 156139 2.20
16 ROTOR NUT PLATE 160455 2.20
17 ROTOR NUT PACKING 185162 2.20
18 ROTOR NUT BEARING W 134008 2.20
19 ROTOR NUT BALL BEARING 10E378 15.40
20 ROTOR NUT BEARING COLLAR 110A13 3.30
21 ROTOR NUT COLLAR 110059 3.30
22 ROTOR NUT 140328 8.80
23 ROTOR NUT W 190411 1.10
24 ROTOR NUT SC 10A748 2.20
25 ROTOR *Cannot be ordered 188A05 46.20
26 KICK LEVER SP 133861 2.20
27 KICK LEVER 111138 8.80
28 KICK LEVER SC 10A870 2.20
29 ARM LEVER SHAFT 122149 3.30
30 ARM LEVER SHAFT PLATE 160716 3.30
31 ARM LEVER SP 133864 2.20
32 ARM LEVER SP HOLDER 110871 2.20
33 ARM LEVER SP COVER 108044 6.60
34 COVER SC 10A954 3.30
35 ARM LEVER 101411 9.90
36 ARM LEVER SC COLLAR 110958 2.20
37 ARM LEVER SC 10A935 2.20
38 ROLLER SC 187084 2.20
39 ROLLER COLLAR (A) 110011 2.20
40 ROLLER PACKING 185136 3.30
41 ROLLER BALL BEARING 10E353 12.10
42 ROLLER COLLAR (B) 110010 2.20
43 LINE ROLLER 179134 7.70
44 ROLLER COLLAR (C) 191061 2.20
45 ROLLER COLLAR (D) 110041 2.20
46 BAIL 164879 36.30
47 BALE HOLDER SC 10A935 2.20
48 BALE HOLDER COVER 108045 6.60
49 BAIL HOLDER COVER SC 10A954 3.30
50 MAGSHIELD PLATE SC 10A199 2.20
51 MAGSHIELD PLATE *Cannot be ordered 114123 23.10
52 MAGSHIELD PLATE O-RING 10J143 1.10
53 MAG SHIELD CAP *Cannot be ordered 108A07 4.40
54 ONE-WAY CLUTCH W 190A44 1.10
55 ONE-WAY CLUTCH *Cannot be ordered 114119 26.40
56 PINION BEARING PLATE SC 10A778 2.20
57 CLUTCH RING *Cannot be ordered 110A62 6.60
58 PINION BEARING PLATE 182244 2.20
59 PINION BALL BEARING (A) 10E210 8.80
60 PINION BEARING (A) W 190137 1.10
61 PINION + DRIVE GEAR SET *Cannot be ordered 138923 103.40
62 PINION BEARING (B) SP・W 190014 1.10
63 PINION BALL BEARING (B) 10E337 8.80
64 PINION COLLAR 110A10 3.30
65 BODY *Cannot be ordered 166A16 58.30
66 MAIN SHAFT *Cannot be ordered 171526 23.10
67 OSCILLATING POST *Not available 155557 2.20
68 STOPPER CAM 194178 3.30
69 STOPPER LEVER 196390 2.20
70 STOPPER CAM LEAF SP 133886 2.20
71 REAR CAP 116721 3.30
72 REAR CAP SC 10A196 2.20
73 OSCILLATING GEAR W 190958 1.10
74 OSCILLATING GEAR O-RING *Cannot be ordered 106130 4.40
75 OSCILLATING GEAR O-RING *Not available 10J113 1.10
76 OSCILLATING GEAR BEARING W 190854 1.10
77 OSCILLATING GEAR BALL BEARING 10E295 8.80
78 OSCILLATING GEAR SC 10A779 2.20
79 DRIVE GEAR BEARINGS 10J071 1.10
80 DRIVE BALL BEARING 10E210 8.80
81 DRIVE W 190137 1.10
82 BODY COVER 168A16 24.20
83 BODY COVER SC 10A197 2.20
84 HANDLE PACKING 185181 2.20
85 HANDLE 1H2A06 77.00
86 DRIVE BALL BEARING 10E381 8.80
87 DRIVE BEARING RING 185116 2.20
88 HANDLE CAP O-RING 185077 2.20
89 HANDLE CAP 151202 4.40
90 PINION COLLAR W 190913 1.10
200 HANDLE KNOB W 190196 1.10
201 HANDLE KNOB COLLAR 110411 2.20
202 HANDLE KNOB 1H1667 24.20
203 HANDLE KNOB SC 10A333 2.20
204 HANDLE KNOB CAP 116725 6.60
205 WASHERS (REAL FOUR/RCS) 190964 2.20
