[DAIWA] Genuine Spare Parts for 17 CROSSCAST 4000QD Product code: 00059665 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 17 CROSSCAST 4000QD Product code: 00059665 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

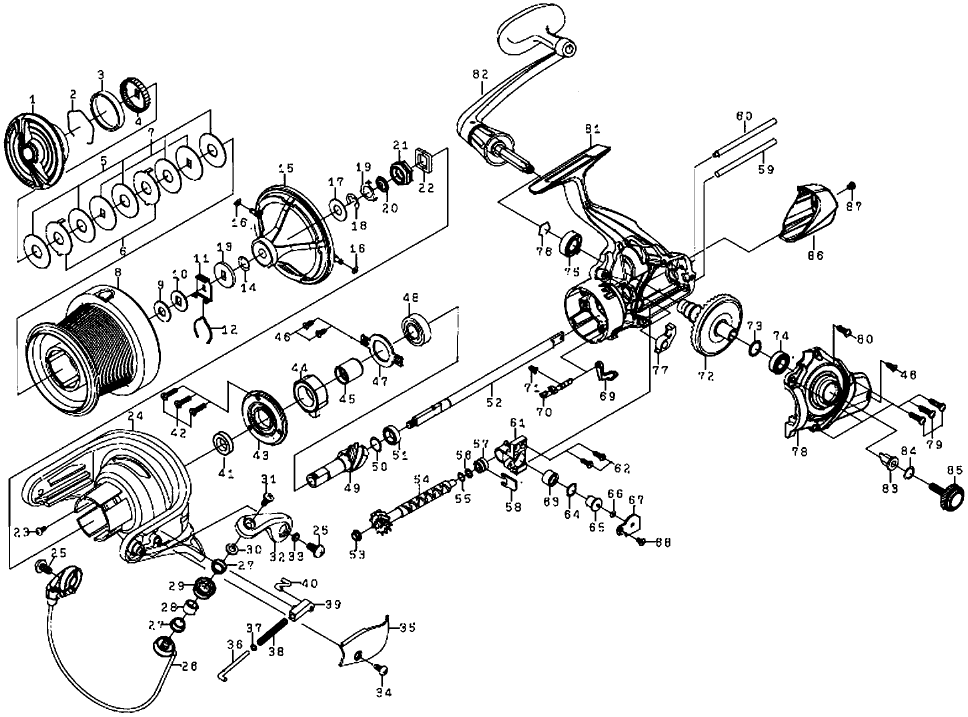

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOB 139744 11.00
2 DRAG RING 185063 2.20
3 DRAG RATCHET COLLAR 110886 2.20
4 DRAG RATCHET 180189 3.30
5 DRAG W 144224 2.20
6 DRAG GRIP W 190533 1.10
7 DRAG DISC W 142131 2.20
8 SPOOL (2-8) 128B30 36.30
9 SPOOL W (A) 190350 1.10
10 SPOOL W (B) 143038 1.10
11 CLICK HOLDER 116521 2.20
12 CLICKLEAF SP 133990 2.20
13 MAIN SHAFT W 190313 1.10
14 LINE GUARD SP/W 190970 1.10
15 LINE GUARD 162198 4.40
16 LINE GUARD O RING 10J130 1.10
17 LINE GUARD W 190838 1.10
18 LINE GUARD RETAINER 10F002 2.20
19 ROTOR NUT PACKING PLATE 160526 2.20
20 ROTOR NUT PACKING 185082 4.40
21 ROTOR NUT 140362 3.30
22 ROTOR NUT PLATE 160421 2.20
23 ROTOR NUT LOCK SC 10A525 2.20
24 ROTOR 188A18 12.10
25 ARM LEVER SC 10A521 2.20
26 VEIL 164886 15.40
27 ROLLER COLLAR (A) 110A27 2.20
28 ROLLER COLLAR (B) 110A28 2.20
29 LINE ROLLER 179126 16.50
30 ROLLER COLLAR (C) 191047 2.20
31 ROLLER SC 187060 2.20
32 ARM LEVER 101419 6.60
33 ARM LEVER SC COLOR 110A29 2.20
34 COVER SC 10A459 2.20
35 ARM LEVER SP COVER 108A19 4.40
36 ARM LEVER SHAFT 122168 2.20
37 ARM LEVER SHAFT W 190320 1.10
38 ARM LEVER SP 133989 2.20
39 VEIL LOCK SHAFT COLLAR *Not available 110A30 2.20
40 BAIL LOCK SHAFT 122169 2.20
41 ROTOR COLOR 110A31 2.20
42 SHIELD PLATE SC 10A227 2.20
43 SHIELD PLATE 182276 3.30
44 ONE WAY CLUTCH *Cannot be ordered 114116 26.40
45 CLUTCH RING 110B69 6.60
46 PINION BEARING PLATE SC 10A217 2.20
47 PINION BEARING PLATE 182275 2.20
48 PINION BALL BEARING (A) 10E194 8.80
49 PINION *Cannot be ordered 154655 12.10
50 PINION BEARING (B) W 190797 1.10
51 PINION BALL BEARING (B) 10E262 15.40
52 MAIN SHAFT 171534 11.00
53 WORM SHAFT COLLAR (A) 110847 2.20
54 WORM SHAFT 103307 26.40
55 WORM SHAFT SP/W 190983 1.10
56 WORM SHAFT W 190196 1.10
57 WORM SHAFT COLLAR (B) 110848 2.20
58 WORM SHAFT RETAINER 182243 2.20
59 OSCILLATING POST (A) 155550 2.20
60 OSCILLATING POST (B) 155551 2.20
61 OSCILLATING SLIDER 107185 3.30
62 POLE HOLDER PLATE SC (A) 10A045 2.20
63 POLE HOLDER COLOR 110A22 3.30
64 PAUL W (A) 190780 1.10
65 POLE 195039 11.00
66 PAUL W (B) 190754 1.10
67 POLE HOLDER PLATE *Cannot be ordered 160896 2.20
68 POLE HOLDER PLATE SC (B) 10A076 2.20
69 STOPPER LEVER 196419 2.20
70 STOPPER CAM 194192 2.20
71 STOPPER CAM LEAF SP 133886 2.20
72 DRIVE GEAR *Cannot be ordered 138945 8.80
73 DRIVE W 190411 1.10
74 DRIVE BEARING (A) *Not available 10E019 8.80
75 DRIVE BEARING (B) 110A32 2.20
76 DRIVE BEARING RING 185209 2.20
77 STOPPER 127258 2.20
78 BODY COVER 168A32 9.90
79 BODY COVER SC (A) 10A855 2.20
80 BODY COVER SC (B) 124001 2.20
81 BODY 166A29 8.80
82 HANDLE 1H2A41 27.50
83 HANDLE COLOR 104001 2.20
84 HANDLE SC/W 190806 1.10
85 HANDLE SC 152181 4.40
86 REAR CAP 116733 4.40
87 REAR CAP SC 10A459 2.20
