[DAIWA] Genuine Spare Parts for 15 LUVIAS 3012 Product code: 00055639 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 15 LUVIAS 3012 Product code: 00055639 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

Part Number:
Quantity:

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

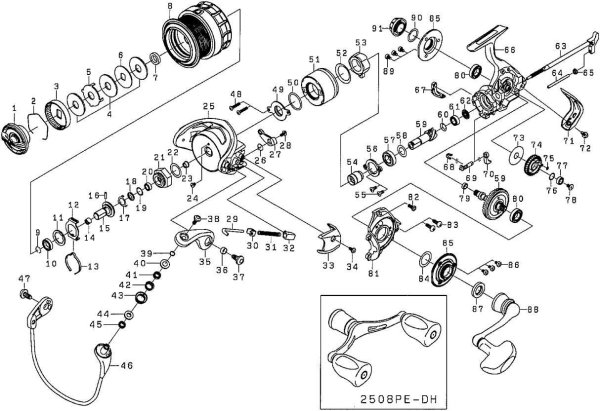

 Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOB 139701 30.80
2 DRAG RING 185059 2.20
3 DRAG RATCHET 180244 7.70
4 DRAG W SET (3 piece) 144192 19.80
5 DRAG GRIP W 190486 1.10
6 DRAG DISC W 142073 2.20
7 DRAG COLLAR 110869 2.20
8 SPOOL (2-8) 128957 176.00
9 SPOOL METAL RING 185116 2.20
10 SPOOL METAL BALL BEARING 10E326 15.40
11 SPOOL W 190976 1.10
12 CLICK HOLDER 116512 2.20
13 CLICKLEAF SP 133857 2.20
14 SPOOL METAL NUT 140329 3.30
15 SPOOL METAL 132123 6.60
16 SPOOL METAL PIN 156139 2.20
17 ROTOR NUT PLATE 160455 2.20
18 ROTOR NUT PACKING 185162 2.20
19 ROTOR NUT BEARING W 190913 1.10
20 ROTOR NUT BALL BEARING 10E351 15.40
21 ROTOR NUT 140272 4.40
22 ROTOR NUT W 190411 1.10
23 ROTOR NUT COLLAR 110968 3.30
24 ROTOR NUT SC 10A748 2.20
25 ROTOR *Cannot be ordered 188123 24.20
26 KICK LEVER SP 133861 2.20
27 KICK LEVER 111150 4.40
28 KICK LEVER SC 10A870 2.20
29 ARM LEVER SHAFT 122137 2.20
30 ARM LEVER SHAFT PLATE 160716 3.30
31 ARM LEVER SP 133944 2.20
32 ARM LEVER SP HOLDER 110300 2.20
33 ARM LEVER SP COVER 108095 3.30
34 COVER SC 10A652 2.20
35 ARM LEVER 101391 12.10
36 ARM LEVER SC COLOR 110012 2.20
37 ARM LEVER SC 10A651 2.20
38 ROLLER SC 187082 2.20
39 ROLLER COLLAR (A) 110011 2.20
40 ROLLER PACKING 185136 3.30
41 ROLLER BALL BEARING 10E353 12.10
42 ROLLER COLLAR (B) 110010 2.20
43 LINE ROLLER 179134 7.70
44 ROLLER COLLAR (C) 191061 2.20
45 ROLLER COLLAR (D) 110017 2.20
46 VEIL 164843 35.20
47 VEIL HOLDER SC 10A651 2.20
48 MAG SHIELD PLATE SC 10A955 2.20
49 MAG SHIELD PLATE *Cannot be ordered 114112 23.10
50 MAG SHIELD PLATE O RING 10J143 1.10
51 MUG SHIELD CAP *Cannot be ordered 108148 11.00
52 ONE-WAY CLUTCH SP/W 190A28 1.10
53 ONE WAY CLUTCH *Cannot be ordered 114124 26.40
54 CLUTCH RING 110988 8.80
55 PINION BEARING PLATE SC 10A778 2.20
56 PINION BEARING PLATE 182251 2.20
57 PINION BALL BEARING (A) 10E327 15.40
58 PINION BALL BEARING (A) W 190917 1.10
59 PINION + DRIVE GEAR SET *Cannot be ordered 138697 99.00
60 PINION BEARING (B) W 190826 1.10
61 PINION BALL BEARING (B) 10E215 15.40
62 PINION COLOR 110878 3.30
63 MAIN SHAFT *Cannot be ordered 171487 20.90
64 OSCILLATING POST 155318 2.20
65 OSCILLATING POST COLOR 110969 3.30
66 BODY *Cannot be ordered 166259 58.30
67 VEIL KICK COLLAR 110961 2.20
68 STOPPER CAM LEAF SP 133904 2.20
69 STOPPER CAM 194181 11.00
70 STOPPER LEVER 196395 6.60
71 REAR CAP 116589 8.80
72 REAR CAP SC 10A977 2.20
73 OSCILLATING GEAR W 190981 1.10
74 OSCILLATING GEAR *Cannot be ordered 106125 9.90
75 OSCILLATING GEAR O-RING 10J078 1.10
76 OSCILLATING GEAR BEARING W 190708 1.10
77 OSCILLATING GEAR BALL BEARING 10E209 8.80
78 OSCILLATING GEAR SC 10A779 2.20
79 DRIVE GEAR RING 185164 2.20
80 DRIVE BALL BEARING (A) 10E330 8.80
81 BODY COVER *Cannot be ordered 168337 27.50
82 BODY COVER SC (A) 10A971 2.20
83 BODY COVER SC (B) 10A780 2.20
84 DRIVE W 190402 1.10
85 DRIVE BEARING COVER *Cannot be ordered 168334 19.80
86 DRIVE BEARING COVER SC (L) 10A958 2.20
87 HANDLE PACKING 185189 3.30
88 HANDLE 1H2129 80.30
89 DRIVE BEARING COVER SC(R) 10A979 2.20
90 HANDLE CAP O-RING 10J076 1.10
91 HANDLE CAP 151177 6.60
200 HANDLE KNOB W 190196 1.10
201 HANDLE KNOB COLOR (4 7 2.5) 110411 2.20
202 HANDLE KNOB 1H1478 17.60
203 HANDLE KNOB SC 10A997 2.20
204 HANDLE KNOB CAP 116581 2.20
205 WASHER (REAL FOUR/RCS) 190922 2.20
