[SHIMANO] Genuine Spare Parts for 13-16 BIOMASTER SW 6000XG Product Code: 036117 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 13-16 BIOMASTER SW 6000XG Product Code: 036117 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

Part Number:
Quantity:

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

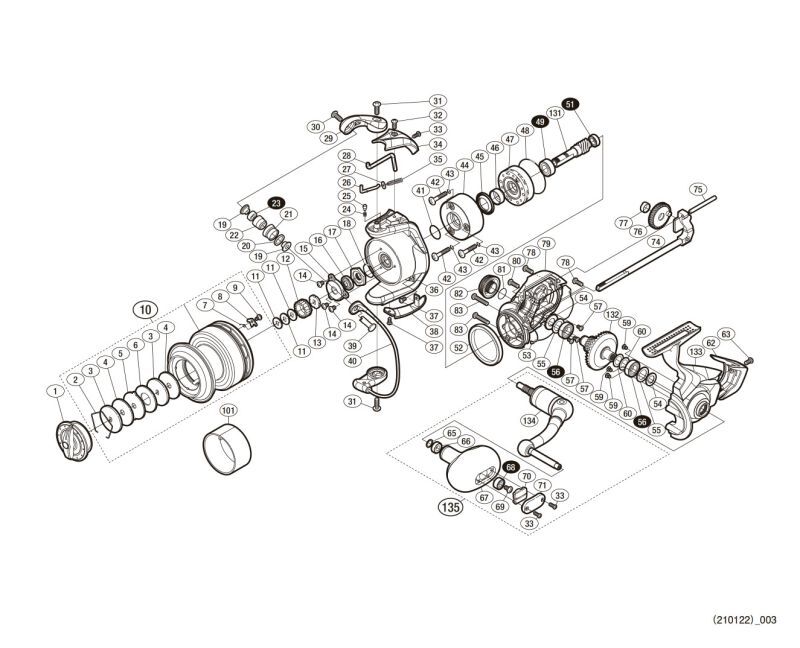

 Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
*F01 13QN6 REEL BAG 6.05
1 13BGP DRAG KNOBS 11.55
2 13NYG STOPPER SPRING 1.65
3 10N26 OVAL WASHER 1.10
4 10C16 DRAG WASHER 9.35
5 10BE3 DRAG EAR WASHER 1.10
6 1031M DRAG WASHERS 9.35
7 10JM4 CLICK SPRING 1.10
8 1038E SPOOL PIN 1.10
9 10PH4 FIXING BOLT 1.65
10 13CEV SPOOL ASSEMBLY 56.10
11 10PH7 SPOOL WASHER 1.10
12 10Q03 SPOOL HOLDER (A) 1.65
13 10J03 SPOOL HOLDER (B) 1.65
14 10LSM FIXING BOLT 1.10
15 10K32 RETAINER 1.65
16 107F7 ROTOR BEARING SEAL 1.65
17 10811 ROTOR NUT 3.85
18 108WA O-RING 1.65
19 107X4 LINE ROLLER WASHER 1.65
20 10KFE ARM ROLLER SPACER 1.65
21 10KUW LINE ROLLER 6.05
22 107RN LINE ROLLER BUSHING 1.65
23 104VQ BALL BEARING (4X8X3) 13.75
24 10HEK BAIL TRIP LEVER CLICK SPRING 1.10
25 106ZC CLICK PIN 1.65
26 105LU ARM SPRING GUIDE (A) 1.65
27 10TYE SPRING GUIDE (A) COLLAR 1.65
28 106KM INTERNAL GERI LEVER 2.75
29 10KLG ARM CAM 6.05
30 103HN FIXING BOLT 1.65
31 10LLJ FIXING BOLT 1.10
32 10LFK FIXING BOLT 1.10
33 10L1T FIXING BOLT 1.10
34 1087Y ARM CAM SPRING COVER 6.05
35 10FVD ARM CAM SPRING 1.65
36 13KEQ ROTOR 17.05
37 10L1R FIXING BOLT 1.10
38 10MNB BALE MOUNTING BRACKET COVER 6.05
39 10Q3G ARM FIXING SHAFT 6.05
40 1073F BAIL ASSEMBLY 28.05
41 10EZB O-RING 1.65
42 10A6S FIXING BOLT 1.65
43 108WW O-RING 1.65
44 10MH9 ROLLER CLUTCH SEAL COVER 1.65
45 10MH1 ROLLER CLUTCH SEAL 1.65
46 10K7R ROTOR RING 3.85
47 10QPE ROLLER CLUTCH ASSEMBLY 11.55
48 10H4F ROLLER CLUTCH COVER SEAL 1.65
49 104Q5 BALL BEARING (7X14X5) 13.75
51 104JT BALL BEARING (6X10X3) 13.75
52 104G7 FRICTION RING 1.65
53 10CDA BODY SEAL 2.75
54 13M6L BEARING SEAL 1.65
55 10BGF WASHER 1.65
56 104PT BALL BEARING (8X14X4) 13.75
57 10LCS FIXING BOLT 1.10
59 1055H FIXING BOLT 1.65
60 10DKJ WASHER 2.20
62 10NKR BODY GUARD 6.05
63 103CJ FIXING BOLT 1.10
65 104FH WASHER 2.20
66 104UJ HANDLE GRIP BUSH (B) 1.65
67 1040N HANDLE KNOB 39.60
68 10KX2 BALL BEARING (4X9X4) 13.75
69 10LFA FIXING BOLT 1.10
70 10B97 HANDLE CAP 2.75
71 108SM HANDLE GRIP NAMEPLATE 2.75
74 10NF5 MAIN SHAFT ASSEMBLY 9.35
75 1035G SLIDER GUIDE 1.65
76 10G9P SLIDER GEAR 2.75
77 10JYG SLIDER GEAR COLLAR 1.65
78 10L6D FIXING BOLT 1.10
79 13L44 BODY 22.55
80 10L6A BODY FIXING BOLT (L) 1.10
81 10909 O-RING 1.65
82 10N48 HANDLE SCREW CAP 11.55
83 10LZ7 FIXING BOLT 1.10
101 109UZ THREAD STOPPER BELT (ACCESSORY) 6.05
131 13LA5 PINION GEAR 22.55
132 13D1L DRIVE GEAR ASSEMBLY 34.10
133 13DUS KIFTER WITH LEGS 34.10
134 13E19 HANDLE 28.05
135 13EQE HANDLE ASSEMBLY 67.65
ITOS 10G4L SPOOL THREAD STOPPER SEAL (ACCESSORY) 1.65
MH01 13NG2 NAMEPLATE ON THE BACK OF THE LEG 2.75
PUNT 13FLH INSTRUCTION MANUAL EXPLODED VIEW SET (ACCESSORY) 2.75
