[SHIMANO] Genuine Spare Parts for 21 NEXAVE FI C3000 Product Code: 044198 **Back-order (Shipping in 3-4 weeks after receiving order)
![Photo1: [SHIMANO] Genuine Spare Parts for 21 NEXAVE FI C3000 Product Code: 044198 **Back-order (Shipping in 3-4 weeks after receiving order) (1)](https://www.hedgehog-studio.co.jp/phone/data/hedgehog-studio/product/20231213_2a1e37.jpg)
Our Selling Price: US$0.77 [Regular Price: US$1.10]
Prices vary according to options.
Item Description
ATTENTION:
- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.
- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.
*Please make sure to read about the conditions before you order.

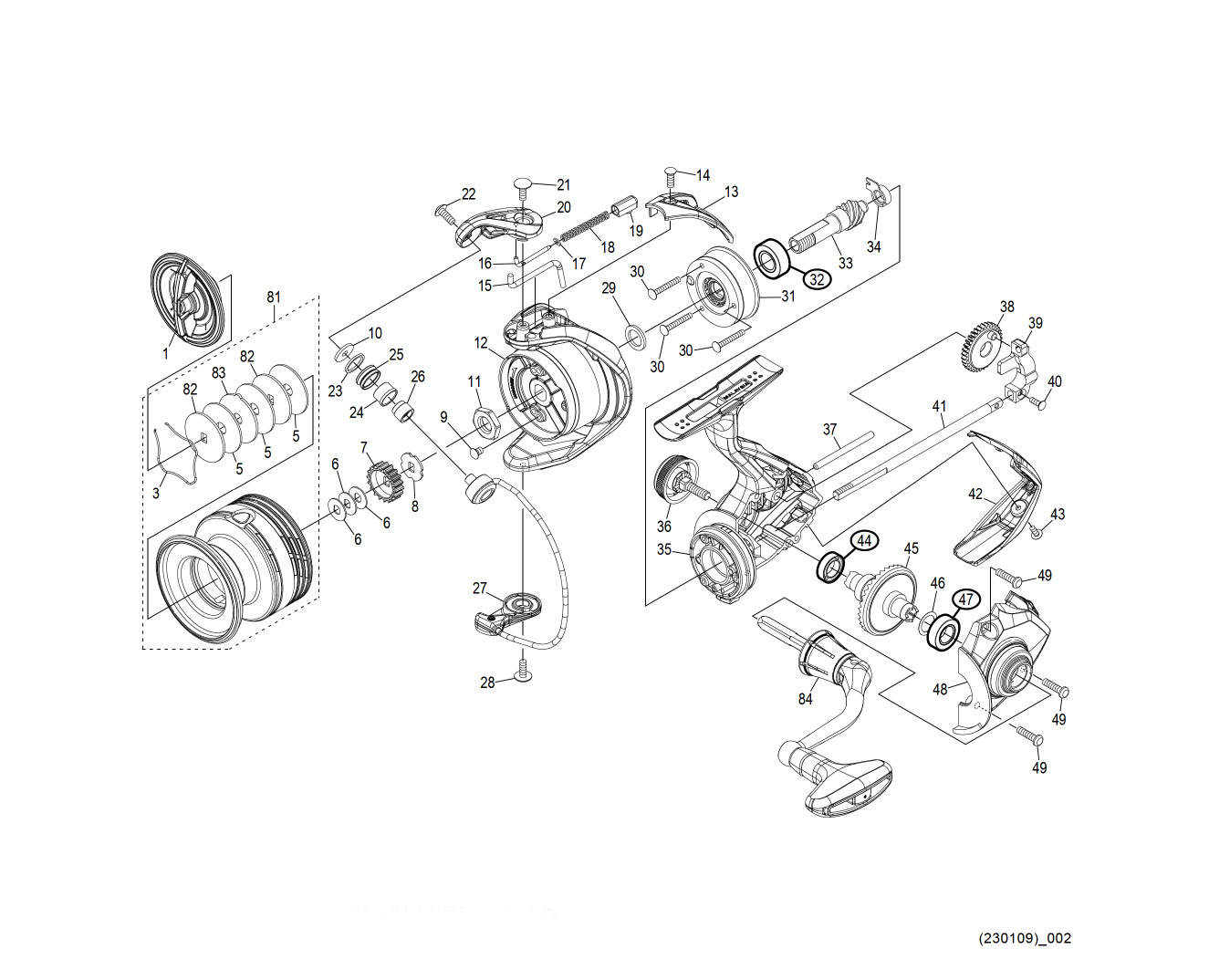

| Reel Part's Schematic Diagram |
* Circled figures indicate bearings.
* Please note disassembly is at your own risk.
| No. | S Part No. | Description | Price (USD) |
| 1 | 101F1 | DRAG KNOB ASSEMBLY | 6.05 |
| 3 | 10MZX | STOPPER SPRING | 1.65 |
| 5 | 10N5A | DRAG WASHERS | 1.10 |
| 6 | 10BXN | SPOOL WASHER SET | 1.10 |
| 7 | 103MU | SPOOL HOLDER (A) | 1.65 |
| 8 | 10J04 | SPOOL HOLDER (B) | 1.65 |
| 9 | 10LCE | FIXING BOLT | 1.10 |
| 10 | 10PFP | ARM ROLLER WASHER | 1.10 |
| 11 | 10RXE | ROTOR NUT | 1.65 |
| 12 | 101FB | ROTOR | 6.05 |
| 13 | 10DNX | ARM CAM SPRING COVER | 6.05 |
| 14 | 10LFK | FIXING BOLT | 1.10 |
| 15 | 106P2 | INTERNAL GERI LEVER | 2.75 |
| 16 | 1061L | ARM SPRING GUIDE (A) | 3.85 |
| 17 | 10TYE | SPRING GUIDE (A) COLLAR | 1.65 |
| 18 | 105R6 | ARM CAM SPRING | 1.65 |
| 19 | 107AB | ARM CAM SPRING SEAT | 2.75 |
| 20 | 101PL | ARM CAM | 2.20 |
| 21 | 103DA | FIXING BOLT | 1.65 |
| 22 | 10PMH | FIXING BOLT | 1.65 |
| 23 | 10KFD | ARM ROLLER SPACER | 1.65 |
| 24 | 10PFH | ARM ROLLER BUSHING | 1.10 |
| 25 | 10JLF | ARM ROLLER | 1.65 |
| 26 | 1020X | LINE ROLLER COLLAR | 1.65 |
| 27 | 10RUM | BAIL ASSEMBLY | 9.35 |
| 28 | 10LFH | FIXING BOLT | 1.10 |
| 29 | 10JVH | WASHER | 1.10 |
| 30 | 103C6 | FIXING BOLT | 1.10 |
| 31 | 10QPN | ROLLER CLUTCH ASSEMBLY | 11.55 |
| 32 | 107FE | BALL BEARING (7X14X5) | 7.15 |
| 33 | 1001D | PINION GEAR | 9.35 |
| 34 | 1074K | BUSH FOR PINION GEAR | 1.65 |
| 35 | 101F7 | BODY | 9.35 |
| 36 | 101EZ | HANDLE SCREW CAP ASSEMBLY | 6.05 |
| 37 | 1035A | SLIDER GUIDE | 1.65 |
| 38 | 10DMJ | SLIDER GEAR | 1.65 |
| 39 | 10G7D | SLIDER GEAR | 8.25 |
| 40 | 10R1P | FIXING BOLT | 1.65 |
| 41 | 10DMK | MAIN SHAFT | 6.05 |
| 42 | 10DM5 | BODY GUARD | 6.05 |
| 43 | 10LCS | FIXING BOLT | 1.10 |
| 44 | 107FA | BALL BEARING (7X11X3) | 7.15 |
| 45 | 10S1Q | DRIVE GEAR | 7.15 |
| 46 | 10EEZ | WASHER | 2.75 |
| 47 | 107AT | BALL BEARING (7X13X4) | 7.15 |
| 48 | 101FA | LID | 9.35 |
| 49 | 10L6K | FIXING BOLT | 1.10 |
| 81 | 101FK | SPOOL ASSEMBLY | 19.80 |
| 82 | 10BCE | OVAL WASHER | 1.65 |
| 83 | 102ZD | EAR WASHERS | 1.65 |
| 84 | 101PN | HANDLE ASSEMBLY | 15.95 |
| PUNT | 13JRT | INSTRUCTION MANUAL EXPLODED VIEW SET (ACCESSORY) | 2.75 |
