[SHIMANO] Genuine Spare Parts for 18 Soare C2000SSHG Product Code: 039385 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 18 Soare C2000SSHG Product Code: 039385 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

Part Number:
Quantity:

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.



- Genuine Spool Purchase

* If you just want the genuine spool (No.101 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/4314

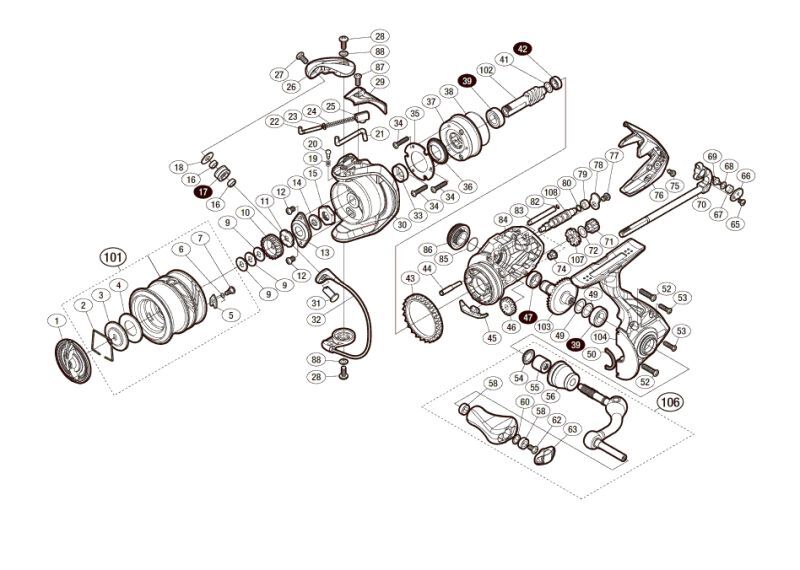

 Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
*F01 13QN1 REEL BAG 3.85
1 13BNJ DRAG KNOB ASSEMBLY 17.05
2 10B87 STOPPER SPRING 1.65
3 10BBM OVAL WASHER 1.65
4 102ZG DRAG WASHER 1.65
5 10DNL SPOOL PIN 1.65
6 10DNP SPOOL PIN SPRING 1.65
7 10TRB FIXING BOLT 1.65
9 10BXN SPOOL WASHER SET 1.10
10 103MU SPOOL HOLDER (A) 1.65
11 10J04 SPOOL HOLDER (B) 1.65
12 10PMC FIXING BOLT 2.75
13 10TRH RETAINER 2.75
14 107L4 ROTOR BEARING SEAL 2.75
15 10TPL ROTOR NUT 3.85
16 13KYX LINE ROLLER BEARING COLLAR 2.75
17 13CPS LINE ROLLER (WITH BEARING) ASSEMBLY 22.55
18 10HWU WASHER 1.65
19 10CH0 INTERNAL GERI LEVER CLICK SPRING 1.65
20 106ZC CLICK PIN 1.65
21 106L0 INTERNAL GERI LEVER 2.75
22 1061L ARM SPRING GUIDE (A) 3.85
23 10TYE SPRING GUIDE (A) COLLAR 1.65
24 10R2N ARM CAM SPRING 1.65
25 107AB ARM CAM SPRING SEAT 2.75
26 13KLK ARM CAM 6.05
27 13JXP FIXING BOLT 1.65
28 10TLM FIXING BOLT 1.65
29 101T4 ARM CAM SPRING COVER 6.05
30 13CPT ROTOR ASSEMBLY 12.65
31 13KGN ARM FIXING SHAFT 6.05
32 13CV6 BAIL ASSEMBLY 28.05
33 10JHG ROTOR COLLAR 3.85
34 103C6 FIXING BOLT 1.10
35 10L62 ROLLER CLUTCH COVER PLATE 1.65
36 10MH6 ROLLER CLUTCH SEAL 3.85
37 10QPN ROLLER CLUTCH ASSEMBLY 11.55
38 10MLU O-RING 3.85
39 104JD BALL BEARING (7 X 13 X 4) 13.75
41 10HEP WASHER 1.10
42 104JZ BALL BEARING (5 X 8 X 2.5) 13.75
43 104FV FRICTION RING 2.75
44 10CLD INTERMEDIATE GEAR (B) SHAFT 3.85
45 10TQF INNER GERI HITARI 1.65
46 10HBH WORM SHAFT GEAR 3.85
47 104PP BALL BEARING (7 X 11 X 3) 13.75
49 1003B WASHER 2.75
50 10CBD COVER FLANGE SEAL 2.75
52 13JXQ FIXING BOLT 1.65
53 10TP1 FIXING BOLT 1.10
54 10PXV HANDLE SHAFT SEAL 2.75
55 10C82 HANDLE SHAFT FLANGE (B) 3.85
56 13MH6 HANDLE SHAFT FLANGE 9.35
58 10PXZ HANDLE KNOB BUSH 1.65
60 101BD WASHER 2.75
62 10LFA FIXING BOLT 1.10
63 10TNJ HANDLE CAP 3.85
65 10LCD FIXING BOLT 1.65
66 10HAJ WORM SHAFT PIN PUSH PLATE 1.65
67 10JXT WORM SHAFT PIN COLLAR 1.65
68 101AT WASHER 2.75
69 106UZ WORM SHAFT PIN 3.85
70 10TW3 MAIN SHAFT ASSEMBLY 9.35
71 106RH INTERMEDIATE GEAR (SMALL) 2.75
72 10DHA WASHER 2.75
74 106M9 WORM SHAFT BUSHING 1.65
75 10RX2 FIXING BOLT 1.65
76 10DM3 BODY GUARD 11.55
77 10LHQ FIXING BOLT 1.10
78 10ATJ WORM SHAFT COVER 1.65
79 106CN WORM SHAFT BUSHING 1.65
80 101BR WASHER 1.65
82 10JAC O-RING 1.65
83 10H17 SLIDER GUIDE (A) 1.65
84 13L4D BODY 13.75
85 10909 O-RING 1.65
86 10N3Q HANDLE SCREW CAP 6.05
87 101CC FIXING BOLT 1.65
88 100MF WASHER 2.75
101 13CGR SPOOL ASSEMBLY 45.10
102 10C4Y PINION GEAR 12.65
103 10A8G DRIVE GEAR ASSEMBLY 22.55
104 13DX5 KIFTER ASSEMBLY WITH LEGS 22.55
106 13ERX HANDLE ASSEMBLY 28.05
107 10CQT INTERMEDIATE GEAR (LARGE) 6.05
108 1068F WORM SHAFT 6.05
ITOS 10G4L SPOOL THREAD STOPPER SEAL (ACCESSORY) 1.65
MH01 13NJL NAMEPLATE ON THE BACK OF THE LEG 2.75
PUNT 13FLX INSTRUCTION MANUAL EXPLODED VIEW SET (ACCESSORY) 2.75
