[SHIMANO] Genuine Spare Parts for 21 Soare XR C2500S Product Code: 044297 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 21 Soare XR C2500S Product Code: 044297 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.121 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/5236

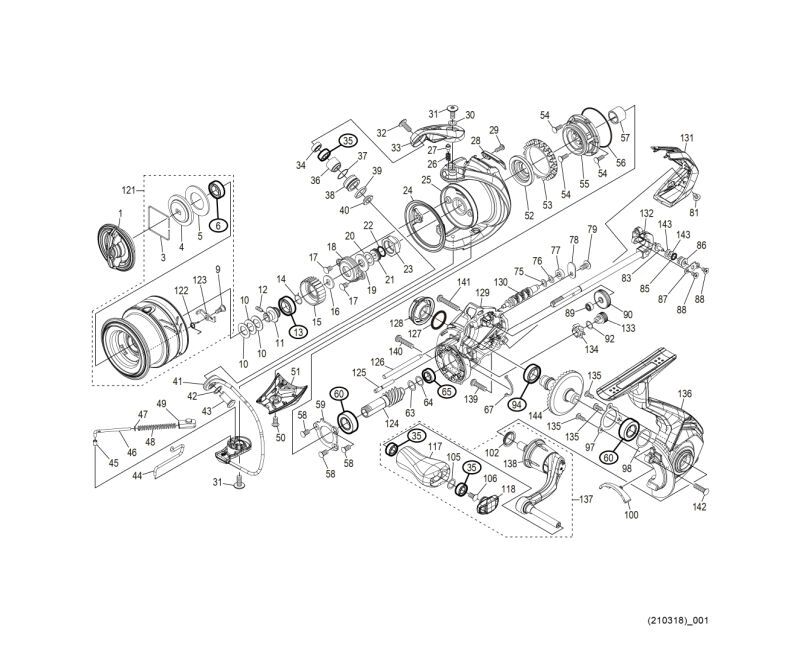

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
*F01 13QN3 REEL BAG 4.95
1 13BGU DRAG KNOB ASSEMBLY 17.05
3 10B87 STOPPER SPRING 1.65
4 13K0V OVAL WASHER 1.65
5 13K3C DRAG WASHER 2.75
6 104JT BALL BEARING (6 X 10 X 3) 13.75
9 10TRB FIXING BOLT 1.65
10 10DHG SPOOL WASHER 2.20
11 10THY SPOOL SHAFT BEARING GUIDE 3.85
12 10PN3 SET SCREW (M2 X 5) 1.65
13 104PP BALL BEARING (7 X 11 X 3) 13.75
14 107V2 RATCHET SPRING 1.65
15 10SYS DRAG CLICK ING SILRATCHET 2.75
16 103PE SPOOL BEARING 1.65
17 103GW FIXING BOLT 1.65
18 1076N RETAINER 2.75
19 1017W ROTOR BEARING SEAL 1.65
20 100RU WASHER 1.65
21 10RDL MAIN SHAFT COLLAR 3.85
22 10DXE O-RING 1.65
23 100RN ROTOR NUT 3.85
24 13KYY ROTOR FLANGE 1.65
25 13CVR ROTOR ASSEMBLY 28.05
26 10CH0 INTERNAL GEAR LEVER CLICK SPRING 1.65
27 106ZC CLICK PIN 1.65
28 10RAC BALANCER GUARD 2.75
29 103NA FIXING BOLT 1.65
30 10K96 WASHER 1.65
31 10RFW FIXING BOLT 1.65
32 10TLJ FIXING BOLT 2.75
33 13KM3 ARM CAM 6.05
34 10E44 LINE ROLLER COLLAR 2.75
35 104VX BALL BEARING (4 X 7 X 2.5) 13.75
36 1009K LINE ROLLER BUSH 1.65
37 1009E O-RING 1.65
38 10SU2 LINE ROLLER 6.05
39 10RFZ LINE ROLLER SPACER 1.65
40 10TJM LINE ROLLER BEARING COLLAR 2.75
41 13CVQ BAIL ASSEMBLY 45.10
42 1018Z WASHER 1.65
43 10TLK ARM FIXING SHAFT 6.05
44 10E5Y INNER TRIP LEVER 2.75
45 1009B ARM SPRING GUIDE (A) COLLAR BUSH 1.65
46 10SAN ARM SPRING GUIDE (A) 3.85
47 101D9 ARM SPRING GUIDE (A) COLLAR 1.65
48 10R2N ARM CAM SPRING 1.65
49 107AB ARM CAM SPRING SEAT 2.75
50 10SH9 FIXING BOLT 1.65
51 10RAB BAIL MOUNTING BRACKET COVER 3.85
52 101D5 ROTOR COLLAR 9.35
53 10QXQ FRICTION RING 2.75
54 100WT FIXING BOLT 1.65
55 10S2L ROLLER CLUTCH ASSEMBLY 12.65
56 1009Z O-RING 1.65
57 1009Y ROLLER CLUTCH INNER 3.85
58 100WY FIXING BOLT 1.65
59 10DWD BEARING PUSH PLATE 1.65
60 10DZB BALL BEARING (7 X 13 X 4) 7.15
63 10SYU WASHER 1.65
64 10HE5 WASHER 1.65
65 104JZ BALL BEARING (5 X 8 X 2.5) 13.75
67 1009W LID FLANGE SEAL 2.75
75 10K9C WASHER 1.10
76 10ECK WASHER 1.10
77 1009C WORM SHAFT BUSHING 1.65
78 10S7C WORM SHAFT COVER 1.65
79 10QG5 FIXING BOLT 1.10
81 10RX2 FIXING BOLT 1.65
83 1018D WORM SHAFT PIN 6.05
85 100WX O-RING 1.65
86 1009L WORM SHAFT PIN COLLAR 1.65
87 10182 WORM SHAFT PIN PUSH PLATE 1.65
88 1055H FIXING BOLT 1.65
89 1009G WORM SHAFT BUSHING 1.65
90 10DK0 WORM SHAFT GEAR 9.35
92 10TBA WASHER 1.65
94 107FA BALL BEARING (7 X 11 X 3) 7.15
97 100F9 BEARING PUSH PLATE 1.65
98 101AY BEARING WASHER 2.20
100 1017Y INNER TRIP CONTACT 1.65
102 10PXV HANDLE SHAFT SEAL 2.75
105 104FH BEARING WASHER 2.20
106 10LFA FIXING BOLT 1.10
117 10328 HANDLE KNOB 11.55
118 10TNJ HANDLE CAP 3.85
121 13CC0 SPOOL ASSEMBLY 84.15
122 10TNX SPOOL PIN SPRING 1.65
123 10TNV SPOOL PIN 1.65
124 10DWY PINION GEAR 11.55
125 10DVW INTERMEDIATE GEAR SHAFT 3.85
126 10TCA SLIDER GUIDE (A) 1.65
127 108WH O-RING 1.65
128 10RSK HANDLE SCREW CAP 3.85
129 13L4S BODY 22.55
130 13M61 WORM SHAFT 6.05
131 10DGD BODY GUARD 6.05
132 13DCU MAIN SHAFT ASSEMBLY 20.35
133 10DK2 INTERMEDIATE GEAR (S) 8.25
134 10DJM INTERMEDIATE GEAR (L) 9.35
135 100UL FIXING BOLT 1.65
136 13DR8 COVER ASSEMBLY 22.55
137 13ELH HANDLE ASSEMBLY 93.50
138 13E2X HANDLE SHANK ASSEMBLY 67.65
139 10M2W FIXING BOLT 1.10
140 10M31 FIXING BOLT 1.10
141 10DUC FIXING BOLT 1.65
142 10LHY FIXING BOLT 1.65
143 1070D WASHER 1.10
144 10293 DRIVE GEAR 17.05
ITOS 10G4L SPOOL THREAD STOPPER SEAL (ACCESSORY) 1.65
MH01 13NCE NAMEPLATE ON THE BACK OF THE LEG 1.10
PUNT 13FMS INSTRUCTION MANUAL EXPLODED VIEW SET (ACCESSORY) 1.65
