[SHIMANO] Genuine Spare Parts for 17 Stephano SS 101HG Product code: 037725 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 17 Stephano SS 101HG Product code: 037725 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

Part Number:
Quantity:

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.



- Genuine Spool Purchase

* If you just want the genuine spool (No.102 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/4310

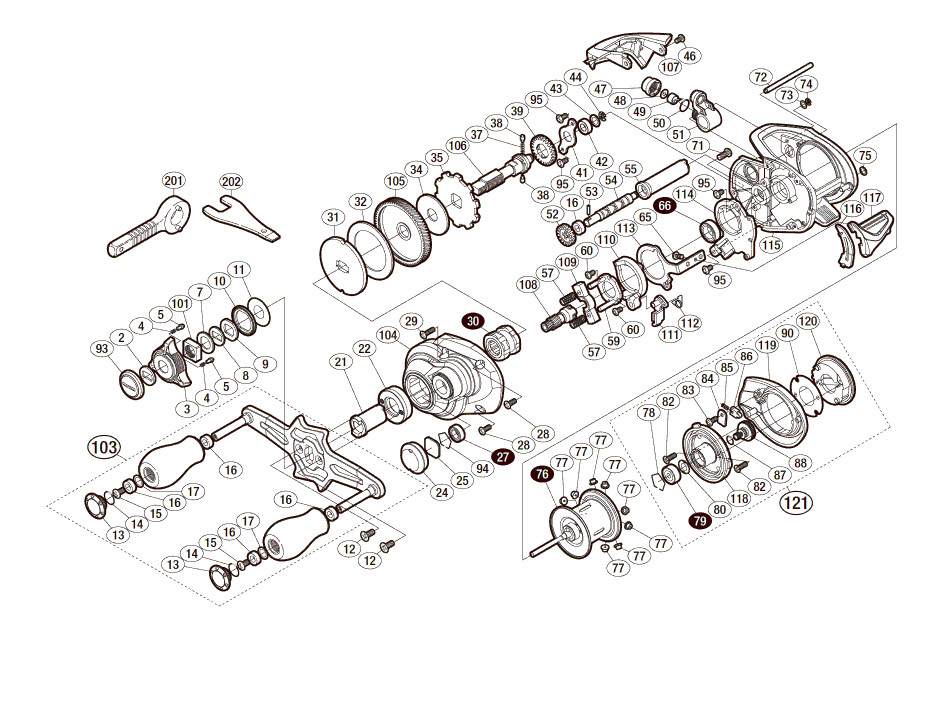

 Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
2 13MGL HANDLE FIXING BOLT YURUMI STOPPER 1.65
3 13UZE STAR DRAG 6.05
4 10BT2 CLICK SPRING 1.65
5 10MFC CLICK PIN 1.65
7 10J1N STAR DRAG SPACER 1.65
8 109F5 DRIVE GEAR WASHER 1.65
9 13UZS HANDLE CARRIER WASHER 1.10
10 10J20 STAR DRAG CLICK PLATE 1.65
11 13PFG MECHANICAL BRAKE WASHER 1.10
12 13NWL FIXING BOLT 1.10
13 13M8X HANDLE CAP 4.95
14 10LAA O-RING 1.10
15 10LFA FIXING BOLT 1.10
16 10PXZ HANDLE KNOB BUSH 1.65
17 104FH WASHER 2.20
21 13UD8 ROLLER CLUTCH INNER TUBE 9.35
22 13VFN RETAINER HANDLE 6.05
24 13UD7 LUBRICATION HOLE CAP 6.05
25 1085F MECHANICAL BRAKE WASHER 1.10
27 105BP BALL BEARING (5 X 9 X 3) 13.75
28 10LCY FIXING BOLT 1.10
29 10LCW THUMB REST FIXING BOLT 1.10
30 10F5D ROLLER CLUTCH BEARING A-RB 17.05
31 10D3N STAR DRAG PLATE 2.75
32 106XT STAR DRAG WASHER 6.05
34 10CHF STAR DRAG WASHER 6.05
35 10R6Z STOPPER GEAR 6.05
37 10JDY SPRING FOR WORM SHAFT GEAR 1.65
38 10HJG WORM SHAFT GEAR PINS 1.65
39 10J47 WORM SHAFT GEAR 2.75
41 109T1 DRIVE GEAR SHAFT FIXING PLATE 2.75
42 10DQF DRIVE GEAR SHAFT BUSHING 1.65
43 10C47 MAIN GEAR SHAFT WASHER 1.10
44 105NK E-TYPE RETAINING RING 2.5 1.10
46 10MPD FIXING BOLT 1.10
47 10FJB LEVEL WINDING RECEIVER 1.65
48 104TX WORMSHAFT WASHER 1.10
49 10TPT WORM SHAFT PIN 2.75
50 108WQ O-RING 1.65
51 10NVR LEVEL WINDING ASSEMBLY 9.35
52 10FNV WORM SHAFT GEAR 2.75
53 10AEZ WORM SHAFT PIN 1.10
54 10TPP WORM SHAFT 6.05
55 10R10 LEVEL-WIND PIPE 1.65
57 10487 CLUTCH YOKE SPRING 1.10
59 10F3X CLUTCH CAM PUSH PLATE 3.85
60 10LVE FIXING BOLT 1.10
65 10LF4 FIXING BOLT 1.10
66 10EX8 BALL BEARING (8X12X3.5) 13.75
71 10LFL FIXING BOLT 1.65
72 10QSH LEVEL WINDING GUIDE 1.65
73 10FJZ WASHER 1.10
74 105NC E TYPE STOP RING 2 1.10
75 108PY FRAME TATARI WASHER 1.65
76 13AVC SPOOL ASSEMBLY (WITH BEARING) 56.10
77 13SFV BRAKE COLLAR (M) RED 1.10
78 1054D BEARING PULL-OUT STOPPER 1.10
79 105C2 BALL BEARING (3 X 10 X 4) 13.75
80 13UCZ MECHANICAL BRAKE WASHER 1.10
82 13NWK FIXING BOLT 1.10
83 1055J FIXING BOLT 1.65
84 10KVL CLICK PIN FIXING PLATE 1.10
85 10K07 CLICK SPRING 1.65
86 13RJG CLICK PIN 1.65
87 108WS O-RING 4X6 1.10
88 13U16 MECHANICAL BRAKE KNOB 9.35
90 13GFP WASHER 2.75
93 13MB3 HANDLE FIXING BOLT 9.35
94 1057X STOPPER 1.65
95 10LCT FIXING BOLT 1.65
101 13V9J STAR DRAG FIXING NUT 3.85
103 13JBY HANDLE ASSEMBLY 78.65
104 13HMJ BODY A 22.55
105 13URY DRIVE GEAR 22.55
106 13UKX DRIVE GEAR SHAFT 11.55
107 13SBX LEVEL WINDING GUARD 6.05
108 13SN1 PINION GEAR 11.55
109 1046W CLUTCH YOKE 1.65
110 10K0P CLUTCH CAM 2.75
111 10MQM CLUTCH CLAW 3.85
112 10TMC CLUTCH CLAW SPRING 1.65
113 10TME CLUTCH PLATE 4.95
114 10TMU BODY A SEAT 3.85
115 13G9D FRAME 50.60
116 10TMF CLUTCH LEVER RECEIVER (B) 1.65
117 10TMD CLUTCH LEVER 6.05
118 13AUF FRAME B RECEIVER ASSEMBLY 17.05
119 13RFJ BODY B 11.55
120 13FYQ BRAKE KNOB ASSEMBLY 17.05
121 13FS7 MAIN UNIT B ASSEMBLY 56.10
201 10NC0 REEL WRENCH (ACCESSORY) 1.65
202 10A61 REEL WRENCH (ACCESSORY) 3.85
PUNT 13JQC INSTRUCTION MANUAL EXPLODED VIEW SET (ACCESSORY) 2.75
