[SHIMANO] Genuine Spare Parts for 16 GRAPPLER BB 200HG Product code: 035653 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 16 GRAPPLER BB 200HG Product code: 035653 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

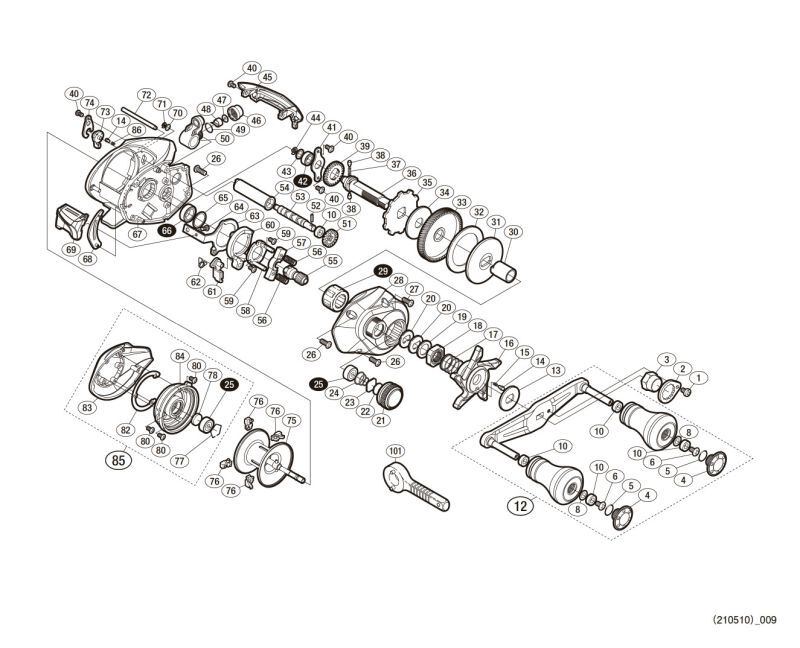

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 10PVC FIXING BOLT 1.10
2 10QBK RETAINER 3.85
3 10FNN HANDLE FIXING NUT 2.75
4 10BFJ HANDLE CAP 6.05
5 10LAA O-RING 1.10
6 10LFA FIXING BOLT 1.10
8 10G8E WASHER 1.10
10 10PXZ HANDLE KNOB BUSH 1.65
12 13AWN HANDLE ASSEMBLY 78.65
13 10J22 STAR DRAG CLICK PLATE 1.65
14 10MFC CLICK PIN 1.65
15 10BT2 CLICK SPRING 1.65
16 13UWF STAR DRAG 17.05
17 10A70 STAR DRAG SPRING 2.75
18 10A3T STAR DRAG FIXING NUT 3.85
19 10J1N STAR DRAG SPACER 1.65
20 109F5 DRIVE GEAR WASHER 1.65
21 13U0S MECHANICAL BRAKE KNOB 9.35
22 10896 MECHANICAL BRAKE WASHER 1.10
23 1085F MECHANICAL BRAKE WASHER 1.10
24 10TMT MECHANICAL BRAKE YURUMI STOP SPRING 1.65
25 105C2 BALL BEARING (3X10X4) 13.75
26 13AXB FIXING BOLT 1.10
27 10LSZ FIXING BOLT 1.10
28 13TR4 BODY A 13.75
29 10F5D ROLLER CLUTCH BEARING A-RB 17.05
30 13UAU ROLLER CLUTCH INNER TUBE 6.05
31 10D3H STAR DRAG PLATE 2.75
32 106XT STAR DRAG WASHER 6.05
33 10CMC DRIVE GEAR 22.55
34 10CHF STAR DRAG WASHER 6.05
35 10D73 STOPPER GEAR 6.05
36 105CG DRIVE GEAR SHAFT 11.55
37 10JDY SPRING FOR WORM SHAFT GEAR 1.65
38 10HJG WORM SHAFT GEAR PINS 1.65
39 10J47 WORM SHAFT GEAR 2.75
40 10LCS FIXING BOLT 1.10
41 109T1 DRIVE GEAR SHAFT FIXING PLATE 2.75
42 105BP BALL BEARING (5X9X3) 13.75
43 10C47 MAIN GEAR SHAFT WASHER 1.10
44 105NK E TYPE STOP RING 2.5 1.10
45 13SBL LEVEL WIND GUARD 6.05
46 10FJB LEVEL WINDING RECEIVER 1.65
47 104TX WORM SHAFT PIN 1.10
48 10TPT WORM SHAFT PIN 2.75
49 108WQ O-RING 1.65
50 10NVQ LEVEL WINDING ASSEMBLY 11.55
51 10FNV WORM SHAFT GEAR 2.75
52 10AEZ WORM SHAFT PIN 1.10
53 10TPN WORM SHAFT 6.05
54 10NFX LEVEL WINDING PIPE 1.65
55 10CSC PINION GEAR 11.55
56 10487 CLUTCH YOKE SPRING 1.10
57 1046V CLUTCH YOKE 1.65
58 10F3X CLUTCH CAM PUSH PLATE 3.85
59 10L1R FIXING BOLT 1.10
60 10K0N CLUTCH CAM 2.75
61 10MME CLUTCH CLAW 3.85
62 104CP CLUTCH CLAW SPRING 1.65
63 10QGH CLUTCH PLATE 4.95
64 10LF4 FIXING BOLT 1.10
65 10FJZ WASHER 1.10
66 10EX8 BALL BEARING (8 X 12 X 3.5) 13.75
67 13AUK FRAME 34.10
68 10975 CLUTCH LEVER RECEIVER (B) 1.65
69 10CDR CLUTCH LEVER 1.65
70 10190 CLUTCH LEVER WASHER 1.65
71 105NC E TYPE STOP RING 2 1.10
72 10QSH LEVEL-WIND GUIDE 1.65
73 10BAY BODY B CAM LEVER 1.65
74 10BGR BODY B CAM LEVER PUSH PLATE 1.65
75 13AV3 SPOOL ASSEMBLY 45.10
76 1046G BRAKE SHOE (M) RED 1.10
77 1054D BEARING PULL-OUT STOP 1.10
78 10EX5 SPOOL SHAFT CONTACT B 1.10
80 10LA4 FIXING BOLT 1.10
82 108F0 ADJUSTMENT WASHER (B) 1.65
83 13R3Y BODY B 6.05
84 101DK FRAME B BEARING ASSEMBLY 11.55
85 13FLN BODY B ASSEMBLY 28.05
86 10GQZ CLICK SPRING 1.10
101 10NC0 REEL WRENCH (ACCESSORY) 1.65
BNKI 13BAJ EXPLODED VIEW (ACCESSORY) 1.65
ITOS 10G4L SPOOL THREAD STOPPER SEAL (ACCESSORY) 1.65
TRST 13B7Z INSTRUCTION MANUAL (ACCESSORY) 1.65
