[SHIMANO] Genuine Spare Parts for 14 STELLA 2500HGS Product Code: 032430 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 14 STELLA 2500HGS Product Code: 032430 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

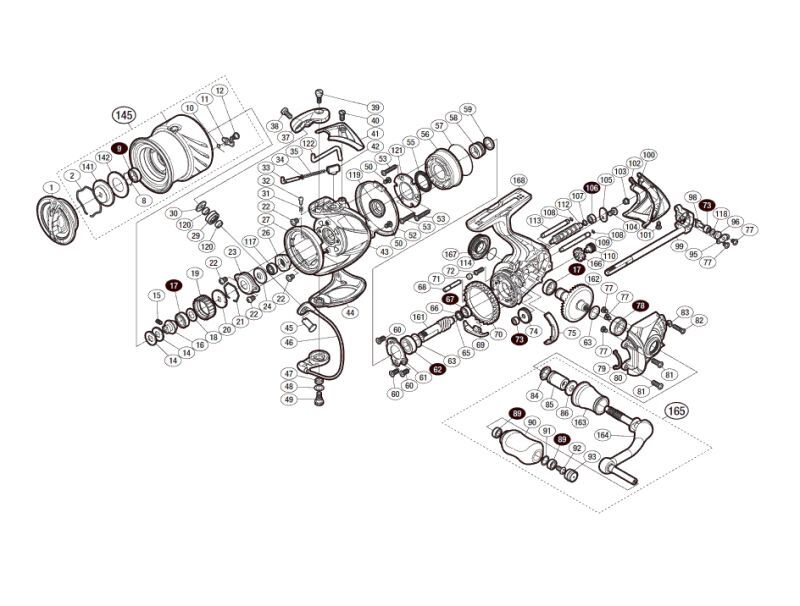

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
*F01 13QPU REEL BAG (ACCESSORY) 12.65
1 102ER DRAG KNOB 101.20
2 10B8J STOPPER SPRING 1.65
8 10GEW BEARING STOPPER 1.10
9 104JT BALL BEARING (6 X 10 X 3) 13.75
10 10BQE SPOOL PIN SPRING 1.65
11 10388 SPOOL PIN 1.65
12 10A6F FIXING BOLT 1.65
14 10BU7 SPOOL WASHER SET 1.10
15 10PN2 SET SCREW 1.65
16 10LTR SPOOL SHAFT BEARING GUIDE 6.05
17 104PP BALL BEARING (7 X 11 X 3) 13.75
18 102VD WASHER 1.10
19 107PP DRAG SOUNDING SILATCHET 3.85
20 103PC SPOOL RECEIVER 1.65
21 107V3 RATCHET SPRING 1.65
22 103LB FIXING BOLT 1.10
23 1076P RETAINER 2.75
24 107L2 ROTOR BEARING SEAL 3.85
26 10814 ROTOR NUT 9.35
27 10JHK ROTOR FLANGE 9.35
29 10KXZ LINE ROLLER 22.55
30 1079U ARM ROLLER RECEIVER 1.65
31 10CH0 GERI LEVER SOUNDING PIN 1.65
32 10CHA BAIL TRIP LEVER CLICK PIN 1.65
33 105YY ARM SPRING GUIDE (A) 3.85
34 1064R ARM SPRING GUIDE (A) COLLAR 1.65
35 105R4 ARM CAM SPRING 1.65
37 10KLQ ARM CAM 7.15
38 10K40 FIXING BOLT 2.75
39 109GS FIXING BOLT 2.75
40 10CYU FIXING BOLT 2.75
41 10885 ARM CAM SPRING COVER 11.55
42 107A9 ARM CAM SPRING SEAT 2.75
43 10Q1P ROTOR 90.20
44 10MNJ BALE MOUNTING BRACKET COVER 17.05
45 10Q3J ARM FIXING SHAFT 6.05
46 1073K BAIL ASSEMBLY 45.10
47 10K55 BALE MOUNTING CAM COLLAR 1.65
48 10G6C WASHER 1.10
49 109GU FIXING BOLT 3.85
50 10MT4 FIXING BOLT 1.10
52 10748 ROTOR GUARD 11.55
53 10MTG FIXING BOLT 1.65
55 10MH3 ROLLER CLUTCH SEAL 3.85
56 10QPJ ROLLER CLUTCH ASSEMBLY 12.65
57 10MLT O-RING 3.85
58 107S5 ROLLER CLUTCH INNER COLLAR 2.75
59 10H4G ROLLER CLUTCH INNER COLLAR 1.65
60 10ML6 FIXING BOLT 1.65
61 10593 BEARING PUSH PLATE 2.75
62 104JH BALL BEARING (7 X 13 X 4) 13.75
63 10JDC ADJUSTMENT WASHER SET 1.10
65 10CJV CROSS GEAR SHAFT COLLAR 2.75
66 10J6F PINION GEAR SPACER 1.65
67 104K4 BALL BEARING (5 X 8 X 2.5) 13.75
68 10CLA INTERMEDIATE GEAR SHAFT 3.85
69 107DZ INTERNAL GEAR CONTACT TALLY 1.65
70 104FU FRICTION RING 3.85
71 10AYS BODY FLANGE SEAL 2.75
72 10LPJ FIXING BOLT 1.65
73 10PC0 BALL BEARING (2 X 5 X 2.5) 13.75
74 10HBQ WORM SHAFT GEAR 9.35
75 10J3N FRICTION RING SPACER 2.75
77 1055G FIXING BOLT 1.65
78 104JD BALL BEARING (7 X 13 X 4) 13.75
79 10CBC FOOT FLANGE SEAL 2.75
80 104D4 FOOT 56.10
81 10M2C FIXING BOLT 1.10
82 10LV4 FIXING BOLT 1.65
83 10C2G COVER FIXING BOLT WASHER 2.75
84 10PXU HANDLE SHAFT SEAL 2.75
85 10PQE HANDLE SHAFT FLANGE (B) 9.35
86 10FMF HANDLE WASHER 1.65
89 104VX BALL BEARING (4 X 7 X 2.5) 13.75
90 1042B HANDLE NIPPLE 22.55
91 104FH HANDLE WASHER 2.20
92 103E9 FIXING BOLT 1.10
93 10BFB HANDLE CAP 3.85
95 10HAG WORM SHAFT PIN PUSH PLATE 1.65
96 10JXQ WORM SHAFT PIN COLLAR 2.75
98 106VL WORM SHAFT PIN 4.95
99 102J0 MAIN SHAFT ASSEMBLY 30.80
100 10NL4 BODY GUARD 11.55
101 106ZG FIXING BOLT 1.65
102 107HJ BODY COVER 1.65
103 10AYN BODY GUARD COLLAR 2.75
104 103EB FIXING BOLT 1.65
105 10ATB WORM SHAFT COVER 1.65
106 10PDA BALL BEARING (3 X 6 X 2.5) 13.75
107 10J7K WASHER 1.10
108 10JAB O-RING 1.65
109 104MB SLIDER GUIDE (B) 3.85
110 106VQ INTERMEDIATE GEAR (S) 8.25
112 10687 WORM SHAFT 11.55
113 1035L SLIDER GUIDE (A) 3.85
114 108WA O-RING 1.65
117 103B1 ROTOR RECEIVER COLLAR ASSEMBLY 17.05
118 10RKQ WASHER 2.20
119 103SG ROTOR COLLAR 6.60
120 103TX LINE ROLLER BEARING COLLAR 5.50
121 10NHU ROLLER CLUTCH COVER PLATE 6.05
122 106KU INNER GERI LEVER 2.75
131 10PBS LEG PROTECTION SHEET (ACCESSORY) 2.75
141 10B9X SMALL SIZE WASHER 3.85
142 102ZP DRAG WASHER (A) 1.65
145 10R65 SPOOL ASSEMBLY 152.90
161 10C1Z PINION GEAR 20.35
162 10EKM DRIVE GEAR ASSEMBLY 39.60
163 10C4E HANDLE SHAFT FLANGE 22.55
164 103DN HANDLE 45.10
165 10N7S HANDLE ASSEMBLY 123.75
166 10CQG INTERMEDIATE GEAR (L) 9.35
167 10N4H HANDLE SCREW CAP 17.05
168 1037C BODY 168.30
BNKI 13R03 EXPLODED VIEW (ACCESSORIES) 1.65
ITOS 13QPZ STOPPER SEAL 1.65
MH01 13NDL NAMEPLATE ON BACK OF LEG 3.85
SI00 13QUF CAUTIONARY NOTE 1.65
TRST 13PMG INSTRUCTION MANUAL (ACCESSORY) 1.65
