[SHIMANO] Genuine Spare Parts for 15 TWIN POWER C3000 Product Code: 033697 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 15 TWIN POWER C3000 Product Code: 033697 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

Part Number:
Quantity:

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

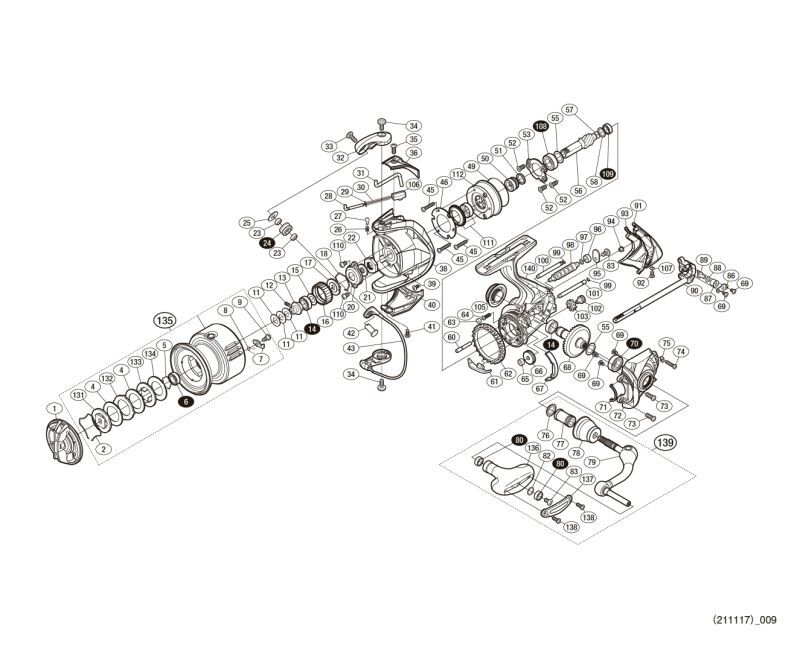

 Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 10GZZ DRAG KNOB ASSEMBLY 17.05
2 10B8J STOPPER SPRING 1.65
4 102ZP DRAG WASHER (A) 1.65
5 10GEW BEARING STOPPER 1.10
6 104JT BALL BEARING (6 X 10 X 3) 13.75
7 10388 SPOOL PIN 1.65
8 10BQE SPOOL PIN SPRING 1.65
9 10A6F FIXING BOLT 1.65
11 10BU7 SPOOL WASHER SET 1.10
12 10PN2 SET SCREW 1.65
13 10LTR SPOOL SHAFT BEARING GUIDE 6.05
14 104PP BALL BEARING (7 X 11 X 3) 13.75
15 102VD WASHER 1.10
16 107V0 DRAG CLICK RATCHET 2.75
17 103PC SPOOL RECEIVER 1.65
18 107V3 RATCHET SPRING 1.65
20 1076P RETAINER 2.75
21 107L3 ROTOR BEARING SEAL 2.75
22 1067X ROTOR NUT 3.85
23 10GAR LINE ROLLER BEARING COLLAR 2.75
24 10N6E LINE ROLLER (WITH BEARING) 22.55
25 10HWT LINE ROLLER RECEIVER 1.65
26 10CH0 BAIL TRIP LEVER CLICK SPRING 1.65
27 10CHA BAIL TRIP LEVER CLICK PIN 1.65
28 105YZ ARM SPRING GUIDE (A) 3.85
29 1064R ARM SPRING GUIDE (A) COLLAR 1.65
30 105R5 ARM CAM SPRING 1.65
31 106P1 BAIL TRIP LEVER 2.75
32 10KLX ARM CAM 6.05
33 10PS3 FIXING BOLT 1.10
34 10PS4 FIXING BOLT 1.10
35 10PS6 FIXING BOLT 1.10
36 108C0 ARM CAM SPRING COVER 6.05
38 10Q1X ROTOR 22.55
39 103N4 FIXING BOLT 1.10
40 10MNP BALE MOUNTING BRACKET COVER 11.55
41 103N8 FIXING BOLT 1.10
42 10L01 ARM FIXING SHAFT 2.75
43 103AL BALE ASSEMBLY 34.10
45 10MTE FIXING BOLT 1.10
46 10L61 ROLLER CLUTCH COVER PLATE 1.65
49 10MLT O-RING 3.85
50 107S5 ROLLER CLUTCH INNER COLLAR 2.75
51 10H4G ROLLER CLUTCH INNER COLLAR 1.65
52 10ML6 FIXING BOLT 1.65
53 10594 BEARING PUSH PLATE 1.65
55 10JDC ADJUSTMENT WASHER SET 1.10
56 10C4S PINION GEAR 12.65
57 10CJV CROSS GEAR SHAFT COLLAR 2.75
58 10J6F PINION GEAR SPACER 1.65
60 10CLA INTERMEDIATE GEAR SHAFT 3.85
61 107DZ INTERNAL GEAR CONTACT 1.65
62 104FU FRICTION RING 3.85
63 10AYS BODY FLANGE SEAL 2.75
64 103NP FIXING BOLT 1.10
65 106M8 WORM SHAFT BUSH (FRONT) 2.75
66 10HEU WORM SHAFT GEAR 6.05
67 10J3N FRICTION RING SPACER 2.75
68 10ELX DRIVE GEAR ASSEMBLY 28.05
69 1055G FIXING BOLT 1.65
70 104JD BALL BEARING (7 X 13 X 4) 13.75
71 10CBC COVER FLANGE SEAL 2.75
72 104HT FOOT 39.60
73 10M2B FIXING BOLT 1.10
74 10LUZ FIXING BOLT 1.10
75 10C2G COVER FIXING BOLT WASHER 2.75
76 10PXU HANDLE SHAFT SEAL 2.75
77 10PQJ HANDLE SHAFT FLANGE (B) 8.25
78 10C4J HANDLE SHAFT FLANGE 14.85
79 103WF HANDLE SHAFT FLANGE (A) 39.60
80 104VX BALL BEARING (4 X 7 X 2.5) 13.75
82 10G8G WASHER 1.10
83 103E9 FIXING BOLT 1.10
86 10HAG WORM SHAFT PIN PUSH PLATE 1.65
87 10JXU WORM SHAFT PIN COLLAR 2.75
88 10RKQ WORM SHAFT PIN WASHER 2.20
89 106VL WORM SHAFT PIN 4.95
90 102J5 MAIN SHAFT ASSEMBLY 28.05
91 10NL4 BODY GUARD 11.55
92 10PRY FIXING BOLT 1.10
93 107HJ BODY COVER 1.65
94 10AYN BODY GUARD COLLAR 2.75
95 10ATC WORM SHAFT COVER 1.65
96 106CM CROSS GEAR BUSH (FRONT) 1.65
97 10J7K WASHER 1.10
98 1068E WORM SHAFT 11.55
99 10JAB O-RING 1.65
100 1035S SLIDER GUIDE (A) 2.75
101 104MF SLIDER GUIDE (B) 2.75
102 106VT INTERMEDIATE GEAR (S) 8.25
103 10CQQ INTERMEDIATE GEAR (L) 9.35
105 10N18 HANDLE SCREW CAP 11.55
106 107AC ARM CAM SPRING SEAT 2.75
107 10HVD WASHER 1.10
108 104JC BALL BEARING (7 X 13 X 4) 13.75
109 104JY BALL BEARING (5 X 8 X 2.5) 13.75
110 10PMD FIXING BOLT 1.10
111 10SDC ROLLER CLUTCH SEAL ASSEMBLY 11.55
112 10DG6 ROLLER CLUTCH ASSEMBLY 12.65
131 10JJV SMALL SIZE WASHER 6.05
132 10BCP KEY WASHER WITH DRAG EARS 6.05
133 10BBQ OVAL WASHER 2.75
134 10C13 DRAG WASHER (B) 1.65
135 1089P SPOOL ASSEMBLY 103.40
136 1040S HANDLE NIPPLE 17.05
137 108X1 HANDLE SAW BLADE NAMEPLATE 3.85
138 103NH FIXING BOLT 1.10
139 10NEL HANDLE ASSEMBLY 101.20
140 102GJ REEL BODY 73.15
*F01 13QN1 REEL BAG 3.85
BNKI 13R0J EXPLODED VIEW (ACCESSORIES) 1.65
ITOS 13QPZ STOPPER SEAL 1.65
MH01 13NET NAMEPLATE ON THE BACK OF THE FOOT 2.75
TRST 13PMG INSTRUCTION MANUAL (ACCESSORY) 1.65
