[SHIMANO] Genuine Spare Parts for 22 CURADO DC 200HG Product code: 045010 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 22 CURADO DC 200HG Product code: 045010 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

Part Number:
Quantity:

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.



- Genuine Spool Purchase

* If you just want the genuine spool (No.80 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/5617

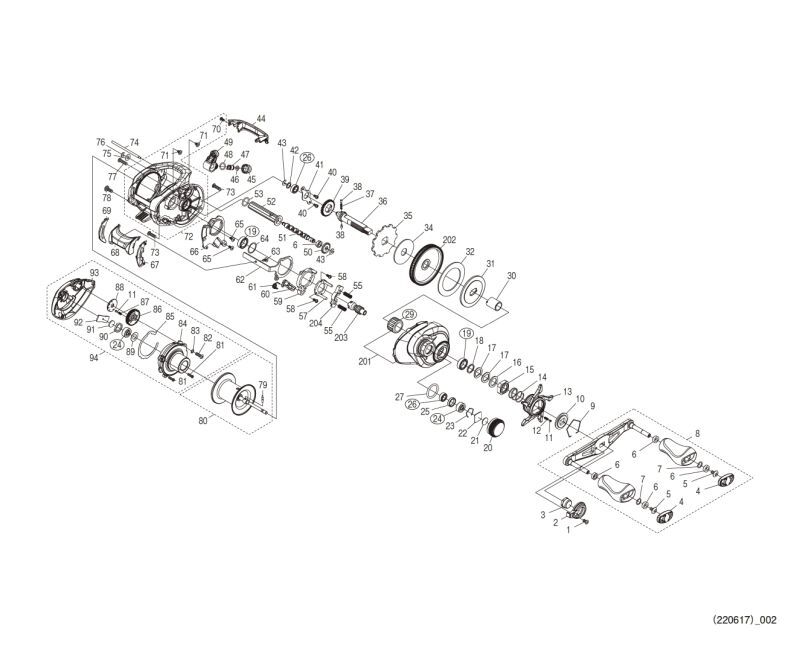

 Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* As for the "29 / ROLLER CLUTCH", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 10DV5 FIXING BOLT 1.10
2 10SSK RETAINER 3.85
3 10EBA HANDLE FIXING NUT 2.75
4 10SS2 HANDLE CAP 1.10
5 10LFA FIXING BOLT 1.10
6 10PXZ HANDLE KNOB BUSH 1.65
7 104FH WASHER 2.20
8 100EA HANDLE ASSEMBLY 22.55
9 10KXW STAR DRAG CLICK PLATE RETAINER 1.65
10 10J26 STAR DRAG CLICK PLATE 1.65
11 10MFC CLICK PIN 1.65
12 10BT2 CLICK SPRING 1.65
13 10T9V STAR DRAG 15.95
14 10A70 STAR DRAG SPRING 2.75
15 10A3T STAR DRAG FIXING NUT 3.85
16 10J1N STAR DRAG SPACER 1.65
17 109F5 DRIVE GEAR WASHER 1.65
18 100SE BALL BEARING WASHER 1.10
19 10EX8 BALL BEARING (8 X 12 X 3.5) 13.75
20 10SRP MECHANICAL BRAKE KNOB 9.35
21 10896 MECHANICAL BRAKE WASHER 1.10
22 1085F MECHANICAL BRAKE WASHER 1.10
23 1054D BEARING PULL-OUT STOPPER 1.10
24 105C3 BALL BEARING (3 X 10 X 4) 7.15
25 10EYS BEARING SPACER 2.75
26 105BP BALL BEARING (5 X 9 X 3) 13.75
27 108WK O-RING SM14 1.65
29 1005E ROLLER CLUTCH *Cannot be ordered 17.05
30 10SRM ROLLER CLUTCH INNER TUBE 6.05
31 10SSR STAR DRAG PLATE 2.75
32 10SSF STAR DRAG WASHER 11.55
34 1023U STAR DRAG WASHER 6.05
35 10SSJ STOPPER GEAR 6.05
36 10SG7 DRIVE GEAR SHAFT 11.55
37 10JDY SPRING FOR WORM SHAFT GEAR 1.65
38 10HJG WORM SHAFT GEAR PINS 1.65
39 101K8 WORM SHAFT GEAR 3.85
40 10S3Y FIXING BOLT 1.10
41 109T1 DRIVE GEAR SHAFT FIXING PLATE 2.75
42 10G6D WASHER 1.65
43 105NK E TYPE STOP RING 2.5 1.10
44 101JY LEVEL WINDING GUARD 2.75
45 10FJB LEVEL WINDING RECEIVER 1.65
46 10CFU WORM SHAFT PIN 1.10
47 10BHQ WORM SHAFT PIN 2.75
48 108WQ O-RING 1.65
49 101E0 LEVEL WINDING ASSEMBLY 11.55
50 10SRL WORM SHAFT GEAR 3.85
51 101JU WORM SHAFT 1.10
52 101JR LEVEL WINDING PIPE 1.10
53 101GT O-RING 1.65
55 10SAS CLUTCH YOKE SPRING 1.10
57 10F3X CLUTCH CAM PUSH PLATE 3.85
58 10LVE FIXING BOLT 1.10
59 10SG1 CLUTCH CAM 2.75
60 101M5 CLUTCH CLAW 3.85
61 104CN CLUTCH CLAW SPRING 1.65
62 101JW CLUTCH PLATE 2.75
63 10559 FIXING BOLT 1.65
64 10190 CLUTCH WASHER 1.65
65 10S57 FIXING BOLT 1.65
66 10SST BODY A SEAT 3.85
67 10SG5 CLUTCH BAR GUIDE (B) 1.65
68 1028D CLUTCH LEVER 7.15
69 10SRK CLUTCH LEVER SEAT (A) 1.65
70 10LCQ FIXING BOLT 1.10
71 10MPD FIXING BOLT 1.10
72 101WF FRAME ASSEMBLY 44.00
73 10SXB FIXING BOLT 1.65
74 101JX LEVEL-WIND GUIDE 1.65
75 10FJZ WASHER 1.10
76 105NC E TYPE RETAINING RING 2 1.10
77 10LHY FIXING BOLT 1.65
78 10SXA FIXING BOLT 1.65
79 10MD0 SPOOL CLUTCH PIN 1.65
80 101MG SPOOL ASSEMBLY 99.55
81 10TBS FIXING BOLT 1.65
82 10LFN FIXING BOLT 1.10
83 100MF WASHER 2.75
84 101JZ BODY B SUBSTRATE ASSEMBLY 123.42
85 10T9T WASHER 1.10
86 10T5C BRAKE DIAL 9.90
87 10GQZ CLICK SPRING 1.10
88 10TA1 CLICK SHILLING 1.65
89 10B94 BEARING SEAL 1.65
90 100Q2 BEARING STOPPER 2.75
91 10EX5 SPOOL SHAFT CONTACT B 1.10
92 100Q5 SPOOL SHAFT CONTACT C 1.65
93 10TA5 BODY B 7.15
94 1028B BODY B ASSEMBLY 165.00
201 101JP BODY A 20.35
202 10ST3 DRIVE GEAR 22.55
203 10SGC PINION GEAR 11.55
204 1046V CLUTCH YOKE 1.65
PUNT 13X9P INSTRUCTION MANUAL EXPLODED VIEW SET (ACCESSORIES) 2.20
