[SHIMANO] Genuine Spare Parts for 21 SLX BFS R Product code: 043689 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 21 SLX BFS R Product code: 043689 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

Part Number:
Quantity:

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.



- Genuine Spool Purchase

* If you just want the genuine spool (No.85 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/5005

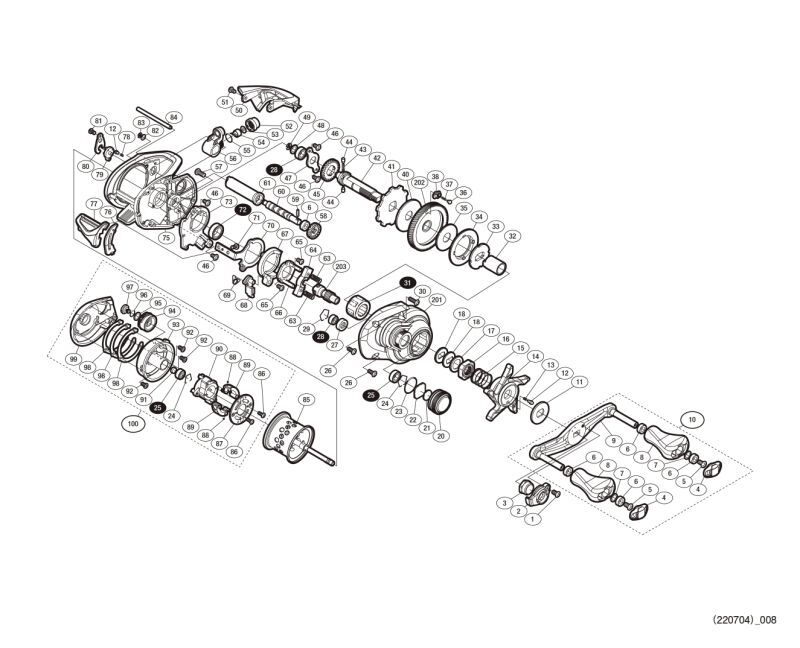

 Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* As for the "31 / ROLLER CLUTCH", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 101VV FIXING BOLT 1.10
2 10Q5T RETAINER 3.85
3 10E67 HANDLE FIXING NUT 6.05
4 10FMJ HANDLE CAP 2.75
5 103E9 FIXING BOLT 1.10
6 10PXZ HANDLE KNOB BUSH 1.65
7 10HTT WASHER 1.10
8 10328 HANDLE KNOB 11.55
9 101VF HANDLE 22.55
10 13JDA HANDLE ASSEMBLY 50.60
11 10J22 STAR DRAG CLICK PLATE 1.65
12 10MFC CLICK PIN 1.65
13 10BT2 CLICK SPRING 1.65
14 100HF STAR DRAG 11.55
15 10A70 STAR DRAG SPRING 2.75
16 10A3T STAR DRAG FIXING NUT 3.85
17 10J1N STAR DRAG SPACER 1.65
18 109F5 DRIVE GEAR WASHER 1.65
20 13U8P MECHANICAL BRAKE KNOB 8.25
21 10896 MECHANICAL BRAKE WASHER 1.10
22 1085F MECHANICAL BRAKE WASHER 1.10
23 10R22 O-RING 1.65
24 101V5 BEARING RETAINING CLAMP 1.65
25 10KDE BALL BEARING (3 X 7 X 3) 13.75
26 10MPV FIXING BOLT 1.10
27 101V3 BEARING SPACER 2.75
28 105BP BALL BEARING (5 X 9 X 3) 13.75
29 101V6 BEARING PULL-OUT STOPPER 1.65
30 10LCW THUMB REST FIXING BOLT 1.10
31 10F5D ROLLER CLUTCH BEARING A-RB *Cannot be ordered 17.05
32 10E4S ROLLER CLUTCH INNER TUBE 5.50
33 10DQL STAR DRAG PLATE 3.85
34 10JB0 DRAG CLICK RATCHET 2.75
35 10DQJ STAR DRAG WASHER 6.05
36 10C0T DRAG CLICK PIN 2.75
37 10J8A DRAG CLICK SPRING 1.65
38 10J87 DRAG SPRING HOLDER 1.65
40 10DQK STAR DRAG WASHER 6.05
41 10D73 STOPPER GEAR 6.05
42 13ULQ DRIVE GEAR SHAFT 7.70
43 10JDY WORM SHAFT GEAR SPRING 1.65
44 10HJG WORM SHAFT GEAR PINS 1.65
45 10J47 WORM SHAFT GEAR 2.75
46 10S57 FIXING BOLT 1.65
47 109T1 DRIVE GEAR SHAFT FIXING PLATE 2.75
48 10G6D WASHER 1.65
49 105NK E TYPE STOPPER RING 2.5 1.10
50 13SCH LEVEL WINDING GUARD 2.20
51 10MPD FIXING BOLT 1.10
52 10FJB LEVEL WINDING GUIDE 1.65
53 104TX WASHER 1.10
54 10BHQ WORM SHAFT PIN 2.75
55 108WQ O-RING 1.65
56 10NVR LEVEL WINDING ASSEMBLY 9.35
57 10LFL FIXING BOLT 1.65
58 10FNV WORM SHAFT GEAR 2.75
59 10AEZ WORM SHAFT PIN 1.10
60 10TPP WORM SHAFT 6.05
61 10R10 LEVEL WINDING PIPE 1.65
63 10487 CLUTCH YOKE SPRING 1.10
64 10TMB CLUTCH YOKE 1.65
65 10LVE FIXING BOLT 1.10
66 10F3X CLUTCH CAM PUSH PLATE 3.85
67 10K0N CLUTCH CAM 2.75
68 10MME CLUTCH CLAW 3.85
69 10R1H CLUTCH CLAW SPRING 1.65
70 10QZV CLUTCH PLATE 4.95
71 103C0 FIXING BOLT 1.10
72 10EX6 BALL BEARING (8 X 12 X 3.5) 7.15
73 10R09 BODY A SEAT 3.85
75 13GAJ FRAME 46.20
76 10QZW CLUTCH BAR GUIDE (B) 1.65
77 10R1J CLUTCH LEVER 6.05
78 10GQZ CLICK SPRING 1.10
79 1019B BODY B CAM LEVER 2.75
80 10RYX BODY B CAM LEVER PUSH PLATE 1.65
81 1055H FIXING BOLT 1.65
82 10FJZ WASHER 1.10
83 105NC E TYPE STOPPER RING 2 1.10
84 10QSH LEVEL WINDING GUIDE 1.65
85 13GNT SPOOL ASSEMBLY 71.50
86 10TNZ FIXING BOLT 1.65
87 10S4K BRAKE FIXING PLATE 2.20
88 10TM9 BRAKE COIL SPRING 1.65
89 10DPG MAGNET HOLDER ASSEMBLY 11.55
90 101CJ BRAKE MOUNTING STAND 2.75
91 1085H MECHANICAL BRAKE WASHER 1.10
92 1055J FIXING BOLT 1.65
93 101V4 FRAME B GUIDE 17.05
94 10199 BR KNOB 2.75
95 10DGC ADJUSTMENT WASHER SET 1.65
96 108WS O-RING 4 X 6 1.10
97 10A6K FIXING BOLT 6.05
98 10R0U ADJUSTMENT WASHER FOR FRAME B 1.65
99 13RGT BODY B 4.40
100 13FTA BODY B SET 63.25
151 13B5D MAGNET 2.75
201 13HPJ MAIN BODY A 16.50
202 13URV DRIVE GEAR 22.55
203 13SN8 PINION GEAR 11.55
OIL3 10TR6 BFS OIL 3.85
PUNT 13JRG INSTRUCTION MANUAL EXPLODED VIEW SET (ACCESSORIES) 3.85
