[SHIMANO] Genuine Spare Parts for 20 STELLA SW 18000HG Product Code: 040800 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability

Part Number:

Quantity:

Return & Exchange Policy

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

*Please make sure to read about the conditions before you order.

- Genuine Spool Purchase

* If you just want the genuine spool (No171/ Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/4525

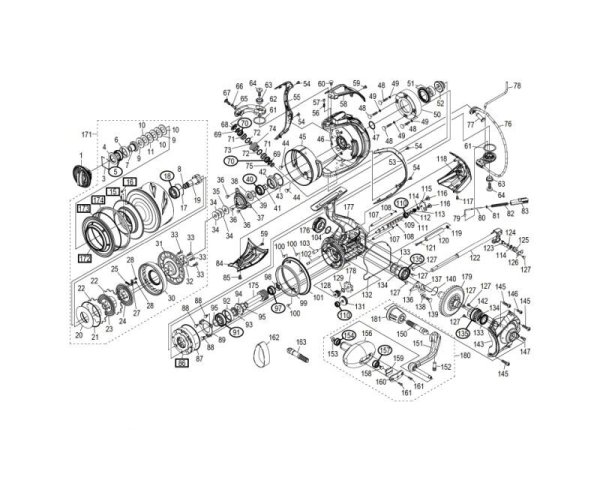

　Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
*F01	13QS2	REEL BAG (ACCESSORY)	28.05
1	10SRT	DRAG KNOB SET	45.10
3	10B6K	STOPPER SPRING	1.10
4	10LQZ	WATERPROOF SEAL	6.05
5	10KX7	BALL BEARINGS (10 X 15 X 4)	13.75
6	10LWS	SPOOL BEARING SPACER	6.05
7	1011U	BEARING RECEIVER	9.35
8	108WQ	O-RING	1.65
9	10BA1	O-RING WASHER	2.75
10	10344	DRAG WASHER	11.55
11	10BEB	EAR WASHERS	2.75
15	10PVL	SET SCREW *Cannot be ordered	1.65
16	10EAG	PIN *Cannot be ordered	1.10
17	10LWM	BEARING STOP	1.10
18	10BGD	BALL BEARING (9 X 17 X 5)	13.75
19	10SQZ	MAIN SHAFT BEARING GUIDE	22.55
20	10SET	DRAG WASHER (C)	10.45
21	108WD	O-RING AS568-31	1.10
22	10C18	DRAG WASHER	34.10
23	10BS6	DRAG PLATE	6.05
24	10SFD	DRAG PLATE (B)	6.05
25	10E90	SPOOL PIN ASSEMBLY	11.55
27	1017R	SPRING GUIDE	1.65
28	10SC7	FIXING BOLT	1.65
30	1012Z	DRAG COVER ASSEMBLY	45.10
31	10SR1	HEAT SINK	11.55
32	10SQJ	SPOOL RECEPTOR (B)	2.75
33	10MLB	FIXING BOLT	1.10
34	101DM	SPOOL WASHER (A)	2.20
35	10J3W	SPOOL HOLDER (D)	1.65
36	103LB	FIXING BOLT	1.10
37	10RBZ	RETAINER	1.65
38	10SFJ	ROTOR BEARING SEAL	6.05
39	10HU1	WASHER	1.10
40	104PS	BALL BEARING (8 X 14 X 4)	13.75
41	10SR4	ROTOR BEARING COLLAR	9.35
42	10SEP	ROTOR NUT	22.55
43	10CG0	O-RING 19.5	1.65
44	10E8M	FIXING BOLT	1.65
45	10125	ROTOR FLANGE	9.35
46	10128	ROTOR	78.65
47	1027V	O-RING	1.65
48	10RP7	FIXING BOLT	1.65
49	10LAD	O-RING	1.10
50	10MHD	ROLLER CLUTCH SEAL COVER	2.75
51	1012Y	ROLLER CLUTCH SEAL ASSEMBLY	22.55
52	107S4	ROLLER CLUTCH INNER	6.05
53	10129	ROTOR GUARD (A)	2.75
54	10MT2	FIXING BOLT	1.10
55	10121	ROTOR GUARD (B)	2.75
56	1077Q	BAIL TRIP LEVER CLICK SPRING	1.65
57	10CH8	BAIL TRIP LEVER CLICK PIN	1.65
58	1012A	ARM CAM SPRING COVER	11.55
59	10DN7	FIXING BOLT	1.65
60	10SCS	FIXING BOLT	1.10
61	10J7H	WASHER	1.10
62	1012L	ARM CAM	45.10
63	10K7M	FIXING BOLT COLLAR	3.85
64	10Q86	FIXING BOLT	6.05
65	107LE	FIXING BOLT RETAINER	2.75
66	107LF	FIXING BOLT RETAINING CLIP	3.85
67	10K46	FIXING BOLT	6.05
68	10161	LINE ROLLER RECEIVER	6.05
69	1016K	LINE ROLLER SEAL	1.65
70	104W1	BALL BEARING (5 X 8 X 2)	9.35
71	1015A	BUSH	1.65
72	1015S	O-RING	1.65
73	1014P	COLLAR	1.65
74	1015F	LINE ROLLER	17.05
75	1014N	COLLAR	3.85
76	10DTC	BAIL ASSEMBLY	67.65
77	10Q3F	ARM FIXING SHAFT	9.35
78	106KJ	INNER GERI LEVER	3.85
79	10R2F	ARM SPRING GUIDE (A) COLLAR BUSH	1.65
80	1016J	ARM SPRING GUIDE (A)	3.85
81	10DUU	ARM SPRING GUIDE (A) COLLAR	1.65
82	10SEV	ARM CAM SPRING	1.65
83	10SEN	ARM SPRING GUIDE (B)	1.65
84	1012G	BAIL MOUNTING COVER	11.55
85	10CYT	GUARD FIXING BOLT (A)	2.75
86	10SRU	ROLLER CLUTCH ASSEMBLY *Cannot be ordered	22.55
87	10MLR	O-RING	3.85
88	10ML2	FIXING BOLT	2.75
89	10SFC	BEARING PUSH PLATE	3.85
91	104PV	BALL BEARING (10 X 19 X 5)	13.75
92	10SR8	BEARING COLLAR	9.35
93	10SRD	PINION GEAR COLLAR	6.05
94	107ZQ	TOOTHED STOPPER	2.75
95	10GD6	WASHER	1.65
97	10583	BALL BEARING (8 X 12 X 3.5)	13.75
98	10SF4	BUSH	1.65
99	104AZ	FRICTION RING	3.85
100	1055G	FIXING BOLT	1.65
101	1012P	BODY FLANGE RING	9.35
102	10SQN	INTERMEDIATE GEAR SHAFT	1.65
103	10AYR	BODY FLANGE SEAL	2.75
104	108WP	O-RING	1.65
107	10SQL	SLIDER GUIDE	3.85
108	10B0V	O-RING	2.75
109	10SR3	WORM SHAFT	11.55
110	10PDA	BALL BEARING (3 X 6 X 2.5)	13.75
111	100XZ	WASHER	2.20
112	10TK0	WASHER	1.65
113	1015D	BUSH	3.85
114	10TNF	O-RING	1.65
115	10SF9	WORM SHAFT COVER	2.75
116	103H6	FIXING BOLT	1.65
117	10L9D	GUARD FIXING BOLT (D)	1.65
118	1012J	BODY GUARD	22.55
119	108W9	O-RING (3 X 5)	1.65
120	10AYM	BODY GUARD COLLAR	2.75
121	10LSC	FIXING BOLT	1.10
122	1012V	MAIN SHAFT ASSEMBLY	45.10
123	106V5	CROSS GEAR PIN	6.05
124	100CW	WASHER	2.20
125	10164	WORM SHAFT PIN COLLAR	6.05
126	10H7S	CROSS GEAR PIN PUSH PLATE	1.65
127	10MT4	FIXING BOLT	1.10
128	10SF8	INTERMEDIATE GEAR (SMALL)	9.35
129	10160	BENDING WASHER	1.10
131	10SEQ	WORM SHAFT GEAR	9.35
132	10SR7	BODY SEAL	3.85
133	1015Q	BEARING SEAL	4.95
134	10BGG	BEARING WASHER	1.65
135	104PW	BALL BEARING (10 X 19 X 5)	13.75
136	10SQW	ASSIST STOPPER	1.65
137	102VH	ASSIST STOPPER COVER	1.65
138	10J3U	ASSIST STOPPER COLLAR	3.85
139	103HM	FIXING BOLT	1.10
140	100SL	STOPPER SPRING	1.65
142	101DP	WASHER	2.20
143	1012W	COVER ASSEMBLY	56.10
145	10PVN	FIXING BOLT	2.75
146	10A6N	FIXING BOLT	1.65
147	10A6P	FIXING BOLT	1.65
150	10RFY	HANDLE SHAFT	11.55
151	10DTD	HANDLE SHANK ASSEMBLY	78.65
152	10E85	FIXING BOLT	6.05
153	104FH	WASHER	2.20
154	105BN	BALL BEARING (5 X 9 X 3)	13.75
156	10RDQ	HANDLE KNOB	22.55
157	10KX1	BALL BEARING (4 X 9 X 4)	13.75
158	103E9	FIXING BOLT	1.10
159	10B97	HANDLE CAP	2.75
160	108T1	HANDLE KNOB NAMEPLATE	3.85
161	103NM	FIXING BOLT	2.75
162	109UX	THREAD STOPPER BELT (L) (ACCESSORY)	6.05
163	10RFH	HANDLE SHAFT (RIGHT-HANDLE ONLY) (ACCESSORY)	11.55
171	10SFU	SPOOL ASSEMBLY	311.30
172	10RMT	COLLAR *Cannot be ordered	11.55
173	10SQX	O-RING *Cannot be ordered	1.65
174	10SEZ	O-RING *Cannot be ordered	45.10
175	10SFA	PINION GEAR	56.10
176	10SFB	HANDLE SCREW CAP	22.55
177	10DT8	BODY ASSEMBLY	201.30
178	10SQM	INTERMEDIATE GEAR (LARGE)	9.35
179	10SFH	DRIVE GEAR ASSEMBLY	73.15
180	10SFV	HANDLE ASSEMBLY	179.30
181	10DT9	HANDLE SHAFT FLANGE ASSEMBLY	45.10
BNKI	13R54	EXPLODED VIEW (ACCESSORIES)	1.65
ITOS	13QPZ	STOPPER SEAL	1.65
MH01	13NPC	NAMEPLATE ON THE BACK OF THE LEG	3.85
OIL2	10LQ1	SSRO-01 OIL (4.5G)	3.85
TRST	13PMG	INSTRUCTION MANUAL (ACCESSORY)	1.65
