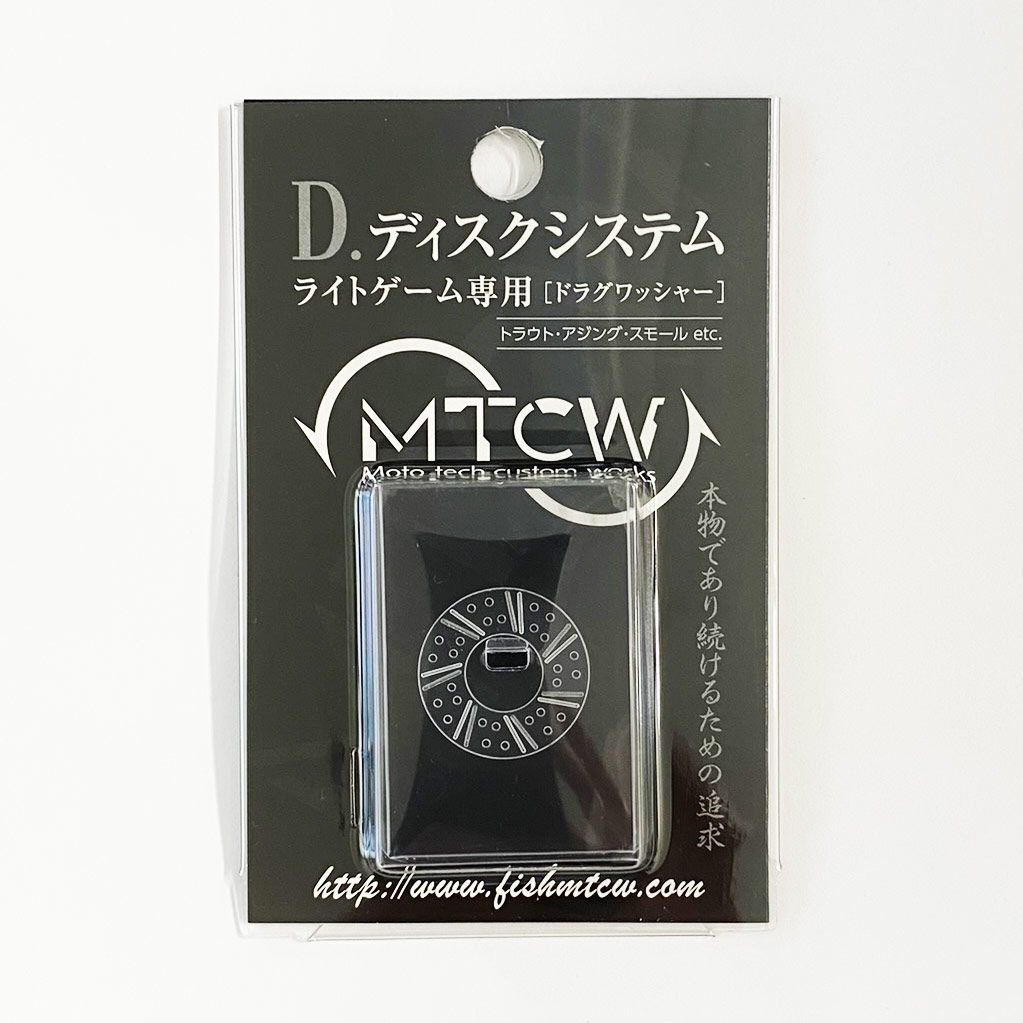

[MTCW] D.Disk System & D. Disk System -KAI- Modified (Extra Fine Line Drag Washer) *CPDW

| Improve Drag Performance — Introducing the “D. Disc System” for Extra Fine Line!

Standard drag washers are made of felt material, which increases friction and load at the initial startup, making the line more prone to breakage.
Additionally, high friction resistance generates heat that changes the drag viscosity, preventing stable drag performance.

The newly developed D. Disc System features an original slit design to support the increasingly popular extra fine line, minimizing line breakage while suppressing excessive drag release.
Thanks to the slit design, the drag operates naturally and smoothly from the initial movement up to the line’s limit, providing stable and optimal drag tension to enhance reel performance.

The slit design also creates grease pockets within the disc, allowing the grease to circulate continuously while the drag is in operation.
When used together with the TD System, drag performance is significantly improved.




| Specifications

Material: Polycarbonate
Size: Outer Diameter × Thickness

For SHIMANO: 20.7mm × 1.0mm
For LT DAIWA: 23mm × 1.0mm
For DAIWA: 24.7mm × 1.0mm


| Compatibility

Area Trout (Management Trout Fishing Area), Aging (Horse mackerel), Other Light Game Models (1000 - 2000 Size) / Recommended Drag Grease MTDG-02, MTDG-03

for SHIMANO

01/04/07/10/14/18/22 STELLA 1000-C2500
01 STELLA FW 2500S, 07 STELLA 2500S
12/16/19 Vanquish
18 CARDIFF Ci4+
06/07/11/15 TWIN POWER
15/16 STRADIC
12/17 ULTEGRA
06 Sephia, 17 SAHARA, 17 SEDONA, 16 NASCI
1000-2000 of each reel
*For reels that use a single drag washer

for LT DAIWA

18/22 EXIST, EXIST SF 1000-2500, DAIWA LT Concept Reels
LUVIAS, AIRITY, STEEZ, PRESSO 1000-2500, CALDIA 1000-2500
AEGIS 1000-2500, 20/23 GEKKABIJIN 1000-2000, CERTATE 1000-2500
*For reels that use a single drag washer

for DAIWA

05/12/15 EXIST
07/12/15 LUVIAS
10/13/16 CERTATE
PRESSO/Z series
STEEZ TYPE-1
TD series, EMBLEM series
1000-2000 of each reel
*For reels that use a single drag washer


| Difference in Slit Design



*D. Disk System




*D. Disk System -KAI- Modified

To improve the power output of the standard D. Disc System, a newly shaped slit has been adopted.
The redesigned slit retains grease that gathers toward the center and circulates each time the drag operates.
This maintains the performance of the original model while providing stronger, more stable drag tension for enhanced reel performance.






D. Disc System
For Light Game [Drag Washer]
Triple Active Type

D. Disc System Kai
For Light Game [Drag Washer]
Power Type

| Stable Drag Tension
The D. Disc System Kai, developed exclusively for light game fishing, adopts an original slit design that suppresses excessive drag release during startup.
The slit design ensures a natural and smooth drag release with precise line control, providing stable drag tension and improving reeling performance.

| Circulating Revolution Grease
The unique slit design creates grease channels within the disc itself, allowing the Revolution Grease to circulate efficiently.

| Newly Designed D. Disc System Kai
To improve the reach performance of the conventional D. Disc System, a newly shaped slit has been adopted.
The new slit structure features internal grooves that retain grease, maintaining the performance of the previous model while delivering stronger and more stable drag tension to enhance reel performance.

| Comparison with Felt Material and Conventional Models
In traditional felt drag washers, the initial resistance tends to be high, which can cause the fishing line to break easily at the moment of hook set.
In contrast, the D. Disc System offers a much smoother drag start-up, reducing shock on the line and ensuring stable drag performance.
The upgraded D. Disc System Kai further improves this stability, delivering smoother, more consistent drag action under all conditions.
