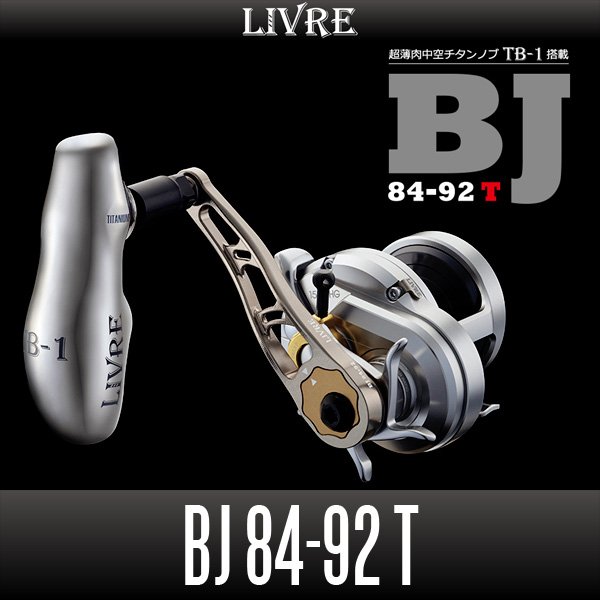

[LIVRE] BJ 84-92 T Handle with TB-1 (Thin-Walled Hollow Titanium Knob)

* Please note that it takes about 4 to 5 days for us to get ready to send LIVRE handles since it's back-ordered after receiving your order.

[Knob Selection] TB-S TB-1 EP 40 EP 44 EP 50 PT 42 PT 48 PT 52 [Knob Color Selection for TB-S and TB-1] *Color samples are TB-1. Silver Fire Brown (IP) [Knob Color Selection for EP and PT] *Color samples are PT 48. Fire Brown (IP)

Model	Manufacturer Type	Center Nut	Pitch (mm)	Weight (g)	Product No.	Item No.
BJ 84-92 T	M8 DAIWA/SHIMANO 300 -	Right	84-92	78.8	BJT-89SDR	820*
		Left		78.8	BJT-89SDL	821*
	M7 SHIMANO - 200	Right		79.0	BJT-89M7R	822*
		Left		79.0	BJT-89M7L	823*
	DAIWA B1			79.9	BJT-89DRY	824*
	DAIWA B2			79.9	BJT-89DB2	825*

Main Plate	Titanium Knob	Center Nut	Shaft	Item No.
Gunmetal	Silver	Black	Black	3
Titanium				5

Product Description

Ultra-thin Hollow Titanium Knob TB-1 Equipped
BJ 84-92 T

The Secret to Its Astonishing Lightness
By utilizing titanium material with a thickness of 0.8 mm in a monocoque structure for the ultra-thin hollow titanium knob, the knob’s weight has achieved astonishing lightness.
The limitless potential of titanium, coupled with LIVRE’s technology, has given birth to a new and unique knob in this world.

Exceptional Grip with Mirror Buff Finish
The notion that metal knobs are slippery is merely a misconception. By applying a mirror buff finish, the titanium knob fits into the palm of your hand as if it were clinging to it.
The shape has been thoroughly analyzed for angler operability in every detail.
When you touch it, your fingers are guided to the optimal position as if intuition leads you.

High-Performance Machining
The plate is made from A7075 super duralumin, precision machined with an H-section 3D cutting process.
It has been hollowed out to the maximum extent possible while maintaining rigidity.

Adjustable Handle Pitch in 5 Stages from 84 mm to 92 mm
By rotating the octagonal plate to fix the handle, it is possible to adjust the handle pitch in 2 mm increments, offering five stages between 84 mm and 92 mm.
This feature, designed with meticulous attention to even the most minor usability aspects, elevates the custom handle beyond mere decoration.


Compatibility Table

■SHIMANO/DAIWA

OCEA CALCUTTA [13] 300HG (301HG)

OCEA CONQUEST Limited [19] 300HG (301HG), 300PG (301PG), 400HG
OCEA CONQUEST [16] 300PG (301PG)
OCEA CONQUEST [15] 300HG (301HG)
OCEA CONQUEST CT [18] 300HG (301HG), 300PG (301PG)

OCEA JIGGER [20] 4000, 4000HG
OCEA JIGGER [17] 1000HG（1001), 1500HG（1501), 1500PG (1501), 2000NRHG (2001), 2000NRPG (2001)
OCEA JIGGER [16] 3000HG
OCEA JIGGER [11] 1000HG (1001, 1500HG (1501), 1500PG (1501), 2000NR-HG (2001), 2000NR-PG (2001)
OCEA JIGGER [03] 2000NR
OCEA JIGGER FC [19] 1000HG (1001), 1500HG (1501), 2000NRHG (2001), 3000HG
OCEA JIGGER Limited [14] 1500HG (1501), 3000HG, 3000PG（※）

※Please order Right-handed for left-handed and left-handed for Right-handed.


CALCUTTA CONQUEST [15] 300 (301), 400 (401)
CALCUTTA CONQUEST [18] 300 (301), 400 (401)
CALCUTTA CONQUEST [10] 200typeJ-HG (201), 200typeJ-PG, 300typeJ-HG
CALCUTTA CONQUEST [06] 300typeJ, 300typeJ-M

GRAPPLER [17] 300HG (301HG)

Beast Master [18] 2000
Beast Master [16] 3000XP, 3000XS
Beast Master [14] 6000, 9000
Beast Master [13] 3000
Beast Master EJ [20] 1000EJ, 2000EJ

Force Master [18] 600, 600DH
Force Master [16] 1000, 2000, 800
Force Master [15] 300DH (301DH), 9000
Force Master [15-17] 3000, 3000XP
Force Master [14] 4000, 6000
Force Master [13] 400 (401), 400DH (401)
Force Master [12] 2000MK, 3000MK, 9000
Force Master [11] 1000MK, 800MK

PLAYS [17] 1000, 4000, 800
PLAYS [16] 3000, 400
PLAYS [13] 3000
PLAYS [12] 1000, 800

PLEMIO [12] 3000

電動丸 [09] 400C, PLAYS4000
電動丸 [11] 3000 完全フカセ, イカ SP
電動丸 [10] 3000 Beast Master MUTEKI, 3000 完全フカセSP, 400CPLAYS, 9000 BM ZB
電動丸 [08] 3000XH, PLAYS3000

it's ICV 150R (L), 150WR (L), 200R (L)

CATALINA　BJ [16] 100H (L), 100P-RM (L), 100SH (L), 200SH (L)
CATALINA [19] 15H

SEABORG Limited 200J (L), 300J (L), 500J
SEABORG [15] 200J (L)
SEABORG 1000MT, 1200MJ, 150J (L), 150J-DH (L), 200J (L), 200J-DH (L), 200J-SJ (L), 270MM, 300J (L), 300MJ (L), 400MM, 500AT, 500FT, 500J, 800J, 800MJ, Z500MM

SPARTAN MX IC [18] 150H (L), 200H (L)

TATULA HLC [15] 7.3R-TW (L), 8.1R-TW (L)

HYPER TANASENSOR 250F, 300F, 400F, 500F

BLAST BJ TW [18] 150SH (L)

Blue Backer Bay Area 200BB

Millionaire Bay Casting SP 103 (L)
Millionaire Bay Area SP 100 (L)
Millionaire BASALA [15] 100H (L), 100SH (L), 200H (L)
Millionaire SW 103 (L)
Millionaire CV-Z 103 (L), 105 (L)

LEOBRITZ [14] 400
LEOBRITZ 150, 150J(150J-L), 300J, 300MT, 400, 500MT, 750MT, S400, S500

紅牙-KOHGA- [14] 100 (L)
紅牙-KOHGA- ICS [13] 103 (L)

鏡牙-KYOGA- 100SH (L)


■SHIMANO

OCEA CALCUTTA [11] 200HG (201HG), 200PG (201PG)（※）

OCEA CONQUEST Limited [20] 200HG (201HG), 200PG (201PG)（※）
OCEA CONQUEST [15] 200PG (201PG)（※）
OCEA CONQUEST [14] 200HG (201HG)（※）
OCEA CONQUEST CT [18] 200HG (201HG), 200PG (201PG)（※）

CALCUTTA CONQUEST [15] 100HG (101HG), 200HG (201HG)（※）

GRAPPLER BB [16] 200HG (201HG)（※）
GRAPPLER Premium [18] 150XG (151XG)（※）
GRAPPLER CT [19] 150XG (151XG)（※）
GRAPPLER CT [16] 150HG (151HG)（※）

BARCHETTA Premium[19] 150 (151), 150 DHXG (151DHXG), 150DH (151DH)（※）
BARCHETTA F CUSTOM [20] 150 (151), 150 DHXG (151DHXG), 150DH (151DH)（※）
BARCHETTA CI4+ [14] 200HG (201HG), 300HG (301HG)（※）
BARCHETTA BB [17] 300HGDH (301HGDH), 300PGDH (301PGDH), 600HG, 600PG（※）
BARCHETTA BB [14] 200HG (201HG), 300HG (301HG)（※）

BAY GAME [18] 150 (151), 150DH (151)（※）

炎月-ENGETSU- Premium [18] 150HG (151HG), 150PG (151PG)（※）
炎月-ENGETSU- CT [19] 150HG (151HG), 150PG (151PG)（※）
炎月-ENGETSU- CT [15] 100PG (101PG)（※）
炎月-ENGETSU- BB [10] Right・HG Right・PG Right（※）
炎月-ENGETSU- BB [16] 100HG (101HG), 100PG (101PG)（※）
炎月-ENGETSU-7 [09] Right・Left（※）
炎月-ENGETSU- [16] 炎月-ENGETSU-100HG (101), 炎月-ENGETSU-100PG (101)（※）

※It is for Shimano M7.
Please specify or enter the reel name when ordering.
We will replace it with a dedicated center nut and a dedicated octagonal plate before shipping.


■DAIWA B1

CATALINA TW [18] 100P (L)-RM, 100SH (L)（※）
CATALINA IC [18] 100SH (L), 150SH (L)（※）

ZILLION TW [15] 1516 (L), 1516H (L), 1516SH (L), 1516XXH (L)（※）

SALTIGA BJ [17] 100P-RM (L), 100SH (L), 200H (L), 200SH (L)（※）

TATULA HD CUSTOM [15] 150H-TW (L), 150SH-TW (L)（※）

RYOGA BAY JIGGING [14] C1012PE-H (L), C1012PE-SH (L), C2025PE-SH (L)（※）
RYOGA BAY JIGGING C1012PE-HW (L), C2020PE-H (L), C2025PE-SH (L)（※）

※For Daiwa B1 type, please specify or enter the reel name when ordering.
It will be shipped after being replaced with a dedicated center bolt (common to both left and Right).


■DAIWA B2

CATALINA LD 20SH, 20SH-T, 30SH

SALTIGA [15] 10（※）
SALTIGA [15] 10H, 10HL, 15, 15H, 15H-SJ, 15HL, 15HL-SJ, 35N, 35N(L)-SJ, 35NH, 35NHL-SJ

※For Daiwa B2 type, please specify or enter the reel name when ordering.
It will be shipped after being replaced with a dedicated center bolt (common to both left and Right).
