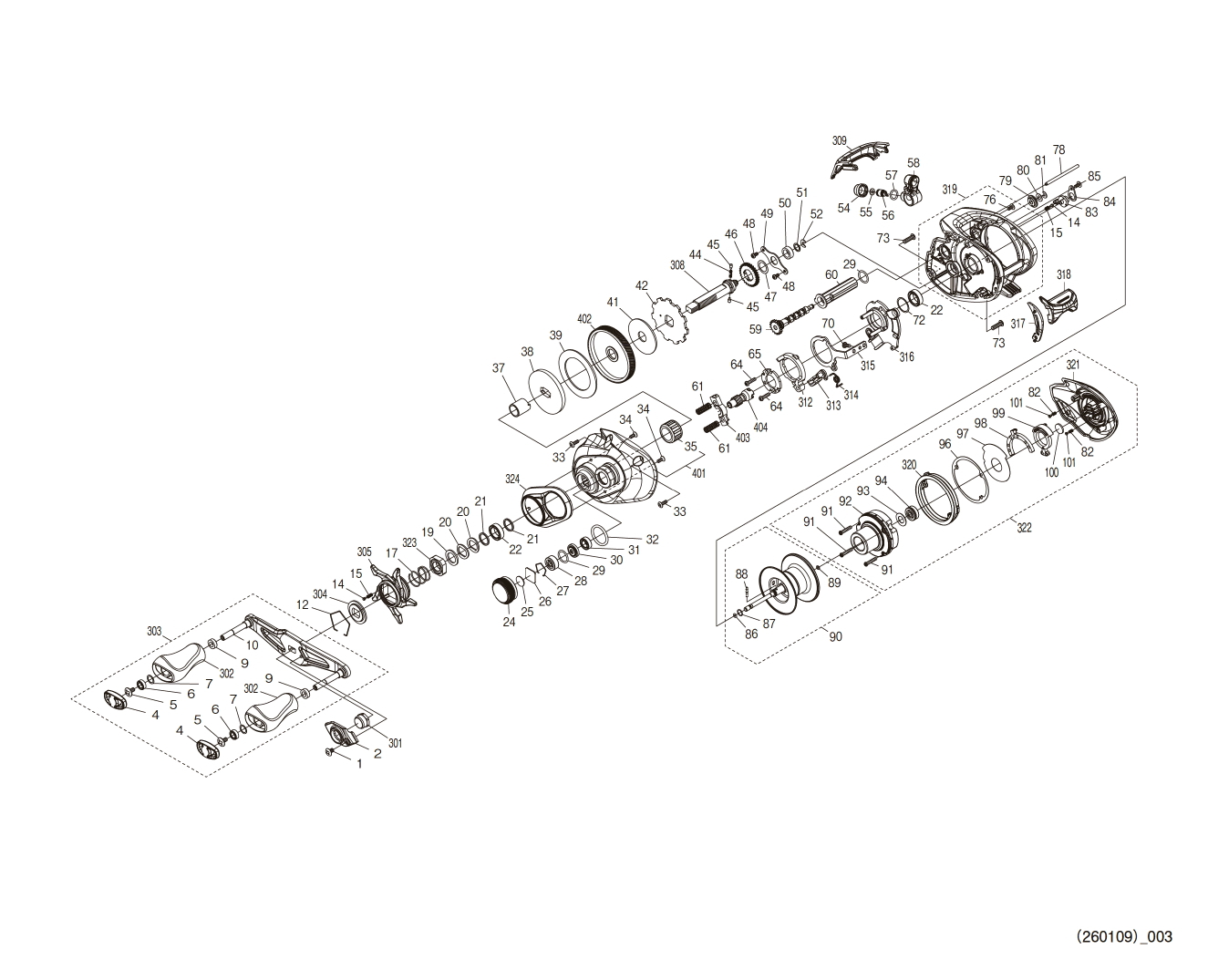

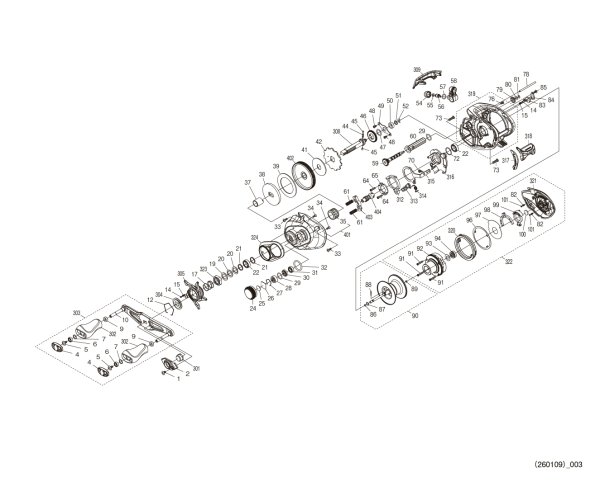

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* As for the "35 / ROLLER CLUTCH" and "88 /SPOOL CLUTCH PIN, they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 10DV5 SET SCREW 1.10
2 144EC RETAINER 3.85
4 10SS2 HANDLE CAP 1.10
5 10LFA SET SCREW 1.10
6 104VX BALL BEARING (4X 7X 2.5) 13.75
7 104FH WASHER 2.20
9 10PXZ HANDLE KNOB BUSHING 1.65
10 14D8A HANDLE SHANK ASSEMBLY 24.75
12 10KXW STAR DRAG CLICK PLATE RETAINER 1.65
14 10MFC CLICK PIN 1.65
15 10BT2 CLICK SPRING 1.65
17 10A70 STAR DRAG SPRING 2.75
19 10J1P STAR DRAG SPACER 2.75
20 109F5 DRIVE GEAR WASHER 1.65
21 100SE WASHER 1.10
22 105BK BALL BEARING (8X 12X 3.5) 13.75
24 13U1N MECHANICAL BRAKE KNOB 9.35
25 10896 MECHANICAL BRAKE WASHER 1.10
26 1085F MECHANICAL BRAKE WASHER 1.10
27 1054D BEARING RETAINER 1.10
28 105C3 BALL BEARING (3X 10X 4) 7.15
29 101GT O-RING 1.65
30 100BL BEARING SPACER 1.65
31 105BP BALL BEARING (5X 9X 3) 13.75
32 108WK O-RING SM14 1.65
33 10LCY SET SCREW 1.10
34 10LA4 SET SCREW 1.10
35 1005E ROLLER CLUTCH *Cannot be ordered 17.05
37 100BM ROLLER CLUTCH INNER TUBE 6.05
38 100BK STAR DRAG PLATE 2.75
39 10SSF STAR DRAG WASHER 11.55
41 1023U STAR DRAG WASHER 6.05
42 13YNT STOPPER GEAR 6.05
44 10JDY SPRING FOR WORM SHAFT GEAR 1.65
45 10HJG PIN FOR WORM SHAFT GEAR 1.65
46 101K8 WORM SHAFT GEAR 3.85
47 10GR4 WASHER 1.10
48 10S3Y SET SCREW 1.10
49 109T1 DRIVE GEAR SHAFT RETAINING PLATE 2.75
50 10DQF DRIVE GEAR SHAFT BUSHING 1.65
51 10C47 MAIN GEAR SHAFT WASHER 1.10
52 105NK E-TYPE RETAINING RING 2.5 1.10
54 10FJB LEVEL WIND SUPPORT 1.65
55 10CFU WASHER 1.10
56 10BHQ WORM SHAFT PIN 2.75
57 108WQ O-RING 1.65
58 14D8C LEVEL WIND ASSEMBLY 28.05
59 14AP3 WORM SHAFT 1.10
60 14AP4 LEVEL WIND PIPE 1.10
61 100U9 CLUTCH YOKE SPRING 1.10
64 10LV0 SET SCREW 1.10
65 100US CLUTCH CAM SUPPORT PLATE 3.85
70 10559 SET SCREW 1.65
72 10190 WASHER 1.65
73 100UV SET SCREW 1.10
76 10E8N SET SCREW 1.10
78 14AP6 LEVEL WIND GUIDE 1.10
79 100G7 LEVEL WIND GUARD BUSHING 1.10
80 10FJZ WASHER 1.10
81 105NC E-TYPE RETAINING RING 2 1.10
82 14CF5 CLICK SPRING 1.10
83 10BAZ MAIN UNIT B CAM LEVER 1.65
84 101UL MAIN UNIT B CAM LEVER SUPPORT PLATE 1.65
85 10LCT SET SCREW 1.65
86 100BH O-RING 1.10
87 14CF3 O-RING 1.10
88 10MD0 SPOOL CLUTCH PIN *Cannot be ordered 1.65
89 14CF2 O-RING 1.10
90 14APE SPOOL ASSEMBLY 105.05
91 14CBN SET SCREW 1.10
92 14AFX DC ASSEMBLY 148.50
93 10B94 BEARING SEAL 1.65
94 10S37 BALL BEARING (3X 10X 4) 13.75
96 14CBP WASHER 1.10
97 14APM MAIN UNIT B NAMEPLATE 1.10
98 14D88 BR KNOB ASSEMBLY 3.30
99 14D89 DC DIAL ASSEMBLY 3.30
100 10EX5 SPOOL SHAFT STOP B 1.10
101 14CF4 CLICK PIN 1.65
301 1007V HANDLE LOCK NUT 6.05
302 10EBH HANDLE KNOB 11.55
303 14CFG HANDLE ASSEMBLY 74.80
304 10J26 STAR DRAG CLICK PLATE 1.65
305 13V3M STAR DRAG 11.55
308 144NE DRIVE GEAR SHAFT 11.55
309 14BN9 LEVEL WIND GUARD 11.55
312 100W0 CLUTCH CAM 2.75
313 1003W CLUTCH PAWL ASSEMBLY 3.85
314 14CFH CLUTCH PAWL SPRING 1.10
315 14BND CLUTCH PLATE 2.20
316 14DR9 MAIN BODY A SEAT ASSEMBLY 3.30
317 14BNE CLUTCH LEVER MOUNT (B) 1.10
318 14BNC CLUTCH LEVER 1.10
319 14D8D FRAME ASSEMBLY 57.20
320 14BNJ FRAME B MOUNT 2.20
321 14BNH MAIN BODY B 15.40
322 14BNG MAIN BODY B ASSEMBLY 224.40
323 10A3U STAR DRAG LOCK NUT 3.85
324 14D8X MAIN BODY A NAMEPLATE 3.85
401 14DR7 MAIN BODY A ASSEMBLY 51.70
402 10EB5 DRIVE GEAR 22.55
403 1001Q CLUTCH YOKE 1.10
404 14BNB PINION GEAR 11.55
