  3. > [SHIMANO] 26 Scorpion DC MD Genuine Parts List - Schematic Diagram & Parts Diagram
  4. > [SHIMANO] Genuine Spare Parts for 26 Scorpion DC MD 200HG RIGHT Product code: 049124 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 26 Scorpion DC MD 200HG RIGHT Product code: 049124 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 26 Scorpion DC MD 200HG RIGHT Product code: 049124 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

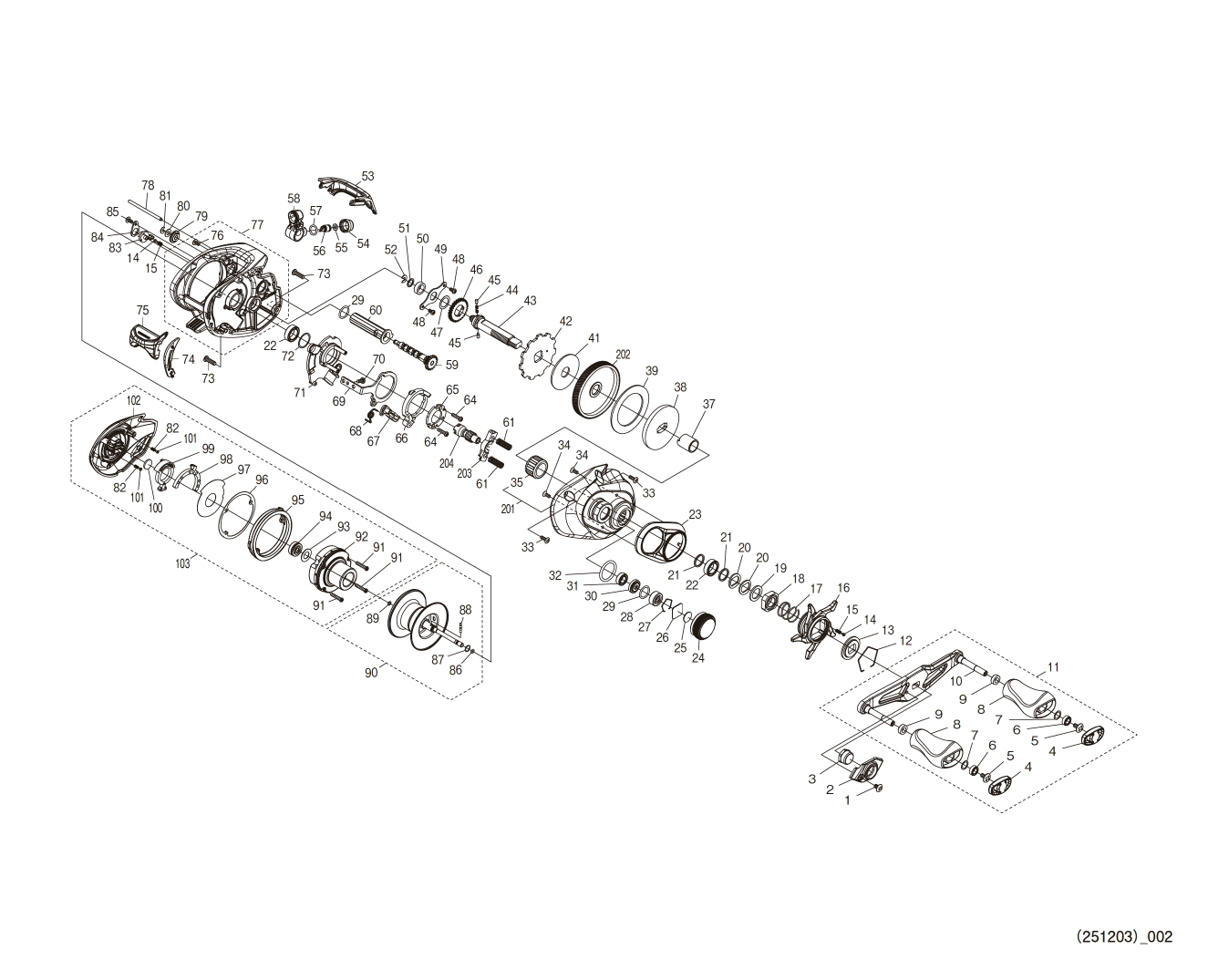

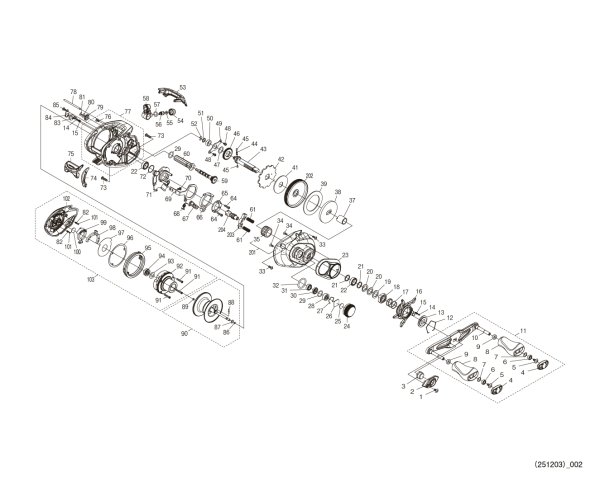

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* As for the "35 / ROLLER CLUTCH" and "88 /SPOOL CLUTCH PIN, they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 10DV5 SET SCREW 1.10
2 144EC RETAINER 3.85
3 1013J HANDLE LOCK NUT 6.05
4 10SS2 HANDLE CAP 1.10
5 10LFA SET SCREW 1.10
6 104VX BALL BEARING (4X7X2.5) 13.75
7 104FH WASHER 2.20
8 10SSM HANDLE KNOB 11.55
9 10PXZ HANDLE KNOB BUSHING 1.65
10 14D8A HANDLE SHANK ASSEMBLY 24.75
11 14CFF HANDLE ASSEMBLY 74.80
12 10KXW STAR DRAG CLICK PLATE RETAINER 1.65
13 10J26 STAR DRAG CLICK PLATE 1.65
14 10MFC CLICK PIN 1.65
15 10BT2 CLICK SPRING 1.65
16 13V3L STAR DRAG 11.55
17 10A70 STAR DRAG SPRING 2.75
18 10A3T STAR DRAG LOCK NUT 3.85
19 10J1P STAR DRAG SPACER 2.75
20 109F5 DRIVE GEAR WASHER 1.65
21 100SE WASHER 1.10
22 105BK BALL BEARING (8X12X3.5) 13.75
23 14AP1 MAIN UNIT A NAMEPLATE 3.85
24 13U1N MECHANICAL BRAKE KNOB 9.35
25 10896 MECHANICAL BRAKE WASHER 1.10
26 1085F MECHANICAL BRAKE WASHER 1.10
27 1054D BEARING RETAINER 1.10
28 105C3 BALL BEARING (3X10X4) 7.15
29 101GT O-RING 1.65
30 100BL BEARING SPACER 1.65
31 105BP BALL BEARING (5X9X3) 13.75
32 108WK O-RING SM14 1.65
33 10LCY SET SCREW 1.10
34 10LA4 SET SCREW 1.10
35 1005E ROLLER CLUTCH *Cannot be ordered 17.05
37 100BM ROLLER CLUTCH INNER TUBE 6.05
38 100BK STAR DRAG PLATE 2.75
39 10SSF STAR DRAG WASHER 11.55
41 1023U STAR DRAG WASHER 6.05
42 13YNT STOPPER GEAR 6.05
43 13YNU DRIVE GEAR SHAFT 11.55
44 10JDY SPRING FOR WORM SHAFT GEAR 1.65
45 10HJG PIN FOR WORM SHAFT GEAR 1.65
46 101K8 WORM SHAFT GEAR 3.85
47 10GR4 WASHER 1.10
48 10S3Y SET SCREW 1.10
49 109T1 DRIVE GEAR SHAFT RETAINING PLATE 2.75
50 10DQF DRIVE GEAR SHAFT BUSHING 1.65
51 10C47 MAIN GEAR SHAFT WASHER 1.10
52 105NK E-TYPE RETAINING RING 2.5 1.10
53 14AP7 LEVEL WIND GUARD 11.55
54 10FJB LEVEL WIND BRACKET 1.65
55 10CFU WASHER 1.10
56 10BHQ WORM SHAFT PIN 2.75
57 108WQ O-RING 1.65
58 14D8C LEVEL WIND ASSEMBLY 28.05
59 14AP3 WORM SHAFT 1.10
60 14AP4 LEVEL WIND PIPE 1.10
61 100U9 CLUTCH YOKE SPRING 1.10
64 10LV0 SET SCREW 1.10
65 100US CLUTCH CAM SUPPORT PLATE 3.85
66 100UK CLUTCH CAM 2.75
67 101M5 CLUTCH PAWL 3.85
68 14CBV CLUTCH PAWL SPRING 1.10
69 14APB CLUTCH PLATE 2.20
70 10559 SET SCREW 1.65
71 14DR8 MAIN BODY A SEAT ASSEMBLY 3.30
72 10190 WASHER 1.65
73 100UV SET SCREW 1.10
74 14APC CLUTCH LEVER BRACKET (B) 1.10
75 14APA CLUTCH LEVER 1.10
76 10E8N SET SCREW 1.10
77 14CK2 FRAME ASSEMBLY 57.20
78 14AP6 LEVEL WIND GUIDE 1.10
79 100G7 LEVEL WIND GUARD BUSHING 1.10
80 10FJZ WASHER 1.10
81 105NC E-TYPE RETAINING RING 2 1.10
82 14CF5 CLICK SPRING 1.10
83 10BAY MAIN BODY B CAM LEVER 1.65
84 101UL MAIN BODY B CAM LEVER SUPPORT PLATE 1.65
85 10LCT SET SCREW 1.65
86 100BH O-RING 1.10
87 14CF3 O-RING 1.10
88 10MD0 SPOOL CLUTCH PIN *Cannot be ordered 1.65
89 14CF2 O-RING 1.10
90 14APE SPOOL ASSEMBLY 105.05
91 14CBN MOUNTING BOLT 1.10
92 14AFX DC ASSEMBLY 148.50
93 10B94 BEARING SEAL 1.65
94 10S37 BALL BEARING (3X10X4) 13.75
95 14APN FRAME B BRACKET 2.20
96 14CBP WASHER 1.10
97 14APM MAIN BODY B NAMEPLATE 1.10
98 14D88 BR KNOB ASSEMBLY 3.30
99 14D89 DC DIAL ASSEMBLY 3.30
100 10EX5 SPOOL SHAFT STOP B 1.10
101 14CF4 CLICK PIN 1.65
102 14APJ MAIN BODY B 15.40
103 14APH MAIN BODY B ASSEMBLY 224.40
201 14DR5 MAIN BODY A ASSEMBLY 51.70
202 10ST3 DRIVE GEAR 22.55
203 10S8M CLUTCH YOKE 1.10
204 14AP9 PINION GEAR 11.55
