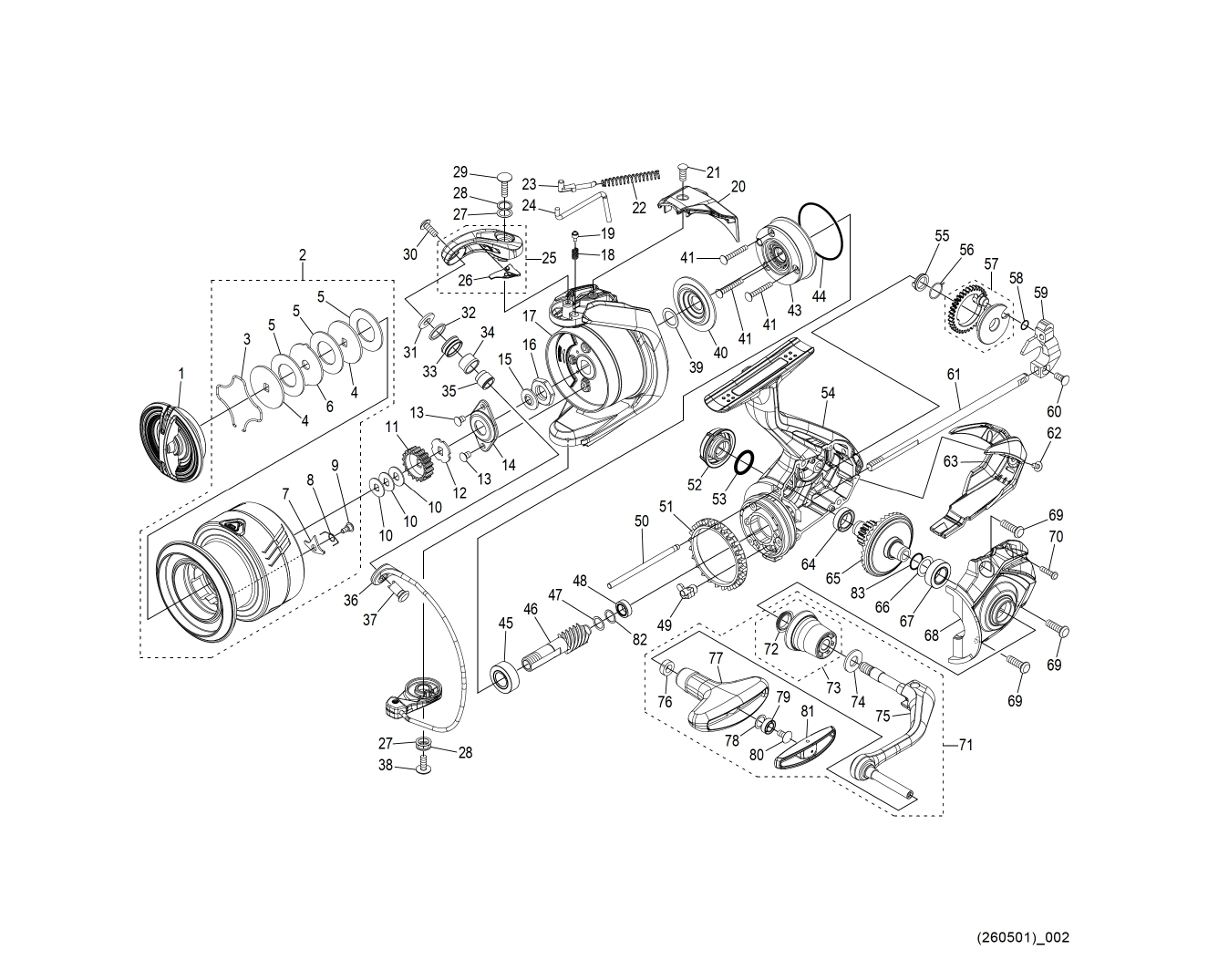

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 101UA DRAG KNOB ASSEMBLY 17.05
2 14DGU SPOOL ASSEMBLY 50.60
3 10B8N RETAINING SPRING 1.65
4 10BCE OVAL WASHER 1.65
5 102ZG DRAG WASHER 1.65
6 102XX WINGED WASHER 1.65
7 1038D SPOOL PIN 1.65
8 10JM5 SOUND SPRING 1.65
9 10PH5 SET SCREW 1.65
10 10BXN SPOOL WASHER SET 1.10
11 103MU SPOOL HOLDER (A) 1.65
12 10J04 SPOOL HOLDER (B) 1.65
13 10PMC SET SCREW 2.75
14 10TRH RETAINER 2.75
15 107L4 ROTOR BEARING SEAL 2.75
16 10TPL ROTOR NUT 3.85
17 14DGL ROTOR 17.60
18 10CH0 BAIL TRIP LEVER CLICK SPRING 1.65
19 106ZC SOUND PIN 1.65
20 148D6 ARM CAM SPRING COVER 3.85
21 103CJ SET SCREW 1.10
22 10FVC ARM CAM SPRING 1.65
23 105LT ARM SPRING GUIDE 1.10
24 106P4 INNER BRAKE LEVER 2.75
25 14E20 ARM CAM ASSEMBLY *Cannot be ordered NOT SET
26 14A9E ARM CAM FIN 1.10
27 10KFA ADJUSTMENT WASHER 1.10
28 10K96 WASHER 1.65
29 103LT SET SCREW 1.65
30 10PMH SET SCREW 1.65
31 101EM WASHER 1.10
32 10KFD ARM ROLLER SPACER 1.65
33 10JLF ARM ROLLER 1.65
34 10PFH ARM ROLLER BUSHING 1.10
35 149ZC THIMBLE 1.65
36 14E1Y BAIL ASSEMBLY 20.90
37 149ZA ARM MOUNTING SHAFT 3.30
38 103DA SET SCREW 1.65
39 10GR5 WASHER 1.10
40 14CZA ROTOR RING 3.85
41 14CTK SET SCREW *Cannot be ordered NOT SET
43 14DTT ROLLER CLUTCH ASSEMBLY 11.55
44 10MLU O-RING 3.85
45 107FE BALL BEARING (7X14X5) 7.15
46 14A9F PINION GEAR 13.20
47 10SYU WASHER 1.65
48 10RKR BALL BEARING (5X8X2.5) 7.15
49 149ZL STOPPER CAM 1.10
50 101HU SLIDER GUIDE 1.65
51 104FV FRICTION RING 2.75
52 1427T HANDLE SCREW CAP 5.50
53 108WH O-RING 1.65
54 14E21 BODY ASSEMBLY 23.10
55 10TBH BUSHING 1.10
56 10RPB BUSHING SPRING 1.10
57 10U1D SLIDER GEAR 3.30
58 10241 O-RING 1.65
59 101UC SLIDER 8.25
60 10ML7 SET SCREW 1.65
61 101SZ MAIN SHAFT 6.05
62 10LCS SET SCREW 1.10
63 10R94 BODY GUARD 6.05
64 107FA BALL BEARING (7X11X3) 7.15
65 14DGW DRIVE GEAR 17.60
66 10EEZ WASHER 2.75
67 107AT BALL BEARING (7X13X4) 7.15
68 14DGP LID 18.70
69 101EH SET SCREW 1.10
70 10R7G SET SCREW 1.10
71 14DGT HANDLE ASSEMBLY 49.50
72 10PXV HANDLE SHAFT SEAL 2.75
73 10E7V HANDLE SHAFT FLANGE ASSEMBLY 8.80
74 10E5X HANDLE WASHER 1.65
75 149YR HANDLE SHANK 34.65
76 10PXZ HANDLE KNOB BUSHING 1.65
77 10RHC HANDLE KNOB 17.05
78 104FH WASHER 2.20
79 10K64 BALL BEARING (4X7X2.5) 7.15
80 10LFA SET SCREW 1.10
81 10S3U HANDLE CAP 3.85
82 10HE5 WASHER 1.65
83 1009S O-RING 1.65
MH01 14DGX NAMEPLATE ON BOTTOM OF LEG *Cannot be ordered NOT SET
