[SHIMANO] Genuine Spare Parts for 26 MIRAVEL C2000SHG Product Code: 050069 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 26 MIRAVEL C2000SHG Product Code: 050069 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

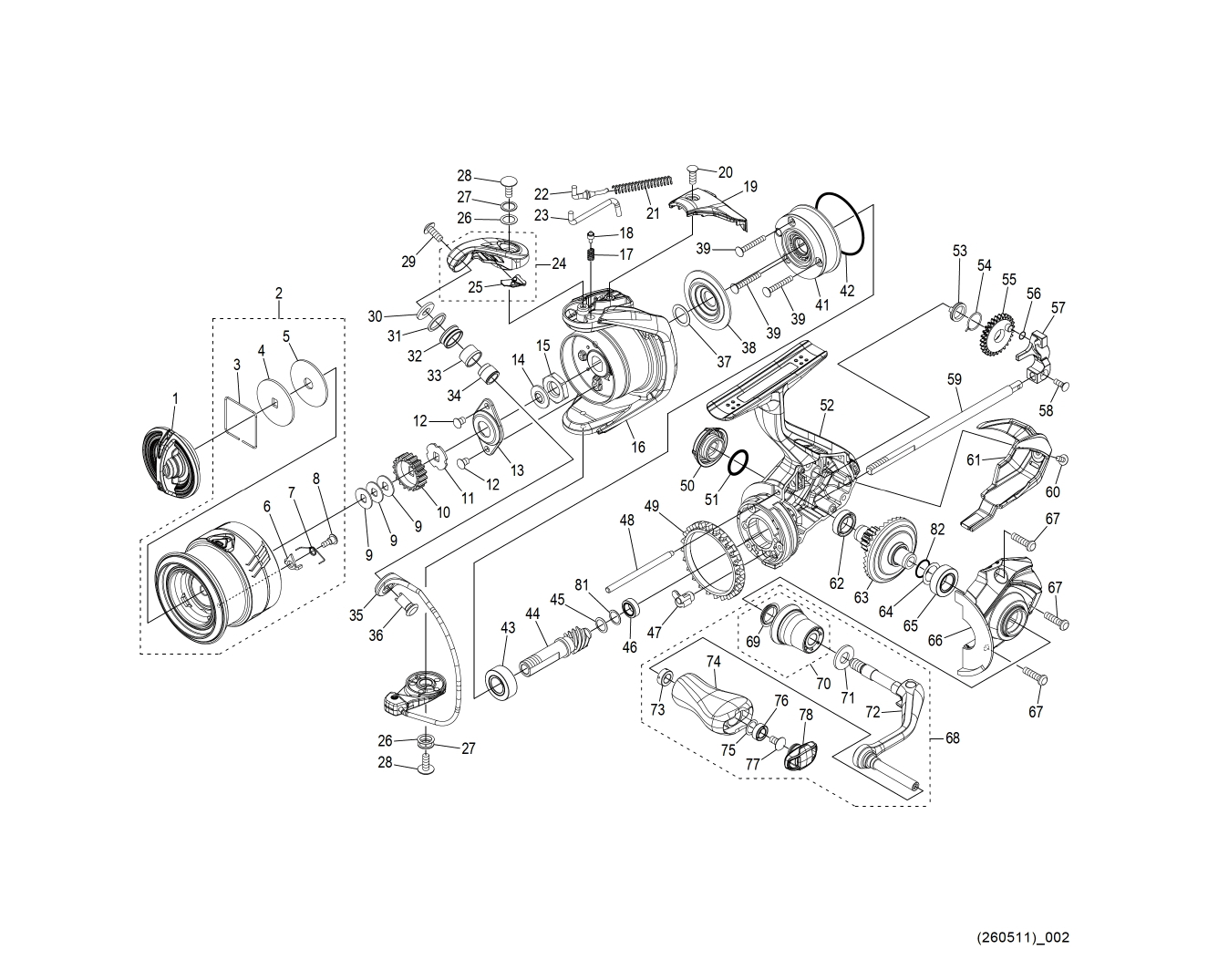

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 10TS5 DRAG KNOB ASSEMBLY 17.05
2 14DL8 SPOOL ASSEMBLY 40.70
3 10B87 ANTI-SLIP SPRING 1.65
4 10QBW OVAL WASHER 6.05
5 10N5A DRAG WASHER 1.10
6 10DS4 SPOOL PIN 1.65
7 10DS6 SPOOL PIN SPRING 1.65
8 10TRB SET SCREW 1.65
9 10BXN SPOOL WASHER SET 1.10
10 103MU SPOOL HOLDER (A) 1.65
11 10J04 SPOOL HOLDER (B) 1.65
12 10PMC SET SCREW 2.75
13 10TRH RETAINER 2.75
14 107L4 ROTOR BEARING SEAL 2.75
15 10TPL ROTOR NUT 3.85
16 14DKZ ROTOR 15.40
17 10CH0 BAIL TRIP LEVER CLICK SPRING 1.65
18 106ZC CLICK PIN 1.65
19 14AYH ARM CAM SPRING COVER 3.85
20 103CJ SET SCREW 1.10
21 10FVB ARM CAM SPRING 1.10
22 105LS ARM SPRING GUIDE 1.10
23 106L0 INNER BRAKE LEVER 2.75
24 14EFA ARM CAM ASSEMBLY *Cannot be ordered NOT SET
25 14BMR ARM CAM FIN 1.10
26 10KFA ADJUSTMENT WASHER 1.10
27 10K96 WASHER 1.65
28 103DA SET SCREW 1.65
29 10PMH SET SCREW 1.65
30 101EM WASHER 1.10
31 10KFD ARM ROLLER SPACER 1.65
32 10JLF ARM ROLLER 1.65
33 10PFH ARM ROLLER BUSHING 1.10
34 149ZC SPACER 1.65
35 14EFB BAIL ASSEMBLY 20.90
36 149ZA ARM MOUNTING SHAFT 3.30
37 10GR5 WASHER 1.10
38 14CZA ROTOR RING 3.85
39 14CTK SET SCREW *Cannot be ordered NOT SET
41 14DTT ROLLER CLUTCH ASSEMBLY 11.55
42 10MLU O-RING 3.85
43 10E7A BALL BEARING (7X14X5) 7.15
44 14BN1 PINION GEAR 13.20
45 10SYU WASHER 1.65
46 10RKR BALL BEARING (5X8X2.5) 7.15
47 149ZL STOPPER CAM 1.10
48 101BN SLIDER GUIDE 1.65
49 104FV FRICTION RING 2.75
50 144RK HANDLE SCREW CAP 5.50
51 10E3K O-RING 1.65
52 14EFE BODY ASSEMBLY 21.45
53 10TBH BUSHING 1.10
54 10RPB BUSHING SPRING 1.10
55 101BV SLIDER GEAR 1.65
56 101BW O-RING 1.65
57 101BP SLIDER 8.25
58 10R1P SET SCREW 1.65
59 10TSB MAIN SHAFT 6.60
60 10LCS SET SCREW 1.10
61 10R9D BODY GUARD 6.05
62 107FA BALL BEARING (7X11X3) 7.15
63 14DLA DRIVE GEAR 16.50
64 10EEZ WASHER 2.75
65 107AT BALL BEARING (7X13X4) 7.15
66 14DL2 LID 16.50
67 10L6K MOUNTING BOLT 1.10
68 14DUQ HANDLE ASSEMBLY 49.50
69 10PXV HANDLE SHAFT SEAL 2.75
70 10TSE HANDLE SHAFT FLANGE ASSEMBLY 8.80
71 10E5X HANDLE WASHER 1.65
72 14A05 HANDLE SHANK 34.65
73 10PXZ HANDLE KNOB BUSHING 1.65
74 10328 HANDLE KNOB 11.55
75 104FH WASHER 2.20
76 10K64 BALL BEARING (4X7X2.5) 7.15
77 10LFA MOUNTING BOLT 1.10
78 10TNJ HANDLE CAP 3.85
81 10HE5 WASHER 1.65
82 1009S O-RING 1.65
MH01 14DRD NAMEPLATE ON BOTTOM OF LEG *Cannot be ordered NOT SET
