[DAIWA] Genuine Spare Parts for 26 ZILLION TW 150 Product code: 00630370 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability

Part Number:

Quantity:

Return & Exchange Policy

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.

*Please make sure to read about the conditions before you order.

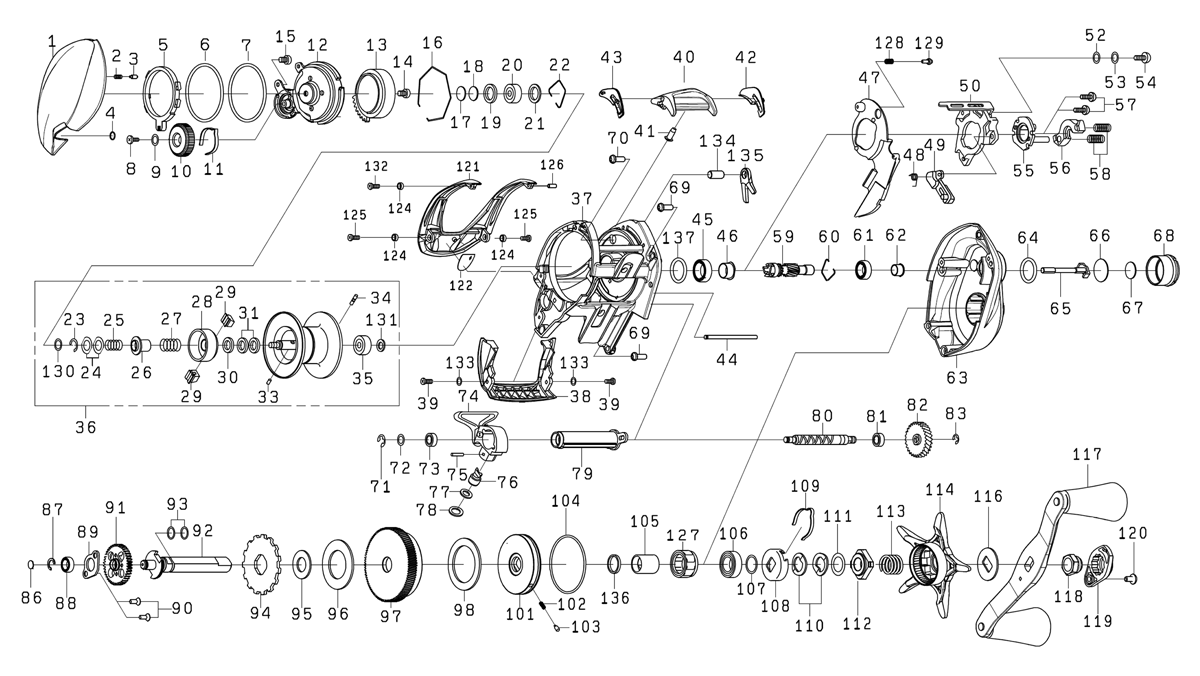

　Reel Part's Schematic Diagram

No.	Part Name	Part Code	Price (USD)
1	LS PLATE	6M739101	42.90
2	LEVER PLATE SP	6J631901	2.20
3	LEVER PLATE PIN	6J286301	2.20
4	LS PLATE O-RING	6J197901	1.10
5	LEVER PLATE (A)	6M732801	4.40
6	LEVER PLATE (B)	6N004M01	2.20
7	LEVER PLATE (C)	6N004N01	2.20
8	BRAKE DIAL SC	6G940402	2.20
9	BRAKE DIAL W	6H159201	1.10
10	BRAKE DIAL	6M732904	7.70
11	BRAKE DIAL LEAF SP	6J886201	2.20
12	SET PLATE	6M739201	52.80
13	MAGNET HOLDER	6M739301	26.40
14	SET PLATE SC (A)	6H666002	2.20
15	SET PLATE SC (B)	6G939303	2.20
16	MAGNET HOLDER RING	6G757801	2.20
17	LS BEARING W (A)	63757404	1.10
18	LS BEARING W (B)	63757411	1.10
19	LS BEARING W (C)	6G185101	1.10
20	LS BALL BEARING	6G511506	15.40
21	LS BEARING O-RING	6G703201	1.10
22	LS BEARING RING	6F032201	2.20
23	SPOOL HOLDER SP RETAINER	63208002	2.20
24	SPOOL HOLDER SP/W	6J497001	1.10
25	SPOOL HOLDER SP (A)	6M169901	2.20
26	SPOOL HOLDER SP COLLAR	6M299301	3.30
27	SPOOL HOLDER SP (B)	6M458601	2.20
28	SPOOL HOLDER	6N004301	29.70
29	SPOOL HOLDER COLLAR	6M169601	2.20
30	SPOOL HOLDER W (A)	6J497002	2.20
31	SPOOL HOLDER W (B)	6E096506	1.10
33	SPOOL HOLDER PIN	6M169301	2.20
34	SPOOL PIN	6J252301	2.20
35	SPOOL BALL BEARING	6G498511	15.40
36	SPOOL (23-35, 130-131) *Not available	6Z028123	163.90
37	FRAME	6M969001	81.40
38	FRONT COVER	6M673405	13.20
39	FRONT COVER SC	6H294103	2.20
41	CLUTCH LEVER SC	6H005701	2.20
42	CLUTCH LEVER PLATE (R)	6M671001	2.20
43	CLUTCH LEVER PLATE (L)	6M671101	2.20
44	OSCILLATING POST	6M674001	2.20
45	CLUTCH CAM BALL BEARING	6G431008	15.40
46	CLUTCH CAM BEARING COLLAR	6M518401	7.70
47	KICK LEVER PLATE (A)	6M387901	3.30
48	KICK LEVER SP	6M839801	2.20
49	KICK LEVER	6M387701	7.70
50	CLUTCH CAM	6M718601	3.30
52	CLUTCH CAM SC/W (A)	6H159201	1.10
53	CLUTCH CAM SC/W (B)	6F542701	1.10
54	CLUTCH CAM SC	6B360406	2.20
55	KICK LEVER PLATE (B)	6M044101	3.30
56	CLUTCH PLATE	6M672401	3.30
57	KICK LEVER PLATE (B) SC	6B032904	2.20
58	CLUTCH SP	6M672601	2.20
59	PINION + DRIVE GEAR SET	6Z028801	56.10
60	PINION RING	6H160801	2.20
61	PINION BALL BEARING	6G467101	15.40
62	PINION BEARING COLLAR *Cannot be ordered	6J953001	7.70
63	RS PLATE	6M930501	104.50
64	ZERO ADJUSTER O-RING	6J279701	1.10
65	PINION SHAFT	6H159601	3.30
66	ZERO ADJUSTER W (A)	6H161001	1.10
67	ZERO ADJUSTER W (B)	6B175503	1.10
68	ZERO ADJUSTER	6J279601	18.70
69	RS PLATE SC (A)	6B557622	2.20
70	RS PLATE SC (B)	6B557620	2.20
71	WORM SHAFT RETAINER	63205901	2.20
72	WORM SHAFT W	6B411702	1.10
73	WORM SHAFT COLLAR	6G720001	2.20
74	LEVEL WIND	6M681001	58.30
75	LEVEL WIND PIN	6J740201	3.30
76	POLE	6M454101	3.30
77	POLE W	6M161301	1.10
78	LEVEL WIND O-RING	6G252202	1.10
79	WORM SHIELD	6M673001	3.30
80	WORM SHAFT	6J243601	8.80
81	WORM SHAFT COLLAR	6G720001	2.20
82	WORM SHAFT GEAR	6M672901	4.40
83	WORM SHAFT GEAR RETAINER	6B339801	2.20
86	GEAR SHAFT W	6G099801	1.10
87	GEAR SHAFT RETAINER	63208002	2.20
88	GEAR SHAFT BALL BEARING	6G466202	8.80
89	GEAR SHAFT PLATE	6M454001	3.30
90	GEAR SHAFT PLATE SC	6G297002	2.20
91	WORM GEAR	6J281001	7.70
92	GEAR SHAFT	6M732301	24.20
93	GEAR SHAFT O-RING	6F657801	1.10
94	RATCHET	6M673101	3.30
95	DRIVE GEAR W (A)	6M336501	1.10
96	DRIVE GEAR W (B)	6H247209	6.60
97	PINION + DRIVE GEAR SET	6Z028801	56.10
98	DRAG W (1 piece)	6J517101	12.10
101	DRIVE COLLAR	6M337001	15.40
102	DRIVE COLLAR SP	6M025201	2.20
103	DRIVE COLLAR PIN	6J566201	2.20
104	CLUTCH RING O-RING	6H452801	1.10
105	CLUTCH RING	6J327701	8.80
106	HANDLE BALL BEARING	6B861705	8.80
107	HANDLE BEARING W	6B553803	1.10
108	DRAG HOLDER	6F028203	3.30
109	DRAG HOLDER LEAF SP	6F032401	2.20
110	DRAG SP・W	61508901	2.20
111	DRAG NUT W	6H929501	2.20
112	STAR DRAG NUT	6J141001	7.70
113	STAR DRAG SP	6J011901	2.20
114	STAR DRAG	6J140004	27.50
116	HANDLE W	6M422101	1.10
117	HANDLE	6M739601	118.80
118	HANDLE NUT	6G793309	4.40
119	HANDLE CAP	6J625401	4.40
120	HANDLE CAP SC	6G835505	2.20
121	TOP COVER	6M732101	19.80
122	TOP COVER HOLD SEAL	6M878101	2.20
124	TOP COVER SC COLLAR	6M047801	2.20
125	TOP COVER SC (A)	6H531509	2.20
126	TOP COVER PIN	6M751401	2.20
127	ONE-WAY CLUTCH	6G819801	20.90
128	KICK LEVER PLATE (A) SP	6H928801	2.20
129	KICK LEVER PLATE (A) PIN	6J055201	2.20
130	SPOOL HOLDER O-RING	6H770601	1.10
131	SPOOL BEARING O-RING	6M426701	1.10
132	TOP COVER SC (B)	6H842810	2.20
133	FRONT COVER SC COLLAR	6M047801	2.20
134	STOPPER PIN	6M003401	2.20
135	STOPPER	6H270401	8.80
136	CLUTCH RING COLLAR	6J640603	2.20
137	CLUTCH CAM BEARING O-RING	6M639101	2.20
200	HANDLE KNOB W	6B411703	1.10
201	HANDLE KNOB SP・W	6H744801	1.10
202	HANDLE KNOB	6M604401	26.40
203	HANDLE KNOB BALL BEARING	6G469005	8.80
204	HANDLE KNOB COLLAR	6G720001	2.20
205	HANDLE KNOB SC	6B679308	2.20
206	HANDLE KNOB CATCH	6M604603	6.60
