[ABU] Genuine Spare Parts for 25 NEO-3way 7-L Product code: 1640997 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- An additional US$5.00 commission will be charged.
* Please select "+US$5.00 for Genuine Parts" for the commission in STEP 2 on the order screen.

- All back-ordered items require approximately 3 to 4 weeks to be prepared for shipment.

- We do not accept order cancellations, changes, or refunds after an order is placed. (This is because SHIMANO / DAIWA / ABU JAPAN do not accept cancellations.)

- Please note that this does not guarantee that the manufacturer has the item in stock.

- If the ordered part is not available from the manufacturer and the delivery date is undetermined, the order will be canceled.

- When ordering multiple parts, if some items are unavailable, only the parts that are in stock will be prepared and supplied.


* Please make sure to read the conditions carefully before placing your order.

In-Stock Abu Garcia Genuine Parts

By clicking the banner below, you can purchase Abu Garcia genuine spare parts that are currently in stock.

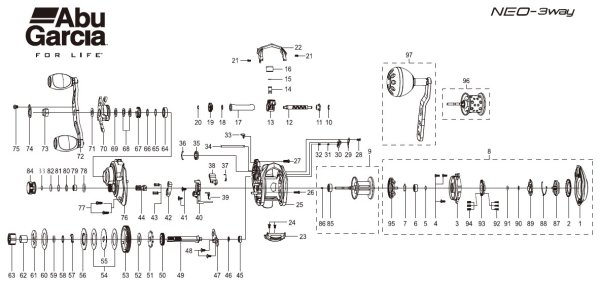

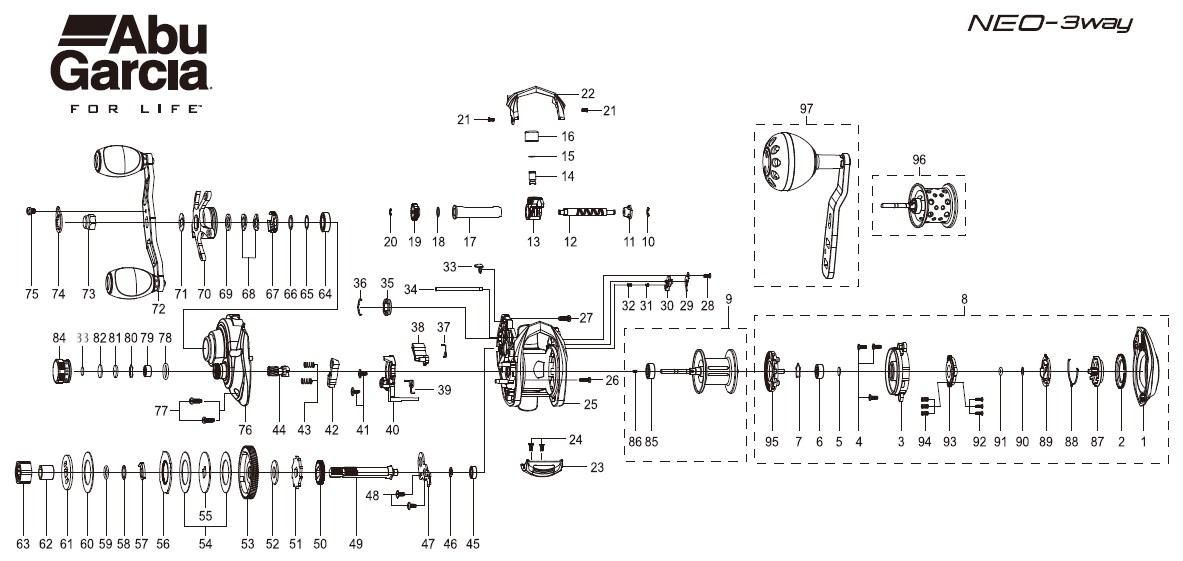

Reel Part's Schematic Diagram

Schematic Number	Part Number	Part Name	Price (USD)
1	1642227	PALM SIDE COVER	24.20
2	1601956	TRIM RING	4.40
3	1590505	SPOOL COVER	5.50
4	1590506	TAP SCREW	3.30
5	1590508	WASHER	3.30
6	1601957	BALL BEARING	11.00
7	1590510	RING	3.30
8	1603419	PALM SIDE COVER UNIT	42.90
9	1603421	SPOOL ASSEMBLY	35.20
10	1590519	RETAINER	4.40
11	1590520	BUSH	12.10
12	1590524	WORM SHAFT	6.60
13	1601865	LEVEL WIND ASSY	15.40
14	1601866	LEVEL WIND PIN	7.70
15	1590529	WASHER	3.30
16	1590530	NUT	3.30
17	1590522	PIPE	3.30
18	1590523	WASHER	3.30
19	1590525	WORM PINION	3.30
20	1601867	RETAINER	4.40
21	1590531	SCREW	3.30
22	1642228	FRONT SUPPORT	7.70
23	1601907	THUMB BAR	7.70
24	1590538	TAP SCREW	3.30
25	1642229	FRAME	22.00
26	1590548	TAP SCREW	3.30
27	1590549	TAP SCREW	3.30
28	1590517	COIL SPRING	3.30
29	1590516	PIN	4.40
30	1590515	LEVER	3.30
31	1590514	PLATE	4.40
32	1590513	TAP SCREW	3.30
33	1601872	LINE STOPPER	3.30
34	1590527	PILLAR	3.30
35	1642221	LINE MEMORY KNOB	4.40
36	1590535	CLICK SPRING	3.30
37	1590539	SPRING	3.30
38	1601909	KICK LEVER	12.10
39	1590541	SPRING	3.30
40	1590542	CLUTCH CAM	5.50
41	1590537	TAP SCREW	3.30
42	1590543	CLUTCH	3.30
43	1603423	COIL SPRING	7.70
44	1603425	PINION	15.40
45	1590556	BALL BEARING	13.20
46	1590557	RETAINER	3.30
47	1601880	BEARING PLATE	4.40
48	1590560	SCREW	3.30
49	1601911	GEAR METAL	19.80
50	1590561	GEAR	3.30
51	1601882	RATCHET	6.60
52	1590563	WASHER	3.30
53	1601984	DRIVE GEAR	33.00
54	1601884	DRAG DISC-A	7.70
55	1601885	DRAG D WASHER	4.40
56	1601987	WASHER-A	7.70
57	1601913	CLICK SPRING	6.60
58	1590570	WASHER	3.30
59	1601888	0-RING	3.30
60	1601889	DRAG DISC-A	8.80
61	1601890	WASHER-D	4.40
62	1601891	BUSH	6.60
63	1601892	ONE WAY CLUTCH ASSY	18.70
64	1590569	BALL BEARING	15.40
65	1601893	WASHER	3.30
66	1590570	WASHER	3.30
67	1590572	LEAF SPRING ASSY	4.40
68	1590573	SPRING WASHER	3.30
69	1601894	DU WASHER	7.70
70	1642230	STAR DRAG ASSY	28.60
71	1590575	WASHER	3.30
72	1602275	HANDLEASSY	70.40
73	1601925	RETAINER	4.40
74	1601915	NUT	5.50
75	1601899	SCREW	3.30
76	1642231	GEAR SIDE COVER	28.60
77	1590549	TAP SCREW	3.30
78	1590550	0-RING	3.30
79	1590551	BEARING	3.30
80	1590552	RING	3.30
81	1590508	WASHER	3.30
82	1601901	COLLAR	3.30
83	1601902	WASHER	3.30
84	1642224	TENSION KNOB	12.10
85	1602282	BALL BEARING	16.50
86	1601950	PIN	3.30
87	1602283	CONTROL DIAL	4.40
88	1602284	LEAF SPRING	3.30
89	1602285	SLIDE CAM-A	3.30
90	1602286	WASHER	3.30
91	1602287	0-RING	3.30
92	1602288	TAP SCREW	3.30
93	1602289	SLIDE CAM	3.30
94	1602290	COIL SPRING	3.30
95	1602291	MAGNET HOLDER ASSY	5.50
96	1642232	SPARE SPOOL	38.50
97	1642226	SPARE HANDLE	49.50

* Items Marked “For Repair Use Only” Are Not Available for Individual Parts Sales

Order Flow

(STEP 1: Customer)
Please add the ordered parts from the parts list to your cart and complete the payment together with the Commission for [SHIMANO / DAIWA / ABU] Back-order Genuine Parts (US$5.00).
↓
(STEP 2: Our Shop)
We review your order details and place the order with the manufacturer.
↓
(STEP 3: Manufacturer)
Only for parts that are not in stock, we will receive a notification from the manufacturer approximately one week later.
Parts that are in stock will arrive at our shop in about one month.
* If all ordered parts are in stock, there will be no notification from the manufacturer or our shop until the shipment is dispatched. Please wait until shipping.
↓
(STEP 4: Our Shop)
Once the parts arrive from the manufacturer, we will dispatch your order.

* Please note that it generally takes about one month for genuine spare parts to arrive.
* If you order both back-ordered items and in-stock items together, they will be shipped together after all back-ordered items arrive.
* If you would like to receive in-stock items first, please place and pay for each order separately.

* The parts list pages will be expanded gradually.
If the parts list for your reel is not yet available, please place your order by manually entering the details using the order form below.

Genuine Spare Parts Order Form
https://www.hedgehog-studio.co.jp/phone/form/parts

Regarding What You Can and Cannot Order for the Spare Parts

We source and provide genuine spare parts for SHIMANO / DAIWA / ABU reels only from the official Japanese websites listed below.
(We cannot assist with translating these websites. Please use Google Translate or other translation tools if necessary.)

| Parts that CANNOT be Ordered

- Spare parts for certain reel models (mainly older models) marked as “Unrepairable” on the SHIMANO website.

https://www.shimanofishingservice.jp/price.php

- Spare parts marked as “Just for Repair,” “Suspended,” or “Discontinued” on the DAIWA website.

http://www.sl-planets.co.jp/shop/c/

- Spare parts that do not have a part number or part code shown in the schematic diagrams on the SHIMANO / DAIWA websites.

- Spare parts marked as “For Repair Only” on the ABU website.

https://pfj-parts.com/
Please note that even for discontinued ABU reel models, parts may still be ordered if stock is available.

- Parts other than reel-related spare parts, such as rods or other fishing gear.
