  4. > [SHIMANO] Genuine Spare Parts for 26 Stile 101HG Product code: 050267 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 26 Stile 101HG Product code: 050267 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 26 Stile 101HG Product code: 050267 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

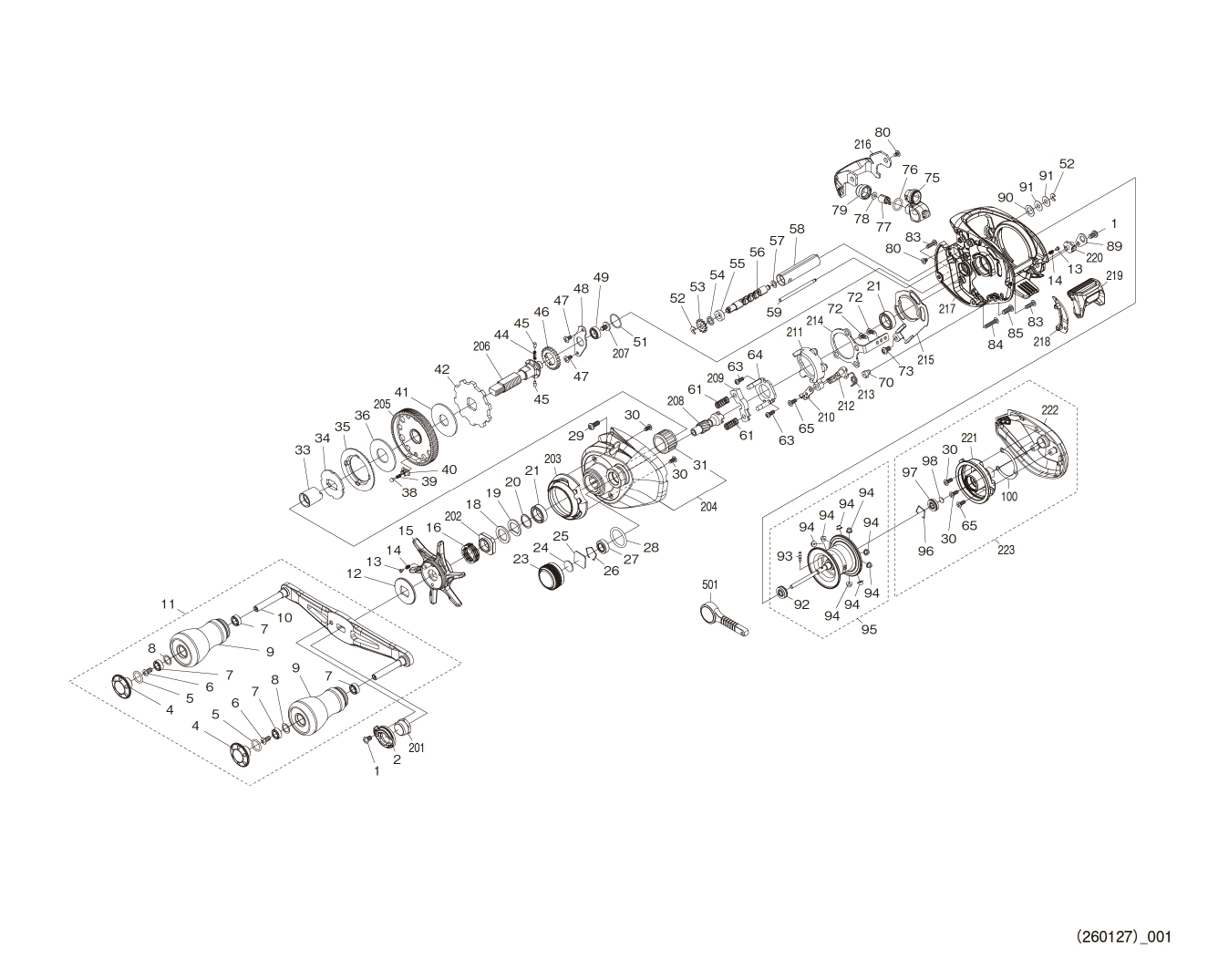

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* As for the "31 / ROLLER CLUTCH", "93 /SPOOL CLUTCH PIN" and "92 /BALL BEARING", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 10DN7 SET SCREW 1.65
2 1017T RETAINER 3.85
4 148KU HANDLE CAP 11.00
5 10LAA O-RING 1.10
6 103E9 SET SCREW 1.10
7 104VX BALL BEARING (4X7X2.5) 13.75
8 104FH WASHER 2.20
9 14BK1 HANDLE KNOB ASSEMBLY 20.35
10 14BJT HANDLE SHAFT ASSEMBLY 47.30
11 14BK2 HANDLE ASSEMBLY 116.60
12 101JC STAR DRAG CLICK PLATE 1.65
13 10B27 CLICK PIN 1.65
14 10988 CLICK SPRING 1.65
15 148MC STAR DRAG 20.35
16 10A78 STAR DRAG SPRING 2.75
18 10J1N STAR DRAG SPACER 1.65
19 10D60 MAIN GEAR WASHER (C) 1.65
20 10EFM STAR DRAG BEARING WASHER 1.65
21 10EX8 BALL BEARING (8X12X3.5) 13.75
23 148M3 MECHANICAL BRAKE KNOB 20.35
24 10896 MECHANICAL BRAKE WASHER 1.10
25 1085F MECHANICAL BRAKE WASHER 1.10
26 1057X RETAINING CLIP 1.65
27 105BR BALL BEARING (5X9X3) 13.75
28 10LA9 O-RING 1.65
29 10SMM SET SCREW 1.10
30 1055J SET SCREW 1.65
31 10TM8 ROLLER CLUTCH *Cannot be ordered 17.05
33 10RZH ROLLER CLUTCH INNER TUBE 9.90
34 10D55 STAR DRAG PLATE 6.05
35 10JB0 DRAG CLICK RATCHET 2.75
36 10CKS STAR DRAG WASHER 6.05
38 10C0T DRAG CLICK PIN 2.75
39 10J8A DRAG CLICK SPRING 1.65
40 10J87 DRAG SPRING HOLDER 1.65
41 10CJ4 STAR DRAG WASHER (A) 3.85
42 10R5Z STOPPER GEAR 2.75
44 10JDX SPRING FOR WORM SHAFT GEAR 1.65
45 10HJF PIN FOR WORM SHAFT GEAR 1.65
46 10EE3 WORM SHAFT GEAR 1.10
47 10MT2 SET SCREW 1.10
48 10RZG DRIVE GEAR SHAFT RETAINING PLATE 1.65
49 104JZ BALL BEARING (5X8X2.5) 13.75
51 10SZ4 O-RING 1.65
52 105NC TYPE E RETAINING RING 2 1.10
53 10EEL WORM SHAFT GEAR 1.10
54 10J1J WASHER 1.10
55 10PXY HANDLE GRIP BUSHING (B) 1.65
56 10EET WORM SHAFT 2.75
57 10GHF WASHER 1.10
58 10NFW LEVEL WIND PIPE 1.65
59 10RZL LEVEL WIND ROD 3.30
61 104BJ CLUTCH YOKE SPRING 1.10
63 10LVH CLUTCH CAM SET SCREW 1.10
64 10EE6 CLUTCH CAM SUPPORT PLATE 8.80
65 10559 SET SCREW 1.65
70 10EDY CLUTCH SPRING HOLDER 1.10
72 101LH SET SCREW 1.10
73 10DSZ SET SCREW 1.10
75 10NYH LEVEL WIND ASSEMBLY 22.55
76 108WQ O-RING 1.65
77 100BT WORM SHAFT PIN 2.75
78 10CFV WASHER 1.10
79 10FJB LEVEL WIND BRACKET 1.65
80 10S2Y SET SCREW 1.10
83 1055A SET SCREW 1.65
84 10TGT SET SCREW 1.10
85 103DF SET SCREW 1.10
89 10BGQ MAIN UNIT B CAM LEVER SUPPORT PLATE 1.65
90 10J4L WASHER 1.10
91 144QV WASHER 1.10
92 104VP BALL BEARING (4X8X3) *Cannot be ordered 13.75
93 10MCZ SPOOL CLUTCH PIN *Cannot be ordered 2.75
94 13SFV BRAKE COLLAR (M) RED 1.10
95 14BJY SPOOL ASSEMBLY 107.80
96 10GEW BEARING RETAINER 1.10
97 13RQS BALL BEARING (3X10X4) 13.75
98 1057Q SPOOL SHAFT STOP (B) 1.10
100 148KH WASHER 1.10
201 148MF HANDLE LOCK NUT 8.80
202 10EEG STAR DRAG LOCK NUT 4.40
203 10RZF MAIN BODY A NAMEPLATE 3.85
204 14EHE MAIN BODY A ASSEMBLY 68.20
205 10EEE DRIVE GEAR 24.75
206 148M9 DRIVE GEAR SHAFT 12.65
207 10PVU SET SCREW 1.65
208 10RZC PINION GEAR 17.05
209 10EE4 CLUTCH YOKE 1.10
210 10RWF CLUTCH PAWL (B) 1.65
211 10SKS CLUTCH CAM 2.75
212 10RWC CLUTCH PAWL (A) 1.65
213 101A6 CLUTCH PAWL SPRING 1.65
214 10RZN CLUTCH PLATE 2.20
215 10EEC MAIN UNIT A SHEET 1.10
216 148LM LEVEL WIND GUARD 16.50
217 14BK5 FRAME ASSEMBLY 174.90
218 10EE2 CLUTCH LEVER MOUNT 1.10
219 14BK6 CLUTCH LEVER ASSEMBLY 11.00
220 10BAV MAIN UNIT B CAM LEVER 2.75
221 14BK7 FRAME B MOUNT ASSEMBLY 39.60
222 148KW MAIN UNIT B 39.05
223 14BK8 MAIN UNIT B ASSEMBLY 90.20
501 10NC0 REEL WRENCH 1.65
