[SHIMANO] Genuine Spare Parts for 26 Stile 100HG Product code: 050250 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 26 Stile 100HG Product code: 050250 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

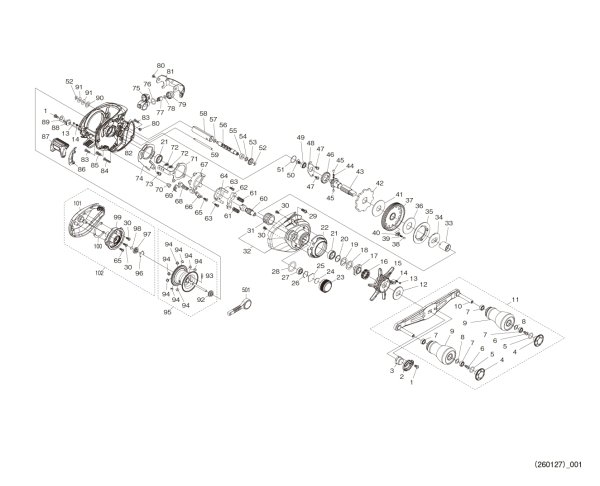

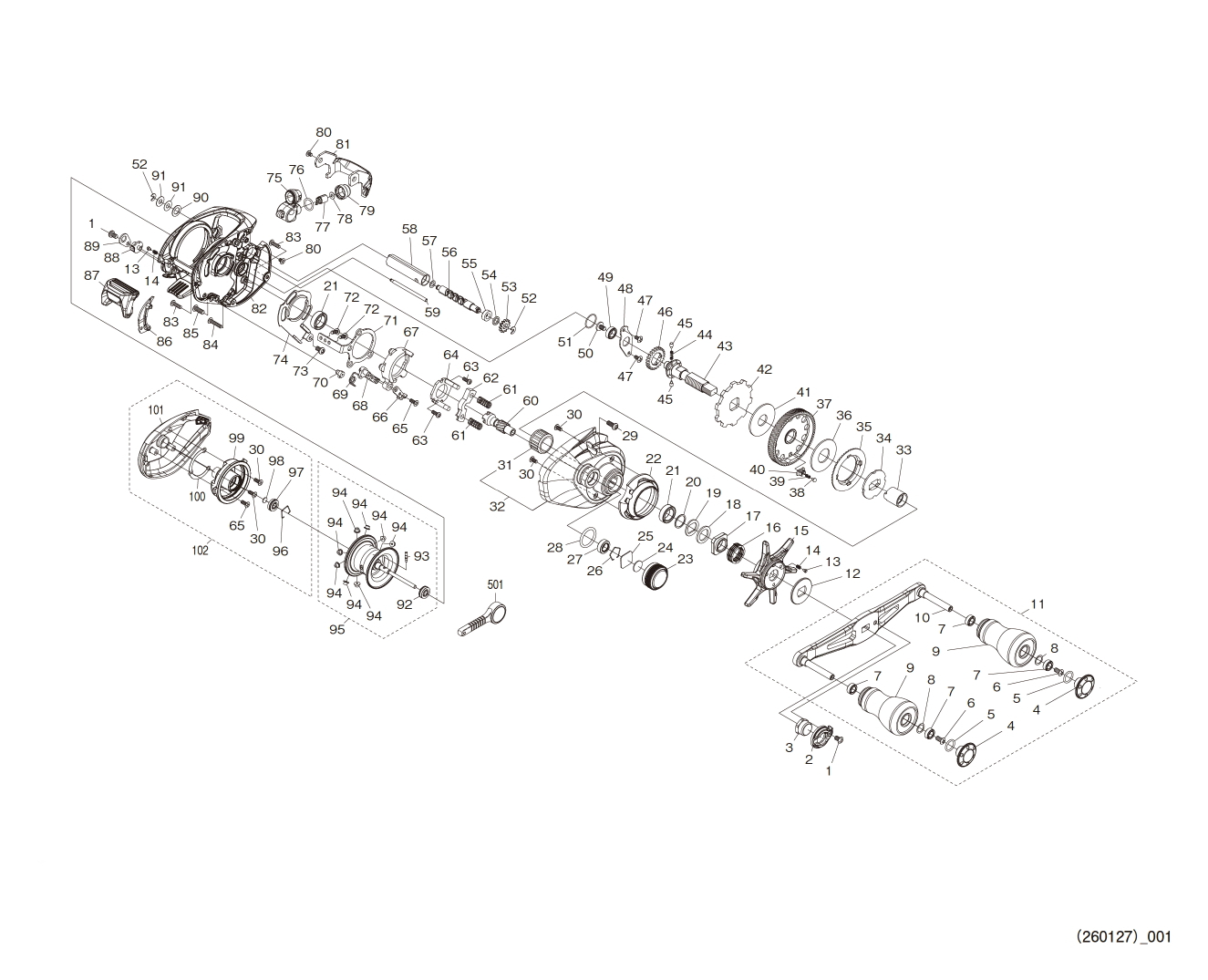

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* As for the "31 / ROLLER CLUTCH", "93 /SPOOL CLUTCH PIN" and "92 /BALL BEARING", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 10DN7 SET SCREW 1.65
2 1017T RETAINER 3.85
3 148ME HANDLE LOCK NUT 8.80
4 148KU HANDLE CAP 11.00
5 10LAA O-RING 1.10
6 103E9 SET SCREW 1.10
7 104VX BALL BEARING (4X7X2.5) 13.75
8 104FH WASHER 2.20
9 14BK1 HANDLE KNOB ASSEMBLY 20.35
10 14BJT HANDLE SHAFT ASSEMBLY 47.30
11 14BK2 HANDLE ASSEMBLY 116.60
12 101JC STAR DRAG CLICK PLATE 1.65
13 10B27 CLICK PIN 1.65
14 10988 CLICK SPRING 1.65
15 148MC STAR DRAG 20.35
16 10A78 STAR DRAG SPRING 2.75
17 10EDV STAR DRAG LOCK NUT 4.40
18 10J1N STAR DRAG SPACER 1.65
19 10D60 MAIN GEAR WASHER (C) 1.65
20 10EFM STAR DRAG BEARING WASHER 1.65
21 10EX8 BALL BEARING (8X12X3.5) 13.75
22 10EE9 MAIN UNIT A NAMEPLATE 3.85
23 148M3 MECHANICAL BRAKE KNOB 20.35
24 10896 MECHANICAL BRAKE WASHER 1.10
25 1085F MECHANICAL BRAKE WASHER 1.10
26 1057X RETAINING CLIP 1.65
27 105BR BALL BEARING (5X9X3) 13.75
28 10LA9 O-RING 1.65
29 10SMM SET SCREW 1.10
30 1055J SET SCREW 1.65
31 10TM8 ROLLER CLUTCH *Cannot be ordered 17.05
32 14EHD MAIN UNIT A ASSEMBLY 68.20
33 10RZH ROLLER CLUTCH INNER TUBE 9.90
34 10D55 STAR DRAG PLATE 6.05
35 10JB0 DRAG CLICK RATCHET 2.75
36 10CKS STAR DRAG WASHER 6.05
37 10RZE DRIVE GEAR 24.75
38 10C0T DRAG CLICK PIN 2.75
39 10J8A DRAG CLICK SPRING 1.65
40 10J87 DRAG SPRING HOLDER 1.65
41 10CJ4 STAR DRAG WASHER (A) 3.85
42 10R5Z STOPPER GEAR 2.75
43 148M8 DRIVE GEAR SHAFT 12.65
44 10JDX SPRING FOR WORM SHAFT GEAR 1.65
45 10HJF PIN FOR WORM SHAFT GEAR 1.65
46 10EE3 WORM SHAFT GEAR 1.10
47 10MT2 SET SCREW 1.10
48 10RZG DRIVE GEAR SHAFT RETAINING PLATE 1.65
49 104JZ BALL BEARING (5X8X2.5) 13.75
50 10PVT SET SCREW 1.65
51 10SZ4 O-RING 1.65
52 105NC E-TYPE RETAINING RING 2 1.10
53 10EEL WORM SHAFT GEAR 1.10
54 10J1J WASHER 1.10
55 10PXY HANDLE GRIP BUSHING (B) 1.65
56 10EET WORM SHAFT 2.75
57 10GHF WASHER 1.10
58 10NFW LEVEL WIND PIPE 1.65
59 10RZL LEVEL WIND ROD 3.30
60 10RZS PINION GEAR 17.05
61 104BJ CLUTCH YOKE SPRING 1.10
62 1004W CLUTCH YOKE 1.10
63 10LVH CLUTCH CAM MOUNTING BOLT 1.10
64 10EE6 CLUTCH CAM SUPPORT PLATE 8.80
65 10559 MOUNTING BOLT 1.65
66 10RWM CLUTCH PAWL (B) 1.65
67 10SX6 CLUTCH CAM 2.75
68 10RVS CLUTCH PAWL (A) 1.65
69 10RRB CLUTCH PAWL SPRING 1.65
70 10EDY CLUTCH SPRING HOLDER 1.10
71 10EE7 CLUTCH PLATE 2.20
72 101LH MOUNTING BOLT 1.10
73 10DSZ MOUNTING BOLT 1.10
74 10RZB MAIN BODY A SHEET 1.10
75 10NYH LEVEL WIND ASSEMBLY 22.55
76 108WQ O-RING 1.65
77 100BT WORM SHAFT PIN 2.75
78 10CFV WASHER 1.10
79 10FJB LEVEL WIND BRACKET 1.65
80 10S2Y MOUNTING BOLT 1.10
81 148LL LEVEL WIND GUARD 16.50
82 14BJW FRAME ASSEMBLY 174.90
83 1055A MOUNTING BOLT 1.65
84 10TGT MOUNTING BOLT 1.10
85 103DF MOUNTING BOLT 1.10
86 10EDW CLUTCH LEVER BRACKET 1.10
87 14BJX CLUTCH LEVER ASSEMBLY 11.00
88 10BAU MAIN UNIT B CAM LEVER 2.75
89 10BGQ MAIN UNIT B CAM LEVER SUPPORT PLATE 1.65
90 10J4L WASHER 1.10
91 144QV WASHER 1.10
92 104VP BALL BEARING (4X8X3) *Cannot be ordered 13.75
93 10MCZ SPOOL CLUTCH PIN *Cannot be ordered 2.75
94 13SFV BRAKE COLLAR (M) RED 1.10
95 14BJY SPOOL ASSEMBLY 107.80
96 10GEW BEARING RETAINER 1.10
97 13RQS BALL BEARING (3X10X4) 13.75
98 1057Q SPOOL SHAFT STOP (B) 1.10
99 14BJZ FRAME B BRACKET ASSEMBLY 39.60
100 148KH WASHER 1.10
101 148J0 MAIN BODY B 39.05
102 14BK0 MAIN BODY B ASSEMBLY 90.75
501 10NC0 REEL WRENCH 1.65
